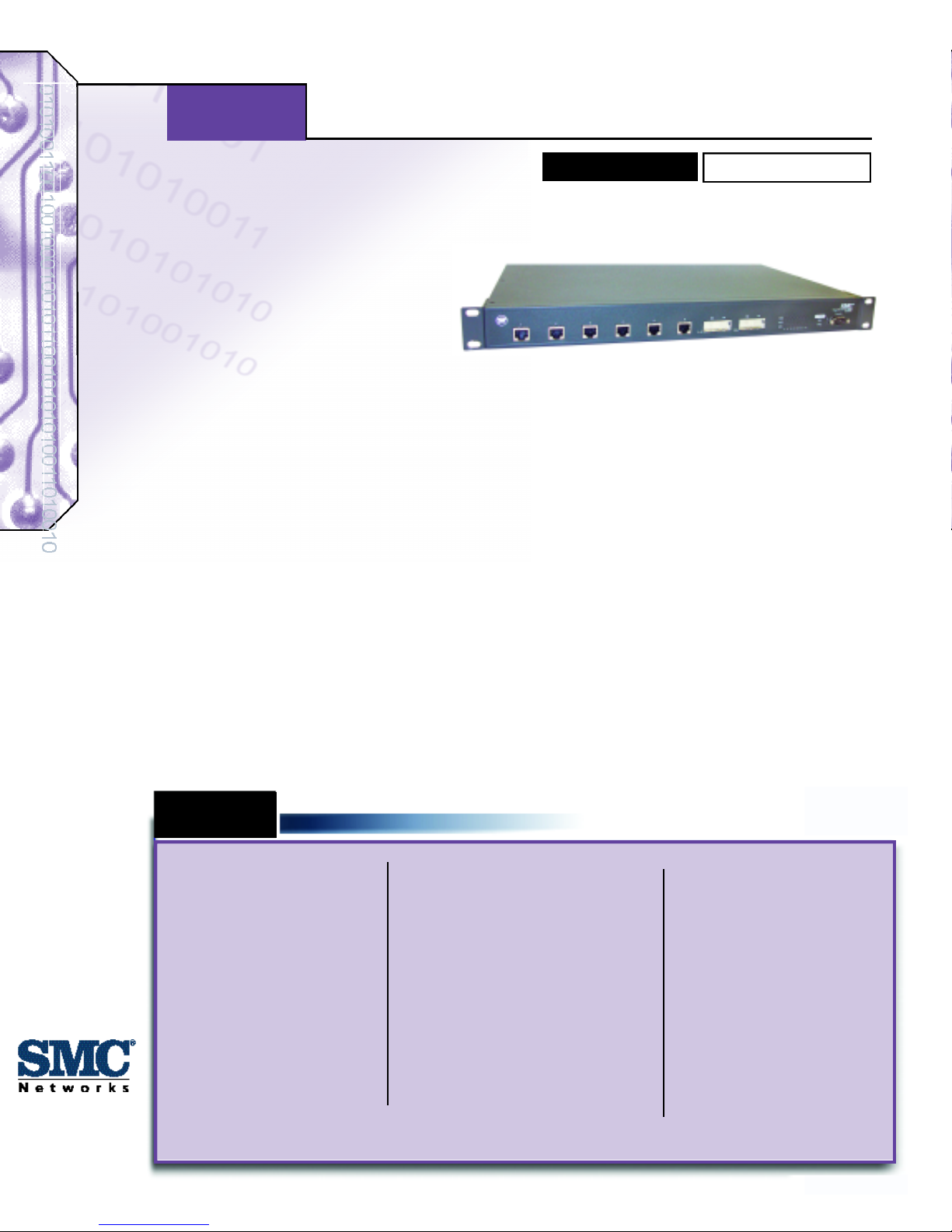

SMC Networks SMC8606T Manuale utente

Overview

AdvancedFeatures

• Easy migration- 6 10/100/1000 ports

Convenient Expansion – Each unit comes

with 2 slots for GBICs for fiber or copper

connections and network expansion

• QoS expedites critical data via prioritizing

and filtering

• MultiLink Trunking creates high-speed data

paths to servers or other switches

• VLAN Support provides port VLANs and GVRP

for auto-registration

• IGMP Snooping reduces multicast traffic for

maximum performance

• Broadcast storm control allows a user-defined

threshold to limit broadcast traffic

Benefits

• EliteView,SMC’s full-features,Windows-based SNMP

management software,included free

• Manage and configure the TigerSwitch 1000

from any Web-browser

•4 group RMON support for detailed monitoring of

network performance

• RS-232 port available for out-of-band direct or

remote management

• Mirror port traffic from any port for easy

troubleshooting

• Spanning Tree protocol creates resilient links for

increased stability

• Optional redundant power unit provides

maximum uptime

Compatibility

• IEEE 802.3 Ethernet

• IEEE 803.3u Fast Ethernet

• IEEE 803.3z Gigabit Ethernet

• IEEE 802.1d Spanning Tree Protocol and

traffic priorities

• IEEE 802.1P Priority Tags

• IEEE 802.1Q VLAN

• IEEE 802.3ab Gigabit

• IEEE 802.3ac VLAN Tagging

• IEEE 802.3x Full-duplex flow control

• IEC 8802-3

• SNMP(RFC 1157),RMON (RFC 1757),ARP

(RFC 826),

• IGMP (RFC 1112),MIB II (RFC 1213),

Ethernet-like MIB

• (RFC 1643), Bridge MIB (RFC 1493)

TheTigerSwitch 1000 makes gigabit affordable by pro-

viding 6 Auto-MDIX10/100/1000 BASE-T ports,and 2

hot-swappable GBIC slots for fiber connectivity.

Without rewiring your existing network, SMC8606T

brings gigabit connections for bandwidth starved

workstations, workgroups, and servers. It is a worthy

investment for the long run.

SMC8606T delivers non-blocking switching perform-

ance, with advance features like Quality of Service,

VLAN support,MultiLinkTrunking to provide maximum

performance benefits while maintaining security and

reducing network problems. Spanning Tree support,

redundant power lower the total cost of ownership.

SNMP, RMON and a full-featured Web based the

TigerSwitch 1000 is further backed by a comprehen-

sive limited lifetime warranty and SMC’s award winning

free technical support.

Model Number::

TigerSwitchTM 1000

6-Port Gigabit 10/100/1000 Managed Standalone L2 Switch

SMC8606T

Switches/Hubs

6 H u g h e s

Irvine, CA 92618

1-800-SMC-4YOU

www.smc.com

SMC8606T

Switches/Hubs

Ports

• 6 10/100/1000BASE-T ports

• 2 GBIC slots for media expansion

NetworkInterface

• 10BASE-T:RJ-45 UTP Cat. 3,4,5

• 100BASE-TX:RJ-45 UTP Cat.5

• 1000BASE-T:RJ-45 UTP Cat.5

BufferArchitecture

• 2Mbps per 1000Mbps port

Aggregatedbandwidth

• 16Gbps

SwitchingDatabase

• 8K MAC address entries

LEDs

• System (power,RPU, Diag.)

• Port (full duplex,activity)

• Link (speed,link,disable/partition)

Weight

• 10.14 Lbs (4.6Kg)

Size

• 17.37x 11.22 x 1.69 in

Temperature

• Operating:32 – 122F

• Storage:-40 – 158 F

Humidity

• Operating 5% to 95%

(non-condensing)

ACInput

• 100 to 240V ,50-60 Hz

PowerSupply

• Internal,auto-ranging transformer:

100 to 240VAC,50-60 Hz

Redundant DC input

PowerConsumption

• 70W Max.

HeatDissipation

• 239 BTU/hr

MaximumCurrent

• 0.5A @ 110VAC,0.7 A @ 240VAC

MTBF

• 6 years (estimated)

SwitchFeatures

• Spanning Tree Protocol

• Forwarding Mode

• Store-and-forward

• Flow Control

• Full Duplex:IEEE802.3x

• Half Duplex:back pressure

• VLAN Support

• Up to 256 groups; port-based or

with 802.1Q

• VLAN tagging,GVRP for automatic

VLAN learning (future support)

• Quality of Service

• Supports two levels of priority and

weighted fair queueing

• Broadcast storm control

• Link Aggregation

• Port Mirroring

ManagementFeatures

• In-Band Management

•Telnet,SLIP,Web-based HTTP,or

SNMP manager

• Out-of-Band Management

• RS-232 DB-9 console port

• Software Loading

•TFTP in-band or Xmodem out-of-band

• MIB Support

• MIB II (RFC 1213), Bridging MIB (RFC

1493),Ethernet-Like MIB (RFC 1643),

RMON MIB (RFC 1757),SMC’s private

MIB

• RMON Support

• Groups 1,2,3,9 (Statistics,History,

Alarm,Event)

Standards

• IEEE802.3 Ethernet, IEEE802.3u

Fast Ethernet,

• IEEE802.1D Spanning Tree Protocol

and traffic priorities,

• IEEE802.1Q VLAN

• IEEE802.1P priority tags

• IEEE802.3x full-duplex flow control

• IEEE802.3z Gigabit Ethernet

• IEEE802.3ab Gigabit Ethernet

• SNMP (RFC 1157),RMON (RFC 1757),

ARP (RFC826),IGMP (RFC 1112),MIB II

(RFC 1213),Ethernet-like MIB (RFC

1643),Bridge MIB (RFC 1493)

Compliances

• CE Mark

• Emissions

FCC Class A

Industry Canada Class A

EN55022 (CISPR 22) Class A

VCCI A

C-Tick – AS/NZS 3548 (1995) Class A • Immunity

• IEC 1000 – 4 –2/3/4/6

• Safety

CSA/NRTL (CSA22.2.2950 & UL

1950),EN60950 (TUV/GS)

Warranty

• Limited Lifetime

SMC8606T 6-Port Gigabit 10/100/1000 Managed Switch with GBIC’s Uplinks

SMCBGSSCX1 1-Port multi-mode 1000BASE-SX 850nm GBIC transceiver

SMCBGLSCX1 1-Port single-mode 1000BASE-LX 1310nm GBIC transceiver

SMCRPU150W Redundant Power Supply

Product Description

TigerSwitchTM 1000

6-Port Gigabit 10/100/1000 Managed Standalone L2 Switch
