USER GUIDE

SMC2890W-AG /

SMC2891W-AG

Elite Connect™

802.11a/g Outdoor Enterprise Access Point

20 Mason,

Irvine, CA 92618

Phone: (949) 679-8000

EliteConnect

™

SMC2890W-AG and

SMC2891W-AG Universal 2.4GHz/

5GHz Wireless Dual-Band Outdoor

Access Point

The easy way to make all your network connections

February 2007

Revision Number: R01

F1.0.0.1

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable.

However, no responsibility is assumed by SMC for its use, nor for any infringements of patents

or other rights of third parties which may result from its use. No license is granted by

implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to

change specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EliteConnect is a trademark of SMC Networks, Inc. Other

product and company names are trademarks or registered trademarks of their respective

holders.

Compliances

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment. This

device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled

environment. This equipment should be installed and operated with a minimum distance

of 20 centimeters (8 inches) between the radiator and your body. This transmitter must

not be co-located or operating in conjunction with any other antenna or transmitter.

Wireless 5 GHz Band Statement:

As the access point can operate in the 5150-5250 MHz frequency band it is limited by the

FCC, Industry Canada and some other countries to indoor use only so as to reduce the

potential for harmful interference to co-channel Mobile Satellite systems.

High power radars are allocated as primary users (meaning they have priority) of the

5250-5350 MHz and 5650-5850 MHz bands. These radars could cause interference and/

or damage to the access point.

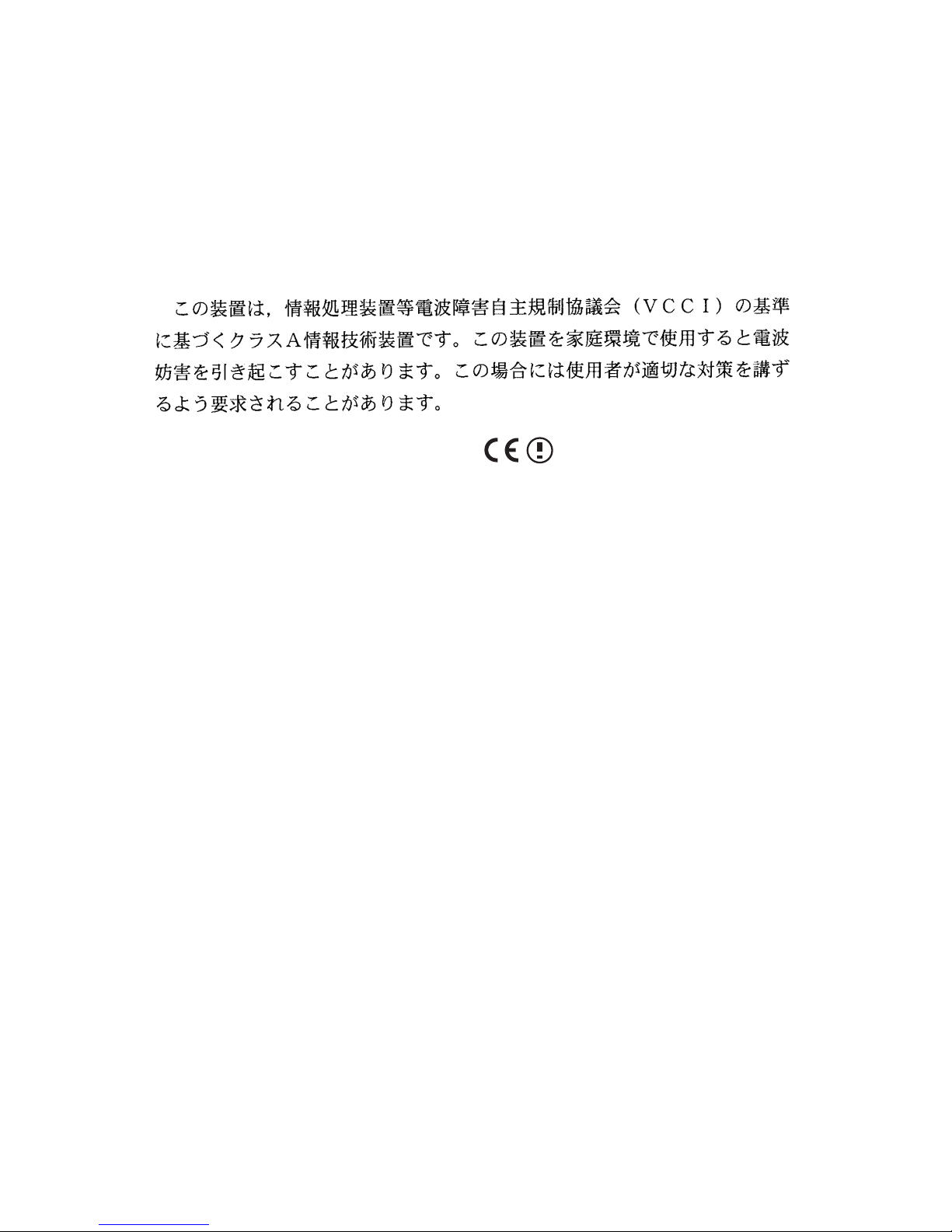

VCCI Notice

This is a class A product based on the standard of the Voluntary Control Council for

Interference by Information Technology Equipment (VCCI). If this equipment is used in a

domestic environment, radio disturbance may arise. When such trouble occurs, the user

may be required to take corrective actions.

EC Conformance Declaration

Marking by the above symbol indicates compliance with the Essential Requirements of

the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the

following conformance standards:

• EN 60950 (IEC 60950) - Product Safety

• EN 301 893 - Technical requirements for 5 GHz radio equipment

• EN 300 328 - Technical requirements for 2.4 GHz radio equipment

• EN 301 489-1 / EN 301 489-17 - EMC requirements for radio equipment

Countries of Operation & Conditions of Use in the European

Community

This device is intended to be operated in all countries of the European Community.

Requirements for indoor vs. outdoor operation, license requirements and allowed

channels of operation apply in some countries as described below:

Note:

The user must use the configuration utility provided with this product to ensure the

channels of operation are in conformance with the spectrum usage rules for

European Community countries as described below.

• This device requires that the user or installer properly enter the current country of

operation in the command line interface as described in the user guide, before operating

this device.

• This device will automatically limit the allowable channels determined by the current

country of operation. Incorrectly entering the country of operation may result in illegal

operation and may cause harmful interference to other system. The user is obligated to

ensure the device is operating according to the channel limitations, indoor/outdoor

restrictions and license requirements for each European Community country as

described in this document.

iii

• This device employs a radar detection feature required for European Community

operation in the 5 GHz band. This feature is automatically enabled when the country of

operation is correctly configured for any European Community country. The presence of

nearby radar operation may result in temporary interruption of operation of this device.

The radar detection feature will automatically restart operation on a channel free of

radar.

• The 5 GHz Turbo Mode feature is not allowed for operation in any European Community

country. The current setting for this feature is found in the 5 GHz 802.11a Radio Settings

Window as described in the user guide.

• The 5 GHz radio's Auto Channel Select setting described in the user guide must always

remain enabled to ensure that automatic 5 GHz channel selection complies with

European requirements. The current setting for this feature is found in the 5 GHz

802.11a Radio Settings Window as described in the user guide.

• This device may be operated indoors or outdoors in all countries of the European

Community using the 2.4 GHz band: Channels 1 - 13, except where noted below.

- In Italy the end-user must apply for a license from the national spectrum authority to

operate this device outdoors.

- In Belgium outdoor operation is only permitted using the 2.46 - 2.4835 GHz band:

Channel 13.

- In France outdoor operation is only permitted using the 2.4 - 2.454 GHz band:

Channels 1 - 7

Operation Using 5 GHz Channels in the European Community

The user/installer must use the provided configuration utility to check the current channel

of operation and make necessary configuration changes to ensure operation occurs in

conformance with European National spectrum usage laws as described below and

elsewhere in this document.

Allowed 5GHz Channels in Each European Community Country

Allowed Frequency Bands Allowed Channel Numbers Countries

5.15 - 5.25 GHz* 36, 40, 44, 48 Austria, Belgium

5.15 - 5.35 GHz* 36, 40, 44, 48, 52, 56, 60, 64 France, Switzerland,

Liechtenstein

5.15 - 5.35* & 5.470 - 5.725

GHz 36, 40, 44, 48, 52, 56, 60, 64,

100, 104, 108, 112, 116, 120,

124, 128, 132, 136, 140

Denmark, Finland,

Germany, Iceland,

Ireland, Italy,

Luxembourg,

Netherlands,Norway,

Portugal, Spain,

Sweden, U.K.

Safety Compliance

Power Cord Safety

Please read the following safety information carefully before installing the device:

Warning:

Installation and removal of the unit must be carried out by qualified personnel

only.

• The unit must be connected to an earthed (grounded) outlet to comply with international

safety standards.

• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground)

connection.

• The appliance coupler (the connector to the unit and not the wall plug) must have a

configuration for mating with an EN 60320/IEC 320 appliance inlet.

• The socket outlet must be near to the unit and easily accessible. You can only remove

power from the unit by disconnecting the power cord from the outlet.

• This unit operates under SELV (Safety Extra Low Voltage) conditions according to IEC

60950. The conditions are only maintained ifthe equipment to which it is connected also

operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT†supplies. If your supplies are of IT type, this unit

must be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the

secondary connection point labelled Neutral, connected directly to earth (ground).

†Impédance à la terre

Important! Before making connections, make sure you have the correct cord set. Check

it (read the label on the cable) against the following:

5 GHz Operation Not Allowed None Greece

* Outdoor operation is not allowed using 5.15-5.35 GHz bands (Channels 36 - 64).

Channels 36 - 64 are currently not available for use.

Allowed 5GHz Channels in Each European Community Country

Allowed Frequency Bands Allowed Channel Numbers Countries

Veuillez lire à fond l'information de la sécurité suivante avant d'installer l’appareil:

AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un

personnel qualifié.

• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il

n'y a pas de connexion de mise à la terre (mise à la masse).

• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de

respecter les normes internationales de sécurité.

• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit

respecter une configuration qui permet un branchement sur une entrée d’appareil EN

60320/IEC 320.

• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile.

Vous ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique

au niveau de cette prise.

Power Cord Set

U.S.A. and

Canada The cord set must be UL-approved and CSA certified.

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with

NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V)

configuration.

Denmark The supply plug must comply with Section 107-2-D1, Standard

DK2-1a or DK2-5a.

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be

fitted with a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of

type HO3VVF3GO.75 (minimum).

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

The mains cord must be <HAR> or <BASEC> marked and be of

type HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

• L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à

la norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il

est raccordé fonctionne dans les mêmes conditions.

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos

alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une

tension de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec

un point secondaire de connexion portant l’appellation Neutre et avec raccordement

direct à la terre (masse).

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et

Canada: Le cordon doit avoir reçu l’homologation des UL et un certificat

de la CSA.

Les spécifications minimales pour un cable flexible sont AWG

No. 18, ouAWG No. 16 pour un cable de longueur inférieure à 2

mètres.

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal

d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la

terre (mise à la masse) et respecter la configuration NEMA

5-15P (15 A, 125 V) ou NEMA 6-15P (15 A, 250 V).

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1

de la norme DK2 1a ou DK2 5a.

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE

1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7

(“SCHUKO”)

LE cordon secteur doit porter la mention <HAR> ou <BASEC> et

doit être de type HO3VVF3GO.75 (minimum).

vii

Bitte unbedingt vor dem Einbauen des Geräts die folgenden

Sicherheitsanweisungen durchlesen (Germany):

WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal

erfolgen.

• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen

werden.

• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die

internationalen Sicherheitsnormen erfüllt.

• DerGerätestecker(derAnschluß andasGerät,nichtder Wandsteckdosenstecker)muß

einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.

• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die

Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus

der Netzsteckdose unterbrochen werden.

• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen

(Sicherheitskleinstspannung) gemäß IEC60950.DieseBedingungensindnurgegeben,

wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen

betrieben werden.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SMC Networks Punto di accesso wireless

SMC Networks

SMC Networks WAP5110 Manuale utente

SMC Networks

SMC Networks EZ Connect SMC2652W Manuale utente

SMC Networks

SMC Networks EliteConnect SMC2586W-G Manuale utente

SMC Networks

SMC Networks SMC2552W-G2 Manuale utente

SMC Networks

SMC Networks EliteConnect SMCE21011 Manuale utente

SMC Networks

SMC Networks WAP5110-L Manuale utente

SMC Networks

SMC Networks WEBS-N Manuale utente

SMC Networks

SMC Networks EliteConnect SMC2586W-G Manuale utente

SMC Networks

SMC Networks SMCDPCR-AP Manuale utente

SMC Networks

SMC Networks EliteConnect SMC2555W-AG Manuale utente

SMC Networks

SMC Networks E21011 Manuale utente

SMC Networks

SMC Networks EZ Connect SMCWEB-N Manuale utente

SMC Networks

SMC Networks SMC EZ Connect g SMCWTK-G Manuale utente

SMC Networks

SMC Networks SMC2890W-AN Manuale di programmazione

SMC Networks

SMC Networks 2552W-G FICHE Guida all'installazione

SMC Networks

SMC Networks 2655W FICHE Manuale utente

SMC Networks

SMC Networks ElliteConnect SMC2888W Manuale utente

SMC Networks

SMC Networks 2552W-G FICHE Manuale utente

SMC Networks

SMC Networks EZ CONNECT SMC2755W Manuale utente

SMC Networks

SMC Networks EliteConnect WAP5110 Manuale utente

SMC Networks

SMC Networks EliteConnect SMC2555W-AG Manuale utente

SMC Networks

SMC Networks EZ Connect SMC2655W Manuale utente

SMC Networks

SMC Networks 2655W FICHE Manuale utente

SMC Networks

SMC Networks WTK-G - FICHE TECHNIQUE Guida all'installazione

Manuali Punto di accesso wireless popolari di altre marche

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manuale utente

Ubiquiti

Ubiquiti NanoStation NSM2 Manuale utente

Cisco

Cisco Aironet 1550 Series Manuale utente

Aruba

Aruba IAP-335 Manuale utente

Advantek Networks

Advantek Networks AWN-AP-54MR Manuale utente

IP-COM

IP-COM AP355 Manuale utente

Buffalo

Buffalo AirStation WLA-L11G Manuale utente

EnGenius

EnGenius EnStationACv2 Manuale utente

D-Link

D-Link DAP-3662 Manuale utente

xG Technology

xG Technology xMax CN1300 Manuale utente

Widelink

Widelink ezWave WAP-1100 Series Manuale utente

Edimax

Edimax CAP1200 Manuale utente

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manuale utente

Aruba

Aruba AP-203R Manuale utente

LuXout Shades

LuXout Shades LUXSHADE MOTION Manuale utente

CreatComm

CreatComm TB5F Manuale utente

SineDigital

SineDigital MW-1500AP(H) Manuale utente

TP-Link

TP-Link AP9650 V1 Manuale utente
