Smeg STU8623 Manuale utente

CONTENTS

Contents

1 INTRODUCTION .................................................................................

2 ................................................................... SAFETY INFORMATION

3 INSTALLATION MATERIAL..................................................................

3.1 Kit supplied dishwasher (fully integrated)............................................

3.2 Kit supplied dishwasher (integrated)....................................................

4 DIMENSIONS OF DISHWASHER........................................................

5 INSTALLATION AND HOOK-UP ..........................................................

5.1 Levelling................................................................................................

5.2 Connections .........................................................................................

5.2.1 Connection to the water supply.............................................................

5.2.1.1 Connection to the water tap...............................................................

5.2.1.2 Connection to the drain hose.............................................................

5.2.2 Electrical connections and warnings ....................................................

5.3 Commissioning......................................................................................

5.3.1 Installation procedure (all models)........................................................

5.3.2 Door panel assembly procedure (fully integrated).................................

5.3.3 Door panel assembly procedure (integrated)........................................

5.3.4 Door screwing procedure......................................................................

5.3.5 Completion of installation.......................................................................

5.4 Apply the gaskets - type A.....................................................................

5.5 Apply the gaskets - type B.....................................................................

5.6 Testing ...................................................................................................

Thank you for choosing one of our products. To install this dishwasher

correctly and safely, please read this manual carefully. The manual is

divided into sections giving you a step-by-step guide to installation of the

appliance. The texts are easy to understand and are complete with

detailed illustrations. This user-friendly manual will provide answers to all

your questions about installation of the dishwasher.

This manual comprises the following sections:

INTRODUCTON: general information about the manual.

WARNINGS: a list of warnings concerning safety during installation.

INSTALLATION INSTRUCTIONS: for the qualiﬁed technician who must

carry out the installation, hook-up and testing of the appliance.

INTRODUCTION

1 INTRODUCTION

DANGER. This symbol highlights information and warnings which, if not

observed, may compromise personal safety or damage the appliance.

Simbols used in this manual

DANGER OF ELECTROCUTION. This symbol highlights information and

warnings of an electrical nature which, if not observed, may compromise

personal safety or damage the appliance.

This symbol highlights general information and warnings.

WARNINGS

2 SAFETY INFORMATION

THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT

MUST ALWAYS BE KEPT INTACT TOGETHER WITH THE

DISHWASHER. BEFORE USING THE APPLIANCE, CAREFULLY

READ ALL THE INSTRUCTIONS CONTAINED IN THIS MANUAL.

INSTALLATION MUST BE PERFORMED BY A QUALIFIED

TECHNICIAN, IN COMPLIANCE WITH THE REGULATIONS IN

FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USE AND

SIMILAR APPLICATIONS SUCH AS THE STAFF KITCHENS OF

SHOPS, OFFICES AND OTHER WORPLACES, INSTITUTIONS, AND

FOR THE USE OF GUESTS AT HOTELS, HOSTELS, BED AND

BREAKFAST ESTABLISHMENTS AND OTHER RESIDENTIAL

FACILITIES AND COMPLIES WITH DIRECTIVES CURRENTLY IN

FORCE, INCLUDING THE PREVENTION AND ELIMINATION OF

RADIO FREQUENCY INTERFERENCE. THE APPLIANCE IS

DESIGNED FOR THE FOLLOWING PURPOSE: WASHING AND

DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED

IMPROPER. THE MANUFACTURER DECLINES ALL

RESPONSABILITY FOR USES OTHER THAN THOSE DESCRIBED

ABOVE.

INSTALLATION, REPAIRS AND SERVICING MUST BE

PERFORMED BY QUALIFIED AND AUTHORIZED TECHNCIANS.

AS WELL AS INVALIDATING THE WARRANTY, WORK CARRIED

OUT BY UNAUTHORIZED PERSONS MAY GENERATE HAZARDS.

INSTALLATION MUST BE PERFORMED IN COMPLIANCE WITH ALL

THE DIRECTIVES IN FORCE IN THE COUNTRY OF INSTALLATION

AND, IF THESE DO NOT EXIST: IN THE UNITED STATES THE

NATIONAL ELECTRIC CODE C22.1 - LATEST EDITION/PROVINCIAL

AND MUNICIPAL CODES AND/OR LOCAL CODES.

THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL

NUMBER AND MARKINGS IS VISIBLY POSITIONED ON THE INNER

EDGE OF THE DOOR . THE NAMEPLATE ON THE INNER EDGE OF

THE DOOR MUST NEVER BE REMOVED.

THIS APPLIANCE IS NOT SUITABLE FOR USE ON BOATS,

CARAVANS OR THE LIKE. DISHWASHERS CERTIFIED FOR

DOMESTIC USE ARE NOT SUITABLE FOR AUTHORISED FOOD

FACTORIES.

CHECK THAT THE VOLTAGE, FREQUENCY AND PROTECTION OF THE

DOMESTIC MAINS POWER SUPPLY MATCH THE RATINGS ON THE NAME

PLATE OF THE APPLIANCE.

TWO PEOPLE WEARING SAFETY GLOVES ARE REQUIRED TO LIFT THE

DISWASHER.

DO NOT LEAVING DISCARDED PACKAGING MATERIALS UNSUPERVISED

WITHIN THE HOME. SEPARATE THE VARIOUS PACKAGING MATERIALS

AND TAKE THEM TO THE NEAREST SORTED WASTE COLLECTION

CENTRE. KEEP CHILDREN, PHYSICALLY AND/OR MENTALLY IMPAIRED

ADULTS, AND ANIMALS AWAY FROM PACKAGING WASTE; DANGER OF

SUFFOCATION.

BEFORE PROCEEDING WITH INSTALLATION, DISCONNECT THE MAINS

POWER SUPPLY FROM THE WORK AREA.

DURING INSTALLATION, TAKE CARE NOT TO INJURE YOURSELF ON

THE SHARP EDGES OF THE APPLIANCE; WEAR SAFETY GLOVES.

THE APPLIANCE MUST BE PROVIDED WITH A GROUND CONNECTION IN

ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN

FORCE. IF IN DOUBT, HAVE THE SYSTEM CHECKED BY A QUALIFIED

ELECTRICIAN.

THE MANUFACTURER DECLINES ALL RESPONSABILITY FOR DAMAGE

TO PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO

GROUND THE APPLIANCE OR FROM A DEFECTIVE GROUND

CONNECTION.

DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING

TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. THE APPLIANCE

MUST BE INSTALLED AND CONNECTED IN ACCORDANCE WITH THE

INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A

QUALIFIED TECHNICIAN.

WARNINGS

DO NOT OPERATE THE DISHWASHER UNLESS ALL THE OUTER

PANELS HAVE BEEN POSITIONED CORRECTLY. IMMEDIATELY

AFTER INSTALLATION, BRIEFLY TEST THE APPLIANCE

FOLLOWING THE INSTRUCTIONS INDICATED BELOW. IF THE

DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT

FROM THE ELECTRICAL POWER SUPPLY AND CALL THE

NEAREST TECHNICAL SERVICE CENTRE.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE.

DO NOT USE EXTENSION CORDS, ADAPTORS OR SHUNT

CONNECTIONS IN ORDER TO AVOID THE POSSIBILITY OF OVER

HEATING OR BURNING, WITH CONSEQUENT FIRE HAZARD.

THE MANUFACTURER DECLINES ALL RESPONSABILITY FOR

DAMAGE TO PERSONS, ANIMALS OR PROPERTY RESULTING

FROM FAILURE TO OBSERVE THE ABOVE PRECAUTIONS,

FROM TAMPERING WITH EVEN A SINGLE COMPONENT OF THE

APPLIANCE, OR FROM THE USE OF UNORIGINAL SPARE

PARTS. IF IN DOUBT ABOUT THE CONTENTS OF THIS MANUAL,

CONTACT THE TECHNICAL ASSISTANCE SERVICE.

WARNINGS

INSTALLATION INSTRUCTION

3 INSTALLATION MATERIAL

To install the dishwasher correctly, the following materials are

required:

Ÿphillips screwdriver ( rif. A Fig. 1);

Ÿspirit level (rif. B Fig. 1);

Ÿtape measure ( rif. C Fig. 1);

Ÿcompass saw ( rif. D Fig. 1);

Ÿpencil ( rif. E Fig. 1);

Ÿﬁle (rif. F Fig. 1);

Ÿ13mm open-ended whrench( rif. G Fig. 1);

Ÿplumbing pliers ( rif. H Fig. 1);

Ÿdrill (rif. I Fig. 1);

Ÿsafety gloves ( rif . L Fig. 1).

Fig. 1

INSTALLATION INSTRUCTION

*The adhesive protection is suitable for kitchens with worktops that do not

allow the steel protection to be ﬁxed with screws (e.g.+ marble or

masonry), but it can be also used with other materials.

Fig. 2

3.1 Kit supplied with dishwasher

The kit supplied with the dishwasher comprises:

1 adhesive steam guard or 1 steel steam guard (ref. A or B ﬁ g. 2)*;

1 template for door panel (ref. C ﬁ g. 2);

2 hooks for door panel (ref. D ﬁ g. 2);

8 screws for securing the door panel hooks (ref. E ﬁ g. 2);

2 screws for securing the door (ref. F ﬁ g. 2);

2 screws for ﬁ xing the dishwasher to the adjacent walls (ref.G ﬁ g.2);

2 screw caps (ref. H ﬁ g.2).

2 adjustment feet (only for some models) (ref. I ﬁ g.2);

•

(fully integrated)

Ÿ2 nuts (only for some models) (ref. L ﬁg. 2);

Fig. 3

3.2 Kit supplied with dishwasher

(integrated)

*The adhesive protection is suitable for kitchens with worktops that do not

allow the steel protection to be ﬁxed with screws (e.g.+ marble or

masonry), but it can be also used with other materials.

The kit supplied with the dishwasher comprises:

1 adhesive steam guard or 1 steel steam guard (ref. A or B ﬁ g. 2)*;

1 template for door panel (ref. C ﬁ g.3);

2 hooks for door panel (ref. D ﬁ g.3);

8 screws for securing the door panel hooks (ref. E ﬁ g.3);

2 screws for securing the door (ref. F ﬁ g.3);

2 screws for ﬁ xing the dishwasher to the adjacent walls (ref. G ﬁ g.3);

2 screw caps (ref. H ﬁ g.3).

3 compensation strips (ref. I ﬁ g.3).

•

INSTALLATION INSTRUCTION

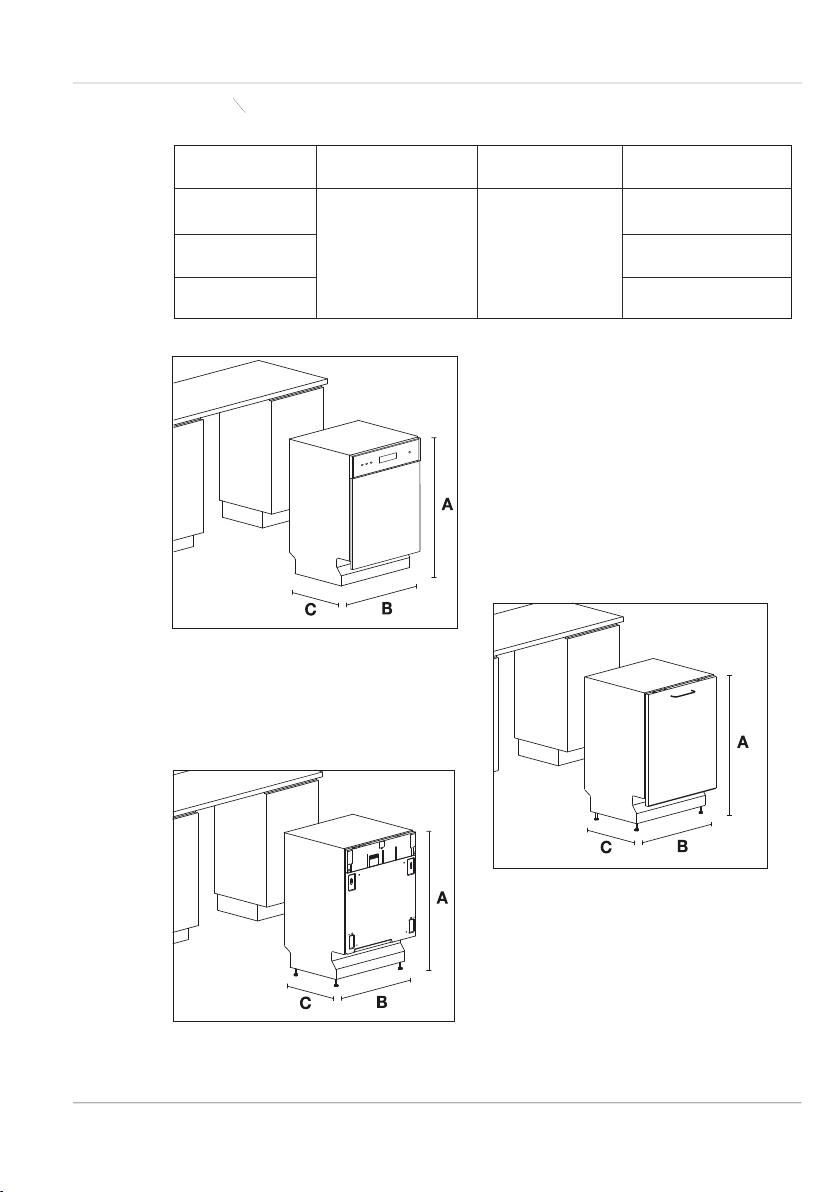

4 DIMENSION OF DISHWASHER

A height

B width

C depth

Fig. 4

Fig. 4a

Fig. 4b

Fig. 4a

Fig. 4b

81.8 cm ÷ 88.8 cm

32-13/64"÷ 34-61/64" 59.7 cm ÷ 59.9 cm

23-1/2"÷ 23-37/64"

Fig. 4

55 cm - 21-21/32"

57 cm - 22-7/16"

60 cm - 23-5/8"

86 cm ÷ 93 cm

33-35/64"÷ 36-39/64"

Integrated with steel

door

Integrated

dishwasher

Fully integrated

integrated

Integrated with

steel door

Fully

integrated
