CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data

available: Model, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

VISIT OUR WEBSITE:

To get usage advice, brochures, trouble shooter, service and repair information:

www.smeg.com/services/customer-service

CONTENTS

1. SAFETY INFORMATION.................................................................................21

2. SAFETY INSTRUCTIONS...............................................................................23

3. INSTALLATION............................................................................................... 25

4. CONTROL PANEL.......................................................................................... 28

5. DAILY USE......................................................................................................29

6. HINTS AND TIPS............................................................................................ 31

7. CARE AND CLEANING...................................................................................33

8. TROUBLESHOOTING.....................................................................................34

9. NOISES........................................................................................................... 38

10. TECHNICAL DATA........................................................................................38

11. INFORMATION FOR TEST INSTITUTES.....................................................38

12. ENVIRONMENTAL CONCERNS.................................................................. 39

Subject to change without notice.

1. SAFETY INFORMATION

Before the installation and use of the appliance, carefully read

the supplied instructions. The manufacturer is not responsible

for any injuries or damage that are the result of incorrect

installation or usage. Always keep the instructions in a safe

and accessible location for future reference.

ENGLISH 21

1.1 Children and vulnerable people safety

•This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if

they have been given supervision or instruction concerning

the use of the appliance in a safe way and understand the

hazards involved.

•Children aged from 3 to 8 years are allowed to load and

unload the appliance provided that they have been properly

instructed.

•This appliance may be used by persons with very extensive

and complex disabilities provided that they have been

properly instructed.

•Children of less than 3 years of age should be kept away

from the appliance unless continuously supervised.

•Children should be supervised to ensure that they do not

play with the appliance.

•Children shall not carry out cleaning and user maintenance

of the appliance without supervision.

•Keep all packaging away from children and dispose of it

appropriately.

1.2 General Safety

•This appliance is for storing food and baverages only.

•This appliance is designed for single household domestic

use in an indoor environment.

•This appliance may be used in, offices, hotel guest rooms,

bed & breakfast guest rooms, farm guest houses and other

similar accommodation where such use does not exceed

(average) domestic usage levels.

•To avoid contamination of food respect the following

instructions:

–do not open the door for long periods;

–clean regularly surfaces that can come in contact with

food and accessible drainage systems;

22 ENGLISH

–store raw meat and fish in suitable containers in the

refrigerator, so that it is not in contact with or drip onto

other food.

•WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

•WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

•WARNING: Do not damage the refrigerant circuit.

•WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of

the type recommended by the manufacturer.

•Do not use water spray and steam to clean the appliance.

•Clean the appliance with a moist soft cloth. Only use neutral

detergents. Do not use abrasive products, abrasive

cleaning pads, solvents or metal objects.

•When the appliance is empty for long period, switch it off,

defrost, clean, dry and leave the door open to prevent

mould from developing within the appliance.

•Do not store explosive substances such as aerosol cans

with a flammable propellant in this appliance.

•If the supply cord is damaged, it must be replaced by the

manufacturer, its Authorised Service Centre or similarly

qualified persons in order to avoid a hazard.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this

appliance.

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Do not use the appliance before installing

it in the built-in structure due to safety

manner.

• Follow the installation instructions supplied

with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use safety

gloves and enclosed footwear.

• Make sure the air can circulate around the

appliance.

• At first installation or after reversing the

door wait at least 4 hours before

connecting the appliance to the power

supply. This is to allow the oil to flow back

in the compressor.

• Before carrying out any operations on the

appliance (e.g. reversing the door),

remove the plug from the power socket.

• Do not install the appliance close to

radiators or cookers, ovens or hobs.

• Do not expose the appliance to the rain.

ENGLISH 23

• Do not install the appliance where there is

direct sunlight.

• Do not install this appliance in areas that

are too humid or too cold.

• When you move the appliance, lift it by the

front edge to avoid scratching the floor.

• The appliance contains a bag of

desiccant. This is not a toy. This is not

food. Please dispose of it immediately.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

WARNING!

When positioning the appliance, ensure

the supply cord is not trapped or

damaged.

WARNING!

Do not use multi-plug adapters and

extension cables.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

• Always use a correctly installed

shockproof socket.

• Make sure not to cause damage to the

electrical components (e.g. mains plug,

mains cable, compressor). Contact the

Authorised Service Centre or an

electrician to change the electrical

components.

• The mains cable must stay below the level

of the mains plug.

• Connect the mains plug to the mains

socket only at the end of the installation.

Make sure that there is access to the

mains plug after the installation.

• Do not pull the mains cable to disconnect

the appliance. Always pull the mains plug.

2.3 Use

WARNING!

Risk of injury, burns, electric shock or

fire.

The appliance contains flammable gas,

isobutane (R600a), a natural gas with a high

level of environmental compatibility. Be

careful not to cause damage to the refrigerant

circuit containing isobutane.

• Do not change the specification of this

appliance.

• Any use of the built-in product as free-

standing is strictly prohibited.

• Do not put electrical appliances (e.g. ice

cream makers) in the appliance unless

they are stated applicable by the

manufacturer.

• If damage occurs to the refrigerant circuit,

make sure that there are no flames and

sources of ignition in the room. Ventilate

the room.

• Do not let hot items to touch the plastic

parts of the appliance.

• Do not put soft drinks in the freezer

compartment. This will create pressure on

the drink container.

• Do not store flammable gas and liquid in

the appliance.

• Do not put flammable products or items

that are wet with flammable products in,

near or on the appliance.

• Do not touch the compressor or the

condenser. They are hot.

• Do not remove or touch items from the

freezer compartment if your hands are wet

or damp.

• Do not freeze again food that has been

thawed.

• Follow the storage instructions on the

packaging of frozen food.

• Wrap the food in any food contact material

before putting it in the freezer

compartment.

2.4 Internal lighting

WARNING!

Risk of electric shock.

• This product contains one or more light

sources of energy efficiency class G.

• Concerning the lamp(s) inside this product

and spare part lamps sold separately:

These lamps are intended to withstand

extreme physical conditions in household

appliances, such as temperature,

vibration, humidity, or are intended to

24 ENGLISH

signal information about the operational

status of the appliance. They are not

intended to be used in other applications

and are not suitable for household room

illumination.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to the appliance.

• Before maintenance, deactivate the

appliance and disconnect the mains plug

from the mains socket.

• This appliance contains hydrocarbons in

the cooling unit. Only a qualified person

must do the maintenance and the

recharging of the unit.

• Regularly examine the drain of the

appliance and if necessary, clean it. If the

drain is blocked, defrosted water collects

in the bottom of the appliance.

2.6 Service

• To repair the appliance contact the

Authorised Service Centre. Use original

spare parts only.

• Please note that self-repair or non-

professional repair can have safety

consequences and might void the

guarantee.

• The following spare parts will be available

for 7 years after the model has been

discontinued: thermostats, temperature

sensors, printed circuit boards, light

sources, door handles, door hinges, trays

and baskets. Please note that some of

these spare parts are only available to

professional repairers, and that not all

spare parts are relevant for all models.

• Door gaskets will be available for 10 years

after the model has been discontinued.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the mains

supply.

• Cut off the mains cable and discard it.

• Remove the door to prevent children and

pets to be closed inside of the appliance.

• The refrigerant circuit and the insulation

materials of this appliance are ozone-

friendly.

• The insulation foam contains flammable

gas. Contact your municipal authority for

information on how to discard the

appliance correctly.

• Do not cause damage to the part of the

cooling unit that is near the heat

exchanger.

3. INSTALLATION

WARNING!

Refer to Safety chapters.

WARNING!

Refer to installation instruction document

to install your appliance.

WARNING!

Fix the appliance in accordance with

installation instruction document to avoid

a risk of instability of the appliance.

ENGLISH 25

3.1 Dimensions

90°

Overall dimensions ¹

H1 mm 1772

W1 mm 546

D1 mm 549

¹ the height, width and depth of the appliance

without the handle

Space required in use ²

H2 (A+B) mm 1816

W2 mm 546

D2 mm 551

A mm 1780

B mm 36

² the height, width and depth of the appliance

including the handle, plus the space

necessary for free circulation of the cooling

air

Overall space required in use ³

H3 (A+B) mm 1816

W3 mm 546

D3 mm 1068

³ the height, width and depth of the appliance

including the handle, plus the space

necessary for free circulation of the cooling

air, plus the space necessary to allow door

opening to the minimum angle permitting

removal of all internal equipment

26 ENGLISH

3.2 Location

To ensure appliance's best functionality, you

should not install the appliance in the nearby

of the heat source (oven, stoves, radiators,

cookers or hobs) or in a place with direct

sunlight. Make sure that air can circulate

freely around the back of the cabinet.

This appliance should be installed in a dry,

well ventilated indoor position.

This appliance is intended to be used at

ambient temperature ranging from 10°C to

43°C.

The correct operation of the

appliance can only be guaranteed within

the specified temperature range.

If you have any doubts regarding

where to install the appliance, please turn

to the vendor, to our customer service or

to the nearest Authorised Service Centre.

It must be possible to disconnect the

appliance from the mains power supply.

The plug must therefore be easily

accessible after installation.

3.3 Electrical Connection

CAUTION!

Any electrical work required to install this

appliance should be carried out by a

qualified electrician or competent person.

WARNING!

This appliance must be earthed.

The manufacturer declines any liability

should these safety measures not be

observed.

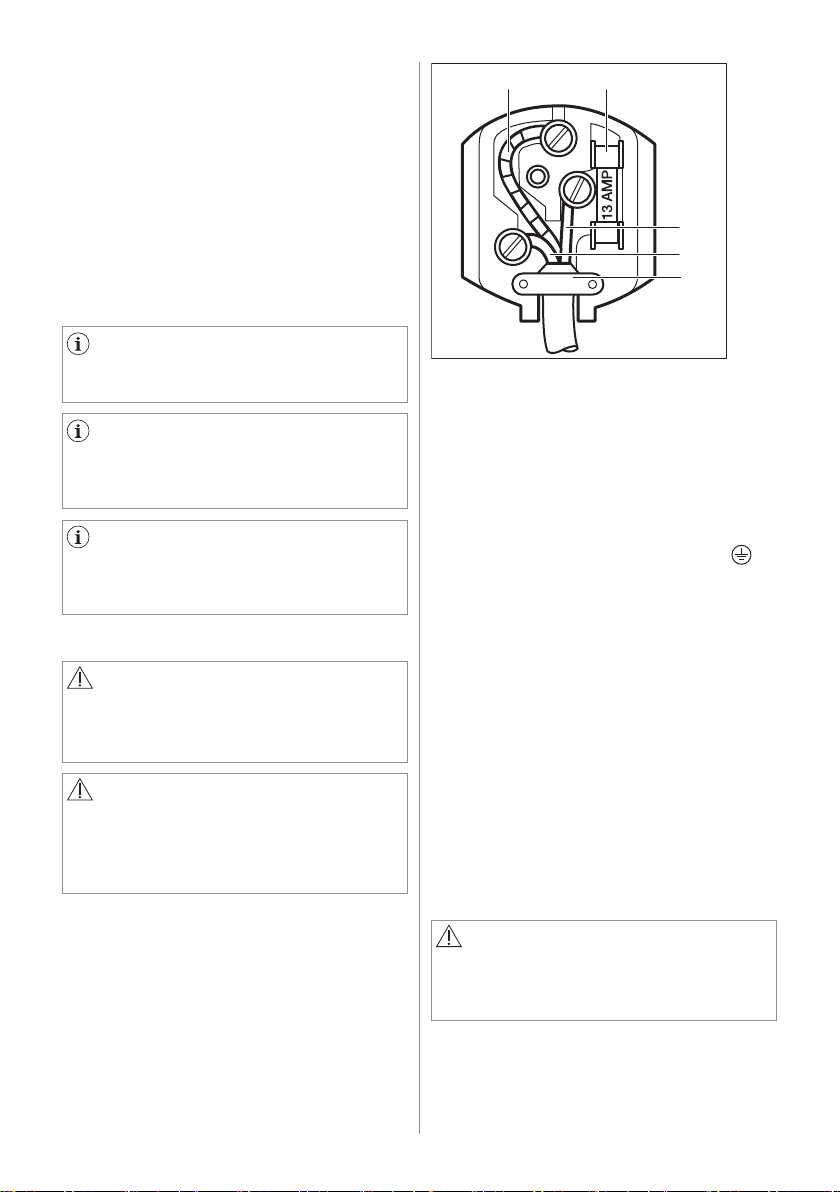

The wires in the mains lead are coloured in

accordance with the following code:

A B

•A - green and yellow: Earth

•C - brown: Live

•D - blue: Neutral

As the colours of the wires in the mains lead

of this appliance may not correspond with the

coloured markings identifying the terminals in

your plug, proceed as follows:

1. Connect the wire coloured green and

yellow to the terminal marked either with

the letter “E“ or by the earth symbol or

coloured green and yellow.

2. Connect the wire coloured blue to the

terminal either marked with the letter

“N“ or coloured black.

3. Connect the wire coloured brown to the

terminal either marked with the “L“ or

coloured red.

4. Check that no cut, or stray strands of wire

is present and the cord clamp (E) is

secure over the outer sheath.

Make sure the electricity supply voltage is

the same as that indicated on the

appliance rating plate.

5. Switch on the appliance.

The appliance is supplied with a 13 amp fuse

(B). In the event of having to change the fuse

in the plug supplied, a 13 amp ASTA

approved (BS 1362) fuse must be used.

WARNING!

A cut off plug inserted into a 13 amp

socket is a serious safety (shock) hazard.

Ensure that it is disposed of safely.

3.4 Ventilation requirements

The airflow behind the appliance must be

sufficient.

ENGLISH 27

min. 200 cm2

min.

200 cm2

min.

38 mm

min.

38 mm

CAUTION!

Refer to the installation instructions for

the installation.

3.5 Door reversibility

Please refer to the separate document with

instructions on installation and door reversal.

CAUTION!

At every stage of reversing the door

protect the floor from scratching with a

durable material.

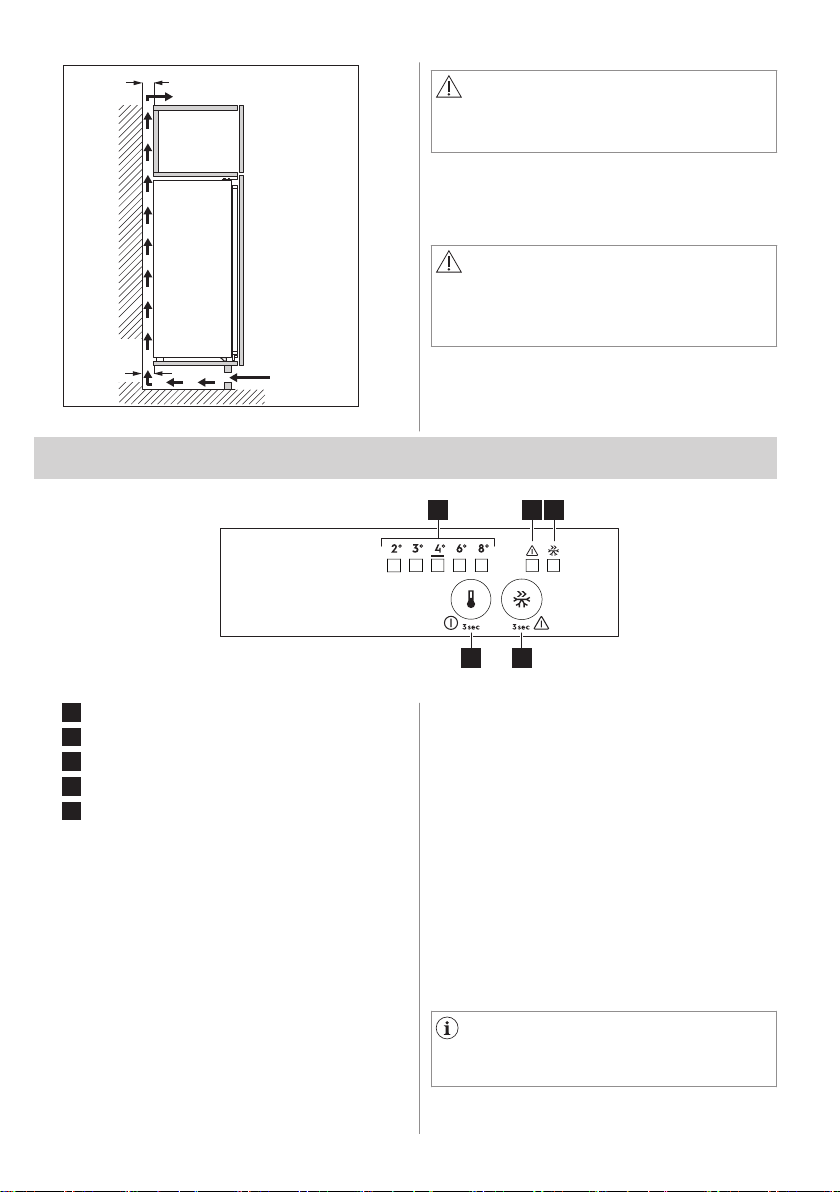

4. CONTROL PANEL

1 2

4 3

1 2 3

5 4

1Temperature indicator LED

2Alarm light

3FastFreeze indicator

4FastFreeze button

5Temperature regulator

ON/OFF button

4.1 Switching on

1. Insert the plug into the wall socket.

2. Touch the temperature regulator button if

all LED indicators are off.

4.2 Switching off

Keep touching the temperature regulator

button for 3 seconds.

All indicators light off.

4.3 Temperature regulation

To operate the appliance, touch the

temperature regulator until the LED

corresponding to the required temperature

lights up. Selection is progressive, varying

from 2°C to 8°C. Recommended setting is

4°C.

1. Touch temperature regulator.

Current temperature indicator blinks. Any

time you touch the temperature regulator, the

setting moves by one position. The

corresponding LED blinks for a while.

2. Touch the temperature regulator until the

required temperature is selected.

The set temperature will be reached

within 24 hours. After a power failure the

set temperature remains stored.

28 ENGLISH

4.4 FastFreeze function

The FastFreeze function is used to perform

pre-freezing and fast freezing in sequence in

the freezer compartment. This function

accelerates the freezing of fresh food and, at

the same time, protects food products already

stored in the freezer compartment from

undesirable warming.

To freeze fresh food activate the

FastFreeze function at least 24 hours

before placing the food to complete pre-

freezing.

To activate FastFreeze function press the

FastFreeze button. The FastFreeze indicator

switches on.

This function stops automatically after

52 hours.

It is possible to deactivate the function at any

time by pressing FastFreeze button again.

The FastFreeze indicator switches off.

4.5 Door open alarm

If the fridge door is left open for

approximately 5 minutes, the alarm light

flashes and the sound is on.

During the alarm the sound can be muted by

pressing any button. The sound switches off

automatically after around one hour to avoid

disturbing.

The alarm deactivates after closing the door.

4.6 High temperature alarm

When there is a temperature increase in the

freezer compartment (for example due to an

earlier power failure), the alarm light flashes

and the sound is on.

To deactivate the sound press any button.

The alarm light continues to flash until the

normal conditions are restored.

If you do not press any button, the sound

switches off automatically after around one

hour to avoid disturbing.

5. DAILY USE

5.1 Positioning the door shelves

To permit storage of food packages of

various sizes, the door shelves can be placed

at different heights.

1. Gradually pull the shelf up until it comes

free.

2. Reposition as required.

ENGLISH 29

Indice

Manuali Congelatore popolari di altre marche

Siemens

Siemens GU..D SERIES Manuale utente

Omcan

Omcan FR-CN-0155 Manuale utente

Beko

Beko FNE290E24W Manuale utente

Electrolux

Electrolux ARCTIS G 8 60 50-6I Manuale utente

Electrolux

Electrolux EUF2042AOX Manuale utente

Dometic

Dometic CoolFreeze CFX95DZ Manuale utente

Electrolux

Electrolux EUF7000W1 Manuale utente

Polar Electro

Polar Electro CT330 Manuale utente

MPM

MPM MPM-145-SK Series Manuale utente

SAF

SAF PRESTOTIG 200AC/DC Guida rapida

Zanussi

Zanussi ZFT11407WA Manuale utente

AEG

AEG A63190GT Manuale utente

AEG

AEG A81000TNW0 Manuale utente

Matsui

Matsui MUC50S15E Manuale utente

NEFF

NEFF G4344X8 Manuale utente

Frigidaire

Frigidaire FV 1246 H Manuale utente

Frigidaire

Frigidaire FFC13K1AW Manuale utente

Electrolux

Electrolux EU 2400C Manuale utente
