Smeg Linea SFA6101TVB Manuale utente

Contents

1Instructions 4

1.1 General safety instructions 4

1.2 Appliance purpose 8

1.3 Manufacturer’s liability 8

1.4 This user manual 8

1.5 Disposal 9

1.6 Identification plate 9

1.7 How to read the user manual 10

1.8 To save energy 10

2 Description 11

2.1 General description 11

2.2 Control panel 12

2.3 Other parts 13

2.4 Available accessories 13

3Use 15

3.1 Using the accessories 16

3.2 Using the oven 17

3.3 Cooking advice 24

3.4 Special functions 27

3.5 Settings 31

4 Cleaning and maintenance 35

4.1 Cleaning the surfaces 35

4.2 Cleaning the door 35

4.3 Cleaning the oven cavity 38

4.4 Vapor Clean (on some models only) 41

4.5 Pyrolytic function (on some models only) 44

4.6 Extraordinary maintenance 47

5Installation 49

5.1 Electrical connection 49

5.2 Positioning 50

We advise you to read this manual carefully, which contains all the instructions for

maintaining the appliance’s aesthetic and functional qualities.

For further information on the product: www.smeg.com

TRANSLATION OF THE ORIGINAL INSTRUCTIONS

Instructions

1 Instructions

1.1 General safety instructions

• During use the appliance and its

accessible parts become very

hot. Never touch the heating

elements during use.

• Protect your hands by wearing

oven gloves when moving food

inside the oven.

• Never try to put out a fire or

flames with water: Turn off the

appliance and smother the

flames with a fire blanket or

other appropriate cover.

• This appliance may be used by

children aged at least 8 and by

people of reduced physical,

sensory or mental capacity, or

lacking in experience in the use

of electrical appliances,

provided that they are

supervised or instructed by

adults who are responsible for

their safety.

• Children must not play with the

appliance.

• Keep children under the age of

eight at a safe distance unless

they are constantly supervised.

• Keep children under the age

of 8 away from the appliance

when it is in use.

• Cleaning and maintenance

must not be carried out by

unsupervised children.

• The cooking process must

always be monitored. A short

cooking process must be

continuously monitored.

• Never leave the appliance

unattended during cooking

operations where fats or oils

could be released, as these

could then heat up and catch

fire. Be very careful.

• Do not pour water directly onto

very hot trays.

• Keep the oven door closed

during cooking.

RISK OF INJURY

Instructions

• If you need to move food or at

the end of cooking, open the

door 5 cm for a few seconds,

let the steam come out, then

open it fully.

• Do not insert pointed metal

objects (cutlery or utensils) into

the slots in the appliance.

• Switch off the appliance

immediately after use.

• DO NOT USE OR STORE

FLAMMABLE MATERIALS

NEAR THE APPLIANCE.

• DO NOT USE AEROSOLS IN

THE VICINITY OF THIS

APPLIANCE WHILST IT IS IN

USE.

• DO NOT MODIFY THIS

APPLIANCE.

• Installation and servicing should

be carried out by qualified

personnel in accordance with

current standards.

• Do not try to repair the

appliance yourself or without

the assistance of a qualified

technician.

• Do not pull the cable to unplug

the appliance.

•Donotuseabrasiveor

corrosive detergents (e.g.

scouring powders, stain

removers and metallic sponges)

on glass parts. Use wooden or

plastic utensils.

• Do not use rough or abrasive

materials or sharp metal

scrapers.

• Do not sit on the appliance.

• Do not use cleaning products

containing chlorine, ammonia

or bleach on parts made of

steel or that have metallic

surface finishes (e.g. anodizing,

nickel- or chromium-plating).

RISK OF DAMAGING THE

APPLIANCE

Instructions

• Racks and trays should be

inserted as far as they will go

into the side guides. The

mechanical safety locks that

prevent them from being

removed must face downwards

and towards the back of the

oven cavity.

• Do not use steam jets to clean

the appliance.

• Do not spray any spray

products near the appliance.

• (on some models only) Before

starting the pyrolytic cycle,

remove any food residues or

large spills from previous

cooking operations from the

inside of the oven.

• Do not obstruct ventilation

openings and heat dispersal

slots.

• Fire hazard: never leave objects

in the oven cavity.

• DO NOT FOR ANY REASON

USE THE APPLIANCE AS A

SPACE HEATER.

•Donotuseplastic cookware or

containers when cooking food.

• Do not put sealed tins or

containers in the oven.

• Remove all trays and racks

which are not required during

cooking.

• Do not cover the bottom of the

oven cavity with aluminium or tin

foil sheets.

• Do not place pans or trays

directly on the bottom of the

oven cavity.

• If you wish to use greaseproof

paper, place it so that it will not

interfere with the hot air

circulation inside the oven.

• Do not use the open door to rest

pans or trays on the internal

glass pane.

• Never use the oven door to

lever the appliance into place

when fitting.

Instructions

• Avoid exerting too much

pressure on the oven door when

open.

• Do not use the handle to lift or

move the appliance.

Installation and maintenance

• THIS APPLIANCE MUST NOT

BE INSTALLED IN BOATS OR

CARAVANS.

• The appliance must not be

installed on a pedestal.

• Position the appliance into the

cabinet cut-out with the help of

a second person.

• To avoid potential overheating,

the appliance must not be

installed behind a decorative

door or a panel.

• Installation and servicing should

be carried out by qualified

personnel in accordance with

current standards.

• Have the electrical connection

performed by authorised

technical personnel.

• The appliance must be

connected to earth in

compliance with electrical

system safety standards.

• Use cables that can withstand

temperatures of at least 90°C.

• The tightening torque of the

screws of the terminal supply

wires must be 1.5 - 2 Nm.

• If the power cable becomes

damaged, contact technical

support immediately to arrange

for it to be replaced in order to

avoid possible hazards.

• Always use any necessary/

required personal protective

equipment (PPE) before

performing any work on the

appliance (installation,

maintenance, positioning or

movement).

• Before performing any work on

the appliance, switch off the

power supply.

• This appliance can be used up

to a maximum altitude of 2,000

metres above sea level.

Instructions

For this appliance

• Ensure that the appliance is

switched off before replacing

the bulb.

• Do not rest any weight or sit on

the open door of the appliance.

• Take care that no objects are

stuck in the doors.

• Do not install / use the

appliance outdoors.

• Only use the temperature probe

provided or recommended by

the manufacturer.

1.2 Appliance purpose

This appliance is intended for

cooking food in the home

environment. Every other use is

considered improper. It must also

not be used:

• In kitchen areas provided for

employees in shops, offices and

other work environments

• On farms/farm

accommodation

• By guests in hotels, motels and

other types of residential

environments

• In bed and breakfast

accommodation.

1.3 Manufacturer’s liability

The manufacturer declines all

liability for damage to persons or

property caused by:

• Use of the appliance other than

that specified

• Failure to comply with the

instructions in the user manual

• Tampering with any part of the

appliance

• The use of non-original spare

parts.

1.4 This user manual

• This user manual is an integral part of the

appliance and must therefore be kept in

its entirety and within the user’s reach for

the whole working life of the appliance.

• Read this user manual carefully before

using the appliance.

• The explanations in this manual include

images, which describe all that regularly

appears on the display. However, it

should be kept in mind that the appliance

may be equipped with an updated

version of the system, and as such, all

that appears on the display may differ

from those in the manual.

Instructions

1.5 Disposal

This appliance conforms to the

WEEE European directive (2012/

19/EU) and must be disposed of

separately from other waste at the end of its

service life.

The appliance does not contain substances

in quantities sufficient to be considered

hazardous to health and the environment, in

accordance with current European

directives.

To dispose of the appliance:

• Cut the power cable and remove it.

• Deliver the appliance to the appropriate

recycling centre for electrical and

electronic equipment waste, or return it to

the retailer when purchasing an

equivalent product, on a one for one

basis.

Our appliances are packaged in non-

polluting and recyclable materials.

• Deliver the packing materials to the

appropriate recycling centre.

1.6 Identification plate

The identification plate bears the technical

data, serial number and brand name of the

appliance. Do not remove the identification

plate for any reason.

Power voltage

Danger of electrocution

• Disconnect the mains power supply.

• Unplug the appliance.

Plastic packaging

Danger of suffocation

• Do not leave the packaging or any part

of it unattended.

• Do not let children play with the plastic

bags.

Instructions

1.7 How to read the user manual

This user manual uses the following reading

conventions:

1.8 To save energy

• Only preheat the appliance if the recipe

requires you to do so.

• Unless otherwise indicated on the

package, defrost frozen foods before

placing them in the oven.

• When cooking several types of food it is

recommended to cook the foods one

after the other to make the best use of the

already hot oven.

• Use dark metal moulds: They help to

absorb the heat better.

• Remove all trays and racks which are not

required during cooking.

• Stop cooking a few minutes before the

time normally used. Cooking will

continue for the remaining minutes with

the heat which has accumulated inside

the oven.

• Reduce any opening of the door to a

minimum to avoid heat dispersal.

• Keep the inside of the oven clean at all

times.

Instructions

General information on this user

manual, on safety and final

disposal.

Description

Description of the appliance and its

accessories.

Use

Information on the use of the

appliance and its accessories,

cooking advice.

Cleaning and maintenance

Information for proper cleaning and

maintenance of the appliance.

Installation

Information for the qualified

technician: Installation, operation

and inspection.

Safety instructions

Information / Advice

Description

2 Description

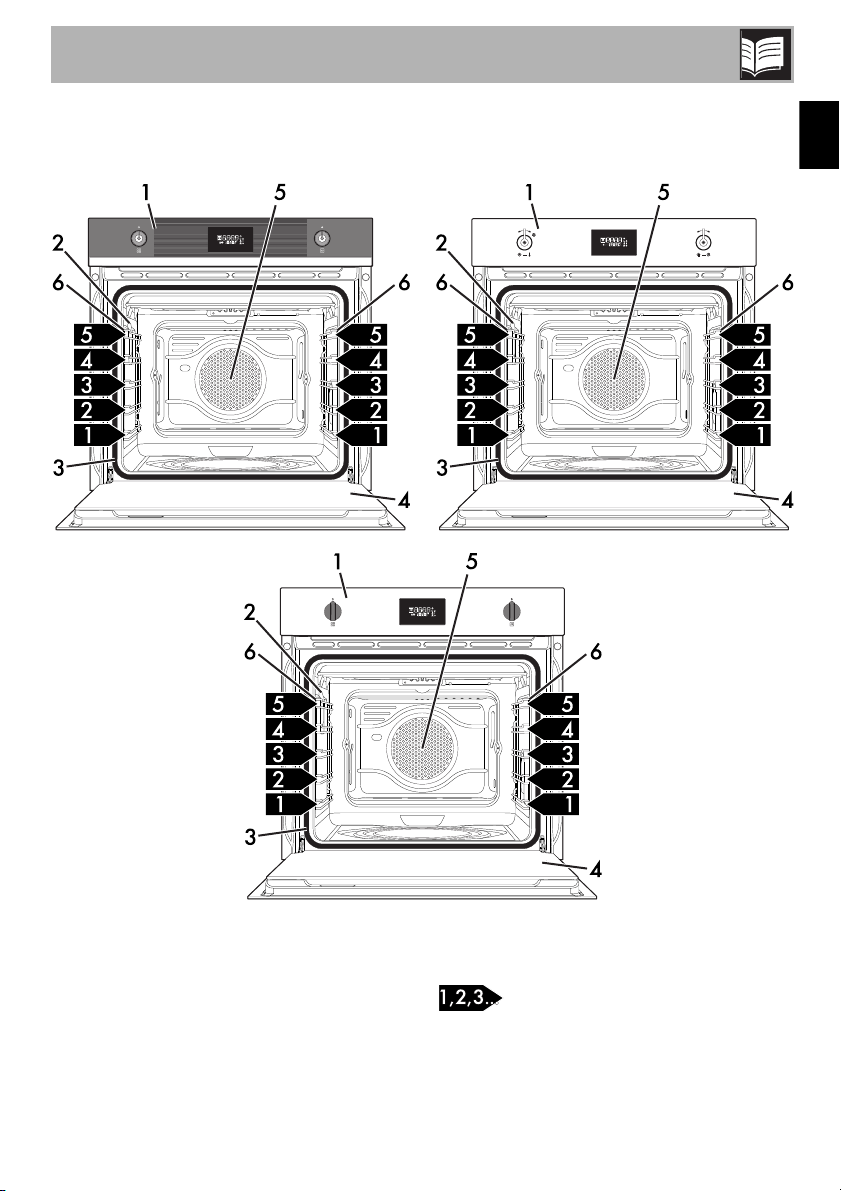

2.1 General description

1 Control panel

2 Oven light

3 Seal

4 Door

5 Fan

6 Rack/tray support frames

Frame shelf

Description

2.2 Control panel

1 Function knob

This knob can be used to:

• Turn the appliance on and off

• Select a function.

2 Display

Displays the current time, the function, the

selected cooking temperature, power and

any time that has been set.

3 Select knob

This knob can be used to set:

• The cooking temperature

• The duration of a function

• Programmed cooking procedures

• The current time

• Temporarily start or stop a function.

Turn the Function knob to 0

to terminate any cooking

operation immediately.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Smeg Forno

Manuali Forno popolari di altre marche

Bosch

Bosch HVA531NS0 Manuale utente

Electrolux

Electrolux EOF6P46X Manuale utente

NEFF

NEFF B44S32 5GB Series Manuale utente

Combi

Combi BLODGETT BC142GDS Manuale utente

AEG

AEG COMPETENCE 311704300 Manuale utente

Falcon

Falcon DOMINATOR PLUS G3106 Series Guida utente

Rational

Rational SCC WE 61G Manuale utente

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuale utente

Miele

Miele HR 1954-2 Manuale utente

KHIND

KHIND OT50 Manuale utente

Henny Penny

Henny Penny Smoker Box Manuale utente

Lang

Lang ECOD-AP Manuale utente

AEG

AEG BEK455310M Manuale utente

Frigidaire

Frigidaire FNGE90JGR Manuale utente

Hotpoint

Hotpoint FE9 S831 JSH IX Manuale utente

GE Advantium SCB2000 Manuale utente

AEG

AEG DE401301DM Manuale utente

DeLonghi

DeLonghi XA660 Manuale
