LAN9303M Evaluation Board User Manual

Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M

1 Introduction

The LAN9303M is a full featured, three-port 10/100 managed Ethernet switch designed for embedded

applications where performance, flexibility, ease of integration and system cost control are required.

The LAN9303M combines all the functions of a 10/100 Ethernet switch system, including the Switch

Fabric, packet buffers, Buffer Manger, MACs, PHY transceivers, and serial management. The

LAN9303M complies with the IEEE 802.3 (full/half-duplex 10BASE-T and 100BASE-TX) Ethernet

protocol specification and 802.1D/802.1Q management protocol specifications, enabling compatibility

with industry standard Ethernet and Fast Ethernet applications.

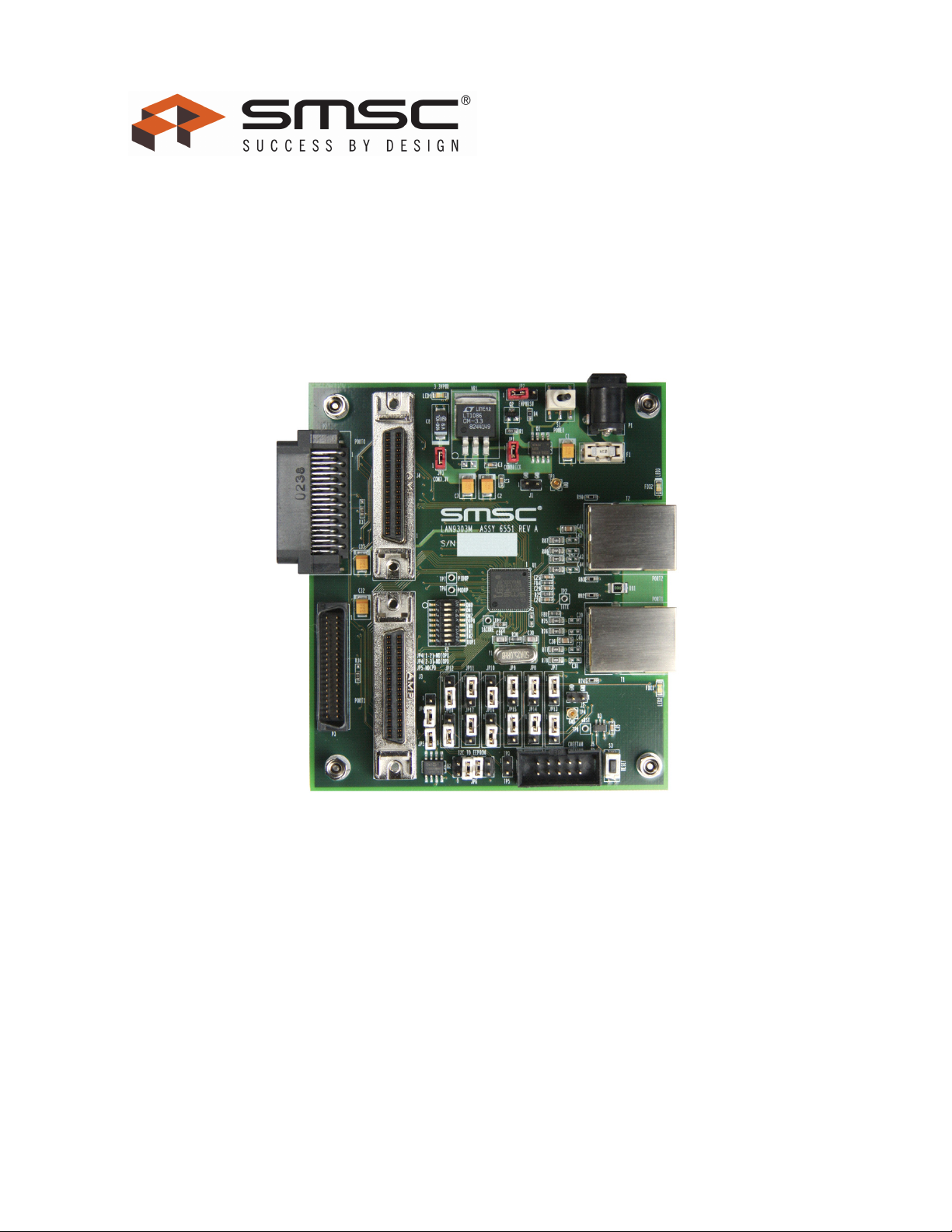

The EVB9303M is an Evaluation Board (EVB) that utilizes the LAN9303M to provide a fully functional

three-port dual MII/RMII/Turbo MII Ethernet switch. The EVB9303M provides two fully integrated

MAC/PHY Ethernet ports (Ports 1 & 2) via on-board RJ45 connectors. Port 0 and Port 1 each provide

two MII port connectors (for a total of 4) which support the following:

An external MII-/RMII-/Turbo MII-capable MAC (with LAN9303M in PHY mode), via the onboard

40-pin male MII connector

An external MII-/Turbo MII-capable PHY (with LAN9303M in MAC mode), via the onboard 40-pin

female MII connector

The Port 0 and Port 1 modes of operation are configured via a single, 8-position, mode-configuration

strap switch.

Power is supplied to the board via a +5V external wall-mount power supply. The external supply is not

necessary when Port 0 or Port 1 is configured for (and used in) PHY mode. In such cases, the +5V

power rail is typically supplied through the MII connector from the MAC side.

The EVB9303M includes a 8Kx8 I2C EEPROM that may be used to automatically load configuration

settings from the EEPROM into the device at reset, allowing the device to operate unmanaged. An I2C

host adapter interface header (10-pin, 2x5) is provided to simplify I2C based configuration. A simplified

block diagram of the EVB9303M can be seen in Figure 1.1.

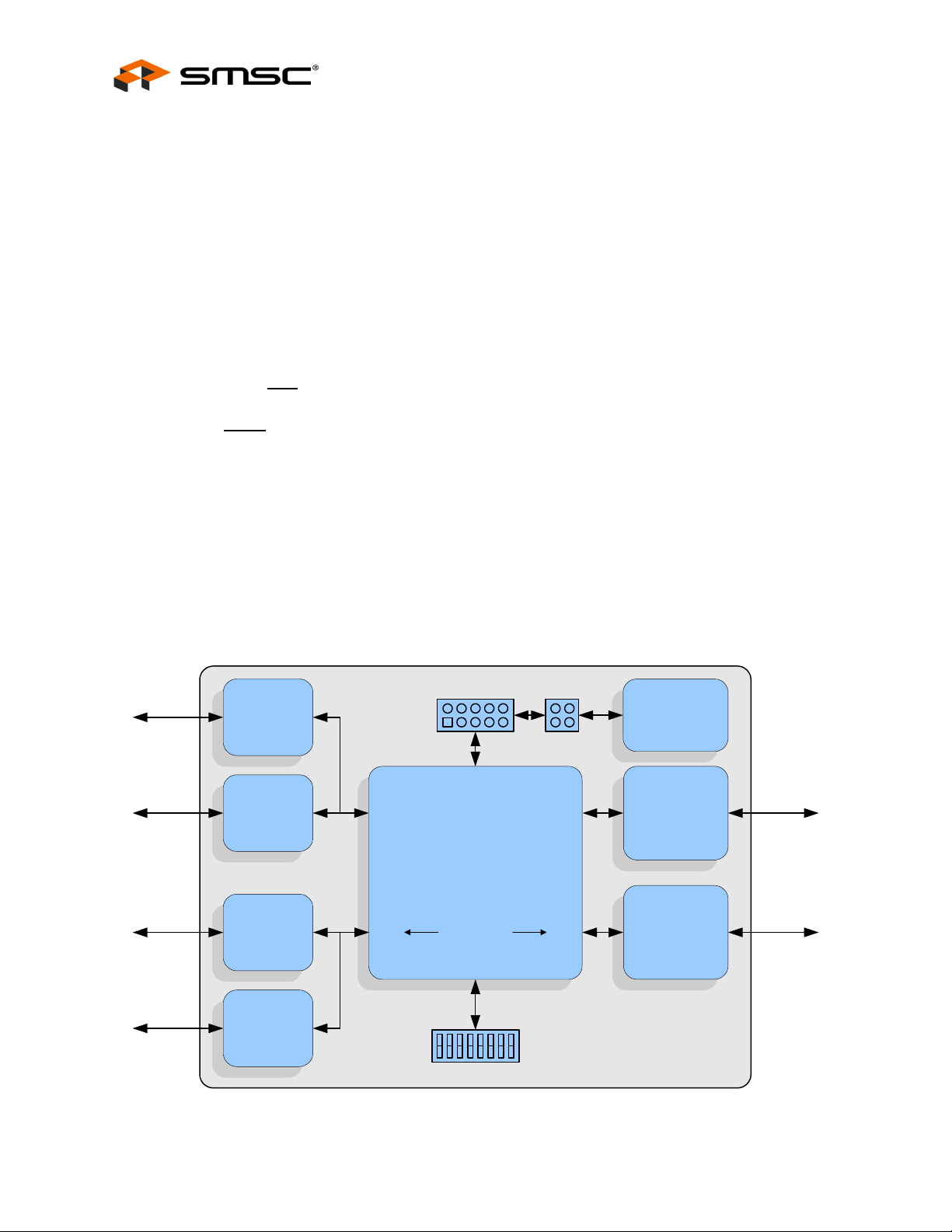

Figure 1.1 EVB9303M Block Diagram

EVB9303M

Ethernet

10/100

Ethernet

Magnetics &

RJ45

Jumper

SMSC

LAN9303M

external

MAC

Ethernet

10/100

Ethernet

Magnetics &

RJ45

8K x 8

I2C

EEPROM

Port0

Port1

I2C Host

Adapter I/F

Port2

Port1

Mode Switch

40-Pin MII

Connector

(Male)

40-Pin MII

Connector

(Female)

40-Pin MII

Connector

(Male)

40-Pin MII

Connector

(Female)

external

PHY

external

MAC

external

PHY

Configurable

LAN9303M Evaluation Board User Manual

SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)

1.1 References

Concepts and material available in the following documents may be helpful when using the EVB9303M.

2 Board Details

The following sections describe the various board features, including jumpers, LEDs, test points,

system connections, and switches. A top view of the EVB9303M is shown in Figure 2.1.

Note: The LAN9303M device is RoHS compliant. However, support components on the EVB9303M

board are not necessarily RoHS compliant.

Table 1.1 References

DOCUMENT LOCATION

SMSC LAN9303M Datasheet http://www.smsc.com/main/datasheet.html

AN8-13 Suggested Magnetics http://www.smsc.com/main/appnotes.html

SMSC EVB9303M Evaluation Board Schematic http://www.smsc.com/

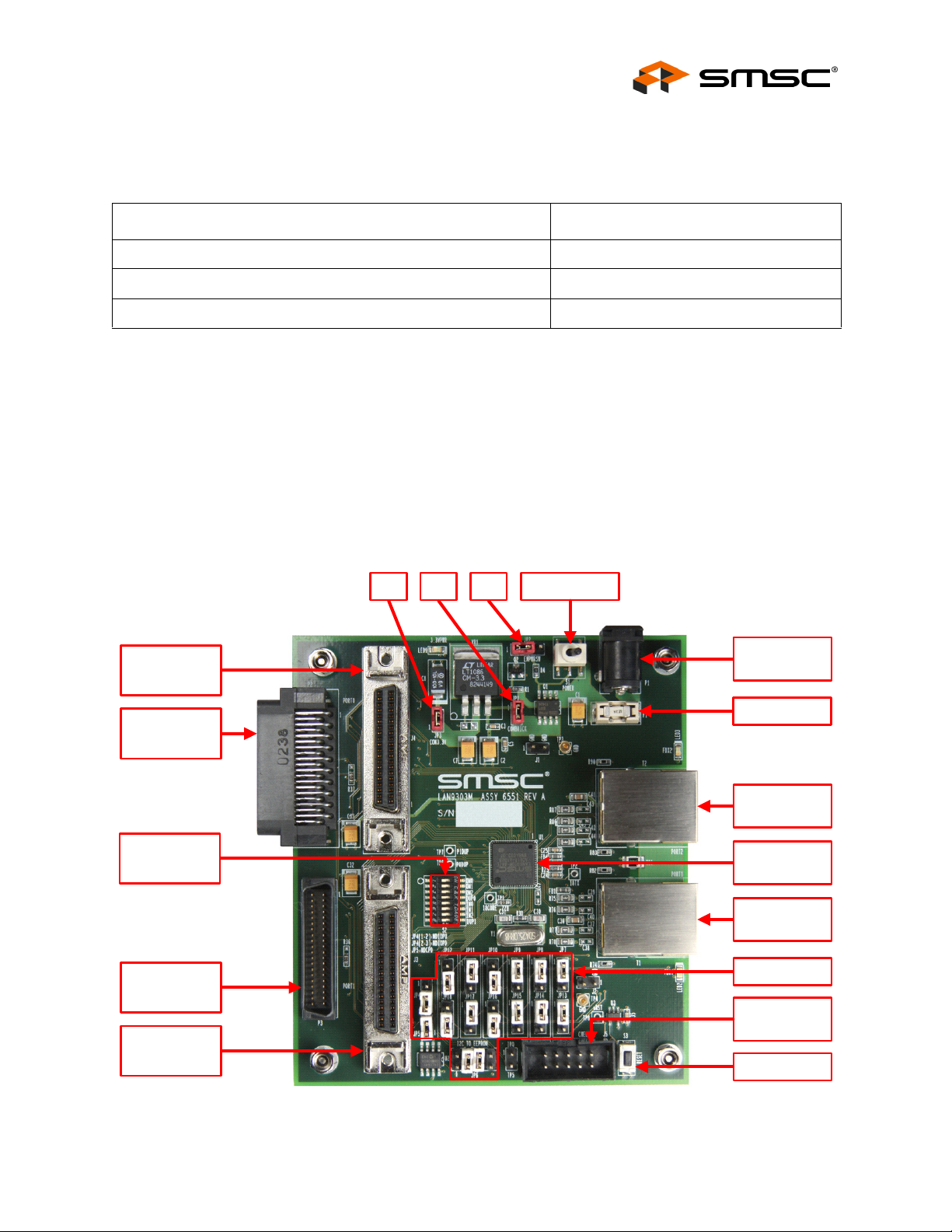

Figure 2.1 EVB9303M Top View

Eth. Port 1

(with integrated

magnetics & LEDs)

SMSC

LAN9303M

Eth. Port 2

(with integrated

magnetics & LEDs)

JP4-JP18

Reset Switch

Port 0

MII Connector

(Male)

I2C Host

Adapter I/F

Port 0

MII Connector

(Female)

Port 1

MII Connector

(Female)

Port 1

MII Connector

(Male)

Mode

Switches

+5V Power

Input

Power SwitchJP2JP1JP3

Fuse

LAN9303M Evaluation Board User Manual

Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M

2.1 Jumpers

The following tables describe the default settings and jumper descriptions for the EVB9303M. These

defaults are the recommended configurations for evaluation of the LAN9303M. These settings may be

changed as needed, however, any deviation from the default settings should be approached with care

and knowledge of the schematics and datasheet. An incorrect jumper setting may disable the board.

Note: A dashed line in the Settings column indicates the board’s default jumper setting.

2.1.1 JP1 - JP6

2.1.2 JP7 - JP18

Jumpers JP7 through JP18 set various functions of the LAN9303M. They can also be used as GPIOs,

LED drivers, or interrupts. When used as LED drivers, as they are on the EVB9303M, they are

connected a specific way to set the strap value to a “1”, and another way to set the strap value to a

“0”. Figure 2.2 illustrates the schematic connections with the LED1 circuit as a pull-up, and the LED2

circuit as a pull-down. To illuminate LED1, the LAN9303M will drive the cathode of the LED1 low. To

illuminated LED2, the LAN9303M will drive the anode of the LED2 high.

The JP7 - JP18 jumpers must be configured in pairs to identical settings in order to realize the LED1

circuit or the LED2 circuit. The pairings are as follows:

JP7 & JP13

JP8 & JP14

JP9 & JP15

JP10 & JP16

Table 2.1 Jumpers JP1 - JP6

JUMPER DESCRIPTION SETTINGS

JP1 Connect +5V DC power

supply 1---2

IN: Connect +5V brick output to power

plane

OUT: Disconnect +5V brick power

JP2 Power switch enable jumper

1---2 Enable power switch

2 3 Disable power switch, force power ON

always

JP3 Connect +3.3V jumper 1---2

IN: Connect +3.3V regulator output to

+3.3V power plane

OUT: Disconnect +3.3V regulator

JP4 MDIO pull-up/down jumper

1---2 Connect MDIO to 1.5K pull-up to +3.3V

2 3 Connect MDIO to 2.5K pull-down to GND

JP5 MDC pull-down jumper 1---2

IN: Connect MDC to 10K pull-down

OUT: Disconnect MDC from 10K pull-

down

JP6 I2C connect jumper

1 2 Pins 1 and 2 are +3.3V

3---4 Connect I2C EEPROM to SDA

5---6 Connect I2C EEPROM to SCL

7---8 Pins 7 and 8 are GND

LAN9303M Evaluation Board User Manual

SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)

JP11 & JP17

JP12 & JP18

The following subsections detail the jumper pair settings, their associated strap settings, and the

functional effects of setting the straps. All strap values are read during power-up and on the rising edge

of the nRST signal. Once the strap value is set, the LAN9303M will drive the LEDs high or low for

illumination according the strap value. For other designs which may use these pins as GPIOs or

interrupts, refer to the LAN9303M datasheet for additional information. In those cases, internal default

straps must be changed by an I2C or SMI master or through EEPROM fields.

2.1.2.1 Auto-MDIX / EEPROM Jumpers

Note 2.1 Paired jumpers MUST be set identically.

Note 2.2 The EVB9303M uses an 8Kx8 EEPROM. Therefore, this jumper MUST be set to 1-2.

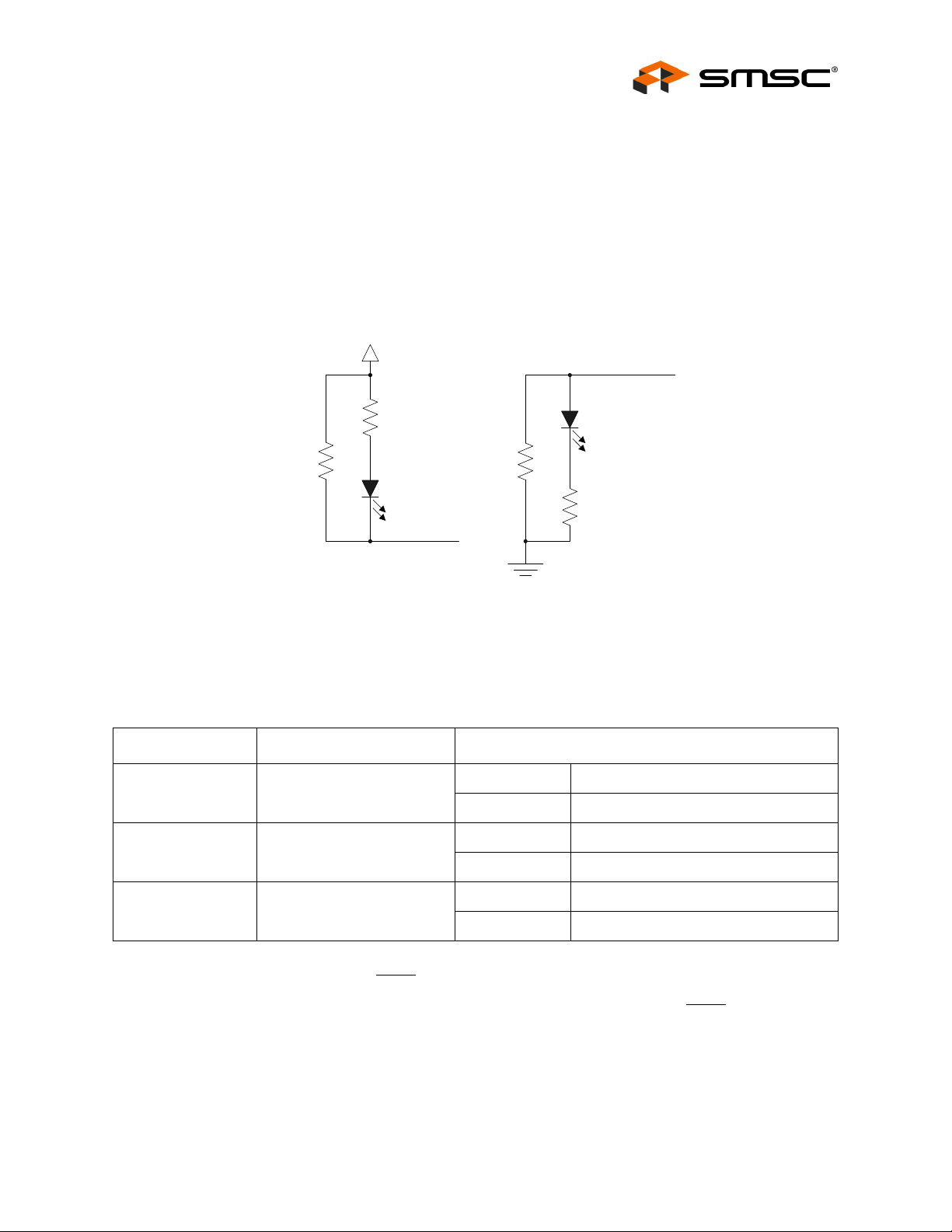

Figure 2.2 LED Strap Circuit

Table 2.2 Jumpers - Auto-MDIX / EEPROM

JUMPER PAIR DESCRIPTION SETTINGS

JP7, JP13 Port 1 Auto-MDIX

enable/disable (Note 2.1)

1---2 Enable Auto-MDIX on Port 1

2 3 Disable Auto-MDIX on Port 1

JP8, JP14 Port 2 Auto-MDIX

enable/disable (Note 2.1)

1---2 Enable Auto-MDIX on Port 2

2 3 Disable Auto-MDIX on Port 2

JP9, JP15 EEPROM size jumper

(Note 2.1, Note 2.2)

1---2 Enable 4Kx8 and larger I2C EEPROMs

2 3 Enable 2Kx8 and smaller I2C EEPROMs

+3.3V

Strap Pullup

10.0K

1/16W

332

1/10W

LED1

10.0K

1/16W

LED2

332

1/16W

Strap Pulldown

LAN9303M Evaluation Board User Manual

Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M

2.1.2.2 Serial Management Jumpers

Note 2.3 Paired jumpers MUST be set identically.

Note 2.4 The MNGT[1:0] settings are defined in Table 2.4:

2.1.2.3 PHY Port Address Jumpers

Note 2.5 Paired jumpers MUST be set identically.

Note 2.6 The PHY_ADDR settings are defined in Tabl e 2 .6:

Table 2.3 Jumpers - Serial Management

JUMPER PAIR DESCRIPTION SETTINGS

JP10, JP16 Serial management MNGT0

jumper (Note 2.3, Note 2.4)

1 2 Set MNGT0 to “1”

2---3 Set MNGT0 to “0”

JP11, JP17 Serial management MNGT1

jumper (Note 2.3, Note 2.4)

1---2 Set MNGT1 to “1”

2 3 Set MNGT1 to “0”

Table 2.4 MNGT[1:0] Settings

MNGT1 MNGT0 SERIAL MANAGEMENT SETTING

0 0 RESERVED

01SMI

10I

2C (Default)

1 1 RESERVED

Table 2.5 Jumpers - PHY Port Address

JUMPER PAIR DESCRIPTION SETTINGS

JP12, JP18 PHY address jumpers

(Note 2.5, Note 2.6)

1 2 Set PHY_ADDR to “1”

2---3 Set PHY_ADDR to “0”

Table 2.6 PHY_ADDR Settings

PHY_ADDR

STRAP VALUE VIRTUAL PHY ADDRESS PORT 1 ADDRESS PORT 2 ADDRESS

0012

1123

LAN9303M Evaluation Board User Manual

SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)

2.2 LEDs

Note 2.7 Assumes the LED_FUN field of the LED_CFG register is 00b.

2.3 Test Points

Table 2.7 LEDs

REFERENCE COLOR INDICATION (Note 2.7)

LED1 Green +3.3V power active

LED2 Green Full-duplex/Collision Port 1

LED3 Green Full-duplex/Collision Port 2

Green Link/Activity Port 1

Yellow Speed Port 1

Green Link/Activity Port 2

Yellow Speed Port 2

Table 2.8 Test Points

TEST POINT DESCRIPTION CONNECTION

TP1 Single pin unpopulated VDD18CORE VDD18CORE

TP2 Single pin unpopulated VDD18TX VDD18TX

TP3 Single pin populated gold post GND testpoint GND

TP4 Single pin populated gold post GND testpoint GND

TP5 2-pin populated IRQ testpoint with GND Pin 1: IRQ

Pin 2: GND

TP6 Single pin unpopulated P0_DUPLEX P0_DUPLEX

TP7 Single pin unpopulated P1_DUPLEX P1_DUPLEX

TP8 Single pin unpopulated nRST nRST

LAN9303M Evaluation Board User Manual

Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M

2.4 System Connections

2.5 Switches

This section details the various EVB9303M power, mode, and reset switches.

2.5.1 Power

Note: The EVB9303M includes a 2A fuse (F1) to protect from overcurrrent conditions. If this fuse

becomes damaged, it can be replaced with a 2A Littlefuse-154002.

Table 2.9 System Connections

PLUG/HEADER DESCRIPTION PART

J1 2-pin populated GND header 2-pin (1x2) header

J2 2-pin populated GND header 2-pin (1x2) header

J3 MII female connector for external PHY AMP/Tyco 749069-4

J4 MII female connector for external PHY AMP/Tyco 749069-4

J5 I2C host adapter interface connector Adam Tech BHR-10-V-U-A

P1 +5V DC power connector Barrel plug, 2.0mm, center positive

P2 MII male connector for external MAC AMP/Tyco 174218-2

P3 MII male connector for external MAC AMP/Tyco 5174216-2

Table 2.10 Power Switch

SWITCH DESCRIPTION FUNCTION

S1 SPDT tiny toggle power switch Connects +5V brick power to board

LAN9303M Evaluation Board User Manual

SMSC LAN9303M USER MANUAL Revision 1.0 (05-28-09)

2.5.2 Port 0 Mode

Note 2.8 There are no default setting for this switch. Customers must choose the appropriate MII

mode as dictated by their application.

Note 2.9 The P0_MODE[2:0] settings are defined in Ta b le 2. 1 2:

Table 2.11 Port 0 Mode Switches

SWITCH DESCRIPTION FUNCTION

S2-1 8-position DIP switch, position 1

Sets P0_MODE0 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.8, Note 2.9)

S2-2 8-position DIP switch, position 2

Sets P0_MODE1 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.8, Note 2.9)

S2-3 8-position DIP switch, position 3

Sets P0_MODE2 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.8, Note 2.9)

S2-4 8-position DIP switch, position 4

Sets P0_MODE3 low when closed (on).

Otherwise, the signal is pulled-up internally.

This switch selects the duplex polarity strap

default for Port 0 as follows:

If the strap value is “0”, a “0” on P0_DUPLEX

indicates full duplex, while a “1” indicates

half-duplex.

If the strap value is “1”, a “1” on P0_DUPLEX

indicates full duplex, while a “0” indicates

half-duplex.

The default setting is open.

Table 2.12 P0_MODE[2:0] Settings

S2-3 S2-2 S2-1 PORT 0 MODE SETTINGS

000 MIIMACMode

0 0 1 MII PHY Mode

0 1 0 MII PHY Mode / 200Mbps / 12mA clock output

0 1 1 MII PHY Mode / 200Mbps / 16mA clock output

1 0 0 RMII PHY Mode / 12mA clock output

1 0 1 RMII PHY Mode / 16mA clock output

1 1 0 RMII PHY Mode / clock is input

1 1 1 RESERVED

LAN9303M Evaluation Board User Manual

Revision 1.0 (05-28-09) USER MANUAL SMSC LAN9303M

2.5.3 Port 1 Mode

Note 2.10 There are no default setting for this switch. Customers must choose the appropriate MII

mode as dictated by their application.

Note 2.11 The P1_MODE[2:0] settings are defined in Ta b le 2. 1 4:

Table 2.13 Port 1 Mode Switches

SWITCH DESCRIPTION FUNCTION

S2-5 8-position DIP switch, position 5

Sets P1_MODE0 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.10, Note 2.11)

S2-6 8-position DIP switch, position 6

Sets P1_MODE1 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.10, Note 2.11)

S2-7 8-position DIP switch, position 7

Sets P1_MODE2 low when closed (on).

Otherwise, the signal is pulled-up internally.

(Note 2.10, Note 2.11)

S2-8 8-position DIP switch, position 8

Sets P1_MODE3 low when closed (on).

Otherwise, the signal is pulled-up internally.

This switch selects the duplex polarity strap

default for Port 1 as follows:

If the strap value is “0”, a “0” on P1_DUPLEX

indicates full duplex, while a “1” indicates

half-duplex.

If the strap value is “1”, a “1” on P1_DUPLEX

indicates full duplex, while a “0” indicates

half-duplex.

The default setting is open.

Table 2.14 P1_MODE[2:0] Settings

S2-7 S2-6 S2-5 PORT 1 MODE SETTINGS

000 MIIMACMode

0 0 1 MII PHY Mode

0 1 0 MII PHY Mode / 200Mbps / 12mA clock output

0 1 1 MII PHY Mode / 200Mbps / 16mA clock output

1 0 0 RMII PHY Mode / 12mA clock output

1 0 1 RMII PHY Mode / 16mA clock output

1 1 0 RMII PHY Mode / clock is input

1 1 1 Internal PHY Mode

Indice

Altri manuali SMSC Scheda madre

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
