Parts Manual fo

SP105 21" ELECTRIC STAR

775 SERIES

SELF PROPELLED MOWER

Revision: A 3/31/2014

Briggs & Stratton Yard Power Products Group

Manual No. 7106251

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

Descri

tionModel No.

7800956-00 SP105

7800961-00 SP105

Not for

Reproduction

Not for

Reproduction

Table Of Contents

TP 400-5585-A-WB-N

SP105 21" ELECTRIC START

775 SERIES 3

Manual No. 7106251

PAGE GROUP

4 Handle Group

6DeckGroup

8DriveGroup

10 Electric Group

Not for

Reproduction

Manual No. 7106251 SP105 21" ELECTRIC START

775 SERIES

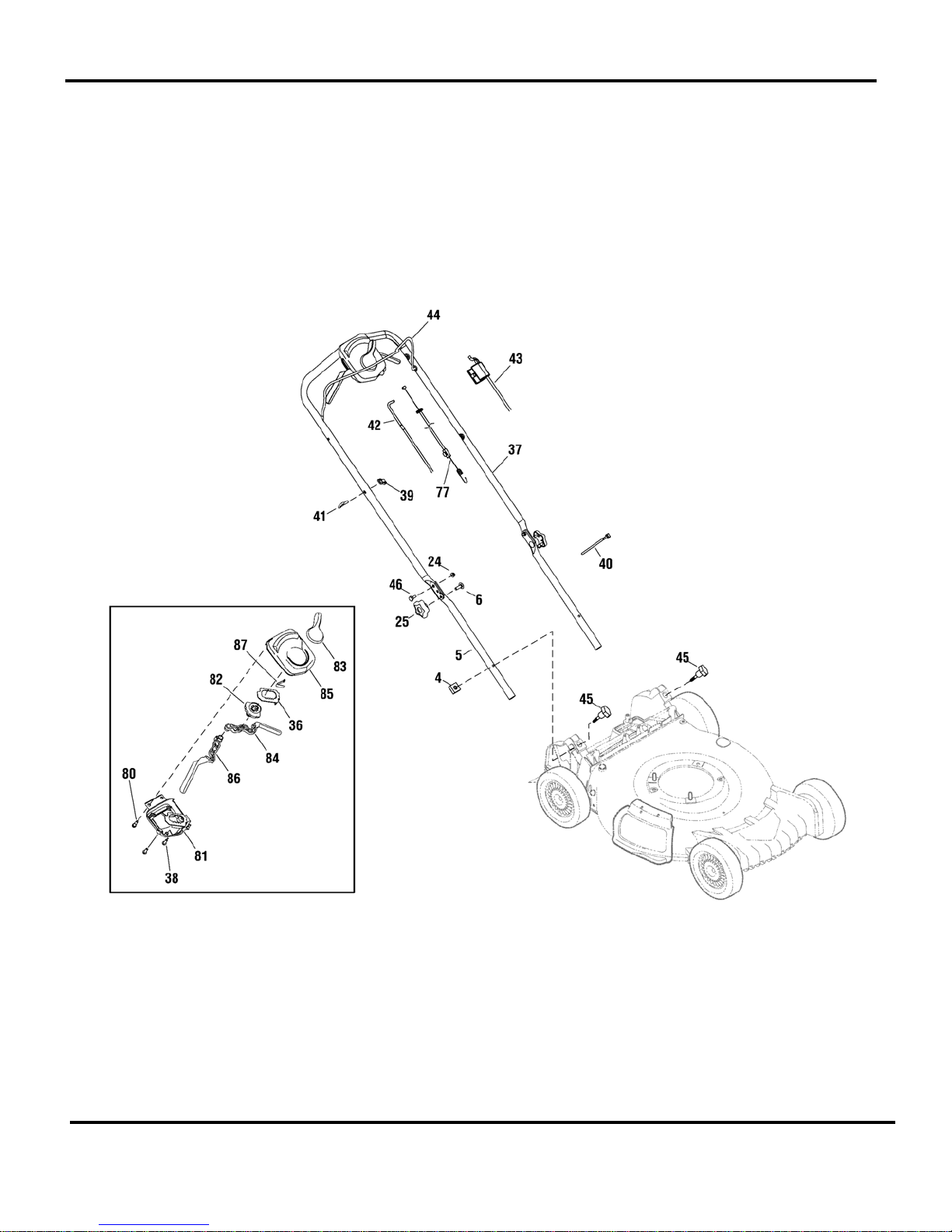

Handle Group

Not for

Reproduction

Footnotes:

Manual No. 7106251SP105 21" ELECTRIC START

775 SERIES 5

Handle Group

Part No Descri

tionItem Qty

4 703486 NUT, Square, 1/4-20

5 703530 HANDLE, Lower

6 703483 BOLT, Carriage, 5/16-18 x 1, GR5

24 703463 NUT, Flange Lock, 1/4-20

25 1101453MA KNOB, Wing, 5/16-18

36 705881 PLATE, Cable Adjust

37 705882 HANDLE, Upper

38 7091081SM SCREW, 1/4-15 x 3/4

39 110122MA KNOB, 1/4-20

40 1701011SM TIE, Self Lock

41 703485 GUIDE, Rope

42 705883 CABLE, Drive

43 703561 CABLE, Control

44 705884 BAIL, Blade Control

45 705885 NUT, Wing

46 703522 BOLT, Shoulder, 1/4-20

77 705888 CABLE, Speed Adjustment

80 705891 SCREW, Shoulder, 1/4-15 x 1

81 705892 HOUSING, Lower

82 705893 ACTUATOR, Speed Adjust

83 705894 LEVER, Speed Select

84 705895 LEVER, Control, LH

85 705896 HOUSING, Upper

86 705897 LEVER, Control, RH

87 705898 SPRING

Not for

Reproduction

Manual No. 7106251 SP105 21" ELECTRIC START

775 SERIES

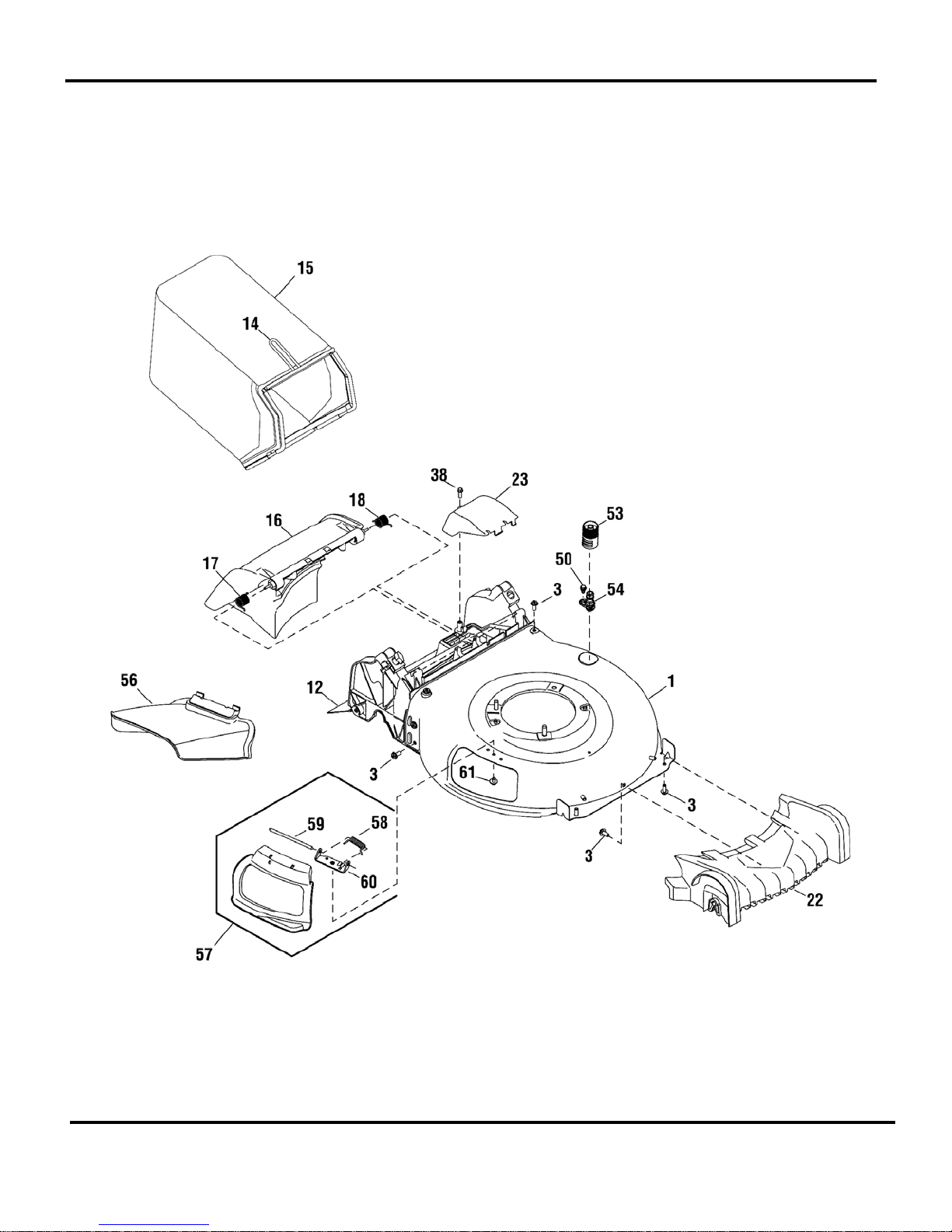

Deck Group

Not for

Reproduction

Footnotes:

Manual No. 7106251SP105 21" ELECTRIC START

775 SERIES 7

Deck Group

Part No Descri

tionItem Qty

1 703544 DECK, 21"

3 703482 SCREW, 5/16-14 x 3/4

12 703499 TRAILING SHIELD

14 703527 FRAME, Grass Bag

15 703385 GRASS BAG

16 703472 DOOR, Rear Discharge

17 705878 SPRING, Torsion, RH

18 705879 SPRING, Torsion, LH

22 703509 COVER, Front

23 703506 COVER, Transmission

38 7091081SM SCREW, 1/4-15 x 3/4

50 703521 BOLT, Shoulder, 1/4-20

53 703557 ADAPTER, Water Nozzle

54 703502 NOZZLE, Water

56 703377 CHUTE, Side Discharge

57 703566 MULCH PLUG (Includes Ref. Nos. 58, 59 & 60)

58 703517 SPRING, Torsion

59 703529 PIN, Hinge

60 703538 BRACKET, Chute Deflector

61 B4300GS SCREW, 1/4-20 x 1/2

Not for

Reproduction

Manual No. 7106251 SP105 21" ELECTRIC START

775 SERIES

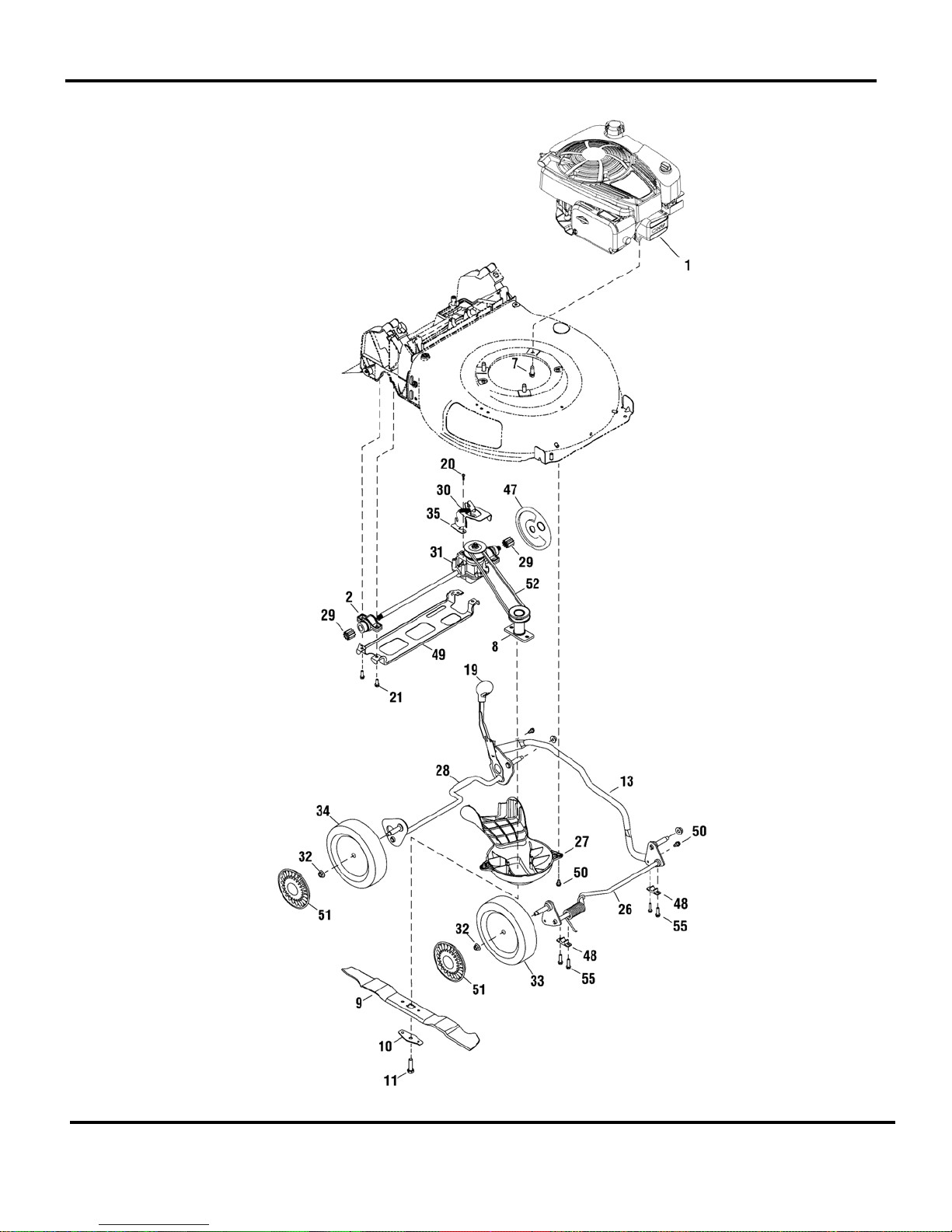

Drive Group

Not for

Reproduction

Footnotes:

Manual No. 7106251SP105 21" ELECTRIC START

775 SERIES 9

Drive Group

Part No Descri

tionItem Qty

1 111P05-0001-F1 * ENGINE, Briggs & Stratton 775 Pro Series OHV

2 703469 BEARING

7 703407 SCREW, 3/8-16 x 1

8 703475 ADAPTER, Blade

9 703371 BLADE, Mulching

10 703520 SUPPORT, Blade

11 01X142MA SCREW, 3/8-24 x 1-1/2

13 703844 CROSS BRACKET

19 703488 KNOB, Adjustment Lever

20 703479 SCREW, Hex Washer Head, .159 x .43

21 7900023SM SCREW, 1/4-15 x 1-1/4

26 703549 AXLE ASSEMBLY, Front

27 703471 BAFFLE, Engine

28 703548 AXLE ASSEMBLY, Rear

29 703555 GEAR, 10T

30 703516 SPRING, Extension, 2.405

31 705880 TRANSMISSION

32 5025394SM NUT, Flange Lock, 3/8-16

33 703380 WHEEL, Front

34 705901 WHEEL, Rear

35 703540 BRACKET, Transmission

47 703505 COVER, Dust

48 703524 BUSHING, Lock, .505 Dia. X .62

49 703542 BRACKET, Rear Support

50 703521 BOLT, Shoulder, 1/4-20

51 703511 HUBCAP, 8" Silver

52 703374 V-BELT, 3L, 31.25"

55 1751399YP SCREW, 1/4-15 x 1

Note* To verify your specific engine model, please reference the ID Tag located on your engine. See your local Briggs &

Stratton distributor for parts and service.

Not for

Reproduction

Manual No. 7106251 SP105 21" ELECTRIC START

775 SERIES

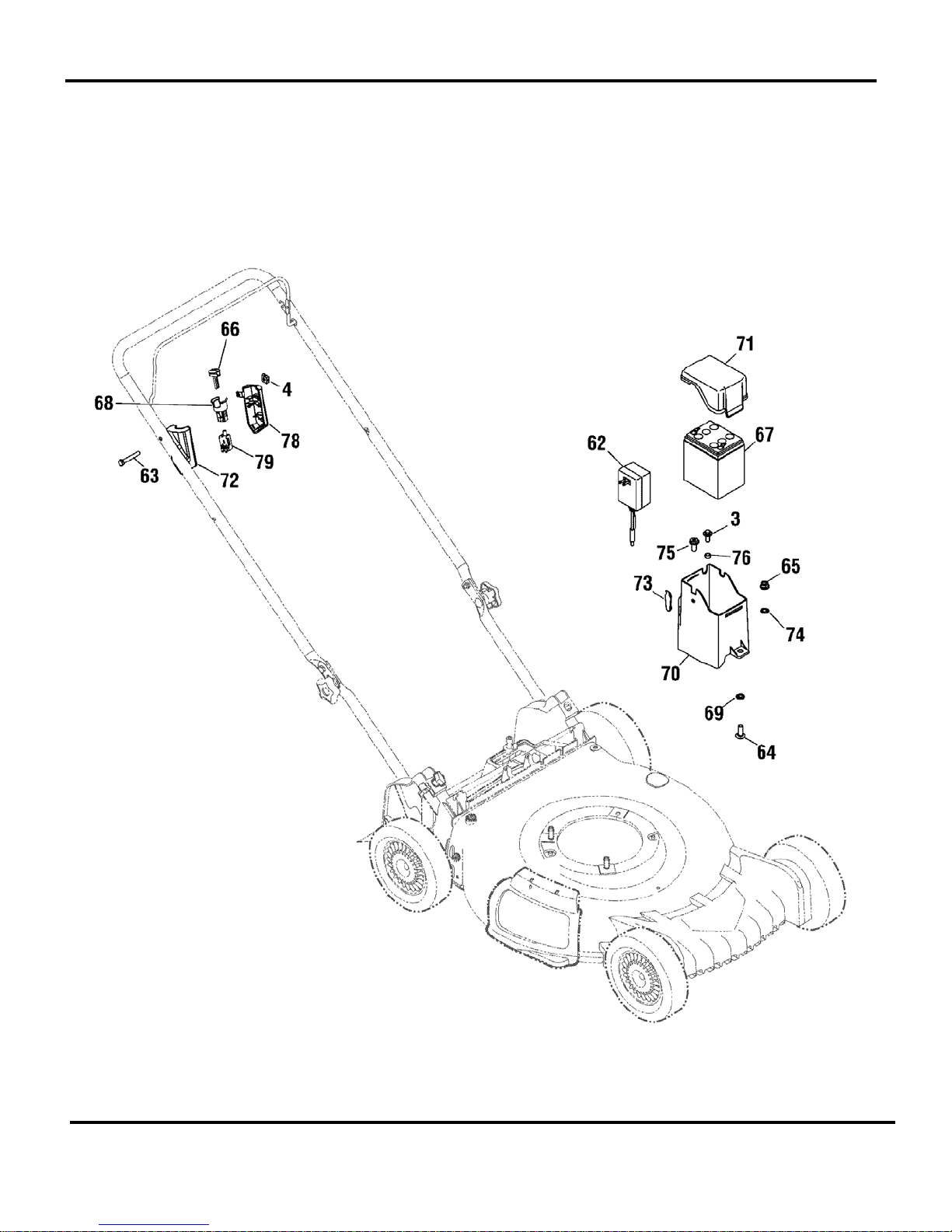

Electric Group
