Snapper RT1330 (2690172 Manuale utente

Parts Manual fo

Revision IR,

REAR ENGINE RIDER

SERIES 0

McDonough, GA, 30253 U.S.A.

TP 400-5276-IR-RE-N

5/29/2007 Manual No. 7006468

HYDRO DRIVE RT RMO ACS

Briggs & Startton Yard Power Products Group

Briggs & Startton Corporation

MODEL

RT1330

(

1694615

)

RT1330

(

2690649

)

RT1330E

(

1694616

)

RT1330E

(

2690249

)

RT1330E

(

2690250

)

Table Of Content

TP 400-5276-IR-RE-N

Manual No. 7006468REAR ENGINE RIDER

SERIES 0 3

PAGE GROUP

4Wheels & Tires Group

6Front Column & Dash Group

10 Steering & Lift Group

12 Frame & Fuel System Group

16 Transmission Group - Hydro-Gear 340-0510

20 Engine & Electric Clutch Group - 13HP Briggs & Stratton Models

24 30" Mower Deck - Housing & Height Adjustment

28 30" Mower Deck - Drive & Arbor

30 Decals Group

32 Electrical Group

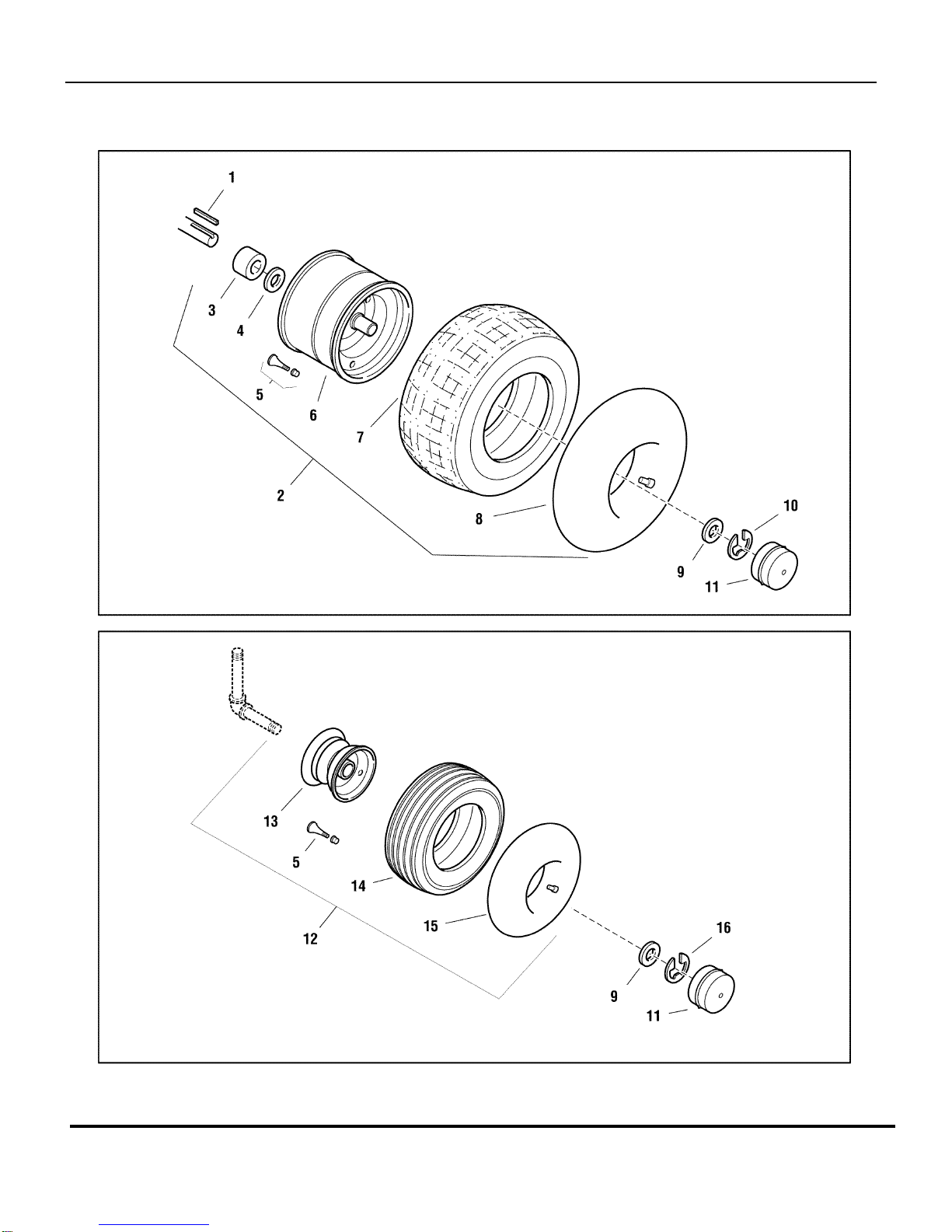

Wheels & Tires Group

TP 400-5276-IR-RE-N

Manual No. 7006468 REAR ENGINE RIDER

SERIES 0

Wheels & Tires Group

Footnotes:

TP 400-5276-IR-RE-N

Manual No. 7006468REAR ENGINE RIDER

SERIES 0 5

Part No Descri

tionItem Qt

Note

1 1729279 2 KEY, Square, 3/16 x 3/16 x 1-1/2 long

2 1723171 2 REAR WHEEL & TIRE ASSEMBLY, Hoosier, (Includes Ref. Nos.

3 1717451 2 SPACER

4 2860202 2 WASHER, 3/4

5 2172353 4 VALVE STEM & CAP

6 1723400 2 REAR WHEEL ASSEMBLY, Metallic Gray

7 1723399 2 TIRE, Rear Wheel, 16 X 6.50-8

8 2164247 2 TUBE, Rear Wheel

9 1960160 4 WASHER, 3/4

10 2827794 2 E RING

11 1722675 4 HUB CAP, Silver

12 1723170 2 FRONT WHEEL & TIRE ASSEMBLY, Hoosier, 13 x 5.00-6,

Metallic

13 1723402 2 FRONT WHEEL ASSEMBLY 13 x 5.00-6, Metallic Gray

(Includes Re

14 1723401 2 TIRE, Front Wheel, 13 x 5.00-6

15 1664090 2 TUBE, Front Wheel, 4.10/3.50 x 6

16 1611710 2 KLIP RING

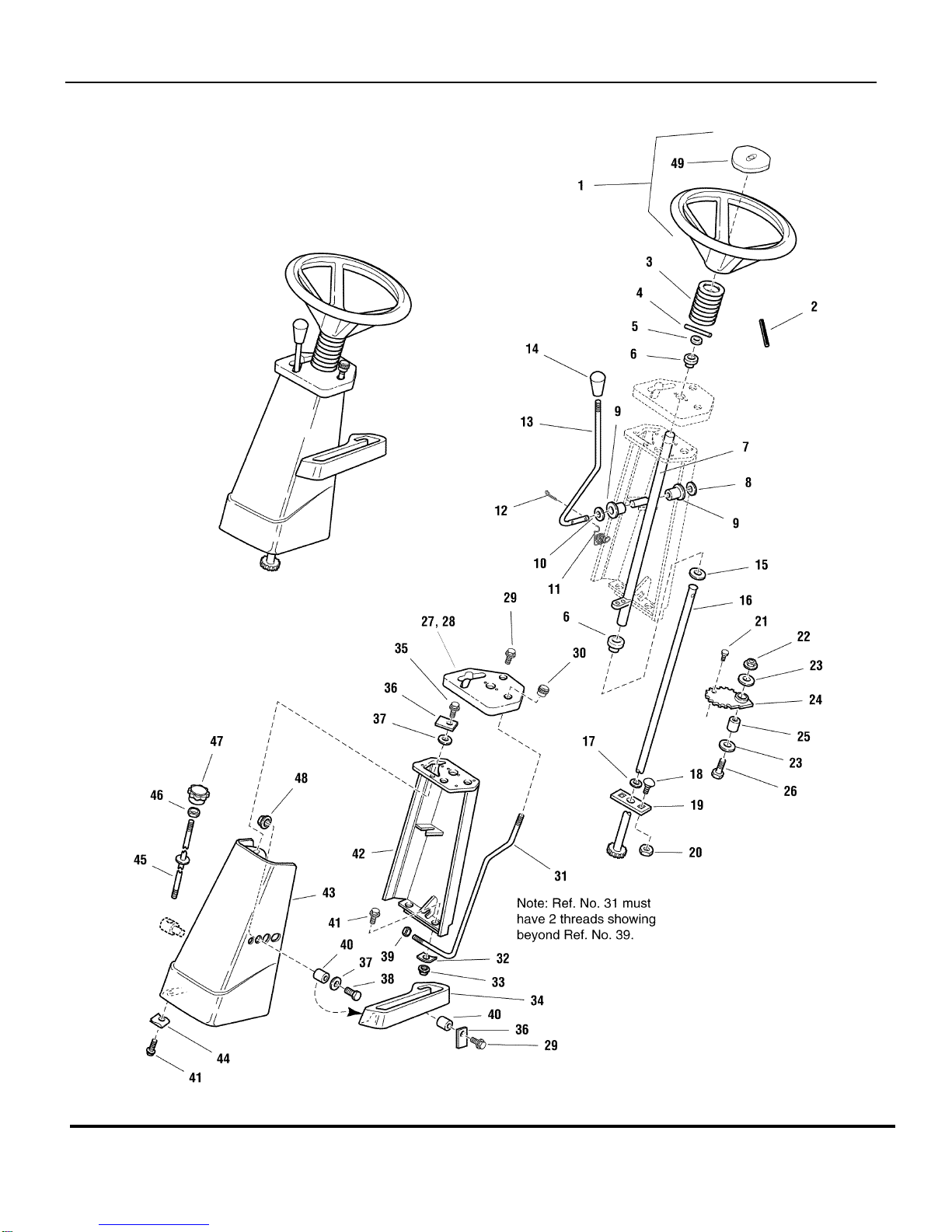

Front Column & Dash Group

TP 400-5276-IR-RE-N

Manual No. 7006468 REAR ENGINE RIDER

SERIES 0

Front Column & Dash Group

Footnotes:

TP 400-5276-IR-RE-N

Manual No. 7006468REAR ENGINE RIDER

SERIES 0 7

Part No Descri

tionItem Qt

Note

1 1713841 1 STEERING WHEEL ASSY (Incl. Ref. No. 49)

2 1960540 1 ROLL PIN, .188 x 1

3 1678381 1 TUBE, Steering

4 2916001 1 PIN

5 1960160 3 WASHER, 49/64

6 2176440 2 BUSHING, Nylon

7 1709229 1 TUBE ASSEMBLY, Shift

8 7090705 1 WASHER Was 1960170

9 1704428 2 BUSHING

10 7091587 1 WASHER, Plain, 17/32 x 1-1/4 x 7/64 Was 1924361

11 1707424 1 SPRING, Torsion

12 1918447 2 COTTER PIN, .094 x 3/4

13 1707375 1 ROD, Shift

14 1713843 1 KNOB, Rod, Shift

15 1960114 1 WASHER, Plain, 11/32 x 1 x 1/8

16 1706014 1 SHAFT & GEAR ASSY, Steering

17 173668 1 WASHER, Plain

18 1931350 2 CARRIAGE BOLT, 3/8-16 x 1 GR5

19 1703508A 1 PLATE, Steering Mounting

20 1928352 2 NUT, Hex, 3/8-16

21 7091540 1 CAPSCREW, Hex Head, 5/16-18 x 1-1/2 GR5 Was 1921221

22 3031355 1 NUT, Hex Flange Lock, 3/8-16 Was 1960339

23 1924356 3 WASHER, 13/32 x 1-1/2 x 1/8

24 1708426 1 GEAR, Steering

25 1666332 1 SPACER

26 1923701 1 CAPSCREW, Hex Head, 3/8-16 x 2 GR5

27 1714081 1 DASH, Hydro

28 1714082 1 DASH, Gear (Not Applicable)

29 1925592 3 CAPSCREW, Hex, Flange, Taptite, 1/4-20 x 3/4

30 1713855 1 KNOB, Rod, Parking Brake

31 1707057 1 ROD, Parking Brake

32 1933988 2 PUSH NUT, 5/16

33 1931277 2 NUT, Hex Flange, Whizlock, 5/16-18

34 1708965 1 QUADRANT, Lift

35 1925003 3 CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2

36 1709075 2 CLAMP, Dashboard

37 1921319 2 WASHER, Plain, 1/4

Front Column & Dash Group

TP 400-5276-IR-RE-N

Manual No. 7006468 REAR ENGINE RIDER

SERIES 0

Front Column & Dash Group

Footnotes:

TP 400-5276-IR-RE-N

Manual No. 7006468REAR ENGINE RIDER

SERIES 0 9

Part No Descri

tionItem Qt

Note

38 1924009 2 CAPSCREW, Hex Head, 1/4-20 x 7/8 GR5

39 1960608 1 NUT, Hex, Flange, 1/4-20

40 1678392 3 SPACER, 17/64 x 3/8 x 21/64

41 1930591 6 CAPSCREW, Hex Head, Whizlock, 5/16-18 x 3/4

42 1708990A 1 SUPPORT, Steering

43 1708267D 1 SHROUD, Front (Red)

44 1935255 4 PAL NUT, 5/16-18

45 1708971 1 ROD, Lift Height

46 1917421 2 NUT, Hex, Jam 1/4-20

47 1713857 1 KNOB, Rod, Lift Height

48 1930641 2 NUT, Hex, Flange, Whizlock, 1/4-20

49 1714097 1 CAP, Steering Wheel

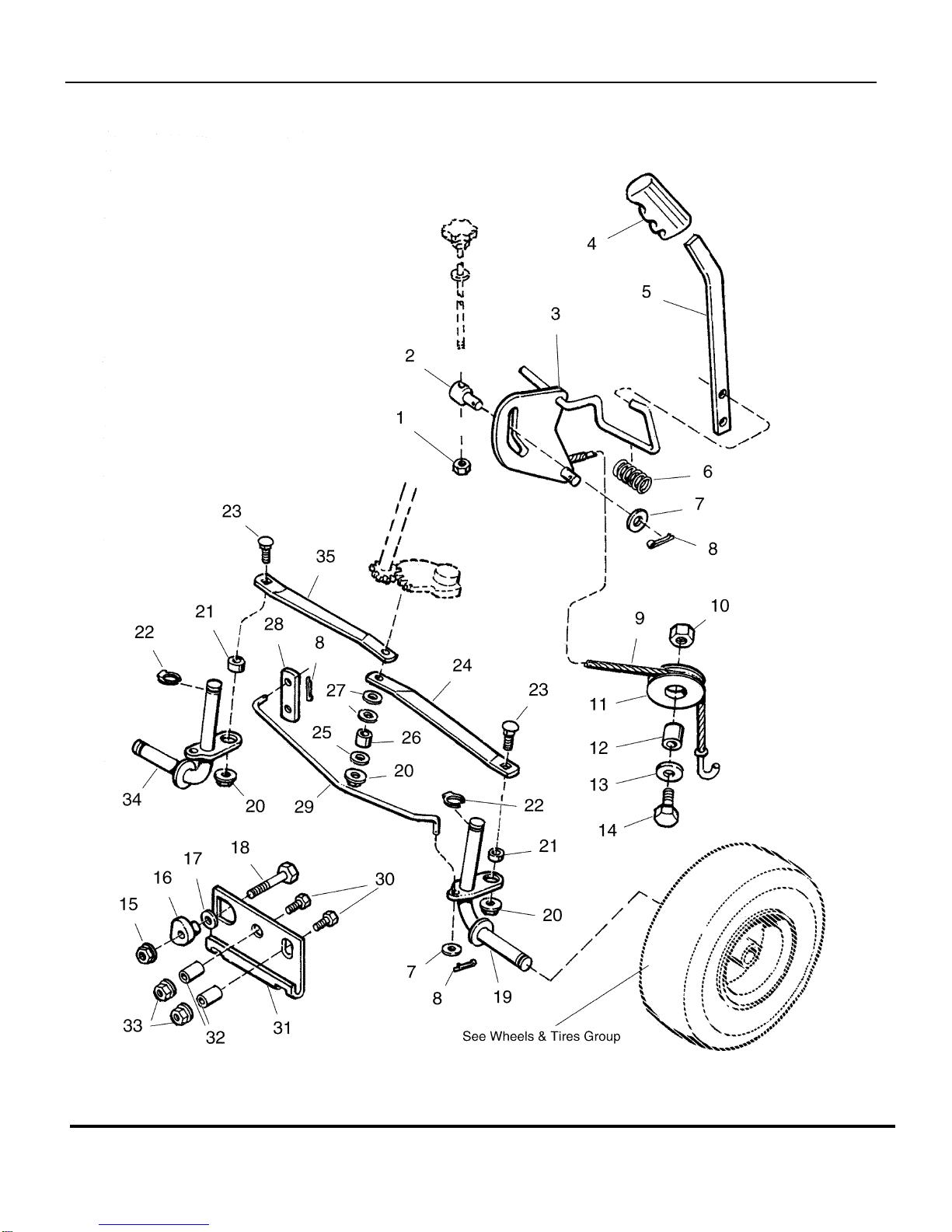

Steering & Lift Group

TP 400-5276-IR-RE-N

Manual No. 7006468 REAR ENGINE RIDER

SERIES 0
