Parts Manual fo

YARD TRACTOR ELECTRIC CLUTCH

YT400 Series

HYDRO 4WD RMO

Revision IR, TP 400-5416-IR-TC-N9/17/2008

Briggs & Stratton Yard Power Products Group

Manual No. 7006273

535 Macon Road

McDonough, GA, 30253 U.S.A.

800-935-2967

MODEL

YT2350 4WD (2690765)

Table Of Content

TP 400-5416-IR-TC-N

YARD TRACTOR ELECTRIC CLUTCH

YT400 Series 3

Manual No. 7006273

PAGE GROUP

4Wheels & Tires Group

6Steering Group - Power Steering

8Steering Group - Power Steering

10 Hood, Grille & Dash Group

12 Seat & Seat Deck Group

14 Frame & Front Axle Group - 4WD

18 Controls Group

22 Cruise Control Group

24 Transmission Group

28 Engine Group - 23HP Briggs & Stratton, Vanguard Twin

32 Decals Group

34 Lift Group - Manual Lift

36 50" Mower Deck - Housing, Arbors & Blades

38 50" Mower Deck - Clutch & Support Group

42 50" Mower Deck - Height Adjust Group

46 Electrical Group

TP 400-5416-IR-TC-N

Manual No. 7006273 YARD TRACTOR ELECTRIC CLUTCH

YT400 Series

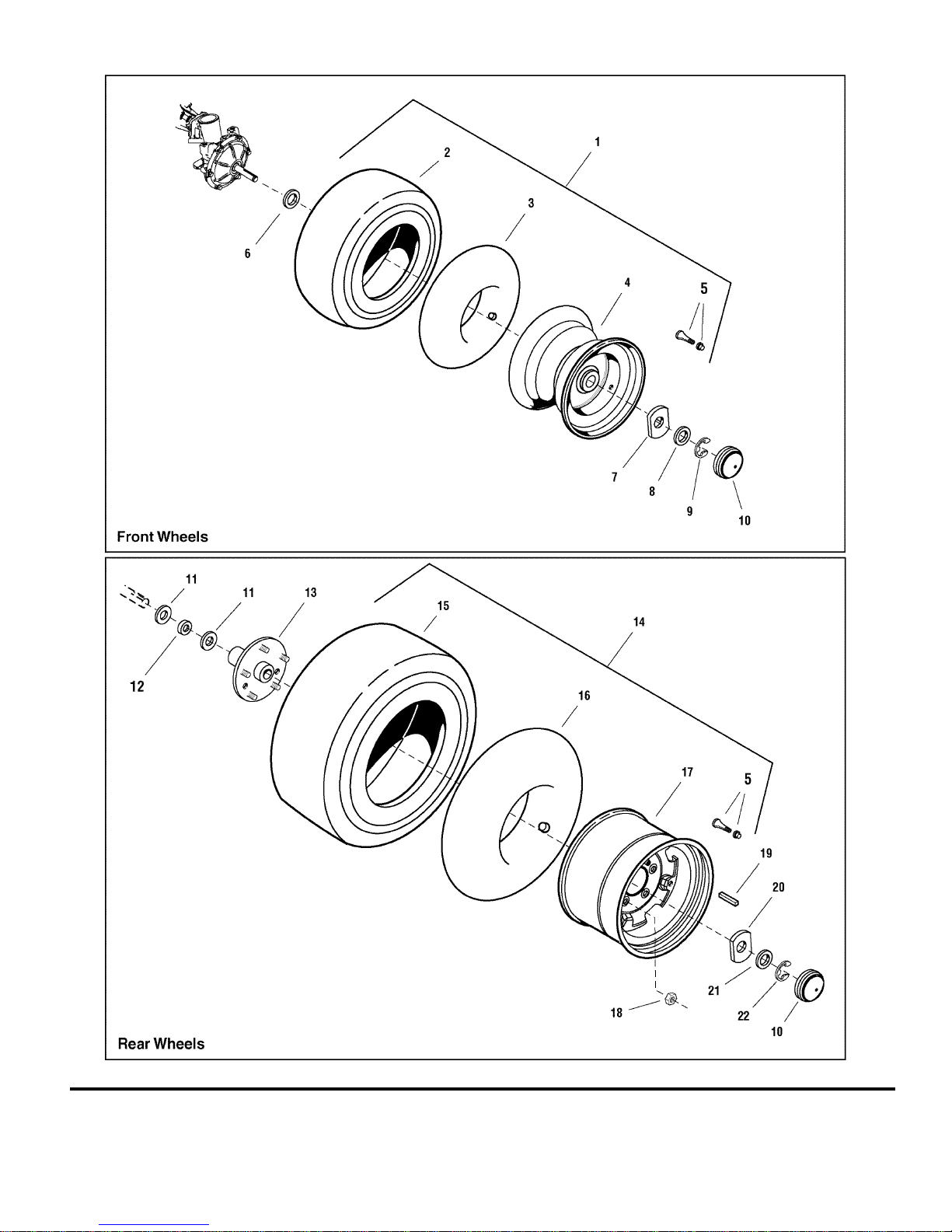

Wheels & Tires Group

Footnotes:

TP 400-5416-IR-TC-N

Manual No. 7006273YARD TRACTOR ELECTRIC CLUTCH

YT400 Series 5

Part No Descri

tionItem Qt

Note

1 1735010 2 WHEEL & TIRE ASSEMBLY, Front (Includes Ref. Nos. 2, 3, 4 & 5)

2 1735706 2 TIRE, 16 x 6-1/2 - 8

3 2153038 2 TUBE, Tire

4 1722834 2 WHEEL ASSEMBLY

5 2172353 4 VALVE STEM & CAP ASSEMBLY

6 2860202 2 WASHER, Flat 3/4 x 1-5/8 x 1/8

7 1722717 2 WASHER, Flat

8 1960114 2 WASHER, 3/4

9 2827794 2 RING

10 1722676 4 CAP, Hub

11 1960701 4 WASHER, 1 x 2-1/4 x 1/8

12 1726089 2 SPACER

13 1721400 2 PLATE & HUB ASSEMBLY

14 1735011 2 WHEEL & TIRE ASSEMBLY, Rear (Includes Ref. Nos. 5, 15, 16 &

17)

15 1735705 2 TIRE, 23 x 10-1/2 - 12

16 2157638 2 TUBE, Tire

17 1722831 2 WHEEL

18 2177725 10 NUT, Hex, 7/16-20

19 2105337 2 KEY, Hi-Pro 1/4 x 2

20 1722726 2 WASHER, Flat

21 1919394 2 WASHER, Flat

22 2834712 2 RING

Steering Group - Power Steering

TP 400-5416-IR-TC-N

Manual No. 7006273 YARD TRACTOR ELECTRIC CLUTCH

YT400 Series

Steering Group - Power Steering

Footnotes:

TP 400-5416-IR-TC-N

Manual No. 7006273YARD TRACTOR ELECTRIC CLUTCH

YT400 Series 7

Part No Descri

tionItem Qt

Note

1 1733363 1 STEERING WHEEL

4 1724685A 1 PLATE, Steering Mounting

5 1960655 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 G5

6 1725294 1 ADAPTER, Tilt

7 1723898 2 SPACER

8 1933988 2 NUT, Push Pal

9 1960636 2 NUT, Hex Keps 5/16-18

10 1733790 1 STEERING UNIT, Tilt

11 1686970 1 BELLOWS, Tilt Steering Unit w/Slot

12 1725024 1 CAP, Steering Wheel

13 1716518 2 DECAL, Power Steering

15 1960576 1 NUT, Hex Lock ESNA Light 5/8-18

Steering Group - Power Steering

TP 400-5416-IR-TC-N

Manual No. 7006273 YARD TRACTOR ELECTRIC CLUTCH

YT400 Series

Steering Group - Power Steering

Footnotes:

TP 400-5416-IR-TC-N

Manual No. 7006273YARD TRACTOR ELECTRIC CLUTCH

YT400 Series 9

Part No Descri

tionItem Qt

Note

1 1733894 1 POWER STEERING, 4 Ports, 4WD

2 1916964 4 LOCKWASHER, Spring 1/4

3 2860444 4 CAPSCREW, Hex Hd, M06-1 x 16mm

4 1722138 1 TUBE, Hydraulic

5 2825094 2 TIE, Wire

6 1733727 1 TUBE-Hydraulic

7 1931646 2 SCREW, Whiz Lock, 1/4-20 x 1/2

8 1722123 4 FITTING, Straight

9 1719168 1 FILTER, Oil

10 1719169 1 MANIFOLD, Oil Filter

11 1733427 1 TUBE, Hydraulic

12 1733230 2 PERMA, Push FItting

13 1722607 1 SCREW, Rd Hd, Plastite #8

14 1722285 1 COVER, Lift

Hood, Grille & Dash Group

TP 400-5416-IR-TC-N

Manual No. 7006273 YARD TRACTOR ELECTRIC CLUTCH

YT400 Series
