SOLTEK NV400-64 Manuale utente

NV400-64 / NV400-L64

Contents

ITEM CHECKUP ....................................................................7

Chapter 1 Specification ............................................. 8

1-1 NV400-64 / NV400-L64 Layout ..............................................9

1-2 Mainboard Specifications .................................................... 10

1-2.1 CPU Socket ................................................................................... 10

1-2.2 System Chipsets ........................................................................... 10

1-2.3 Memory ......................................................................................... 10

1-2.4 BIOS............................................................................................... 10

1-2.5 Accelerated Graphics Port (AGP) Interface........................... 11

1-2.6 Advanced System Power Management .................................... 11

1-2.7 Multi-I/O Functions .................................................................... 11

1-2.8 Expansion Slots ............................................................................ 11

1-2.9 AC’97 Audio Codec on board .................................................... 12

1-2.10 Hardware Monitor on board ................................................... 12

1-2.11 LAN on board (NV400-L64 only) ........................................... 12

1-2.12 Form Factor................................................................................ 12

1-3 Mainboard Specification Table ........................................... 13

1-4 Chipset System Block Diagram........................................... 14

Chapter 2 Hardware Setup ..................................... 16

2-1 CPU Identification and Installation ................................... 17

2-1.1 CPU Identification Legends....................................................... 17

2-1.2 CPU Installation with Socket 462 ............................................. 18

2-2 Memory Installation ............................................................. 19

2-2.1 To Install DDR SDRAM Module .............................................. 19

2-2.2 To Remove a DIMM .................................................................... 19

2-3 AGP Slot Installation ............................................................ 20

2-4 IDE Connector Installation ................................................. 21

Contents

2-5 Floppy Drive Connector Installation ................................. 22

2-6 ATX Power Supply Installation .......................................... 23

2-7 Jumper Settings ..................................................................... 24

2-7.1 How to tackle the Jumpers: ....................................................... 25

2-7.2 Jp4: CPU Clock Select ................................................................ 25

2-7.3 J6: nVIDIA Clear CMOS ........................................................... 26

2-7.4 Jp2: Anti-burn Shield (ABSII) .................................................. 27

2-7.5 Jp1: KB/Mouse Power On/Wake Up........................................ 28

2-8 Other Connectors Configuration........................................ 29

2-8.1 Onboard FAN Connectors ......................................................... 29

2-8.2 USB Ports and USB Pin-headers .............................................. 30

2-8.3 Chassis Panel Connectors .......................................................... 31

2-8.4 PS/2 Mouse And PS/2 Keyboard ............................................... 31

2-8.5 CD-ROM Audio Connectors...................................................... 32

2-8.6 Thermal Resistors........................................................................ 32

2-8.7 Wake On LAN Connector:......................................................... 33

2-8.8 LAN Connector (NV400-L64 Only) ......................................... 33

2-8.9 Complex Pin-header (Front Panel Connectors) ..................... 34

Chapter 3 Software Setup ....................................... 36

3-1 To Open up the Support CD ................................................ 37

3-2 To Install “nVIDIA nForce2 All-in-1 Driver” .................. 38

3-3 To Install AC’97 Audio Driver ............................................ 40

3-3.1 Installation ................................................................................... 40

3-4 To Verify 6-channel Audio Configuration ......................... 41

3-5 To Install Hardware Monitor Utility.................................. 44

3-5.1 Installation ................................................................................... 44

3-5.2 Verification .................................................................................. 45

3-6 To Install USB 2.0 Driver for Windows 2000 or XP ........ 46

Chapter 4 BIOS Setup............................................. 47

4-1 About BIOS Setup ................................................................. 48

NV400-64 / NV400-L64

4-2 To Run BIOS Setup ............................................................... 48

4-3 About CMOS .......................................................................... 48

4-4 The POST ( Power On Self Test ) ....................................... 48

4-5 To Upgrade BIOS .................................................................. 49

4-5.1 Before Upgrading BIOS ............................................................. 49

4-5.2 Upgrade Process........................................................................... 49

4-6 BIOS SETUP --- CMOS Setup Utility................................ 52

4-6.1 CMOS Setup Utility .................................................................... 52

4-6.2 Standard CMOS Setup ............................................................... 53

4-6.3 Advanced BIOS Features ........................................................... 56

4-6.4 Advanced Chipset Features ....................................................... 60

4-6.5 Integrated Peripherals................................................................ 63

4-6.6 Power Management Setup ......................................................... 68

4-6.7 PnP / PCI Configuration ............................................................ 71

4-6.8 SmartDoc Anti-Burn Shield....................................................... 73

4-6.9 CPU Ratio/Voltage Control........................................................ 75

4-6.10 Load Optimized Defaults ........................................................ 77

4-6.11 SET SUPERVISOR / USER PASSWORD............................. 78

4-6.12 SAVE & EXIT SETUP.............................................................. 79

4-6.13 EXIT WITHOUT SAVING ...................................................... 79

APPENDICES.......................................................... 80

Appendix-1 Identify BIOS Version & BIOS Part Number ... 81

Appendix-2 Identify Mainboard Model Number ................... 82

Appendix-3 Technical Terms ...................................................... 83

Contents

ITEM CHECKUP

• Mainboard

• User Manual (Mainboard)

• Multi-lingual Quick Installation Guide

• Support CD

• Bundled Bonus Pack CD

• Bundled Bonus Pack Manual

• Cables :

ATA66/100/133 IDE Cable

FDD Cable

USB Cable (Optional)

NV400-64 / NV400-L64

Topics included in this chapter are:

1-1 Mainboard Layout

1-2 Mainboard Specifications**

1-3 Mainboard Specification Table

1-4 Chipset System Block Diagram

Introduction

Chapter 1 Specification

This series features an integration of the powerful AMD processors

Athlon/Athlon XP/Duron and the North Bridge nVIDIA nFORCE2 400

plus South Bridge nFORCE2 MCP, with which the whole system per-

formance supports 400/333/266/200MHz system bus.

nVIDIA nFORCE2 400 plus nFORCE2 MCP supports on-board AMD

processors to implement the 400/333/266/200 MHz Front Side Bus, the

AGP 8X/4X interface, the LPC Super I/O, the DDR 400/333/266 MHz

SDRAM, the 6-channel AC’97 Audio interface, the USB 2.0 interface

and ATA 133/100/66 data transfer rate. This chapter is to introduce to

users every advanced function of this high performance integration.

** If any difference is found between this manual and the Main-

board you are using, please look up the ERRATA/UPDATE Slip

enclosed inside for the correction or updated information, or

else contact the Mainboard Dealer or visit our Web Site for the

latest manual update.

Chapter 1 Specification

nVIDIA

nFORCE2400

DIM1

IDE2

IDE1

Battery

Fan3

nVIDIA

nFORCE2

AC'97

Codec

WOL1

PCI1

PCI5

PCI4

PCI3

PCI2

USB2 USB1

FDC1

DIM2

ATX Main Power

PS/2 Keyboard

Mouse

(on top)

(underside)

CDIN1

DDR 400/333/266MHz

USB1 USB0

(middle)

(underside)

RJ45

(on top)



LPT1

COM2 COM1

Line

Game/MIDI Port

Line

Mic

RTL

ALC650

Fan1

Jp1

AGP 4X/8X

BIOS

+12V Power

Jp4

RT2

Jp2

In Out

MCP

Fan2

SOCKET462

RT1



LPC I/O

W83627HF

NJP1

HDD IR PWR

SPK RST +-

PWLED

LED

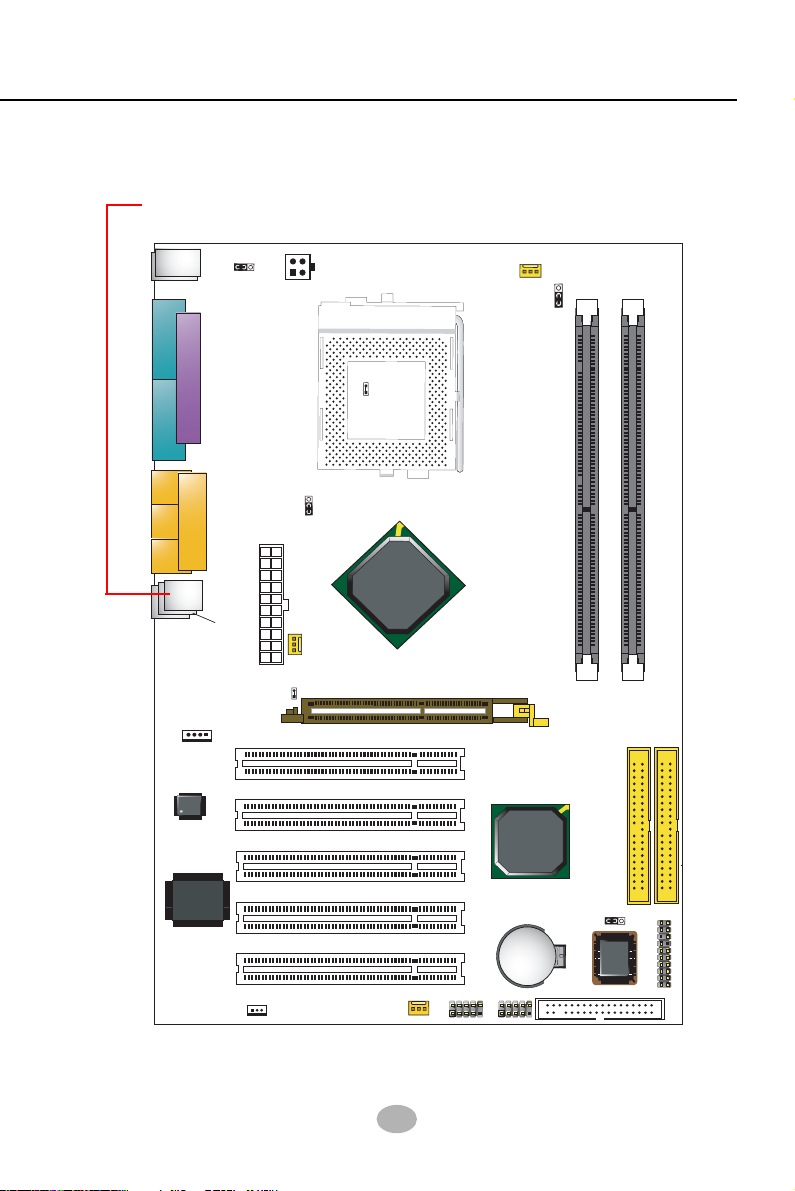

1-1 NV400-64 / NV400-L64 Layout

RJ45 (NV400-L64 Only)

NV400-64 / NV400-L64

1-2 Mainboard Specifications

1-2.1 CPU Socket

CPU Socket 462 (Socket A) on board, supporting AMD Athlon, Athlon

XP and Duron processors and implementing 400/333/266/200MHz sys-

tem bus

1-2.2 System Chipsets

• North Bridge nVIDIA nFORCE2 400 for managing and supporting

400/333/266/200MHz system Bus, AGP 8X/4X interface and DDR

400/333/266MHz Memory Interface.

• South Bridge nVIDIA nFORCE2 MCP working with North Bridge

nFORCE2 400 supporting the HyperTransport, LPC Super I/O, PCI

interface, ATA133 interface, LAN interface, USB V2.0 interface as

well as AC’97 Audio 6-channel interface.

1-2.3 Memory

2 DDR DIMM 184-pin slots on board :

• Supporting unregistered, non-ECC DDR 400/333/266/200 SDRAM

up to 2GB

• Supporting installation of mixed volumes yet same type of DDR

SDRAM modules

1-2.4 BIOS

Flash Memory for easy upgrade, supporting BIOS Writing Protection,

Year 2000 compliant, and supporting various hardware configuration

during booting system (See Chapter 4 BIOS Setup):

• Standard CMOS Features (Times, Date, Hard Disk Type etc,)

• Advanced BIOS Features (Virus Protection, Boot Sequence etc.)

• Advanced Chipset Features (AT Clock, DRAM Timing etc.)

• Power Management Features (Sleep timer, Suspend Timer etc.)

• PNP/PCI Configurations (IRQ Settings, Latency Timers etc.)

• Integrated Peripherals (Onboard I/O, IRQ, DMA Assign. etc.)

• SmartDoc Anti-Burn Shield (CPU/System Temp., Fan speed etc.)

• CPU Ratio/Voltage Control (Voltage of CPU, DIMM, AGP etc.)

Chapter 1 Specification

1-2.7 Multi-I/O Functions

• PCI EIDE Controller, supporting:

-- 2 ATA 133 / 100 / 66 IDE connectors supporting up to 4 IDE devices

• Dedicated IR Functions:

-- 1x5 IR connector dedicated to IR function with Infrared-IrDA (HPSIR)

and ASK (Amplitude Shift Keyed) IR

• Multi-mode parallel data transfer:

-- Standard mode, high speed mode ECP and enhanced mode EPP

• Floppy Drive Connector:

-- 1 FDD connector supporting 2 floppy drives with drive swap support

• Universal Serial Bus Transfer Mode:

-- USB V2.0 compliant, 480 MB/s USB Bus, supporting Win2000 / XP.

-- 2 built-in USB connectors and 2 more USB pin-headers which require 2

additional USB cables to provide 4 more USB ports

• PS/2 Keyboard and PS/2 Mouse

• UARTs (Universal Asynchronous Receiver / Transmitter):

-- 2 serial ports (COM1 & COM2) on board

1-2.8 Expansion Slots

• 5 PCI Bus Master slots

• 1 AGP 8X/4X slot

• 2 DDR DIMM slots

1-2.6 Advanced System Power Management

Advanced Configuration and Power Interface incorporated in BIOS for

reducing power consumption :

• ACPI 1.0B compliant (Advanced Configuration and Power Interface),

including ACPI Suspend mode support (See Power management of

BIOS Setup)

• APM V1.2 compliant (Legacy Power Management)

• PS/2 Keyboard & Mouse Power On

• Real Time Clock (RTC) with date alarm, month alarm, and century

field

1-2.5 Accelerated Graphics Port (AGP) Interface

AGP Controller embedded on board, supporting:

• 1.5V(8X/4X) power mode only, 1 AGP Slot supported

• 8X 66MHz AD and SBA signaling; AGP pipelined split-transaction

long burst transfers up to 2GB/sec.

• AGP 8X/4X supported, AGP V3.0 compliant

NV400-64 / NV400-L64

1-2.9 AC’97 Audio Codec on board

AC’97 Audio Codec on board, 6-channel interface compliant

1-2.10 Hardware Monitor on board

• Hardware Monitor supported by LPC I/O W83627HF, providing moni-

toring functions on hardware voltage, temperatures and fan speeds.

• Utility Software Soltek Hardware Monitor for displaying monitor sta-

tus is enclosed in Support CD for user’s installation.

1-2.12 Form Factor

• ATX Form Factor, ATX Power Supply

• Mainboard size: 305mm x 210mm

1-2.11 LAN on board (NV400-L64 only)

Fast Ethernet Controller integrated in nFORCE2 MCP and nFORCE2

Media Access Controller:

• Supporting 10/100Mb Fast Ethernet Base T LAN

• LAN Driver enclosed in Support CD for user’s installation

• Supporting up to 6 channels of PCM audio output

• 6 channel audio consisting of Front Left, Front Right, Back Left,

Back Right, Center and Sub-woofer for complete surround sound

effect

• AC’97 Audio Codec Driver enclosed in Support CD for user’s installa-

tion

Chapter 1 Specification

1-3 Mainboard Specification Table

CPU

North Bridge

South Bridge

BIOS

Memory

I/O Chip

AGP interface

Audio

IDE Interface

VGA

PCI Slots

I/O Connectors

Networking

Other Common

Features

Socket 462 for AMD Athlon, Athlon XP, Duron CPU

nFORCE2 400, supporting 400/333/266/200 MHz

FSB

nFORCE2 MCP

Award BIOS

DDR 400/333/266 SDRAM, up to 2GB in 2 DDR

DIMM slots

Winbond W83627HF with Soltek HM

AGP 8X/4X mode only

AC’97 Audio Codec, 6-channel compliant

2 ATA 133/100/66 IDE Connector

Not integrated on board

5 PCI Master slots on board

6 USB V2.0, 1 FDD port, 2 COM ports, 1 LPT,

1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse

LAN Controller nForce2 MCP and Connector RJ45

(NV400-L64 Only)

Keyboard/Mouse Power On/Wake Up

ATX Power Supply

ATX Form Factor

NV400-64 / NV400-L64 Specifications and Features

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SOLTEK Scheda madre

SOLTEK

SOLTEK SL-67D Manuale utente

SOLTEK

SOLTEK SL-53D5-S Manuale per l'uso e la cura

SOLTEK

SOLTEK SL-65EP Manuale utente

SOLTEK

SOLTEK SL-65EB Manuale utente

SOLTEK

SOLTEK SL-B8D-F Manuale utente

SOLTEK

SOLTEK 86SP2 Manuale utente

SOLTEK

SOLTEK SL-67G60 Manuale per l'uso e la cura

SOLTEK

SOLTEK 85ERV Manuale utente

SOLTEK

SOLTEK SL-67FV1 Manuale utente

SOLTEK

SOLTEK SL-67EV1 Manuale per l'uso e la cura

SOLTEK

SOLTEK KT400 Manuale utente

SOLTEK

SOLTEK 85LIR-C Manuale utente

SOLTEK

SOLTEK 75FRV Manuale utente

SOLTEK

SOLTEK SL-B9D-FGR Manuale utente

SOLTEK

SOLTEK SL-PT880E-R Manuale utente

SOLTEK

SOLTEK SL-75DRV-X Manuale utente

SOLTEK

SOLTEK SL-75DRV3/75DRV3+ Manuale utente

SOLTEK

SOLTEK SL-65KVB Manuale utente

SOLTEK

SOLTEK SL-65KV2-T Manuale utente

SOLTEK

SOLTEK SL-855GEI-FDGR Manuale utente

SOLTEK

SOLTEK SL-67B-W Manuale utente

SOLTEK

SOLTEK SL-75ERV Manuale utente

SOLTEK

SOLTEK SL-85DR-C Manuale utente

SOLTEK

SOLTEK B7A-F Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
