SonicWALL NSA E7500 Manuale utente

SonicWALL NSA E7500

Getting Started Guide

Network Security Appliances

NETWORK SECURITY SonicWALL NSA E7500

SonicWALL NSA E7500 Getting Started Guide Page 1

EFT DRAFT

SonicWALL NSA E7500

Getting Started Guide

SonicWALL EARLY FIELD TRIAL DRAFT

The SonicWALL NSA E7500 is a high-performance, multi-service gigabit

network security platform that protects users and critical network resources from

dynamic network threats and attacks. The SonicWALL NSA E7500 is easy to

deploy. It integrates SonicWALL’s Security Services for comprehensive Unified

Threat Management, including:

• Intrusion Prevention Service

• Gateway Anti-Virus

• Anti-Spyware

• Client-Enforced Anti-Virus

• Content Filtering Service

This Getting Started Guide provides instructions for basic installation and

configuration of the SonicWALL NSA E7500 running SonicOS Enhanced. After

you complete this guide, computers on your Local Area Network (LAN) will have

secure Internet access.

Page 2

SonicWALL EFT DRAFT

Document Contents

This document contains the following sections:

Completing Pre-Configuration Tasks - page 3

Connecting for Initial Setup - page 17

Initial Configuration - page 21

Registering Your SonicWALL - page 27

Appendix

Appendix A: Configuring DHCP IP Addressing - page 31

Appendix B: Troubleshooting Internet Connectivity - page 32

Appendix C: Safety Instructions and Regulatory Information - page 33

SonicWALL NSA E7500 Getting Started Guide Page 3

EFT DRAFT

Completing Pre-Configuration Tasks

In this Section:

This section provides pre-configuration information. Review this section before

setting up your SonicWALL NSA E7500.

•System Requirements, on page 4

•Check Package Contents, on page 5

•Obtain Configuration Information, on page 6

•Obtain Internet Service Provider (ISP) Information, on page 7

•The Front Panel, on page 8

•The Back Panel, on page 9

•Front Bezel Control Features, on page 10

Page 4 System Requirements

SonicWALL EFT DRAFT

System Requirements

Before you begin the setup process, check to ensure that you have:

• A computer to use as a management station for initial configuration of the

SonicWALL NSA E7500

• A Web browser supporting Java and HTTP uploads. Internet Explorer 6.0

or higher, Netscape Navigator 7.2 or higher, or Opera 8.54 or higher are

required.

• An Internet connection

SonicWALL NSA E7500 Getting Started Guide Page 5

EFT DRAFT

Check Package Contents

SonicWALL NSA E7500

Ethernet cable

Standard power cord (2)

Release Notes

SonicWALL Resource CD

Getting Started Guide

Rack Mount**

Rail Kit**

DB9 -> RJ45 (CLI) Cable**

Any Items Missing?

If any items are missing from your

package, please contact SonicWALL

support.

A listing of the most current support

options is available online at:

<http://www.sonicwall.com/us/

support.html>

*The included powercord is intended foruse

in North America only. For European Union

(EU) customers, a power cord is not

included.

**Items not included in content graphic.

%

.ETWORK3ECURITY!PPLIANCE

3ONIC7!,,

2ESOURCE#$

3ONIC7!,,

'ETTING3TARTED'UIDE

#/-02%(%.3)6%).4%2.%43%#52)49

3ONIC/32ELEASE.OTES

#ONTENTS

X









Page 6 Obtain Configuration Information

SonicWALL EFT DRAFT

Obtain Configuration Information

Please record and keep for future reference the following setup information:

Registration Information

Networking Information

Administrator Information

Serial Number:

Record the serial number found on the bottom panel of

your SonicWALL appliance.

Authentication Code:

Record the authentication code found on the bottom panel

of your SonicWALL appliance.

LAN IP Address:

. . .

Select a static IP address for your SonicWALL appliance

that is within the range of your local subnet. If you are

unsure, you can use the default IP address

(192.168.168.168).

Subnet Mask:

. . .

Record the subnet mask for the local subnet where you are

installing your SonicWALL appliance.

Ethernet WAN IP Address:

. . .

Select a static IP address for your Ethernet WAN. This

setting only applies if you are already using an ISP that

assigns a static IP address.

Admin Name:

Select an administrator account name.

(default is admin)

Admin Password:

Select an administrator password.

(default is password)

SonicWALL NSA E7500 Getting Started Guide Page 7

EFT DRAFT

Obtain Internet Service Provider (ISP) Information

Record the following information about your current Internet service:

Note: If you are not using one of the network configurations above, refer to

the SonicOS Enhanced Administrator’s Guide. You can locate this guide on

your SonicWALL Resource CD.

If You connect using Please record

DHCP No Internet connection information is usually

required:

Static IP IP Address: . . .

Subnet Mask: . . .

Default Gateway

(Router IP Address): . . .

Primary DNS: . . .

Secondary DNS

(optional): . . .

Page 8 The Front Panel

SonicWALL EFT DRAFT

The Front Panel

Feature Description

LCD Screen Displays the front panel bezel interface, which can be used to

display status information, make certain configuration

changes, restart the appliance, or boot the appliance in Safe

Mode.

Control Buttons Used to navigate the front panel bezel interface.

Console Port Used to access the SonicOS Command Line Interface (CLI)

via the DB9 -> RJ45 cable.

USB Ports (2) Future extension.

Power LED (2) Indicates the SonicWALL NSA E7500 is powered on.

Test LED Flickering: Indicates the appliance is initializing.

Steady blinking: Indicates the appliance is in safe mode.

Solid: Indicates that the appliance is in test mode.

Alarm LED Indicates an alarm condition.

HD LED Future extension.

HA Port High availability failover port.

X0-X7 Gigabit Ethernet ports.

Bypass Status LED Indicates that default LAN and WAN interfaces (X0 and X1

respectively) are directly connected.

E7500

Network Security Appliance

SonicWALL NSA E7500 Getting Started Guide Page 9

EFT DRAFT

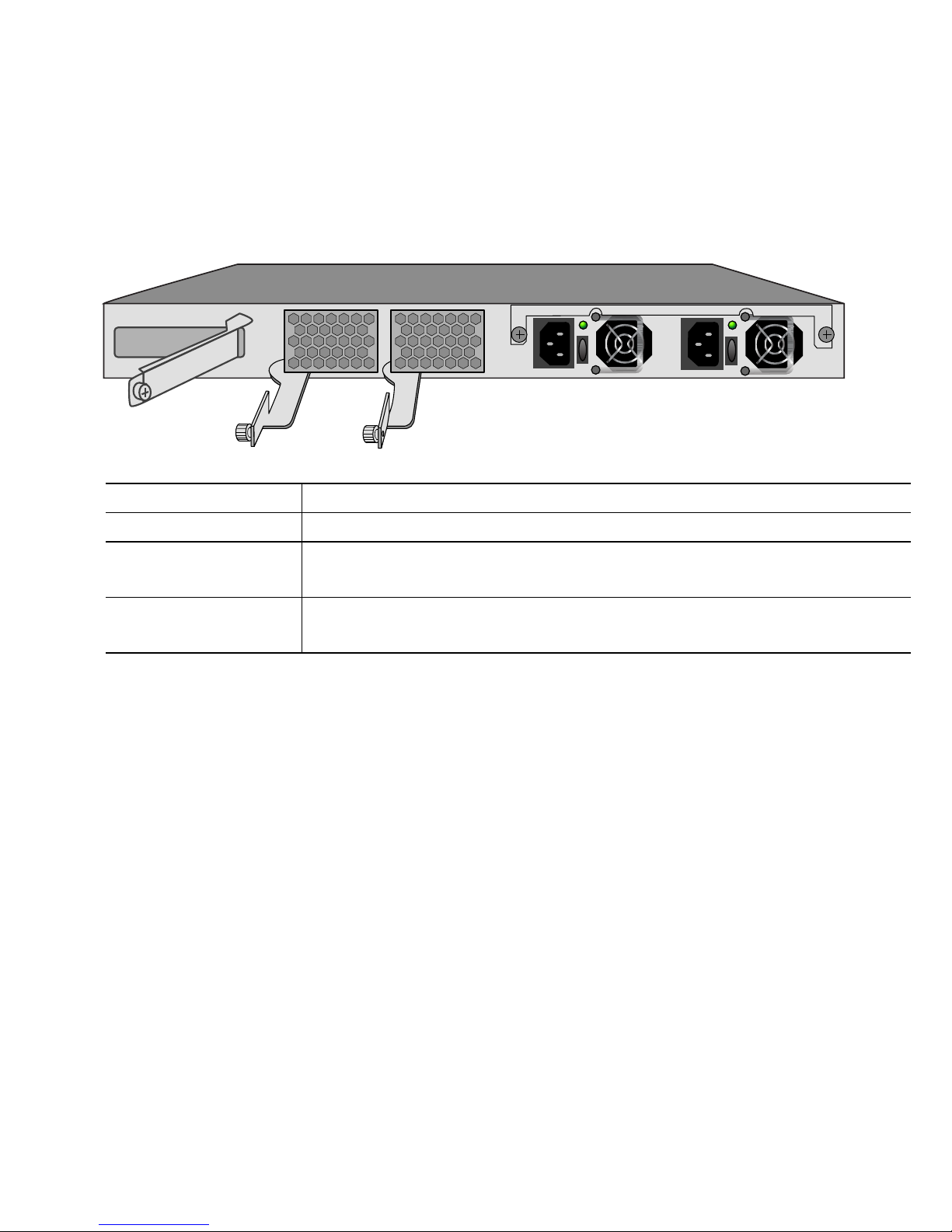

The Back Panel

Feature Description

Expansion Bay Future extension.

Fans (2) The SonicWALL NSA E7500 includes two fans for system

temperature control.

Power Supply (2) The SonicWALL NSA E7500 includes two power supplies for

redundant AC power and added reliability.
