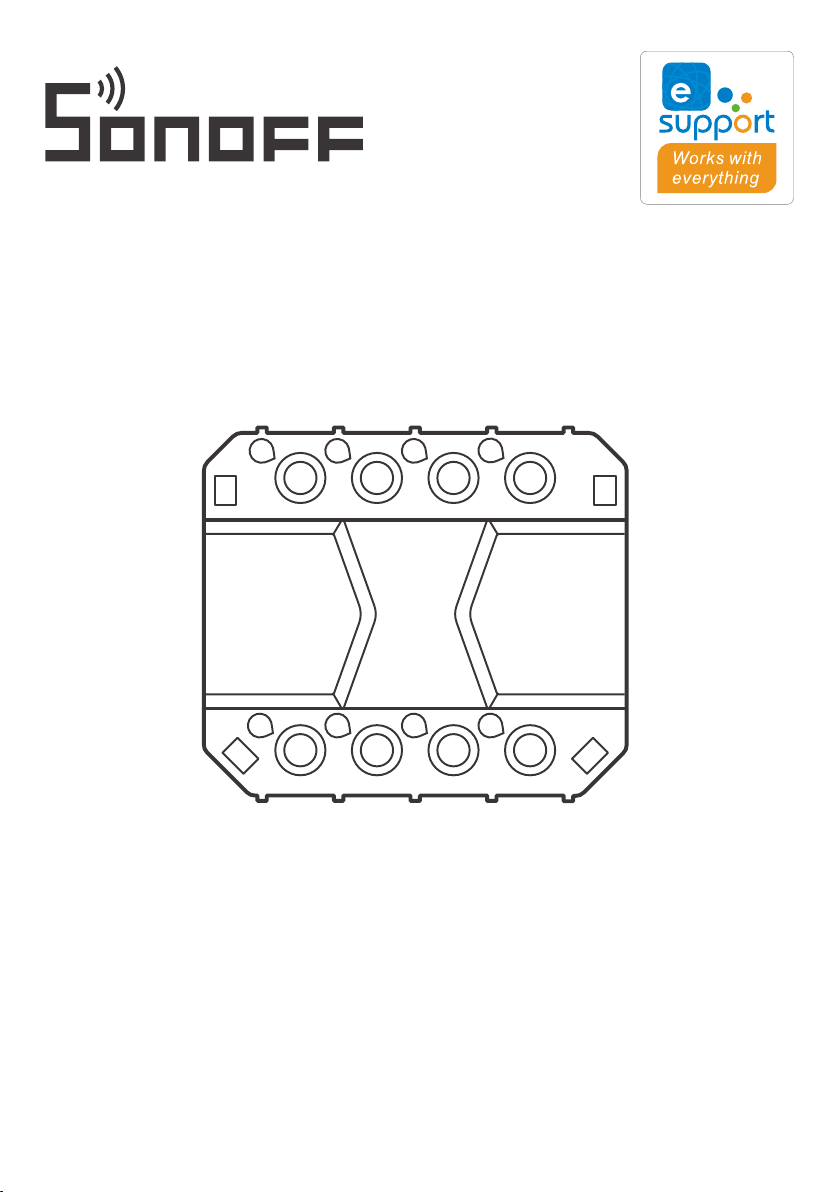

Sonoff S-MATE Manuale utente

Switch Mate

User manual V1.2

S S1 S2 S3

LL1

S-MATE

Upper Cover

Battery Compartment

Dip Switch

Features

123

S-MATE is an eWeLink-Remote sub-device, used to connect with an ordinary rocker or pulse

switch. The on/oﬀ of the gateway can be controlled at close range by sub-device locally after it

is added to the gateway, and the sub-device can also trigger other smart devices in the smart

scene through the cloud.

ON O FF

Product Introduction

LED indicator

The device weight is less than 1 kg. The installation height of less than 2 m is recommended.

1. Pull out the battery insulation sheet

Operating Instruction

2. Power oﬀ

Please install and maintain the device by a professional electrician. To avoid electric shock

hazard, do not operate any connection or contact the terminal connector while the device is

powered on !

3. Wiring instruction

NL in LOut

S S1 S2 S3

LL1

LOut

100-240V AC

N N

L

L1

L2

L3

NL in LOut

LOut

N N

NL in LOut

LOut

N N

The wiring instruction of connecting the S-MATE with three MINIR3:

S1

S2

S3

The dip switch is factory set to the right. Please toggle the dip switch to the left if connection

a pulse switch to the device.

S S1 S2 S3

LL1

100-240V AC

L

L1

S1

NL in LOut

LOut

N N

The wiring instruction of connecting the S-MATE with one MINIR3:

翘板开关

Make sure the neutral wire and live wire connection is correct.

Dip Switch

Rocker Switch

There are L/L1/L2/L3 on the S-MATE which can be used as terminal connectors, but you have

options to directly connect the L wire of MINIR3 to the L wire in the switching box without

going through the S-MATE.

S-MATE

100-240V ~ 50/60Hz 16A Max

PCV0

51x44.5x24mm

-10℃~40℃

100-240V ~ 50/60Hz 16A Max

CR2032

“eWeLink remote” Transmission Distance

Power supply

Battery model

Model

Input

Output

Working temperature

Dimension

3V button cellx 1

Specifications

Shell material

Up to 50M

MIN IR3

Sched ule Time r LoopTim er

Dev iceS ettings

Sho rtcu ts

Ope ration r ecord

0/32

Net work in dicat or

Ass ign loc ation

Sha re

Crea te grou p

WeCh at cont rol

LAN c ontrol

Devi ce Sett ings

eWeL ink Rem ote Sce ne

eWeL ink Rem ote

Powe r-on Se tting s

0/8

eWeLink-Remotesub-devices

4. Add to eWeLink-Remote gateway

Please turn oﬀ the electricity before replacing the battery of device.

Replace batteries

Add

SS1

①You are allowed to add S-MATE to the devices that have eWeLink-Remote gateway such as MINIR3

and etc. on their setting page.

②Add S-MATE on Smart Scene to trigger other devices.
