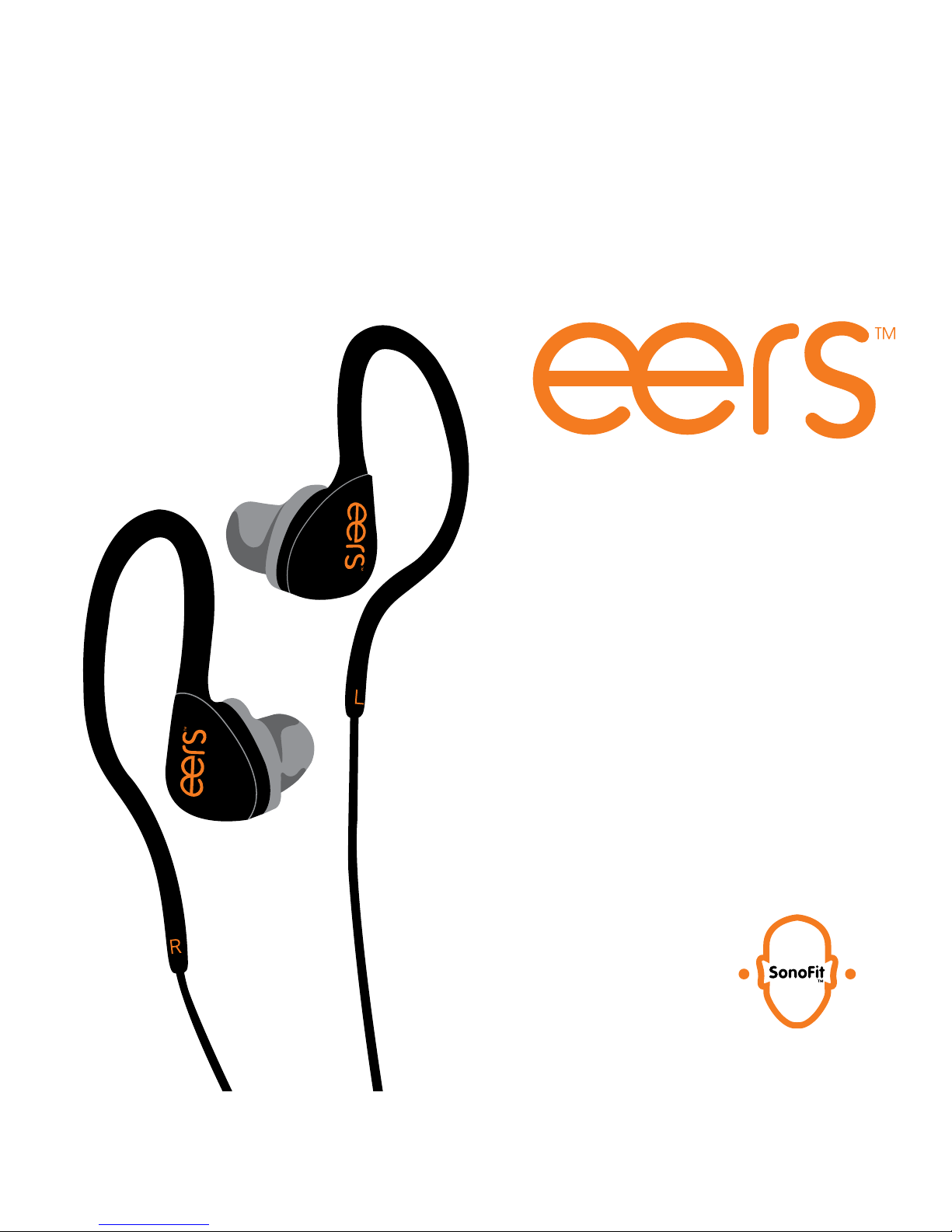

SonoFit Eers Manuale utente
User Manual
Product Warning
eers™can fail to customize properly if the units are stored in a
hot environment.
Store your unopened eers™tray in a cool environment, 10ºC (50F) to
24ºC (75F) for at least 3 hours prior to initial custom fitting.
Failure to follow these guidelines may compromise the initial fitting
process and void the warranty.
Once the eers™have been custom fitted to the user’s ears, there
are no special temperature considerations.
2
Table of Contents
Thank you for choosing eers™.................................................. 3
Performance, Comfort + Safety ................................................ 4
This Box Includes................................................................ 5
Welcome to the SonoFit™Fitting Experience ................................ 7
About the Shaping Process ..................................................... 8
Before You Begin ................................................................. 9
How to Fit ......................................................................... 10
How to Care for Your eers™................................................... 16
How to Wear Your eers™........................................................ 17
Specifications .................................................................... 19
Warnings.......................................................................... 20
Product Warranty................................................................ 21
3
Thank you for choosing eers™
Our custom-fitted earphones provide an in-ear
acoustic seal that blocks out ambient noise while
creating a home theatre right inside your head.
Whether you’re in the studio, on stage, on a crowded
subway, at the airport, on the plane or in the comfort
of your own living-room, you can enjoy high-fidelity
sound without blasting the volume. You’re ready to
hear music the way it was meant to be heard.
4
Performance, Comfort + Safety
High Performance Sound
Our eers™Custom-Fitted Earphones deliver unparalleled isolation
from ambient noise and excellent acoustic coupling with the ear
for an enhanced listening experience.
Ultimate Personalized Comfort
Custom fitting is done instantly using the SonoFit™Fitting System.
Medical grade silicone provides superb comfort for extended use and
a secure fit that ensures the earpiece will not fall out even during the
most intense activities.
Safe Listening
The eers™earphones isolates the sound you want to hear
from the noise you don’t want to hear, allowing you the ability to safely
listen at a fraction of your normal listening volume.
5
7
2
What is Included in the Box:
SonoFit™Fitting System:
Preloaded with 1 set
of Earphones
A
CDE F
B
8
3
46
9
5
1
6
SonoFit™Fitting System
Left Start Tab
Right Start Tab
Connector
(Right = Red, Left = Blue)
Retainer Ring
Earpiece
Wires
Earloop
Adjustable Band
In-line Microphone
1 User Manual and
1 Quick Fit Guide
1 Tube of Water-based
Fitting Lubricant
2 Earphone Faceplates
1 Carrying Pouch
1 Sanitizing Wipe
(located inside carry pouch)
1
2
3
4
5
6
7
8
9
Note: Please do not unnecessarily handle the earpieces before
they are shaped.
Avoid accidental activation. Do NOT touch any tabs when
exploring the SonoFit™ System
AB
C
D
E
F
7
Everything you need to create your eers™is included in this kit.
The components of this fitting system are time sensitive, so once you
start the process, and unlock the fitting system, you will need to go
through all the quick and easy steps right away.
This process will take less than 10 minutes to complete, giving you
custom-fitted earphones almost instantly.
Let’s get started!
Welcome to the SonoFit™
Custom Fitting Experience
Note: If you would prefer to watch a video of the fitting experience
visit www.myeers.com/fitting. We are also available by phone:
USA / CANADA: 1-888-921-3317
INTERNATIONAL: +1-514-932-2828
8

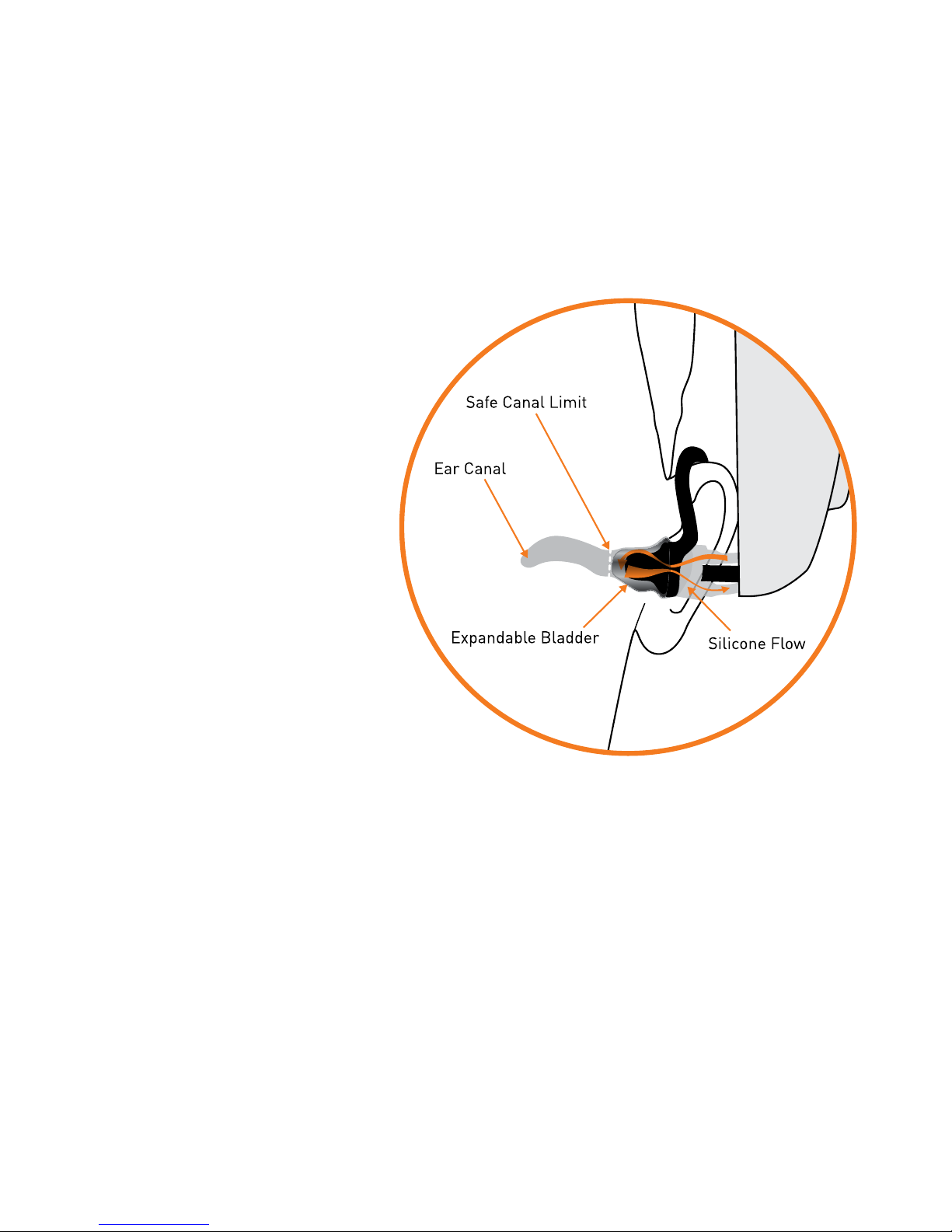

About the
Shaping Process
Custom-fitted earphones are
made possible by Sonomax’s
patented earpiece expansion-
system. A soft and completely
sealed silicone bladder, that
during the shaping process,
comfortably expands the
earpiece to the exact shape of
your ear canal. This technology
enables you to get professional,
custom-fitted earbuds in just
5 minutes.
During the shaping process,
silicone from the SonoFit™
System only flows within the hermetically sealed bladder of the
earpiece. Do not worry, NOTHING ever touches your ear other than the
earpieces’ soft, hypoallergenic bladder. The silicone bladder has been
designed to be malleable to conform to the most complex ear canal
geometries, yet strong enough to hold over 12 times the maximum
volume of silicone used in the SonoFit™System.
9
We recommend you read through all the steps completely to familiarize
yourself with the entire process.
• All hats, baseball caps, headbands, etc. should be removed before starting
the fitting process.
• You should tuck your hair behind your ears.
• It is okay to keep your eyeglasses on.
• Have a timer ready.
• We recommend having a mirror available to help you check the positioning
of the SonoFit™Fitting System.
WARNING: Do not proceed if you are experience ear pain / infection, have
had mastoid or any other ear canal surgery, currently have ear tubes or a
perforated eardrum.*
*Contact your medical practitioner before using this product.
Before You Begin
You are now ready to
begin the fitting process.
