Sony PEGA-MSC1 Stick Manuale utente

4-659-577-12 (1)

Memory Stick

Camera Module

Operating Instructions

2001 by Sony Corporation

PEGA-MSC1

Before operating the unit, please read these instructions thoroughly, and retain

them for future reference.

If you have a question about this product, call the Sony Customer Information

Center at keep on next line 1-877-760-7669; or write to the Sony Customer

Information Center at 12451 Gateway Boulevard, Fort Myers, FL 33913. The

number below is for FCC-related matters only.

Declaration of Conformity

Trade Name: SONY

Model No.: PEGA-MSC1

Responsible Party: Sony Electronics Inc.

Address: 680 Kinderkamack Road, Oradell, NJ 07649 USA

Telephone No.: 201-930-6972

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) ThisThis device must accept any interference received,including interference

that may cause undesired operation.

CAUTION

Any changes or modifications not expressly approved in this manual could void

your authority to operate this equipment.

Note:

This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user should

try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

– Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe B est conforme a la norme NMB-003 du

Canada.

This equipment complies with EMC regulations when used in the following

circumstances:

•Residential area

•Business district

•Light-industry district

(This equipment complies with the EMC standard regulations EN55022 Class B.)

Trademarks

- Sony, the Sony logo, CLIÉ, the CLIÉlogo, CLIÉGEAR, the CLIÉGEAR logo,

CLIÉPaint, Jog Dial, Memory Stick, Magic Gate Memory Stick, and

PictureGear are the trademark of Sony Corporation.

- Microsoft and Windows are trademarks or registered trademarks of Microsoft

Corporation in the U.S. and other countries.

- Palm OS, Graffiti, and HotSync are registered trademarks of Palm, Inc., or its

subsidiaries. Palm Desktop and the HotSync logo are trademarks of Palm, Inc.,

or its subsidiaries.

- All other system names and model names are trademarks of their respective

owners. In the text of this Operating Manual, TM and ®marks are not used.

Before using this camera, be sure to read the supplied End-User’s License

Agreement.

PNotes

•Menus shown in the instructions may differ slightly from the actual menus in

the software.

•The explanations in the instructions assume a good understanding of the

operations of Windows. For information on the operation of your computer

and operating system, see their respective manuals.

Table of Contents

Before You Begin

What you can do with the Memory Stick Camera Module............................ 5

Read the following before using your camera ................................................. 5

Check the items supplied .................................................................................... 6

Identifying the parts............................................................................................. 7

Installing the necessary software ....................................................................... 8

Recording

Attaching the camera to your CLIÉhandheld ................................................. 9

Recording images with the camera.................................................................. 11

Recording an image of yourself ............................................................. 13

“Memory Stick”Camera application .................................................... 14

How to read the online manual........................................................................ 16

Viewing recorded images.................................................................................. 17

Playing back recorded images (PictureGear Pocket) .......................... 17

Drawing on recorded images (CLIÉPaint) .................................................... 19

Additional Information

Precautions .......................................................................................................... 20

Cleaning ............................................................................................................... 22

Specifications....................................................................................................... 23

Troubleshooting.................................................................................................. 24

Before You Begin

BBefore You Begin

What you can do with the Memory

Stick Camera Module

You can record still images with this camera. (The images are recorded in

PictureGear Pocket (PGP) format and stored in your CLIÉhandheld.)

There is a wide range of uses for your recorded images, including:

•Attach them to email with CLIÉMail, or draw and paint on them with

CLIÉPaint.

•Make a slide show with Photo Stand.

•Use PictureGear Pocket to convert your images to DCF, the standard

format for digital still cameras, and manipulate them with other graphics

programs on your personal computer.

Read the following before using your

camera

This camera works only with the CLIÉhandheld. It cannot be used with

any other Memory Stick equipment, such as personal computers.

This camera is not compatible with the following CLIÉ

models:

PEG-S300 series and N700 series (OS Version 3.x)

PictureGear Pocket Version 2.1 or higher is required.

If you have version 2.0 or earlier of PictureGear Pocket installed in your

CLIÉhandheld, install PictureGear Pocket Version 2.1 from the supplied

installation CD-ROM. For installation instructions, please refer to the

"Installing the necessary software" (page 8) in this Operating Manual.

Check the items supplied

Check to make sure the package contains all of the following items.

If any items are missing, contact your Sony dealer or local authorized Sony

service facility.

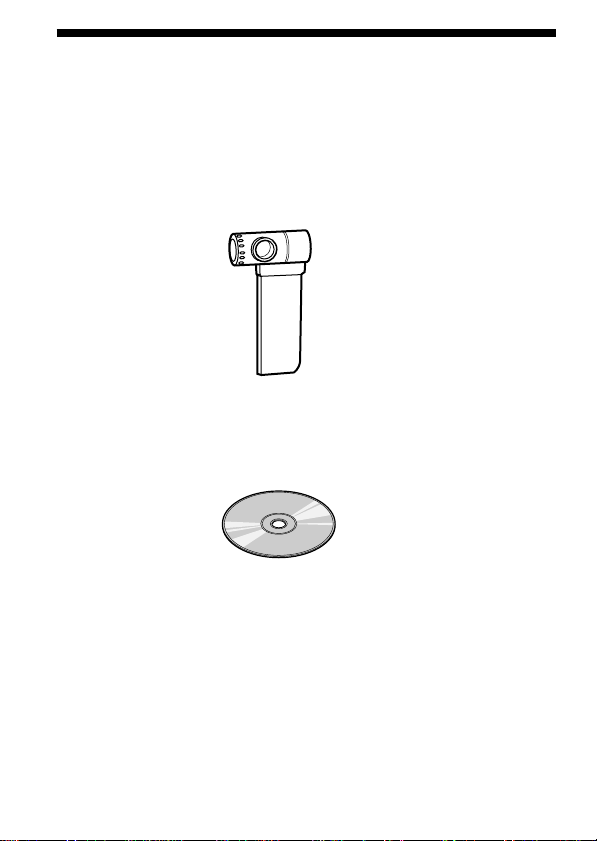

Memory Stick Camera Module (PEGA-MSC1)

Installation CD-ROM (1)

Operating Instructions for PEGA-MSC1 (1)

Hard case (1)

Warranty card (1)

End-User’s License Agreement (1)

Before You Begin

Identifying the parts

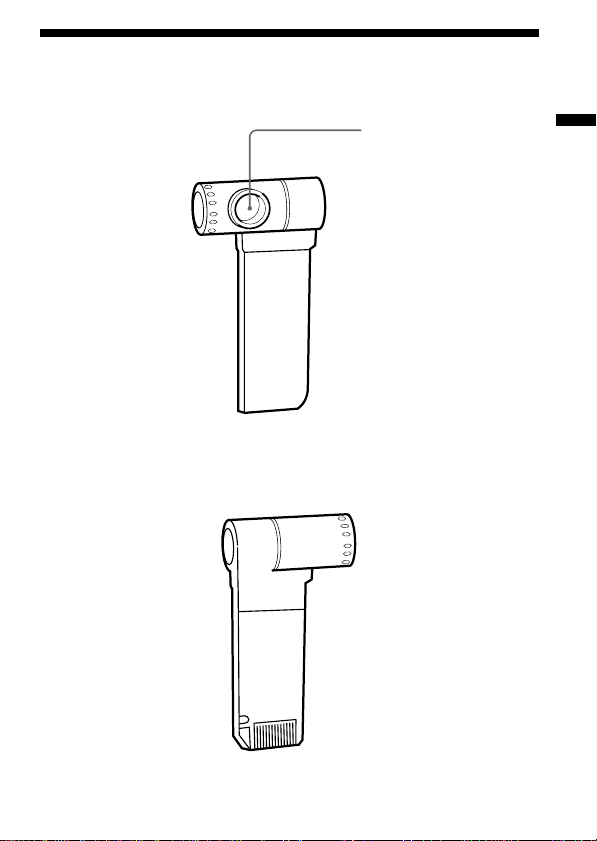

Front Lens

Rear

Installing the necessary software

Before using the Memory Stick Camera Module, install the “Memory

Stick”Camera application software and the PictureGear Pocket Version 2.1

software into your CLIÉhandheld from the supplied CD-ROM.

To install this software, you need a Windows computer which has the

CLIÉPalm Desktop software installed and which has a connection to your

CLIÉhandheld. Make sure that the local HotSync between the Windows

computer and the CLIÉhandheld works properly.

1Insert the supplied installation CD-ROM into the CD-ROM

drive of your Windows computer.

The initial installation screen appears.

2Click [Installation of software for Memory Stick Camera

Module].

The installer submenu appears.

3Select the software you wish to install.

Select PictureGear Pocket Version 2.1* (required) and CLIÉPaint

(optional).

* This step is not necessary if PictureGear Pocket Version 2.1 or above

is already installed on your CLIÉhandheld.

4Click [Install].

5Select your user name from the user list.

6Click [Exit].

7Press the HotSync button on the cradle.

HotSync starts and the software is transmitted to your CLIÉhandheld.

Recording

BRecording

Attaching the camera to your CLIÉ

handheld

Before using your camera for the first time, be sure to install the necessary

software onto your CLIÉhandheld before attaching the camera. For details

on the installation procedure, refer to “Installing the necessary software”

(page 8).

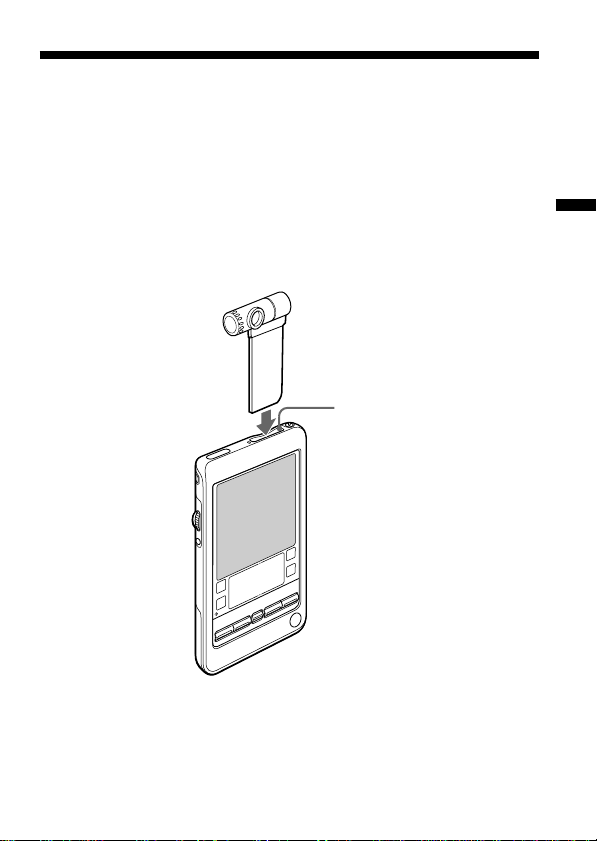

Insert the camera firmly into the Memory Stick slot of your CLIÉ

handheld in the direction shown below.

PNote

Do not insert or remove the camera while starting or closing the

camera’s software, or the CLIÉ handheld may behave unpredictably.

Memory Stick slot

Attaching the camera to your CLIÉhandheld

(Continued)

Disconnecting the camera

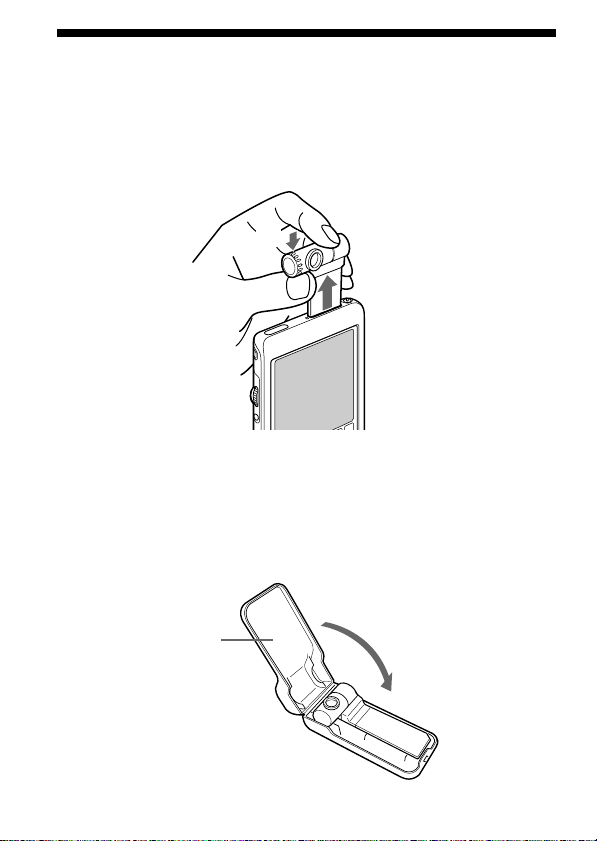

To disconnect the camera, close the “Memory Stick”Camera application

and then remove the camera by pushing it in once (1) and pulling it

straight up out of the memory stick slot of the CLIÉhandheld (2).

PNote

Pulling up on the camera without first pushing it in may damage both the

camera and the Memory Stick slot of the CLIÉhandheld.

When not in use

When you are not using the camera, remove it from the CLIÉhandheld,

and put it into the supplied hard case.

Supplied hard

case
