Quick Start Guide

Guide de démarrage

rapide

Guía de inicio rápido

QUICK

START

GUIDE

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Warning

PLEASE READ THIS MANUAL AND THE SUPPLIED“IMPORTANT INFORMATION”

COMPLETELY BEFORE INSTALLING OR OPERATING YOUR PERSONAL NAVIGATION

SYSTEM. IMPROPER INSTALLATION OR USE OF THIS DEVICE MAY CAUSE ACCIDENT,

INJURY OR DEATH.

PRODUCT REGISTRATION

Following registration enables Sony to send you periodic mailings about

software, ﬁrmware updates and other important product information.

To register your product, please visit our website at:

U.S.A.

http://productregistration.sony.com

Canada

http://www.sonystyle.ca/registration

Thank you.

Note

Illustrations in this manual may diﬀer from the actual device.

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

GettingStarted ............................................... 4

Installation/Connection .................................... 8

Navigation ...................................................16

BasicSettings ................................................27

Bluetooth® Hands-free Calling .... .... .... .... .... .... ... .. 28

PhotoPlayback ..............................................32

Questions/Problems .......................................33

ExtraItems ...................................................34

Table of contents

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Getting Started

Checking the box contents

Make sure you have received all items.

Main unit

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Cradle USB cable

Car battery adapter Quick Start Guide

(this manual)

Important Information

End-User License Agreement

Warranty Card

TMC antenna

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Getting Started

Location of controls

/(on/standby) switch

Built-in microphone for hands-

free calling

MENU button

VOICE/POS. button

Shows the current position and

repeats the last voice guidance.

CHG (battery charge) indicator

Red:charging.

Green:fully charged.

Oﬀ:adapter disconnected.

Display window/touch screen

(Bluetooth) indicator

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Getting Started

Location of controls

RESET

GPS ANT

RELEASE

DC IN

5-5.2V

TMC

Nameplate

Speaker

RELEASE button

Memory Stick access indicator

(Memory Stick Duo)

slot

Built-in GPS antenna

GPS ANT (GPS antenna) jack

(USB) jack

TMC (TMC antenna) jack

DC IN 5-5.2V jack

Connects to the car battery adapter

or optional AC adapter XA-AC13.

RESET button

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Installation / Connection

Attaching the cradle to your car

1Remove the protection cover.

Use the cover to keep the suction

cup clean when not in use.

2Select the installation location on

the dashboard.

Choose a clean, smooth surface with

an unobstructed view of the sky.

3Press ﬁrmly, then turn the lever

counterclockwise to lock into the

position.

Note

Clean the surface of the suction cup with a soft, damp, lint-free cloth if it becomes dirty

and attachment strength weakens. Be sure to dry the suction cup before reattaching.

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

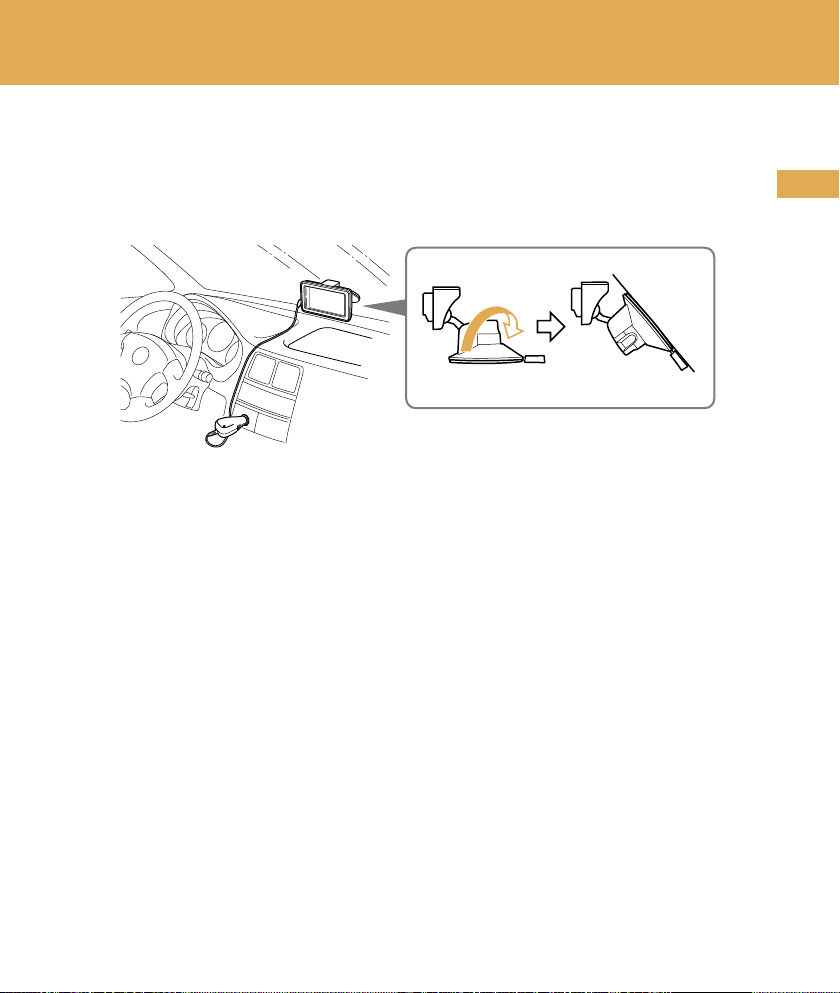

To install on the windshield

Rotate the suction cup before attaching.

Any other procedure is the same as for installing on the dashboard.

SONY NV-U74T (US,FR,ES) 4-107-849-11 (1)

Installation / Connection

Attaching the unit to the cradle

1Open the built-in GPS antenna.

2Insert the unit ﬁrmly into the cradle until it clicks into place.

Click

3Adjust the monitor angle for optimal viewing.
