2Table of Contents

Table of Contents

Overview

Location and Function of Controls .... 3

Main unit ...................................... 3

Connector Panel ........................... 4

Remote Commander and Control

Panel .......................................... 5

Preparation

Connecting the Projector ................... 7

Connecting a Computer ................ 7

Connecting a Video equipment .... 8

Connecting an External Monitor and

Audio Equipment .................... 10

Projecting/Adjusting an


Projecting an Image ......................... 11

Adjusting the Projected image ... 12

Turning Off the Power ................ 18

Adjustments and Settings

Using a Menu

Using a MENU ................................ 19

The PICTURE SETTING Menu ...... 20

The INPUT SETTING Menu .......... 21

The SET SETTING Menu ............... 24

The MENU SETTING Menu .......... 26

The INSTALL SETTING Menu ...... 27

The INFORMATION Menu ............ 29

Network

Using Network Features ...................30

Displaying the Control Window of

the Projector with a Web

Browser ...................................30

Confirming the Information

regarding the Projector ............31

Operating the Projector from a

Computer .................................31

Making the Network Settings .....31

Using the e-mail report

Function ...................................32

Others

Indicators ..........................................33

Messages List ...................................34

Troubleshooting ................................35

Replacing the Lamp ..........................37

Cleaning the Air Filter ......................39

Specifications ...................................40

Projection Distance and Lens Shift

Range ............................................45

Dimensions .......................................49

Index .................................................51

Location and Function of Controls

Overview

BOverview

Location and Function of Controls

aProjection lens

bFocus ring (page 12)

cZoom lever (page 12)

dLamp cover (page 37)

eAir filter cover/Ventilation holes

(intake) (page 39)

fVentilation holes (intake)

gVentilation holes (exhaust)

Do not place anything near the ventilation

holes as this may cause internal heat

buildup. Do not place your hand or

deformable items (plastic, etc.) near the

ventilation holes or around the projector, as

it may cause damage or personal injury.

hON/STANDBY indicator

(page 33)

iLAMP/COVER indicator

(page 33)

jControl panel (page 5)

kConnector panel (page 4)

lRemote control detector

mAdjuster (page 14)

nSpeaker

oSecurity lock

Connects to an optional security cable

manufactured by Kensington.

For details, visit Kensington’s web site.

http://www.kensington.com/

pSecurity bar

Connects to a commercially available

security chain or wire.

If it is difficult to pull out, pull out the

Security bar using a screwdriver.

qLens shift cover (page 13)

For lens shift adjusting, remove this to

access the lens shift screws inside the

unit.

Main unit

Caution

Security bar

4Location and Function of Controls

VPL-CX235/VPL-CW255

Input (pages 7, 8)

aINPUT A

Video: RGB/YPBPRinput connector

(RGB/Y PB PR)

Audio: Audio input connector (AUDIO)

bINPUT B

Video: RGB input connector (RGB)

Audio: Audio input connector (AUDIO)

cINPUT C

Video: HDMI input connector (HDMI)

Audio: HDMI input connector (HDMI)

dS VIDEO (S VIDEO IN)

Video: S video input connector

Audio: Audio input connector (L

[MONO] AUDIO/R)

eVIDEO (VIDEO IN)

Video: Video input connector

Audio: Audio input connector (L

[MONO] AUDIO/R)

The audio inputs of S VIDEO and VIDEO are

shared.

Output (page 10)

fOUTPUT

Video: Monitor output connector

(MONITOR)

Audio: Audio output connector

(AUDIO)

This connector outputs the projected image or

audio. The image is output as a computer signal

input from the RGB input connector (INPUT

A/INPUT B) or a video signal input from the

YPBPRinput connector (INPUT A).

Others

gRS-232C connector

RS-232C compatible control connector.

Connects the computer’s RS-232C

connector and the RS-232C cross cables.

hLAN connector (page 30)

iAC IN (∼) socket

Connects the supplied AC power cord.

Connector Panel

6 1

165

Note

Location and Function of Controls

Overview

Remote Commander

Control Panel

aTurning on the power/Going to

standby mode

?/1(On/Standby) key

bSelecting an input signal

(page 11)

INPUT key

cOperating a menu (page 19)

MENU key

RESET key

ENTER /V/v/B/b(arrow) keys

RETURN key

This function is not provided in this

projector.

dAdjusting the image (page 12)

ASPECT key

KEYSTONE key

PATTERN key

APA (Auto Pixel Alignment) key*

*Use this key when inputting a computer

signal via the RGB input connector

(INPUT A/INPUT B).

eUsing various functions during

projecting

D ZOOM (Digital Zoom) +/– key*1

Enlarges a portion of the image while

projecting.

1Press the D ZOOM + key to display

the digital zoom icon on the projected

image.

2Press the V/v/B/bkeys to move the

digital zoom icon to the point on the

image you wish to enlarge.

3Press the D ZOOM + key or the D

ZOOM – key repeatedly to change the

enlargement ratio. The image can be

enlarged up to 4 times.

Press the RESET key to restore the

previous image.

PIC MUTING key

Cuts off the image. Press again to restore

the image.

AUDIO MUTING key

Mutes the audio output. Press again to

restore the previous volume.

VOLUME +/– key

For adjusting the volume output.

FREEZE key*2

Pauses a projected image. Press again to

restore the image.

*1: Use this key when inputting a

computer signal. But it may not be

used depending on the resolution of

the input signal.

*2: Use this key when inputting a

computer signal.

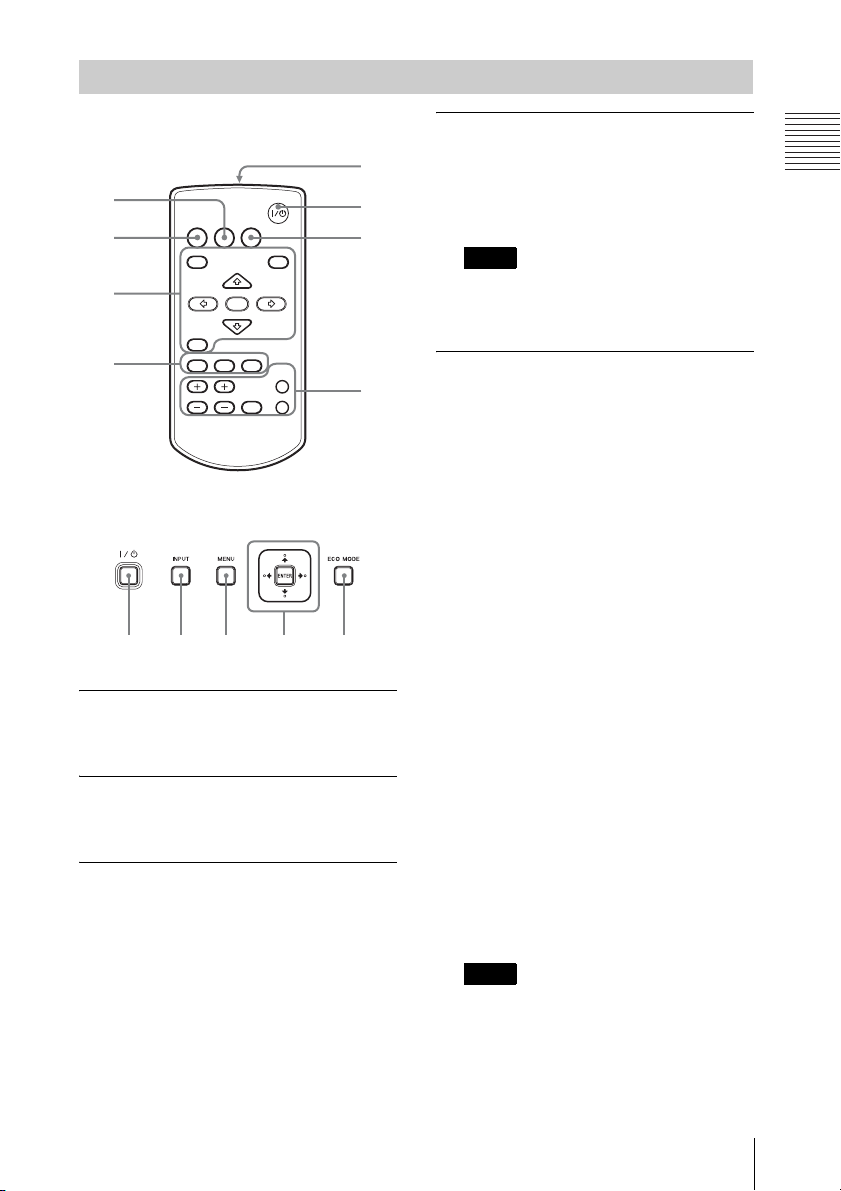

Remote Commander and Control Panel

INPUT

APA ECO MODE

RETURN

ASPECT

D ZOOM

KEYSTONE

ENTER

VOLUME

PATTERN

FREEZE

PIC MUTING

AUDIO MUTING

RESET

21336

Note

Notes

6Location and Function of Controls

fSetting the energy–saving mode

easily

ECO MODE key

Energy-saving mode can be set easily.

Energy-saving mode consists of “Lamp

Mode,” “Standby Mode”, “With Static

Signal” and “With No Input.”

1Press the ECO MODE key to display

the ECO Mode menu.

2Press the V/vkey or ECO MODE key

to select ECO or User mode.

ECO: Sets each mode to the optimum

energy-saving value.

Lamp Mode: Low

With No Input: Standby

With Static Signal: Lamp

Dimming

Standby Mode: Low

(go to step 6)

User: Sets each item of the energy-

saving mode menu as you desire

(go to step 3).

3Select “User” then press the bkey.

The setting items appear.

4Press the V/vkey to select the item

then press the ENTER key.

5Press the V/vkey to select the setting

value.

6Press the ENTER key to restore the

User screen.

For details on ECO Mode settings, see

“Lamp Mode” (page 27) and “Standby

Mode” (page 28) on the INSTALL

SETTING menu and “With No Input”

(page 24), “With Static Signal”

(page 24) on the SET SETTING menu.

Others

gInfrared transmitter

About Remote Commander operation

• Direct the Remote Commander toward the

remote control detector.

• The shorter the distance between the

Remote Commander and the projector is,

the wider the angle within which the

Remote Commander can control the

projector becomes.

• Make sure that nothing obstructs the

infrared beam between the Remote

Commander and the remote control

detector on the projector.

ECO

User

ECO Mode

Sel: Exit:

ECO Mode Menu

Lamp Mode Standard

AUTO POWER SAVING

With No Input Off

With Static Signal

Standby Mode Standard

Off

User

Sel: Set: Exit:

Connecting the Projector

Preparation

BPreparation

Connecting the Projector

• Make sure all the equipment is powered off when connecting the projector.

• Use the proper cables for each connection.

• Insert the cable plugs firmly; Loose connections may reduce performance of picture signals or

cause a malfunction. When pulling out a cable, be sure to grip it by the plug, not the cable itself.

• For more information, refer also to the instruction manuals of the equipment you are connecting.

• Use a no-resistance audio cable.

Connection with a computer is explained for each input signal.

INPUT A/INPUT B

For connecting a computer with an RGB output connector.

It is recommended that you set the resolution of your computer to 1024 × 768 pixels (VPL-CX235)

or 1280 × 800 pixels (VPL-CW255) for the external monitor.

INPUT C

For connecting video equipment with an HDMI output connector.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

• For a PC with DVI-D output connector, use an HDMI-DVI-D cable (not supplied).

Notes

Connecting a Computer

Note

Notes

Mini D-sub 15-pin cable (supplied)

Audio cable (Stereo mini plug) (not supplied)

RGB output

connector

Audio output

connector

Computer

HDMI cable

(not supplied)

Computer

HDMI output

connector

8Connecting the Projector

Connections with a VHS video deck, DVD player, or BD player are explained for each input

signal.

S VIDEO IN

For connecting video equipment with an S-video output connector.

VIDEO IN

For connecting video equipment with a video output connector.

INPUT A

For connecting video equipment with a YPBPRoutput connector.

Connecting a Video equipment

S video cable

(not supplied)

Audio cable (Phono plug × 2) (not supplied)

S video output

connector

Audio output

connector

Video equipment

Video cable (not supplied)

Audio cable (Phono plug × 2) (not supplied)

Video output

connector

Audio output

connector

Video equipment

Component – Mini D-sub 15-pin cable (not supplied)

Audio cable (Phono plug × 2 – stereo mini plug) (not supplied)

Video equipment

YPBPRoutput

connector

Audio output

connector

Connecting the Projector

Preparation

INPUT C

For connecting video equipment with an HDMI output connector.

• Use HDMI-compatible equipment and cable(s) that have an HDMI logo on them.

• The HDMI connector of this projector is not compatible with DSD (Direct Stream Digital) Signal

or CEC (Consumer Electronics Control) Signal.

To attach the HDMI cable

Fix the cable to the cable tie holder at the bottom of the projector, using a commercially

available cable tie, as in the illustration.

Use a cable tie of less than 1.9 mm × 3.8 mm in thickness.

Notes

Video equipment

HDMI cable

(not supplied)

HDMI output

connector

Cable tie holder

Cable tie

(commercially

available)

Bottom of the projector

10 Connecting the Projector

OUTPUT

Projected images and input audio can be output to display equipment such as a monitor and

audio equipment such as speakers with a built-in amplifier. When an audio cable is connected

to the audio output connector, no sound will be heard from the built-in speaker.

Projected images and audio can be output. The image is output only as a computer signal input from

the RGB input connector (INPUT A/INPUT B) or a video signal input from the YPBPRinput

connector (INPUT A).

Connecting an External Monitor and Audio Equipment

Note

Mini D-sub 15-pin

cable (supplied)

RGB input

connector

Display equipment

Audio input

connector

Audio cable

(stereo mini plug)

(not supplied)

Audio equipment

Altri manuali per VPL-CW255

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Proiettore

Sony

Sony Cineza VPL-HS2 Manuale del proprietario

Sony

Sony VPH-1041QM Manuale utente

Sony

Sony SRX-T105 Manuale utente

Sony

Sony VPL-PX41 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale elenco delle parti

Sony

Sony BRAVIA VPL-VWPRO1 Manuale utente

Sony

Sony VPL-VW915ES Manuale di servizio

Sony

Sony VPLHS3 - Cineza Digital Home Entertainment LCD Front... Guida rapida

Sony

Sony VPL-W400Q Manuale utente

Sony

Sony VPL-AW10 (VPLAW10 and VPLAW15) Manuale utente

Sony

Sony VPL-EX3 Manuale utente

Sony

Sony VPL-SW125 Manuale utente

Sony

Sony HDMI VPL-EW7 Manuale di servizio

Sony

Sony LSPX-A1 Manuale utente

Sony

Sony VPH-V20M Manuale utente

Sony

Sony VPL-CX61 Manuale utente

Sony

Sony VPLGT100 Manuale di servizio

Sony

Sony VPL-ES7 Manuale di servizio

Sony

Sony SuperLite VPL-CS7 Manuale utente

Sony

Sony VPL-EX100 Manuale utente

Sony

Sony VPL-DW125 Manuale di servizio

Sony

Sony VPL-EX275 Specifiche tecniche

Sony

Sony VPL-FX50 Manuale utente

Sony

Sony VPL-CX80 Manuale di servizio

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente

Asus

Asus ZenBeam Latte Manuale utente

Epson

Epson PowerLite 810p Manuale utente

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuale utente
