Sony STR-SL50 Manuale utente

STR-SL50/SL40 4-247-584-51(1) (GB, CS)

FM Stereo

FM-AM Receiver

4-247-584-51(1)

Operating Instructions GB

使用說明書

STR-SL50

STR-SL40

2GB

WARNING

To prevent fire or shock hazard, do not

expose the unit to rain or moisture.

To prevent fire, do not cover the ventilation of the

apparatus with newspapers, table-cloths, curtains, etc.

And don’t place lighted candles on the apparatus.

To prevent fire or shock hazard, do not place objects

filled with liquids, such as vases, on the apparatus.

Don’t throw away the battery with

general house waste, dispose of it

correctly as chemical waste.

Do not install the appliance in a confined space, such

as a bookcase or built-in cabinet.

Except for customers in Europe

ENERGY STAR®is a U.S. registered

mark.

As an ENERGY STAR®partner,

Sony Corporation has determined

that this product meets the ENERGY

STAR®guidelines for energy

efficiency.

This receiver incorporates Dolby* Digital and Pro

Logic Surround and the DTS** Digital Surround

System.

* Manufactured under license from Dolby

Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol

are trademarks of Dolby Laboratories.

**“DTS” and “DTS Digital Surround” are registered

trademarks of Digital Theater Systems, Inc.

About This Manual

The instructions in this manual are for models

STR-SL50 and STR-SL40. Check your model

number by looking at the lower right corner of the

front panel. In this manual, the STR-SL40 is used for

illustration purposes unless stated otherwise. Any

difference in operation is clearly indicated in the text,

for example, “STR-SL40 only”.

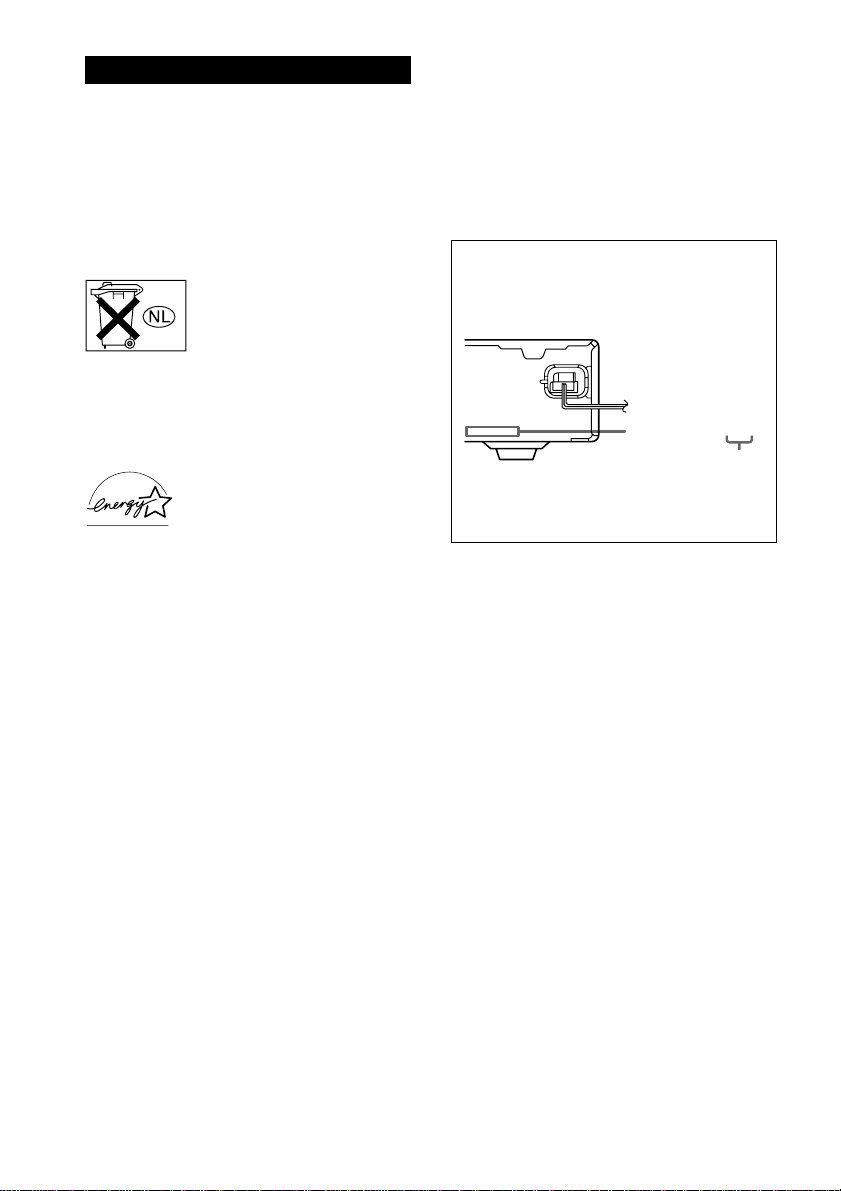

About area codes

The area code of the receiver you purchased is

shown on the lower portion of the rear panel (see

the illustration below).

Any differences in operation, according to the

area code, are clearly indicated in the text, for

example, “Models of area code AA only”.

Tip

The instructions in this manual describe the controls

on the remote. You can also use the controls on the

receiver if they have the same or similar names as

those on the remote. For details on the use of your

remote, see pages 30–34.

Note for the supplied remote

RM-U40

The AUX and AAC BI-LING buttons on the

remote are not available.

Area code

4-XXX-XXX-XX AA

3GB

Table of Contents

List of Button Locations and

Reference Pages

Main unit ............................................... 4

Hooking Up the Components

Required cords....................................... 5

Antenna hookups ................................... 6

Video component hookups .................... 7

Digital component hookups................... 8

Other hookups ....................................... 9

Hooking Up and Setting Up

the Speaker System

Speaker system hookups ..................... 10

Performing initial setup operations ..... 12

Multi channel surround setup ..............12

Checking the connections.................... 17

Basic Operations

Selecting the component ..................... 17

Enjoying Surround Sound

Decoding the input audio signal

automatically (Auto Format

Direct) ........................................... 18

Enjoying stereo sound in multi

channel (Dolby Pro Logic II) ........ 18

Selecting a sound field ........................ 19

Understanding the multi channel

surround displays .......................... 21

Customizing sound fields .................... 22

Receiving Broadcasts

Storing FM stations automatically

(AUTOBETICAL)1) ...................... 24

Direct tuning ........................................ 24

Automatic tuning ................................. 25

Preset tuning ........................................ 25

Using the Radio Data System

(RDS)1) .......................................... 27

Other Operations

Using the Sleep Timer ......................... 29

Adjustments using the SET UP

menu .............................................. 29

Operations using the Remote

RM-U40

Before you use your remote ................ 30

Remote button description................... 31

Changing the factory setting of an

input selector button ...................... 33

Additional Information

Precautions .......................................... 34

Troubleshooting................................... 35

Specifications ...................................... 37

Tables of settings using MAIN

MENU button................................ 39

Adjustable parameters for each

sound field ..................................... 40

1) Models of area code CEL only.

4GB

List of Button Locations and Reference Pages

?/1

12 3 4 5 6 7 8 9 0

qsqd

Main unit

How to use this page

Use this page to find the location of buttons

that are mentioned in the text.

Illustration number

MUTING qs (13, 17, 35)

R R

Name of button/part Reference page

ALPHABETICAL ORDER

Display 6(27)

DVD (indicator) 3(17)

INPUT SELECTOR 8(17, 24)

IR (receptor) 7(30, 36)

MASTER VOLUME 9(17, 35)

MUTING qs (13, 17, 35)

PRESET TUNING +/– qd (26)

SOUND FIELD qa (19, 20, 23,

35)

TUNER (indicator) 5(17)

TV/SAT (indicator) 4(17)

VIDEO (indicator) 2(17)

NUMBERS AND SYMBOLS

?/1 (power) 1(12, 13, 16, 17,

23, 24)

;PLII q; (18)

List of Button Locations and Reference Pages/Hooking Up the Components

5GB

Required cords

The following optional connection cords A– Eare required when you hook up the components

(pages 7–8).

AAudio cord (not supplied) DOptical digital cord (not supplied)

White (L)

Red (R)

BAudio/video cord (not supplied) ECoaxial digital cord (not supplied)

Yellow (video)

White (L/audio)

Red (R/audio)

CVideo cord (not supplied)

Yellow

Before you get started

• Turn off the power to all components before making any connections.

• Do not connect the AC power cord until all of the connections are completed.

• Be sure to make connections firmly to avoid hum and noise.

• When connecting an audio/video cord, be sure to match the color-coded pins to the appropriate jacks on

the components: yellow (video) to yellow; white (left, audio) to white; and red (right, audio) to red.

• When connecting optical digital cords, insert the cord plugs straight in until they click into place.

• Do not bend or tie the optical digital cord.

Hooking Up the Components

6GB

Antenna hookups

Notes on antenna hookups

• To prevent noise pickup, keep the AM loop

antenna away from the receiver and other

components.

• Be sure to fully extend the FM wire antenna.

• After connecting the FM wire antenna, keep it

as horizontal as possible.

75Ω

COAXIAL

OPT IN OPT IN COAX IN

TV/SAT

DVD

VIDEO

AUDIO

DIGITAL

SUB

WOOFER

OUT

ANTENNA

ININ

DVD

VIDEO

OUT

MONITOR

FM wire antenna

(supplied)

AM loop antenna

(supplied)

Hooking Up the Components

7GB

Ω

COAXIAL

OPT IN OPT IN COAX IN

TV/SAT

DVD

VIDEO

AUDIO

DIGITAL

SUB

WOOFER

OUT

ANTENNA

ININ

DVD

VIDEO

OUT

MONITOR

AUDIO OUT

VIDEO OUT

OUTPUT

VIDEO IN

INPUT

AUDIO OUT

OUTPUT

AUDIO OUT

VIDEO OUT

OUTPUT

OUT

Video component hookups

VCR

TV monitorDVD player

Satellite tuner

8GB

Ω

COAXIAL AM

OPT IN OPT IN COAX IN

TV/SAT

DVD

VIDEO

AUDIO

DIGITAL

SUB

WOOFER

OUT

ANTENNA

ININ

DVD

VIDEO

OUT

MONITOR

OPTICAL

OUTPUT

AUDIO OUT

OUTPUT

COAXIAL

D*E*

AUDIO OUT

VIDEO OUT

OUTPUT

Digital component hookups

DVD player

Connect the digital output jacks of your DVD player and satellite tuner (etc.) to the receiver’s digital

input jacks to bring the multi channel surround sound of a movie theater into your home. To fully

enjoy multi channel surround sound, five speakers (two front speakers, two surround speakers, and a

center speaker) and a sub woofer are required.

Satellite tuner (etc.)

* Connect to either the COAX IN or OPT IN jack. We recommend making connections to the COAX IN jack.

Notes

•The OPT IN and COAX IN jacks are compatible with 96 kHz, 48 kHz, 44.1 kHz and 32 kHz sampling

frequencies.

•To playback the multi channel surround sound through this receiver, you may have to change the digital output

setting on the connected component. For details, refer to the operating instructions supplied with the component.

Hooking Up the Components

9GB

Other hookups

AC power cord

To a wall outlet

Connecting the AC power

cord

Before connecting the AC power cord of this

receiver to a wall outlet, connect the speaker

system to the receiver (see page 10).

Connect the AC power cord(s) of your audio/

video components to a wall outlet.

FRONT R

–+ –+

–+

CENTER FRONT L

+ –+ –

SURR R SURR L

IMPEDANCE USE 8–16

Ω

SPEAKERS

10GB

SUB

WOOFER

FRONT R

— + — +

— +

CENTER FRONT L

+ —+ —

SURR R SURR L

IMPEDANCE USE 8—16

Ω

SPEAKERS

OUT

ININ

DVD

VIDEO

OUT

MONITOR

AUDIO

INPUT

Speaker system hookups

Before connecting speakers, be sure to turn off this unit.

Required cords/plugs/wrench

ASpeaker cords (not supplied) CSpeaker plugs (supplied)

(+)

(–)

BMonaural audio cord (not supplied) DHexagon wrench (supplied)

Black

Hooking Up and Setting Up the Speaker System

Front speaker (L)

Front speaker (R)

Center speaker Surround

speaker (L)

Surround

speaker (R)

Active sub woofer

1Make sure that the speaker plug

catcher is at the “receiving” position.

screw hole

Attaching speaker cords to

the speaker plugs

Before connecting the speakers, you have to

attach the speaker cords (not supplied) to the

speaker plugs (supplied). speaker plug catcher at

the “receiving” position

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sony Ricevitore

Sony

Sony DIRECTV RECEIVER SAT-W60 Manuale utente

Sony

Sony ICF-SW7600G Manuale utente

Sony

Sony STR-K680 Manuale utente

Sony

Sony STR-DH590 Guida utente

Sony

Sony STR-DG910 Manuale d'uso e manutenzione

Sony

Sony DMX-NV1 (For DMX-NV1 model bundled with KDLxxWL140... Manuale utente

Sony

Sony HBD-TZ135 Manuale utente

Sony

Sony ICF-SW15 Manuale utente

Sony

Sony HWSBTA2W - Bluetooth Wireless Audio... Manuale utente

Sony

Sony STR-DA80ES - Fm Stereo / Fm-am Receiver Manuale utente

Sony

Sony STR-DA3300ES - Multi Channel Av Receiver Manuale utente

Sony

Sony HVA-G1 Manuale utente

Sony

Sony STR-AV910 - Fm Stereo / Fm-am Receiver Manuale utente

Sony

Sony AVD-C70ES Manuale utente

Sony

Sony STR-DH750 Guida utente

Sony

Sony STR-DE895 - Fm Stereo/fm-am Receiver Manuale utente

Sony

Sony STR-DK5 E Manuale utente

Sony

Sony SA-TA65A Manuale utente

Sony

Sony STR-DA2000ES - Fm Stereo/fm-am Receiver Manuale del proprietario

Sony

Sony XT-500DTV Istruzioni operative

Sony

Sony STR-DG600 - Multi Channel Av Receiver Manuale utente

Sony

Sony STR-DB930 - Fm Stereo/fm-am Receiver Guida utente

Sony

Sony HCD-DZ3K Manuale utente

Sony

Sony STR-ZA5000ES Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
