Sound Sation VISAGE C01 Manuale utente
Professional Unidirectional
Headset Microphone
soundsationmusic.com
VISAGE C01
USER MANUAL
MANUALE UTENTE
2
Dear customer,
First of all, thanks far purchasing a SOUNDSATION® product. Our mis-
sion is to satisfy all possible needs of musical instrument and profes-
sional audio and lighting users, oering a wide range of products based
on the latest technologies.
We hope you will be satised with this item and, if you want to collab-
orate, we are looking for a feedback from you about the operation of
the product and possible improvements to introduce in the next future.
Go to our website www.soundsationmusic.com and send an e-mail
with your opinion, this will help us to build instruments ever closer to
customer’s real requirements.
One last thing: read this manual before using the instrument, an incor-
rect operation can cause damages to you and to the unit. Take care!
The SOUNDSATION Team
Gentile cliente,
Grazie per aver scelto un prodotto SOUNDSATION®. La nostra missione
è quella di orire ai nostri utenti una vasta gamma di strumenti musicali
ed apparecchiature audio con tecnologie di ultima generazione.
Speriamo di aver soddisfatto le vostre aspettative e, se voleste collabo-
rare, saremmo lieti di ricevere un vostro feedback sulla qualità del pro-
dotto al ne di migliorare costantemente la nostra produzione. Visitate
il nostro sito www.soundsationmusic.com ed inviateci una mail con
la vostra opinione, questo ci aiuterà a sviluppare nuovi prodotti quanto
più vicini alle vostre esigenze.
Un’ultima cosa: leggete il presente manuale al ne di evitare danni alla
persona ed al prodotto, derivanti da un utilizzo non corretto
Il Team SOUNDSATION
3
TABLE OF CONTENTS
1. INTRODUCTION .......................................................................... page 3
2. FEATURES....................................................................................... page 3
3. POWER & CONNECTORS......................................................... page 4
4. SOUNDSATION COMPATIBILITY chart................................ page 5
5. STORAGE........................................................................................ page 6
6. FREQUENCY RESPONSE CHART............................................ page 6
7. POLAR PATTERN CHART.......................................................... page 7
8. TECHNICAL SPECIFICATIONS................................................. page 7
9. WARRANTY AND SERVICE ...................................................... page 8
10. WARNING ...................................................................................... page 8
1. INTRODUCTION
Soundsation Visage C01 Headset microphone is the right
balance between elegance, exibility, discretion and strength.
It allows singers, musicians, actors, public speakers, broadcast
professionals, to move freely during their performance and al-
ways guarantee an accurate capture of the voice. The frequency
response and the excellent plosive attenuation, allow you to ob-
tain a warm and sparkling sound, without unnatural emphasis.
2. FEATURES
fBack-electret high-performance capsule for professional
audio quality
fDesigned for withstand very close sound sources (provides
4
o-axis rejection to high SPL sounds)
fCardioid pattern for accurate voice capture and minimum
room noise
fWaterproof selected material for maximum duration in any
application
fMicrophone arm and cable are easily attached to frame
fSpecial rubber material ear-set for perfect adherence to ear
shape
fLeft or right microphone placement according to user
preference
fBlack or Beige Color
f4 connector types available
fHeadset bag for better preserve the microphone
3. POWER & CONNECTORS
VISAGE C01 is available in black or beige nish, and requires
phantom power of 1.5V to 9V. It is specically designed to work
with a wide range of wireless pocket transmitters.
Check the list below to see which model is suitable for your
wireless system.
#SKU Model Color Connector
J633J VISAGE-C01A BK Black A. 1.8” TS mini-Jack with
thread
J637J VISAGE-C01A BG Beige
J634J VISAGE-C01B BK Black B. 1.8” TRS mini-Jack with
locking (Sennheiser®)*
J638J VISAGE-C01B BG Beige
J635J VISAGE-C01C BK Black C. 3-Pin Mini-XLR (AKG®)**
J639J VISAGE-C01C BG Beige
J636J VISAGE-C01D BK Black D. 4-Pin Mini-XLR
(SHURE®)***
J640J VISAGE-C01D BG Beige
5

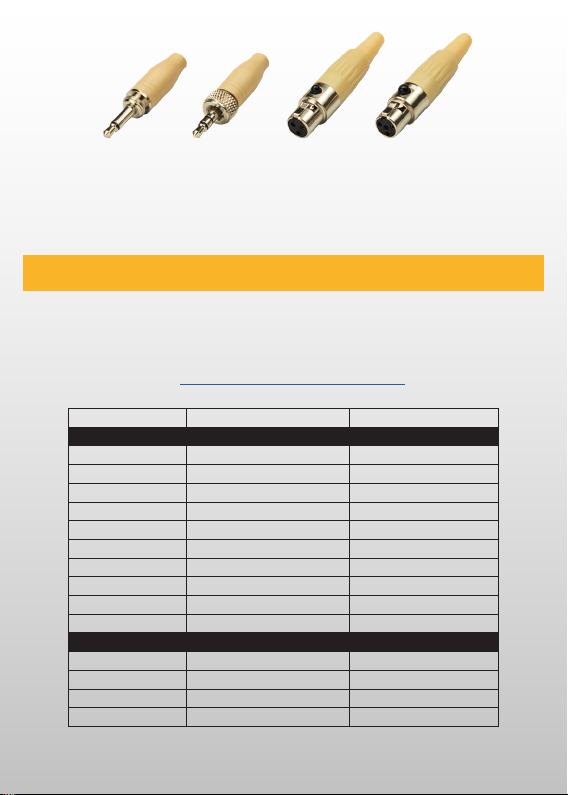

A. B. C. D.
* Sennheiser®is a registered trademark of Sennheiser electronic GmbH & Co. KG
** AKG®is a registered trademark of Harman International Industries, Inc.
*** SHURE®is a registered trademark of Shure Inc.
4. SOUNDSATION COMPATIBILITY chart
The following table shows all SOUNDSATION products and the
related connector used on bodypack transmitters, in order to
help users to choose the right VISAGE C01 version. For further
details, please visit www.soundsationmusic.com.
Series Model Bodypack Connector
UHF Systems - Multi Channels
Wire-Free WF-D190P C
Wire-Free WF-D290HP C
Wire-Free WF-U2600HP A
Wire-Free WF-U2300HP A
Wire-Free WF-U2300PP A
Wire-Free WF-U1300P A
Wire-Free WF-U216HP A
Wire-Free WF-U216PP A
Wire-Free WF-U24HP A
Wire-Free WF-U24PP A
UHF Systems - Single Channel
Wire-Free WF-U11PA A
Wire-Free WF-U11PB A
Wire-Free WF-U11PC A
Wire-Free WF-U11PD A
6
VHF Systems
Wire-Free WF-V11PA A
Wire-Free WF-V11PB A
Wire-Free WF-V11PC A
Wire-Free WF-V11PD A
Wire-Free WF-V21PPA A
Wire-Free WF-V21PPB A
Portable PA Systems
PocketLive PocketLive U16HBT A
PocketLive PocketLive U16P-KIT A
Go-Sound AMW Go-Sound Pocket MIC A
Updated to June 2021
5. STORAGE
After use, wipe it with a clean cloth and place in the supplied
bag. In any case, please be noticed that a condenser capsule is
extremely sensitive to moisture.
6. FREQUENCY RESPONSE CHART
dBV/Pa
-10
-40
-30
-20
-50
-60
-70
20Hz 50Hz 100Hz 200Hz 500Hz300Hz 1kHz 2kHz 3kHz 5kHz 10kHz
20kHz
0°
7

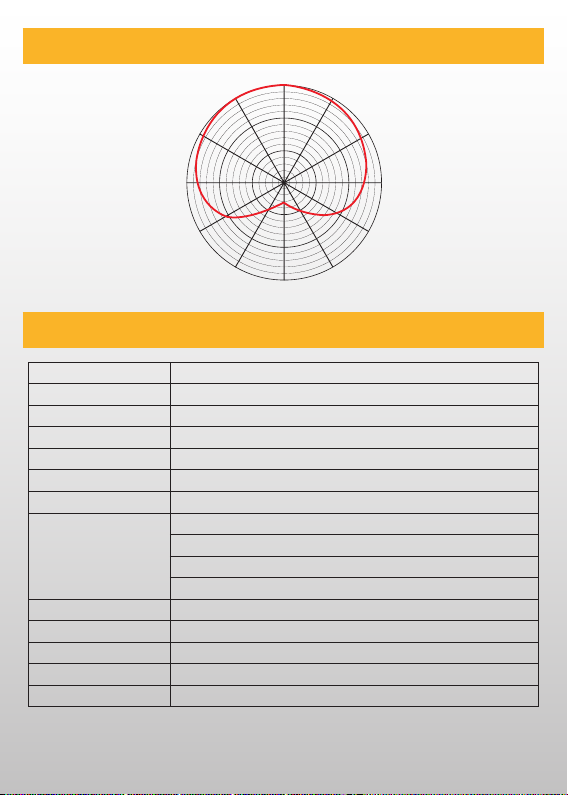

7. POLAR PATTERN CHART
0°
30°
60°
90°
120°
150°
180°
210°
240°
270°
300°
330°
8. TECHNICAL SPECIFICATIONS
Element Back-Electret Capsule
Directivity Unidirectional
Frequency Range 45Hz~19.6kHz
Sensitivity -46dBV(±3dB)
Maximum SPL 125dB
Impedance 200Ω
Operation Voltage DC 1.5~9V
Connector Type
A= 1.8” TS mini-Jack with thread
B= 1.8” TRS mini-Jack with locking (Sennheiser® type)
C= 3-Pin Mini-XLR (AKG® type)
D= 4-Pin Mini-XLR (SHURE® type)
Cable Length 1.5m
Color Black or Beige Color
Headset Weight 28g
Packing Size 162 x 122 x 54mm
Packing Weight 190g
Technical specications and appearance subject to change without notice. The information
contained herein is correct at the time of printing.
8
9. WARRANTY AND SERVICE
All SOUNDSATION products feature a limited two-year warranty. This two-year
warranty is specic to the date of purchase as shown on your purchase receipt.
The following cases/components are not covered from the above warranty:
• Any accessories supplied with the product
• Improper use
• Fault due to wear and tear
• Any modication of the product eected by the user or a third party
SOUNDSATION shall satisfy the warranty obligations by remedying any material or
manufacturing faults free of charge at SOUNDSATION’s discretion either by repair
or by exchanging individual parts or the entire appliance. Any defective parts
removed from a product during the course of a warranty claim shall become the
property of SOUNDSATION.
While under warranty period, defective products may be returned to your local
SOUNDSATION dealer together with original proof of purchase. To avoid any
damages in transit, please use the original packaging if available. Alternatively
you can send the product to SOUNDSATION SERVICE CENTER – Via Enzo Ferrari ,
10 – 62017 Porto Recanati - Italy . In order to send a product to service center you
need an RMA number. Shipping charges have to be covered by the owner of the
product.
For further information please visit www.soundsationmusic.com
10. WARNING
PLEASE READ CAREFULLY – EU and EEA (Norway, Iceland and Liech-
tenstein) only
This symbol indicates that this product is not to be disposed of with
your household waste, according to the WEEE Directive (2202/96/EC)
and your national law.
This product should be handed over to a designated collection point,
e.g., on an authorized one-for-one basis when you buy a new similar product
or to an authorized collection site for recycling waste electrical and electronic
equipment (WEEE). Improper handling of this type of waste could have a possible
negative impact on the environment and human health due to potentially haz-
ardous substances that are generally associated with EEE. At the same time, your
cooperation in the correct disposal of this product will contribute to the eective
usage of natural resources.
For more information about where you can drop o your waste equipment for
recycling, please contact your local city oce, waste authority, approved WEEE
scheme or your household waste disposal service.
9
SOMMARIO
1. INTRODUZIONE .......................................................................................9
2. CARATTERISTICHE ...................................................................................9
3. Alimentazione & Connettori ............................................................ 10
4. TAB. DI compatibilità SOUNDSATION .......................................... 11
5. CONSERVAZIONE ................................................................................. 12
6. RISPOSTA IN FREQUENZA................................................................. 12
7. DIAGRAMMA POLARE ........................................................................ 13
8. SPECIFICHE TECNICHE........................................................................ 13
9. GARANZIA ED ASSISTENZA.............................................................. 14
10. AVVISO...................................................................................................... 14
1. INTRODUZIONE
Il microfono ad archetto Soundsation Visage C01 è il giusto
equilibrio fra eleganza, essibilità, discrezione e solidità. Per-
mette a cantanti, musicisti, attori, presentatori, professionisti del
broadcast di muoversi liberamente durante le loro performance
e garantire sempre una ripresa accurata della voce. La risposta
in frequenza e la ottima attenuazione dei plosivi, permettono di
ottenere un timbro caldo e frizzante sulle alte frequenze, senza
esagerare con enfatizzazioni poco naturali.
2. CARATTERISTICHE
fCapsula elettrete ad alte prestazioni per una qualità audio
professionale
fProgettato per rispondere a sorgenti audio molto ravvici-
10
nate (ottima attenuazione dei suoni fuori asse)
fRisposta cardioide per una ripresa vocale accurata e rumore
minimo ambientale
fMateriale impermeabile per la massima durata in qualsiasi
applicazione
fBraccetto e cavo del microfono facilmente ssabili sull’ar-
chetto
fPoggia-orecchi rivestiti in gomma per una perfetta aderen-
za
fPosizionamento del microfono a sinistra o destra in base
alle preferenze dell’utente
fColore nero o beige
f4 tipi di connettori disponibili
fBorsa auricolare per preservare meglio il microfono
3. Alimentazione & Connettori
Visage C01 è disponibile in nero o beige e richiede una alimen-
tazione phantom da 1,5V a 9V. È progettato per lavorare con
una vasta gamma di trasmettitori tascabili wireless. Controllare
la lista di seguito per vedere quale modello è adatto al vostro
sistema wireless.
#SKU Modello Colore Connettore
J633J VISAGE-C01A BK Nero A. Mini-jack 1.8” TS con lettatura
J637J VISAGE-C01A BG Beige
J634J VISAGE-C01B BK Nero B. Mini-jack 1.8” TRS con ghiera
(Sennheiser®)*
J638J VISAGE-C01B BG Beige
J635J VISAGE-C01C BK Nero C. Mini-XLR a 3-Pin (AKG®)**
J639J VISAGE-C01C BG Beige
Indice
Lingue:
Altri manuali Sound Sation Microfono
Sound Sation
Sound Sation CM-1000 Manuale utente
Sound Sation
Sound Sation VoxTaker 100 Manuale utente
Sound Sation
Sound Sation TTM-30 Manuale utente
Sound Sation
Sound Sation PCM-8000 match Manuale utente
Sound Sation
Sound Sation DM99 Manuale utente
Sound Sation
Sound Sation BDM-30 Manuale utente
Sound Sation
Sound Sation VOCAL 300 PRO 3P Manuale utente
Sound Sation
Sound Sation GN230 Manuale utente
Sound Sation
Sound Sation BM-630 Manuale utente
Sound Sation
Sound Sation PRO30 Manuale utente
Sound Sation
Sound Sation GO-SOUND POCKET MIC Manuale utente
Sound Sation
Sound Sation GN250 Manuale
Sound Sation
Sound Sation TG100 Manuale utente
Sound Sation
Sound Sation MS189 Manuale utente
Sound Sation
Sound Sation TA54D Manuale utente
Sound Sation
Sound Sation WF-LM10 Manuale utente
Sound Sation
Sound Sation WF-U199 INEAR Manuale utente
Sound Sation
Sound Sation SGC120 MKII Manuale utente
Sound Sation
Sound Sation TG100 Manuale utente
Sound Sation
Sound Sation WF-V21 Manuale utente
