SOYO SY-7VCM Manuale utente

SY-7VCM

Motherboard

Quick Start Guide

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-7VCM Motherboard

Socket 370 for Intel Pentium® &Celeron

processors

VIA VT82C694X AGP/PCI Motherboard

66/100/133 MHz Front Side Bus supported

Micro ATX Form Factor

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of

their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for identification

purposes only. The registered trademarks and copyrights belong to their respective companies.

manual may be reproduced, transmitted, transcribed, translated into any other language, or

stored in a retrieval system, in any form or by any means, such as by electronic, mechanical,

magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo

Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to amend the manual or revise the specifications of the product

described in it from time to time without obligation to notify any person of such revision or

amend. The information contained in this manual is provided to our customers for general use.

Customers should be aware that the personal computer field is subject to many patents. All of

our customers should ensure that their use of our products does not infringe upon any patents. It

is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to

infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up and installing

the Motherboard. Information in this guide has been carefully checked for reliability; however,

to the correctness of the contents there is no guarantee given. The information in this document

is subject to amend without notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

7VCM Serial - Version 1.2 - Edition: June 2000

*Thesespecificationsaresubjecttoamendwithoutnotice

SY-7VCM

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-7VCM

Motherboard.ThisQuickStartGuide

illustratesthestepsforinstallingandsettingupyournewMotherboard.

ThisguideprovidesalluserswiththebasicstepsofMotherboardsettingandoperation.For

furtherinformation,pleaserefertothe SY-7VCMMotherboardUses’Guidethatcamewith

yourMotherboard.

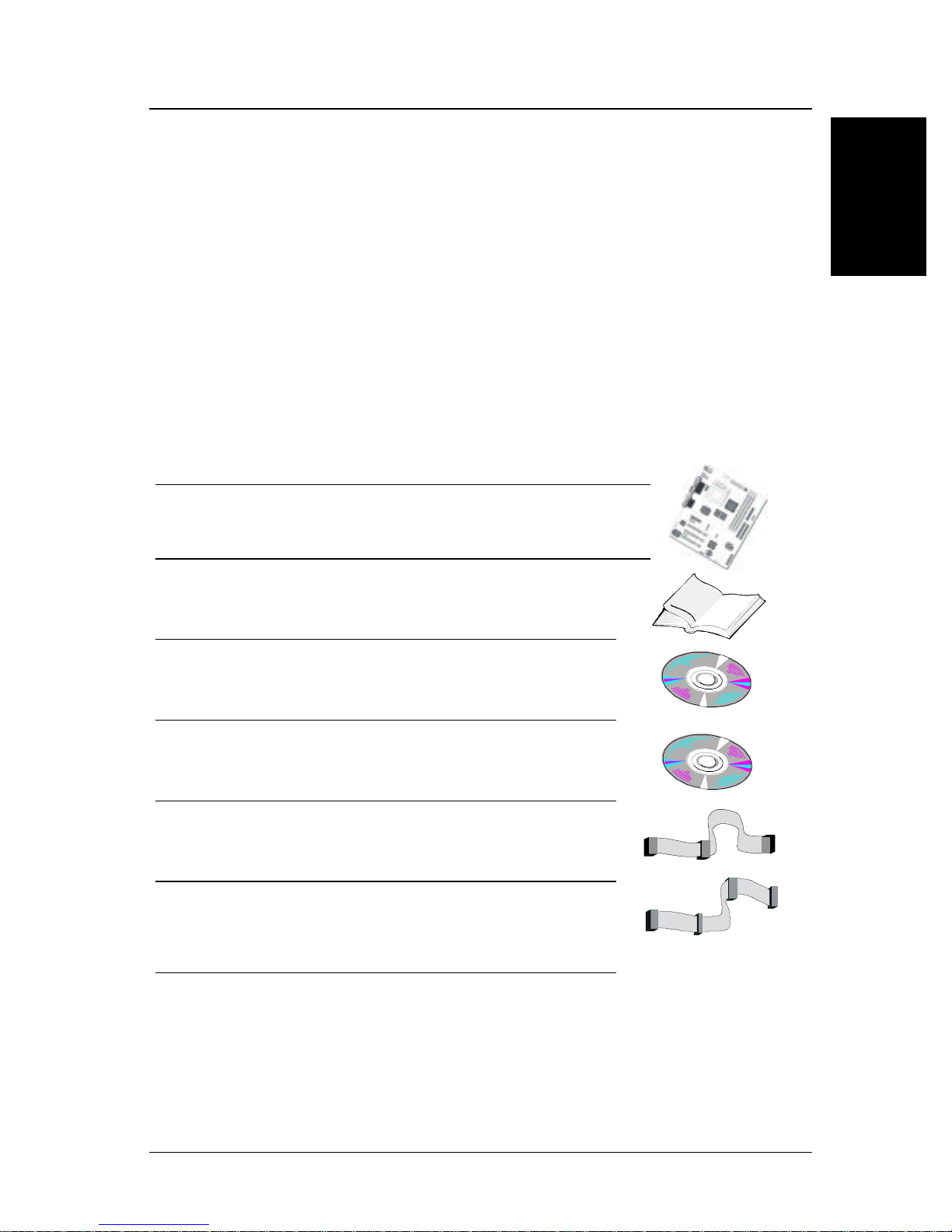

Unpacking

WhenunpackingtheMotherboard,checkforthefollowingitems:

TheSY-7VCMVT82C694XAGP/PCIMotherboard

TheQuickStartGuide

TheInstallationCD-ROM

SOYOBonusPackCD-ROM

OneIDEDeviceATA66FlatCable

OneFloppyDiskDriveFlatCable

SY-7VCM Quick Start Guide

Introduction

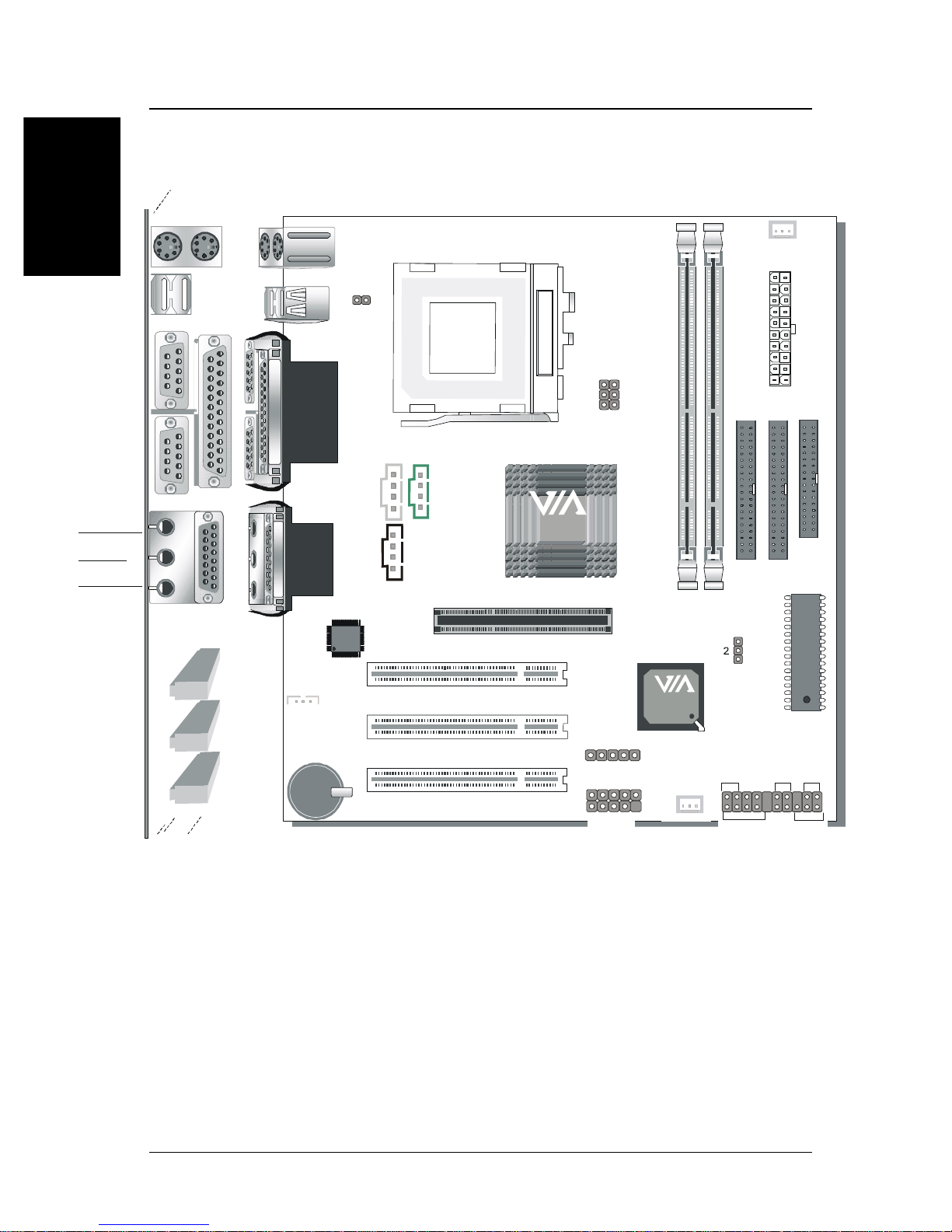

SY-7VCM Motherboard Layout

(Optional)

Speaker

Power

LED

HDD LED

Reset

PWRBT

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

CPUFAN

IDE 1 IDE 2

FLP

ATX Power

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

Socket 370

DIMM 1

DIMM 2

COMA

COMB

PCI Slot #2

CHAFAN

USB 1

USB 2

SDRAM

VT82C694X

AGP Slot

Lithium

Battery

USB4

USB3

SIRCON

HJ1

HJ2

HJ3

HJ4

JP10

WOL

Header

3 1

CDIN1

AUXIN

PHON

JP5

Flash BIOS

VT82C686A

CODEC

AC97

CMOS Clear

Jumper

SY-7VCM

Quick Start Guide

Introduction

Key Features

SupportsIntel®processors

-FSB66MHz:Celeron



(400-700MHz)

-FSB100MHz:Pentium®III(500E-

850MHz)

-FSB133MHz:Pentium®III(533-

933MHz)

Supports66/100/133MHzFrontSide

BusFrequency

Auto-detectCPUvoltage

EasyCPUsettingsinBIOSwiththe

“SOYOCOMBOSetup”

PC99,ACPI

UltraDMA33/66(ATA33/66)

SupportsWake-On-LAN(WOL)

Power-onbymodemandalarm

Supportsonboardhardwaremonitoring

Support5setsofvoltagemonitoring

Supportsmultiple-bootfunction

3x32-bitbusmasteringPCIslots

1x32-bitAGPslot

4xUSBportsonboard

1xIrDAport

ATXpowerconnector

HardwareRandomNumberGenerator

(RNG)forenablingenhancedplatform

security

RTChardwaretohandleY2KCentury

Rollover

SY-7VCM Quick Start Guide

Hardware

Installation

ToavoiddamagetoyourMotherboard,pleasefollowthesesimpleruleswhile

handlingthisequipment:

BeforehandlingtheMotherboard,groundyourselfbytouchingontoanunpainted

portionofthesystem'smetalchassis.

RemovetheMotherboardfromitsanti-staticpackaging.Holdthemotherboardbythe

edgesandavoidtouchingitscomponents.

ChecktheMotherboardfordamage.Ifanychipappearstobeloose,presscarefully

toseatitfirmlyinitssocket.

Followthedirectionsinthissectionwhichisdesignedtoguideyouthroughaquickand

correctmethodtoinstallyournew

SY-7VCM

Motherboard.Fordetailedinformation,please

refertotheSY-7VCMMotherboard User'sguideandTechnicalReference onlinemanualon

intheCD-ROMpackagethatcame with yourMotherboard.

Gatherandprepareallnecessarycomponentstocompletetheinstallationsuccessfully:

Pentium® Socket370 processor with built-in CPU cooling fan (boxed type)

SDRAM module(s)

Computer case with adequate power supply unit

Monitor

PS/2 Keyboard

Pointing Device (PS/2 Mouse)

Speaker(s) (optional)

Disk Drives: HDD, CD-ROM, Floppy drive…

External Peripherals: Printer, Plotter, and Modem (optional)

Internal Peripherals: Modem and LAN cards (optional)

Note: 1.

Ifyouwanttouseanexternalspeakerconnectedto"Line-out"port,pleasemake

suretousean"amplifiedspeaker"thatcangenerateproperoutputsoundvolume.

SY-7VCM

Quick Start Guide

Hardware

Installation

Install the Motherboard

Toperformtheinstallationofyournew

SY-7VCM

Motherboard,followthestepsbelow:

Step 1. CPU Installation

MarkyourCPUFrequency:

Recordthe working frequency of your CPU that

shouldbe clearlymarkedon theCPUcover.

FSB66MHz

400MHz(66x6.0) 466MHz(66x7.0) 533MHz(66x8.0) 600MHz(66x9.0) 667MHz(66x10.0)

433MHz(66x6.5) 500MHz(66x7.5) 566MHz(66x8.5) 633MHz(66x9.5) 700MHz(66x10.5)

FSB100MHz

500MHz(100x5.0) 600MHz(100x6.0) 700MHz(100x7.0) 800MHz(100x8.0)

550MHz(100x5.5) 650MHz(100x6.5) 750MHz(100x7.5) 850MHz(100x8.5)

FSB133MHz

533MHz(133x4.0) 667MHz(133x5.0) 800MHz(133x6.0) 933MHz(133x7.0)

600MHz(133x4.5) 733MHz(133x5.5) 866MHz(133x6.5)

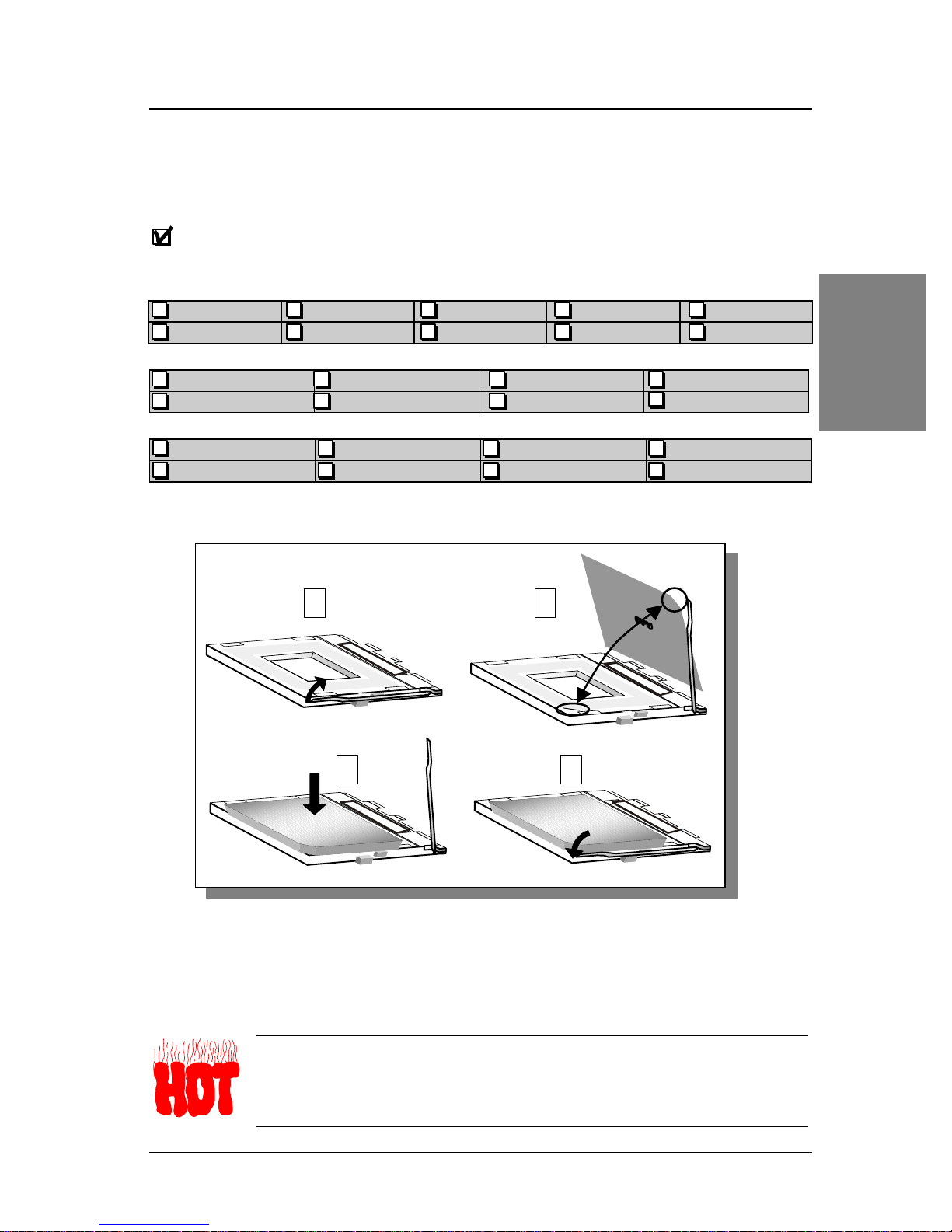

CPU Mount Procedure:

TomountthePentium® & Celeron

processorthatyou

havepurchasedseparately,followtheseinstructions.

Liftthesockethandleuptoaverticalposition.

AlignthebluntedgeoftheCPUwiththematchingpinholeedgeonthesocket.

Seattheprocessorinthesocketcompletelyandwithoutforcing.

ThenclosethesockethandletosecuretheCPUinplace.

RemembertoconnecttheCPUCoolingFantotheappropriatepower

connectorontheMotherboard. Thefanis akeycomponentthatstabilizesthe

system.Itpreventstheequipmentfromoverheatingandprolongsthelifeof

yourCPU.

cke

cket3

SY-7VCM Quick Start Guide

Hardware

Installation

Step 2. Connections to the Motherboard

ThissectiontellshowtoconnectinternalperipheralsandthepowersupplytotheMotherboard.

TheinternalperipheralsconsistofIDEdevices(HDD,CD-ROM),FloppyDiskDrive,Chassis

Fan,FrontPanelDevices(InternalSpeaker,ResetButtonandIDELEDSwitch.),Wake-On-

LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonconnectinginternalandexternalperipheralstoyournewSY-7VCM

Motherboard,pleasereferto SY-7VCMMotherboardUser'sGuideandTechnical Reference

onlinemanualontheCD-ROM.

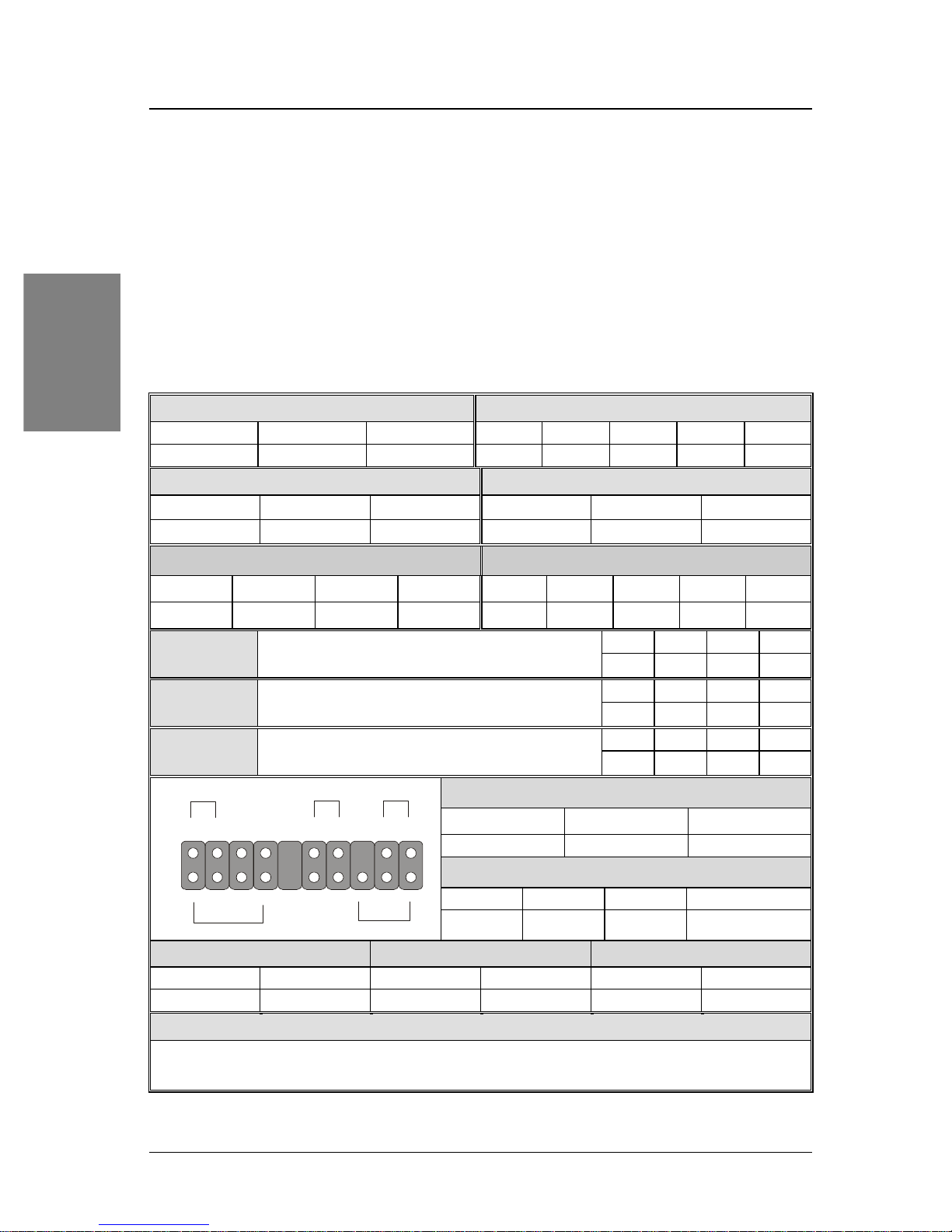

Connectors and Plug-ins

Wake-On-LANHeader: JP10 Standard IrDA(InfraredDevice Header): SIRCON

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin4 Pin5

5VSB GND MP-Wakeup VCC None IRRX GND IRTX

CPUCooling Fan:CPUFAN ChassisFan:CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR

USB3 USB4

Pin1 Pin2 Pin3 Pin4 Pin1 Pin2 Pin3 Pin4 Pin5

Power Data(-) Data(+) GND Power Data(-) Data(+) GND GND

Pin1 Pin2 Pin3 Pin4

CD-IN:CDIN1

ConnecttoyourCD-ROMaudiooutput.

LG G R

Pin1 Pin2 Pin3 Pin4

AUX-IN: AUXIN

ForAuxiliaryAudiodevices (1.0Vrms typ.)

LG G R

Pin1

Pin2

Pin3 Pin4

PHONIN:

PHON

Connecttophoneconnector

IN G G Mono

PowerLED

Pin1 Pin2 Pin3

5V NC GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speakerout

HDDLED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LEDCathode PowerOn/Off GND PowerGood GND

ATXPower On/Off:PWRBT

Connectyourpowerswitchtothisheader(momentaryswitchtype).

Toturn offthesystem, press thisswitchand hold downforlonger than 4seconds.

Power LED

Speaker

Reset

PWRBT

HDD LED

1 1

SY-7VCM

Quick Start Guide

Hardware

Installation

ATXPowerSupply:ATX PW

AttachtheATXPowercabletothisconnector.(ThismotherboardrequiresanATXpowersupply,anAT

powersupplycanNOTbeused.)

WhenusingthePower-OnbyPS/2Keyboardfunction,pleasemakesuretheATXpowersupplyisableto

provideatleast720mAonthe5VStandbylead(5VSB)inordertomeetthestandardATXspecifications.

Step 3. Configure Memory

YourboardcomeswithtwoDIMMsockets,providingsupportforupto1GBofmainmemory

usingunbufferedandregisteredDIMMmodulesfrom8MBto512MB.Onthismotherboard,

DRAMspeedcanbesetindependentfrom the CPUfrontsidebusspeed.Dependingonthe

DRAMclockspeedsettingintheBIOSsetup,appropriatememorymodules mustbeused.

For66MHzDRAMspeed,usePC66memory;for100MHzDRAMspeed,usePC100

memory;for133MHzDRAMspeed,usePC133memory.

Memory Configuration Table

Number of Memory Modules DIMM 1 DIMM 2

RAM Type EDO/ SDRAM/ VCM SDRAM

Memory Module Size (MB) 8/16/32/64/128/256/512 MB

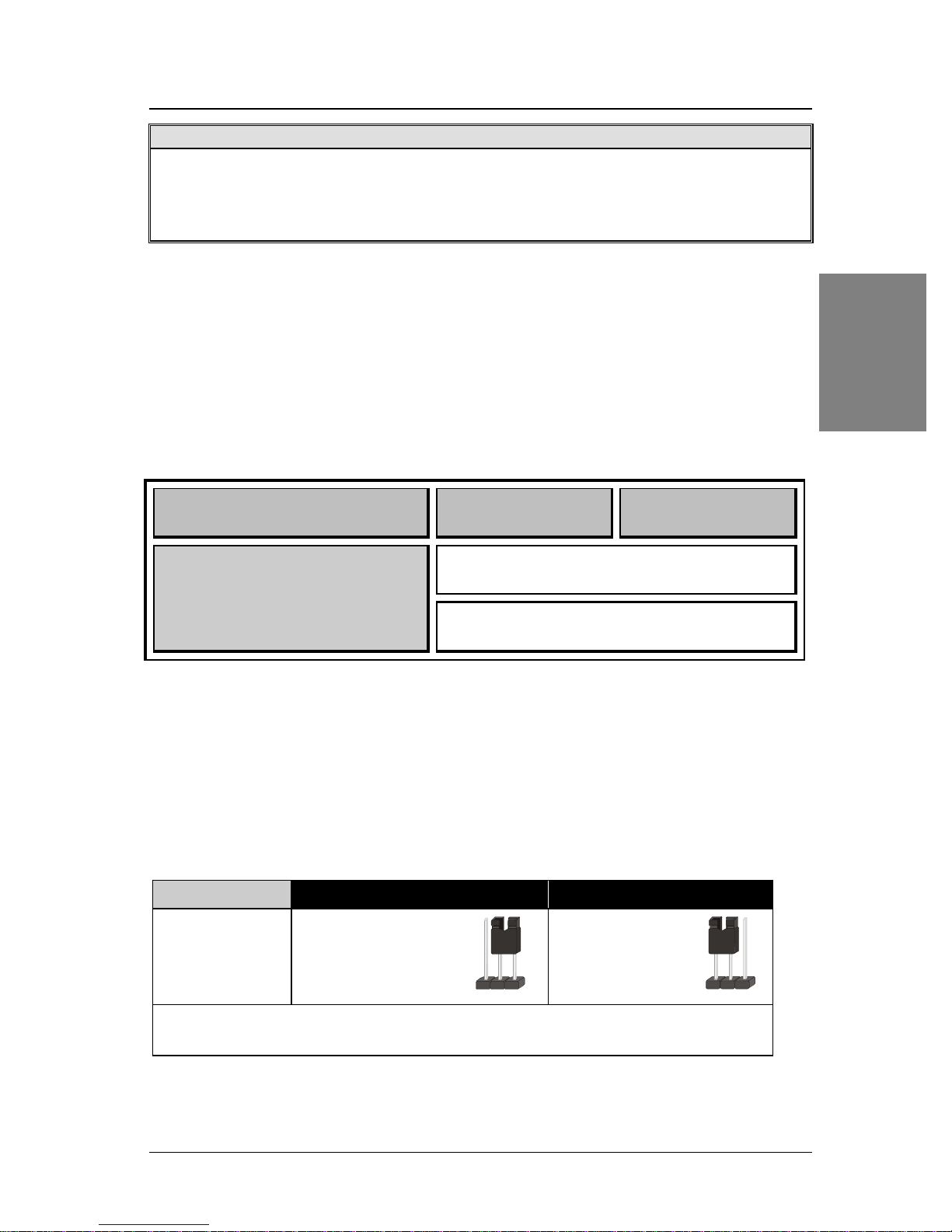

CMOS Clear (JP5)

Insomecases theCMOSmemorymaycontainwrongdata,followthestepsbelowtoclear

CMOSmemory.

Clearthe CMOSmemory by momentarilyshorting pin2-3onjumperJP5. Thisjumper

canbeeasilyidentifiedbyitswhitecoloredcap.

Thenputthejumperbackto1-2toallowwritingnewofdataintotheCMOSmemory.

CMOS Clearing Clear CMOS Data Retain CMOS Data

JP5Setting Short pin2-3 for

atleast 5 secondsto

clearthe CMOS

Shortpin1-2to

retainnew settings

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

SY-7VCM Quick Start Guide

Quick BIOS

Setup

Quick BIOS Setup

ThisMotherboarddoesnotrequireanyhardwarejumperstosettheCPUoperating

frequency.Instead,CPUsettingsaresoftwareconfigurablethroughtheBIOS

[SoyoCombo

Feature].

The[SoyoComboFeature]menucombinesthemainparametersthatyouneed

toconfigureyoursystem.TheyareallinonemenutoenableaquicksetupinBIOS.

Aftercompletionofhardwareinstallation,turnthepowerswitchon,thenpressthe

<DEL>

keywhile

thesystemdiagnosticischeckingtoentertheAwardBIOSSetupprogram.TheCMOSSETUP

UTILITYwillbedisplayedonscreen.ThenfollowthesestepstoconfiguretheCPUsettings.

Step 1. Select [Standard CMOS Features]

Set[Date/Time]and[Floppydrivetype],thenset[HardDiskType]to “Auto”.

Step 2. Select [Load Optimized Defaults]

Select the “LoadOptimizedDefaults”menu andtype “Y”attheprompttoloadtheBIOS

optimalsetup.

Step 3. Select [Soyo Combo Feature]

Movethecursortothe

[CPUFrequency]

fieldtosettheCPUfrequency.

Thefollowingtableshowsallavailable[CPUFrequency]settingsonyourSY-7VCM

Motherboard.Ifyousetthisfieldto[Manual],youwillberequiredtofillinthenexttwo

consecutivefields:(1)theCPUHost/PCIClock,and(2)theCPURatio.

CPU Frequency (MHz) 633MHz (66 x 9.5) 800MHz (100 x 8.0)

Manual 667MHz (66 x 10.0) 850MHz (100 x 8.5)

400MHz (66 x 6.0) 700MHz (66 x 10.5) 600MHz (133 x 4.5)

433MHz (66 x 6.5) 500MHz (100 x 5.0) 666MHz (133 x 5.0)

466MHz ( 66 x 7.0) 550MHz (100 x 5.5) 733MHz (133 x 5.5)

500MHz( 66 x 7.5) 600MHz (100 x 6.0) 800MHz (133 x 6.0)

533MHz ( 66 x 8.0) 650MHz (100 x 6.5) 866MHz (133 x 6.5)

566MHz ( 66 x 8.5) 700MHz(100 x 7.0) 933MHz (133 x 7.0)

600MHz ( 66 x 9.0) 750MHz (100 x 7.5)

SelecttheworkingfrequencyofyourPentium®III,Celeronprocessoramongthesepresetvalues.

Note: MarkthecheckboxthatcorrespondstotheworkingfrequencyofyourPentium®III,Celeron

processorincasetheCMOSconfigurationshouldbelost.

Step 4. Select [SAVE & EXIT SETUP]

Press

<Enter>

tosavethenewconfigurationtotheCMOSmemory,andcontinuewiththe

bootsequence.

Altri manuali per SY-7VCM

Indice

Altri manuali SOYO Scheda madre

SOYO

SOYO SY-6BE+ Manuale utente

SOYO

SOYO 82430 TX P54C Manuale per l'uso e la cura

SOYO

SOYO SY-6IWM/L Manuale utente

SOYO

SOYO SY-V6BE+ Manuale utente

SOYO

SOYO TechAID Manuale utente

SOYO

SOYO SY-K7ADA Manuale utente

SOYO

SOYO SY-K7VMP Manuale utente

SOYO

SOYO 82440 FX Manuale per l'uso e la cura

SOYO

SOYO 82430 TX Manuale per l'uso e la cura

SOYO

SOYO SY-K7VMP2 Manuale utente

SOYO

SOYO SY-6IBM Manuale utente

SOYO

SOYO SY-5EH5/5EHM V1.2 Super 7 Manuale utente

SOYO

SOYO 82430 VX PCI Manuale utente

SOYO

SOYO SY-6BA+ Manuale per l'uso e la cura

SOYO

SOYO SY-KT600 DRAGON Plus Manuale utente

SOYO

SOYO SC-6TFx Manuale utente

SOYO

SOYO SY-P4VGA Manuale utente

SOYO

SOYO SY-P4I845PEISA Manuale utente

SOYO

SOYO SY-KT400 Dragon Ultra Manuale utente

SOYO

SOYO SY-5SSM Manuale utente

SOYO

SOYO 6KF Manuale per l'uso e la cura

SOYO

SOYO DRAGON 2 Motherboard 2 Manuale utente

SOYO

SOYO SY-7VCA Manuale utente

SOYO

SOYO SY-5EMA+ Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
