Speco CDD11HW Manuale utente
S250
INSTRUCTION
MANUAL CDD11HW
960H Diamond Indoor Dome Camera
1
Content
Content
Warning & Caution
General Features
Composition
Dimension
Connection
Product Overview
Installation
Specification
OSD Menu
OSD Menu Setting
Trouble Shooting
1
2
3
4
5
6
7
8
11
12
13
14
2
This symbol is intended to alert the user to the presence
of un-insulated“dangerous voltage”within the product’s
enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature accompanying
the appliance persons.
Warning & Caution
3
General Features
• Resolution : 700 TV Lines
• Built in Fixed Lens 3.6 mm
• Min.illumination :
Color : 0.1Lux, B/W : 0.01Lux
• Tact Switch type OSD Control
•
Motion Detection, Privacy Zone, Mirror Function
•
2nd Video-out connector for installer
• Dynamic 3-Axis Movement for Free Lens Rotation
• Power DC 12V
• DNR : 2D
• DWDR: Digital Wide Dynamic Range
18 AWG 200 m
Wire Gauge
DC12V
Power Wire Maximum Distance
4
Composition
1. Camera
2. Mounting Screws
Tapping Screws 4 x 25
3 pcs
3. Instruction Manual
4.
Pig Tail
5

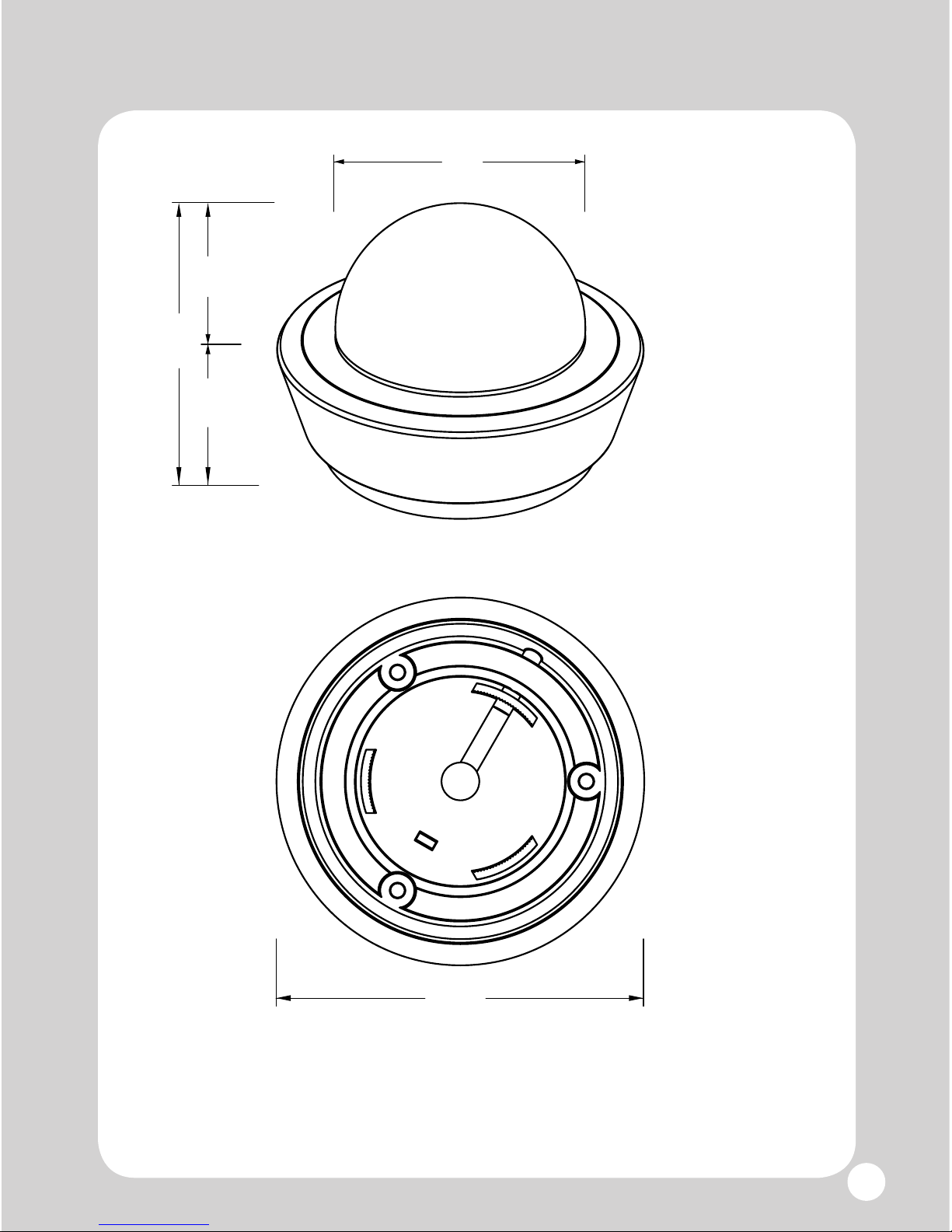

Dimension
2.5”
2.4”
3.4”
1.2” 1.3”
Units : inch
6

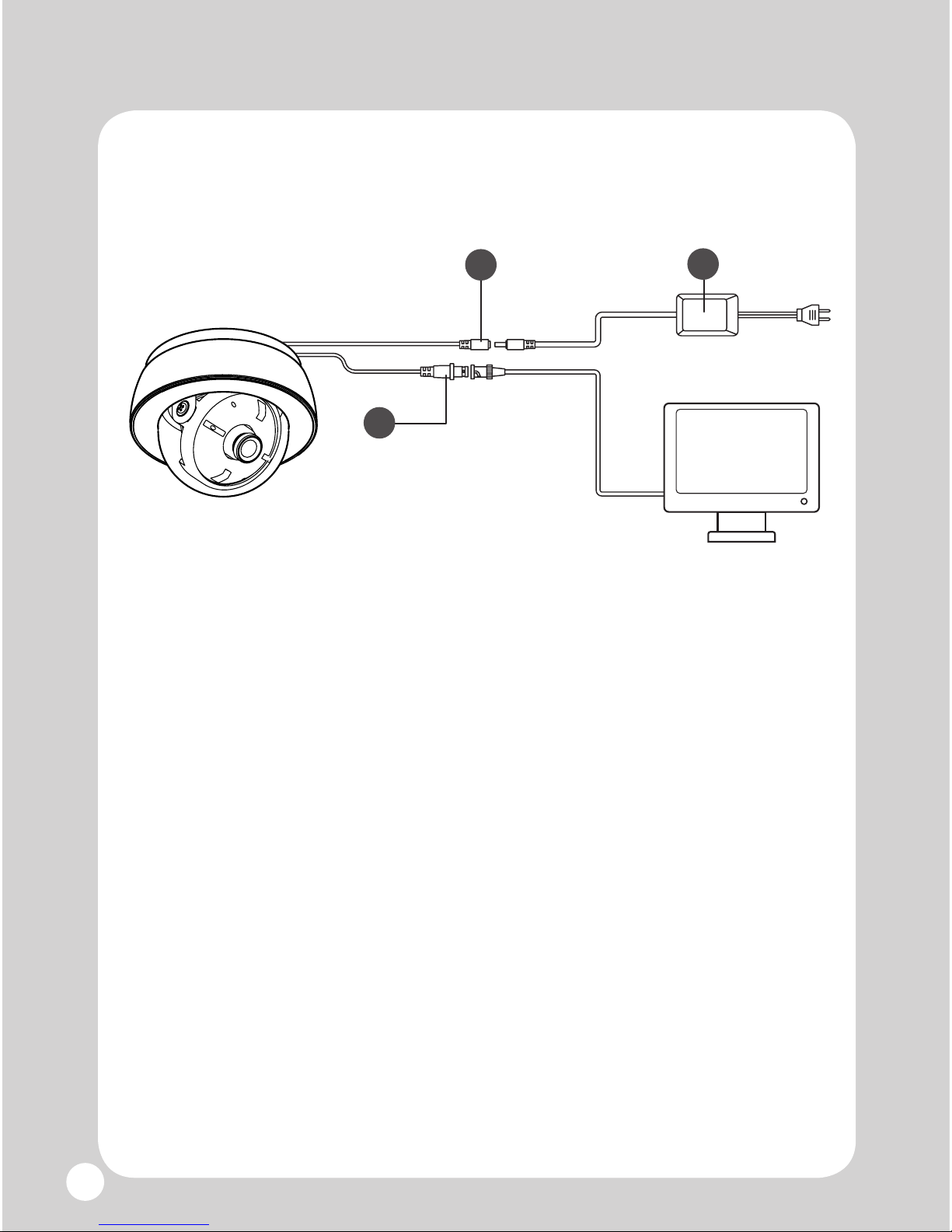

Connection
1. DC Jack
2. Power Adaptor (DC 12V)
3. BNC Jack (Video Output)
3
12
Monitor
7

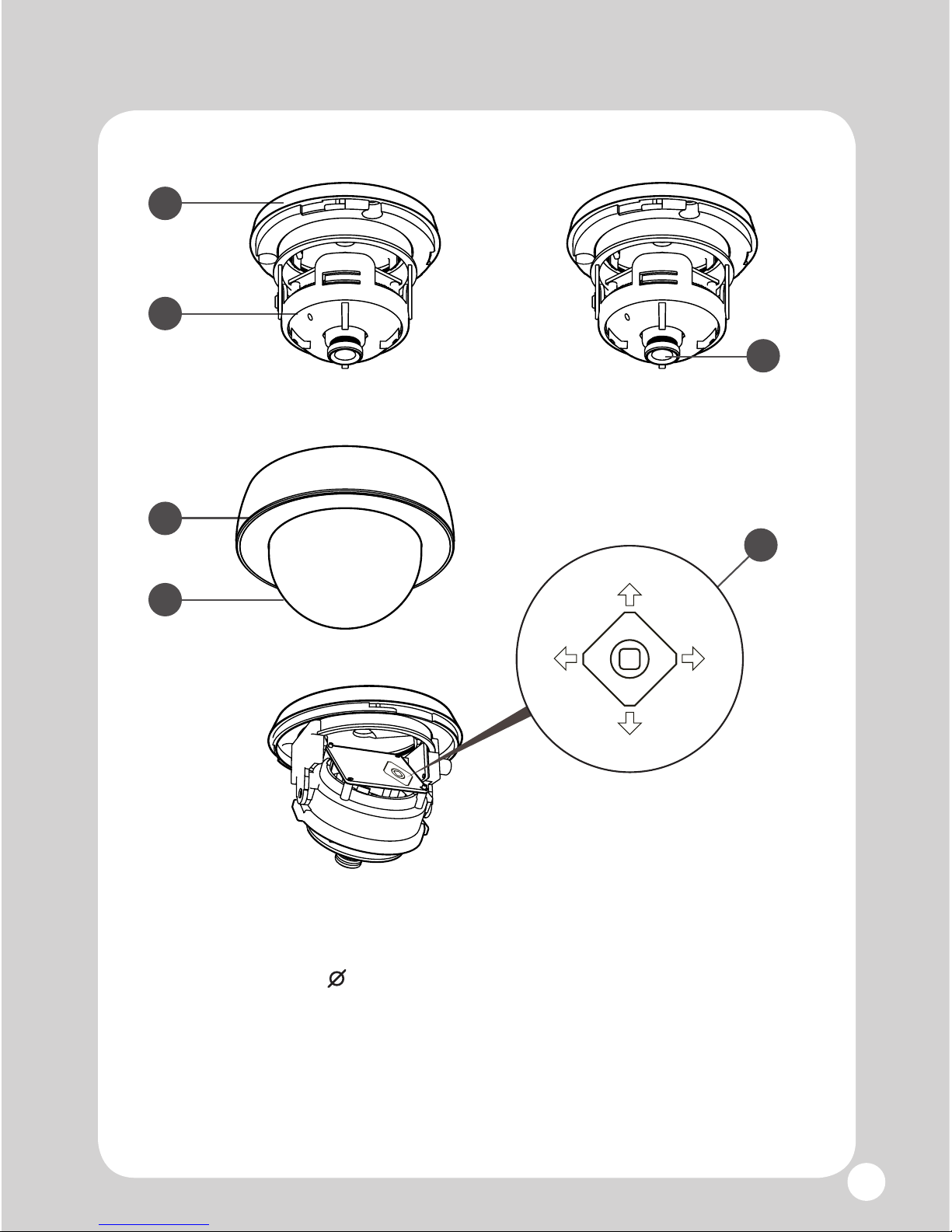

Product Overview
6
1
2
3
4
Up
Down
Left Right
1. Dome Glass 2.4”
2. Top Cover
3. Main Body
4. Bottom Cover
5. Lens
6. OSD Menu Switch
5
8
Installation
Refer all work related to the installation of this product
to qualified service personnel or system installer.

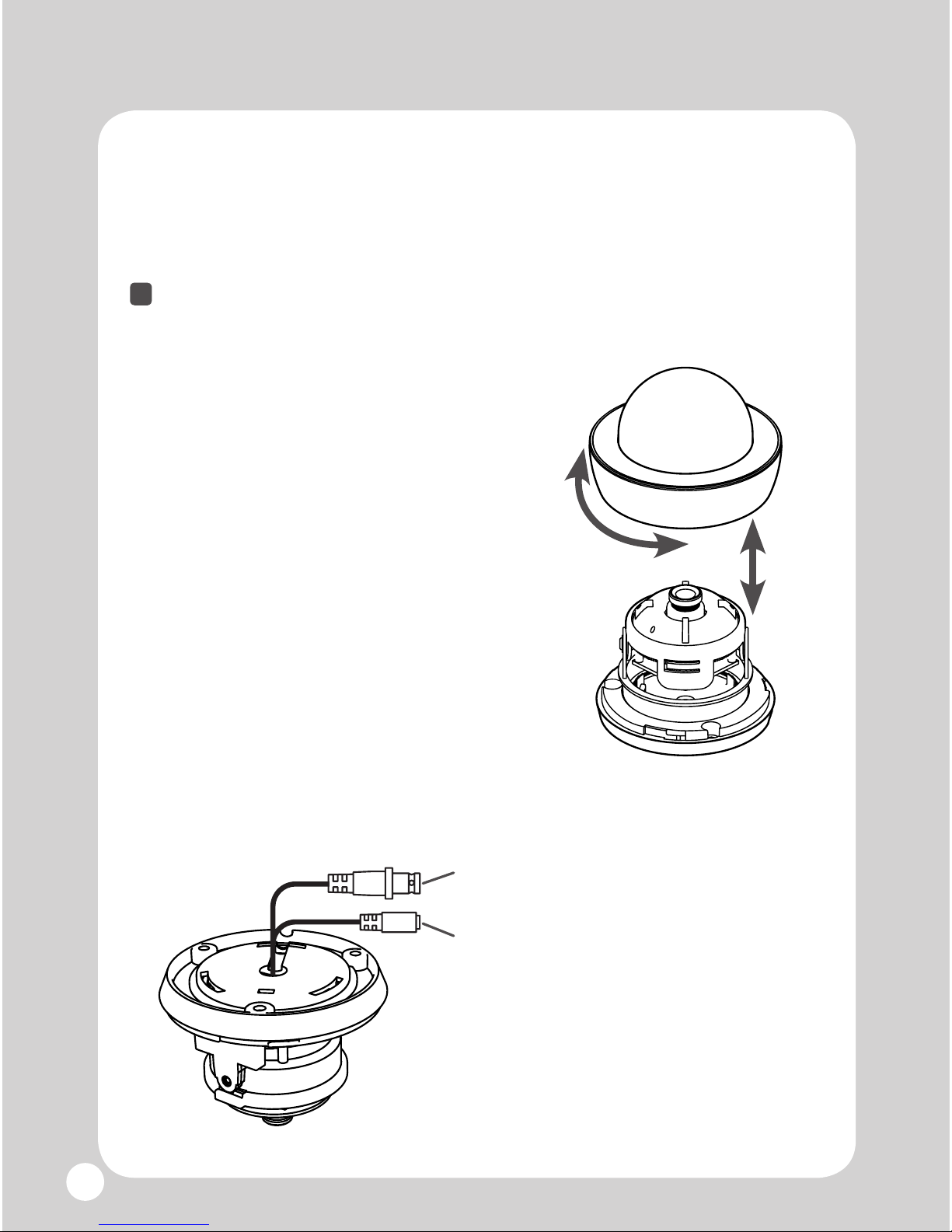

1. Remove the Top Cover
a. Gently turn the Top Cover
counter-clockwise to unlock,
then pull free of the Main Body.
b. Set the dome and Main Body
aside.
2. Connect the Wiring
a. Video output connector.
b. Power connector.
Preparation
9
Installation
-
The dome camera has three position adjustments
,
and OSD Menu Setting Switch.
A = Pan rotation
B = Horizontal rotation
C = Tilt rotation
A
B
C
a. Pass the Power Cable and the
Video Cable from the camera
unit through the hole in the
ceiling.
b. Install the Main Body to the
desired installation surface
using 3 supplied mounting
screws.
Camera Mounting
Camera Adjustment
*
If necessary, loosen the screw that locks the gimbal
assembly in place, before adjusting the camera.
