Quick Start Guide

O2VT1

1Warning and Caution

■ If the product does not work properly, please contact your

dealer or the nearest service center. Never attempt to disassemble

the camera yourself. Any unauthorized changes or modifications

could void the warranty.

■ Do not allow water or liquid intrusion into the camera.

■ All installation and operation here should conform to local

electrical safety codes. Make sure the device is firmly installed

on the wall or ceiling.

■ Do not use camera beyond specified voltage range.

■ Do not drop the camera or subject it to physical shock.

■ Avoid touching the camera lens.

■ If cleaning is necessary, please use cleaning cloth to wipe it

gently.

■ Do not aim the camera at the sun or extremely bright light

sources.

■ Do not place the camera in extremely hot or cold environments

and dusty and damp locations . Do not expose it to highly

electromagnetic radiation.

■ Do not block any ventilations.

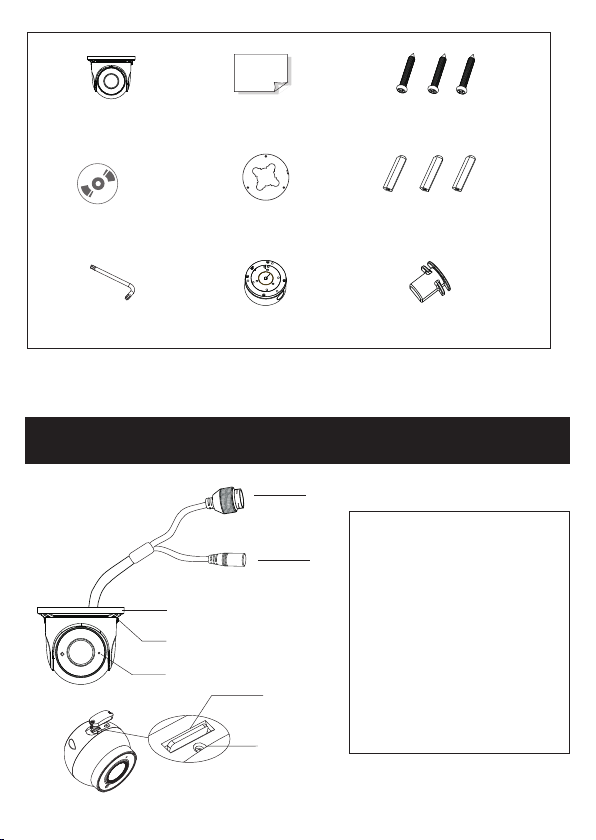

Package

2

Overview

3

Junction box

Overview

3

Camera Quick start guide

CD Plastic plug ×3

Drill template

Screwdriver

Tapping screws × 3

Power connector

3

4

Mounting base

Ethernet connector

1

2

Reset

Micro SD card slot

5

6

7

Fixed screw

Microphone

Rubber plug

1

2

3

4

5

6

7

* 1 It is recommended to install the security cap for outdoor installations.

* 2 DC 12V power supply is not required if a PoE switch or injector is used to power

the camera.

► Connecting Network Cable

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the hermetic connector. Then tighten the nut

and the main cover.

2

13

Security Cap

DC12V

Installation

4

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera and the junction box.

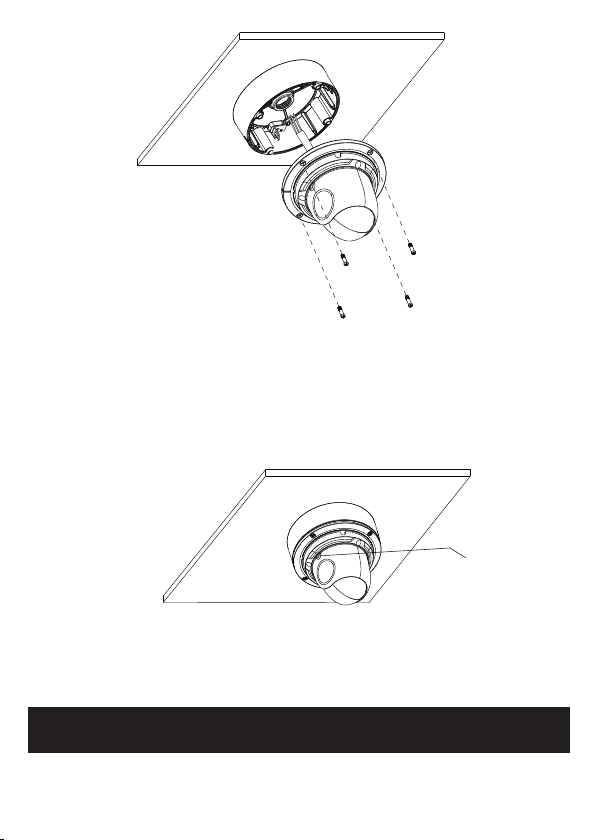

① Open the mounting base and the upper cover of the junction box.

② Install junction box onto the wall by using the screws provided.

Mounting Base

Upper Cover

③ Loosen the fixed screw to disassemble the camera. Then remove

the cover from the dome to insert the SD card. After that, install the

cover back to the dome and fix it firmly with the screws. (Note that

the cover should not be installed unevenly .)

⑤

Then reinstall the upper cover onto the junction box.

Route the cables through the cable hole and connect the cables.

④ Fasten the camera onto the junction box.

Cover Insert a micro SD card

Fixed Screw

⑥

preview the image of the camera on a monitor. After that, tighten the

fixed screw to finish the installation.

Adjust the camera to obtain an optimum angle. Before adjustment,

Web Operation and Login

5

IP Scanner can search for the device on the local network.

Fixed screw

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

The login interface is shown above. Default user name is admin and

password is 1234. After logging in, follow directions to install

applicable plugins.

● Operation

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.

O2 V T1
