Speco VIP2D2 Manuale utente

Quick Installation Guide

VIP2D2M

Motorized Full-HD

IR VP Dome

Network Camera

VIP2D2

Full HD VP Dome

Network Camera

Please read this manual thoroughly before use, and keep it handy for future reference.

Quick Installation Guide

1. Description

The Network Camera supports the network service for a sensor image with progressive scan, which

can be monitored on a real-time screen regardless of distances and locations. By using its dedicated

program, many users are able to have an access to the Network Camera at once or a single user can

monitor various network cameras at the same time. It also enables users to play, store and retrieve a

monitoring image by using a PC. All the settings and real-time monitoring screens are also provided

through an access to the web.

The Network Camera is fully featured for security surveillance and remote monitoring needs. It is

based on the DSP compression chip, and makes it available on the network as real-time, full frame

rate Motion JPEG and H.264 (or MPEG-4) video streams.

The alarm input and alarm output can be used to connect various third party devices, such as, door

sensors and alarm bells.

• Installation Steps

Follow these steps to install the network camera on your local network (LAN):

1. Check the package contents against the list below.

2. Connect the Network Camera. See page 3.

3. Set an IP address. See page 6.

4. Set the password. See page 8.

• Package Component

The system comes with the following components:

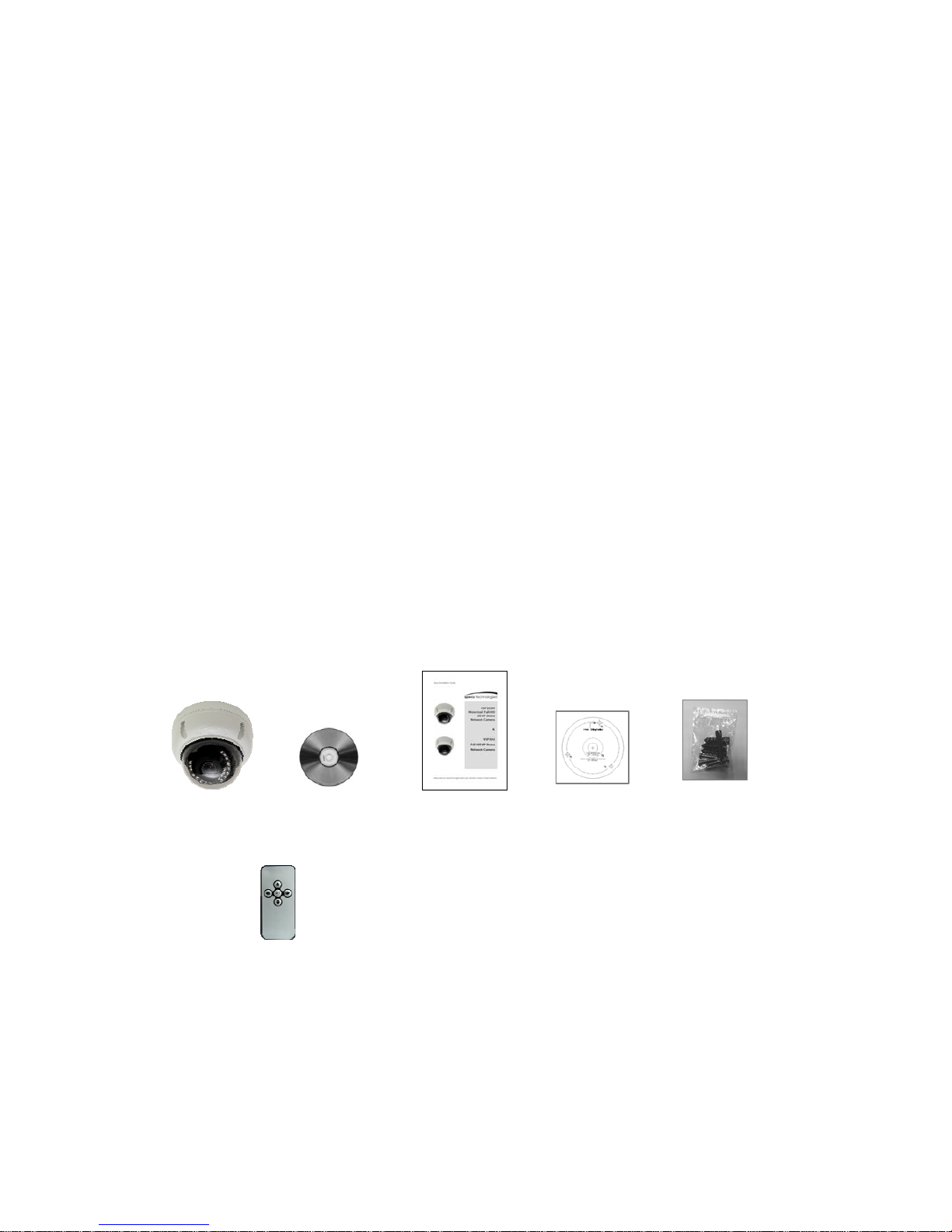

mera unit Installation CD Installation Guide Template Sheet Accessory Kit

Optional OSD Controller

Check your package to make sure that you received the complete system, including all components

shown above.

Quick Installation Guide

• Contents in the installation CD

1. The Network Camera User’s Manual

2. The Speco Manager User’s Manual

3. The Speco VMS User’s Manual

4. The Speco Manager Installation software

5. The Speco VMS Installation software

Note: Check your package to make sure that you received the complete system, including all

components shown above.

2. Installation

For the operation of the Network Camera, it is necessary to connect a network cable for data

transmission, power connection from supplied power adapter. Depending on operation methods, it is

possible to connect an alarm cable additionally. For its fixation on different locations, please consult

with an installer.

2.1 Connection

Connection Description

NO Connector Name Description

1 Micro-SD Slot Micro-SD memory slot

2 Service Monitor

Port Service Monitor & OSD Controller Communication Port, Stereo Jack

3 Audio In & Out Port Audio Input and Output, Stereo Jack.

4 Alarm In & Out Port Alarm Input and Output, 3pin terminal.

Pin1: Alarm In, Pin2: GND, Pin3: Alarm Out

5 Main Power

Main Power, 2pin terminal,

DC12V 470mA(4.0W) / AC24V 520mA(6.5W) with heater Off,

or AC24V 1.13A(25.5W) with heater On

Pin1: DC12V/AC24V, Pin2: GND/AC24V

6 RJ-45 Port Ethernet, RJ-45 port compatible with 10/100Mbps having PoE

functionality.

Quick Installation Guide

Micro SD memory slot on the Board

Card Slot for Micro SD memory: Socket “J15”

• Connecting to the RJ-45

Connect a standard RJ-45 cable to the network port of the network camera. Generally a

cross-over cable is used for directly connection to PC, while a direct cable is used for connection

to a hub.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.

• Connecting Alarms

AI(Alarm In) :

You can use external devices to signal the network camera to react on events. Mechanical or

electrical switches can be wired to the AI (Alarm In) and G (Ground) connectors.

G(Ground) :

Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.

Alarm Out :

The network camera can activate external devices such as buzzers or lights. Connect the device

to the AO (Alarm Out) and G (Ground) connectors.

• Connecting the Power

Connect the power of DC12V or AC24V for the network camera. Connect the positive(+) pole to

the ‘+’ position and the negative(-) pole to the ‘-‘ position for the DC power.

Be careful not to reverse the polarity when you connect the power cable.

You can also use a router featuring PoE (Power over Ethernet) to supply power to the

camera.

The heater will operate properly only by the power source of AC 24V.

If using PoE, the heater will not operate at all.

If PoE and DC 12V are both applied, this camera will get supplied with power from PoE.

• Connecting Service Monitor Port

Service monitor output port (J7) is located on the board of the dome camera, and is used for an

easy OSD setup.

▶ID & IP assignment

To make changes in the OSD menu, please the OSD controller provided optionally with your

camera purchase. You can set Camera Title and IP Address.

Quick Installation Guide

1. Connect the OSD Controller to the Service Monitor port of the network camera.

2. Connect Service Monitor and the Video Output port of the OSD Controller.

3. Press the SET button to access main Menu.

4. Change Camera ID, and IP Address. You can change the Name or Title and IP address of the

camera. Using the ↑↓←→ buttons on the controller, you can change the parameters.

5. Select SAVE or CANCEL to exit the Main Menu.

Video Output is used for an easy zoom and focus control when installing lens. Video Output is

restricted to 704x480(576) resolution.

▶Zoom & Focus Control

The camera enters Zoom and Focus control mode as soon as connecting OSD Controller to the

Service Monitor port.

-. Zoom Control: ↑(Zoom In), ↓(Zoom Out)

-. Focus Control: ←(Focus Near), →(Focus Far)

-. Smart Focus: Press and hold the SET button for 2 or more seconds. The camera readjusts

focus automatically.

Note: You can get the Optional OSD Controller from your installer.

Heater Kit Installation(Optional)

1. Place the heater element is slot “ A”. Please en sure that the cables ar e facing upwards and the

heater is pointing towards the Dome.

2. Place the plug in the Connector “B” (J13) which is found on the controller board.

• Heater (IF Applicable)

Power Supply AC24V

Power Consumption 20Watt

Heater On at 41°F (5°C)

Heater Off at 59°F (15°C)

Note: The Heater module does not come equipped with the camera; however can be purchased as

an option.

Quick Installation Guide

2.2 Network Connection and IP assignment

The Network Camera supports the operation through the network. When a camera is first connected

to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the

“Speco Manager” utility on the CD. The factory default IP is “192.168.30.220”.

1. Connect the Network Camera / device to the network and power up.

2. Start Speco Manager utility (All Programs>Speco Manager>Speco Manager), the main window

will be displayed, after a short while any network devices connected to the network will be

displayed in the list.

3. Select the camera on the list and click right button of the mouse. You can see the pop-up menu

as below.

4. Select Assign IP. You cam see a Assign IP window. Enter the required IP address.

Note: For more information, refer to the Speco Manager

User’s Manual.

Quick Installation Guide

3. Operation

The Network Camera can be used with Windows operating system and browsers. The recommended

browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.

3.1 Access from a browser

1. Start a browser (Internet Explorer).

2. Enter the IP address or host name of the Network Camera in the Location/Address field of your

browser.

3. You can see a starting page. Click Live View or Setup to enter web page.

4. The network camera’s Live View page appears in your browser.

3.2. Access from the internet

Access from the internet once connected, the Network Camera is accessible on your local network

(LAN). To access the network camera from the Internet you must configure your broadband router to

allow incoming data traffic to the network camera. To do this, enable the NAT-traversal feature, which

will attempt to automatically configure the router to allow access to the network camera. This is

enabled from Setup > System > Network > NAT.

For more information, please see “3.5.5 System>Network>NAT” of User’s Manual.

Quick Installation Guide

3.3 Setting the admin password over a secure connection

ain access to the product, the password for

he default administrator user must be set. Thi s

is done in the “Admin Password” dial og, which is

displayed when the n etwork camera is accessed

or the setup at the first time. Enter your admin

name and password, set by the administrator.

Note: The default administrator username is

admin and password is 1234. If the p assword is

lost, the Net work Camera must be r eset to the

actory default settin

s. See “3.6 Resetting to the

Factory Default Settin

”

3.4 Live View Page

he live view pa

e comes in several screen

modes: 1920x1080, 1280x1024, 1280x720,

704x480(576), 640x480, 352x240(288),

and 320x240. Users are allowed to select

he most suitable one out of those modes.

Please, ad

ust the mode in accordance with

our PC specifications and monitorin

purposes.

1) General controls

Live View Page Search & Playback Page Setup Page Help Page

The video drop-down list allows you to select a customized or pre-programmed

video stream on the live view page. Stream profiles are configured under Setup > Basic

Configuration > Video & Image. For more information, please see “3.5.1 Basic Configuration >

Video & Image” of User’s Manual.

The resolution drop-down list allows you to select the most suitable one out

of video resolutions to be displayed on live view page.

The protocol drop-down list allows you to select which combination of

protocols and methods to use depends on your viewing requirements, and on the properties of

your network.

2) Control toolbar

The live viewer toolbar is available in the web browser page only. It displays the following

buttons:

The Stop button stops the video stream being played. Pressing the key again toggles the

start and stop. The Start button connects to the network camera or start playing a

video stream.

Quick Installation Guide

The Pause button pause the video stream being played.

The Snapshot button takes a snapshot of the current image. The location where the

image is saved can be specified.

The digital zoom activates a zoom-in or zoom-out function for video image on the live

screen.

The Full Screen button causes the video image to fill the entire screen area. No other

windows will be visible. Press the 'Esc' button on the computer keyboard to cancel full

screen view.

The Manual Trigger button activates a pop-up window to manually start or stop the event.

The Remote Focus button enables users to adjust focus and zoom remotely via network.

The Smart Focus button readjusts focus automatically.

Use this scale to control the volume of the speakers.

Use this scale to control the volume of the microphone.

Use this scale to control the volume of the speakers and microphones.

3) Video and Audio Streams

The network camera provides several images and video stream formats. Your requirements and

the properties of your network will determine the type you use.

The Live View page in the network camera provides access to H.264, MPEG-4 and Motion JPEG

video streams, and to the list of available video streams. Other applications and clients can also

access these video streams/images directly, without going via the Live View page.

4) Focus and Zoom Control

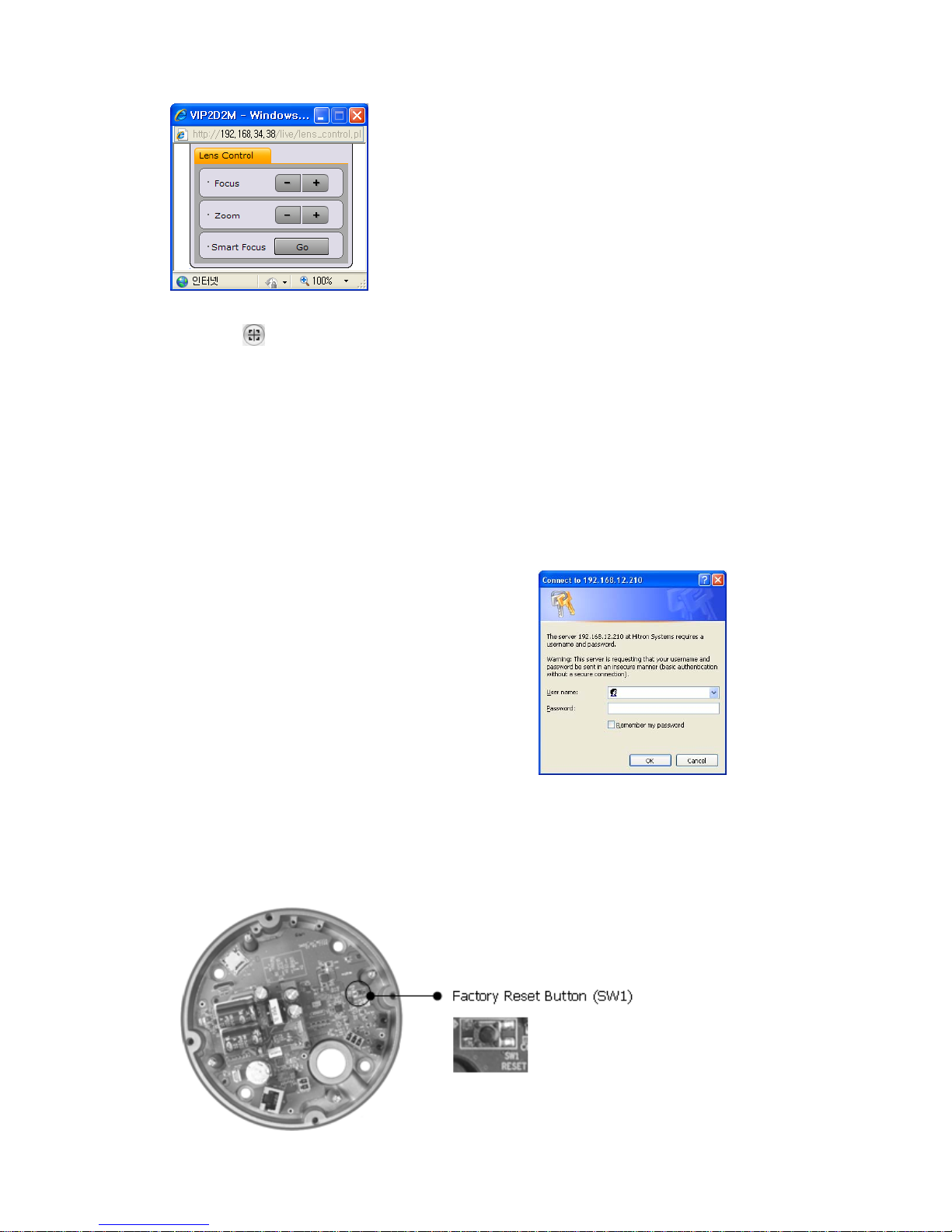

You can control Zoom and Focus in the live screen. Press the button on the left top in the live

screen to activate the Zoom & Focus control panel.

Quick Installation Guide

• Adjusting Zoom:

Click “–“ button to zoom out and click “+” button to zoom in.

The focus is moved slightly after adjusting zoom; adjust the

focus again, as necessary.

• Adjusting Focus:

Click “–“ button for far focus and click “+” button to near focus.

• Smart Focus:

Click “Go“ button to set the focus to the optimum position.

Note: Click the button in the live screen to set the focus to the optimum position.

3.5 Network Camera Setup

This section describes how to configure the network camera, and is intended for product

Administrators, who have unrestricted access to all the Setup tools; and Operators, who have access

to the settings for Basic, Live View, Video & Image, Audio, Event, and System Configuration.

You can configure the network camera by clicking Setup in the top right-hand corner of the Live View

page. Click on this page to access the online help that explains the setup tools

When accessing the Network Camera for the first time,

the “Admin Password” dialog appears. Enter your admin

name and password, set by the administrator.

Note: If the password is lost, the Network Camera must

be reset to the factory default settings.

See “3.6 Resetting to the Factory Default Settings”.

3.6 Resetting to the factory default settings

To reset the Network Camera to the original factory settings, go to the Setup>System> Maintenance

web page (described in “3.5.5 System > Maintenance”) or use the Reset button (SW1) on the board

of the dome camera, as described below:

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Speco Telecamera di sicurezza

Speco

Speco CVC-8WMPDV Manuale utente

Speco

Speco 700Line IntensifierH CVC6246H Manuale utente

Speco

Speco H8D7M Manuale utente

Speco

Speco VIP2C1P Manuale utente

Speco

Speco HHDI04D1B Manuale utente

Speco

Speco CVC-265PIR Manuale utente

Speco

Speco HT-650IRVFHQ/S Manuale utente

Speco

Speco PROVIDEO CVC-627 Manuale utente

Speco

Speco VL-6WMTDV Manuale utente

Speco

Speco HT-7815DNV Manuale utente

Speco

Speco VLEDB1HG/W Series Manuale utente

Speco

Speco CVC-637EX Manuale utente

Speco

Speco O4D6WM Manuale utente

Speco

Speco ONSIP O2IR56B1 Manuale utente

Speco

Speco O5MDP1 Manuale utente

Speco

Speco SIPSD37X Manuale utente

Speco

Speco Intensifier O2iD8M Manuale utente

Speco

Speco HT770PH Manuale utente

Speco

Speco O8B8M Manuale utente

Speco

Speco O4VD1N Manuale utente

Speco

Speco CVC-7245EXTP Manuale utente

Speco

Speco CVC-628M Manuale utente

Speco

Speco O8FT1 Manuale utente

Speco

Speco VLD1TW Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
