Spectra®nTier500

Archive and Backup Server

Front Bezel Replacement

Guide

P.N. 90990014 Revision A

Notices

Spectra Logic® Corporation provides the unit “as is” without warranty of any kind, either

expressed or implied, including but not limited to the implied warranties of merchantability or

fitness for a particular purpose. In no event shall Spectra Logic be liable for any loss of profits,

loss of business, loss of use or data, interruption of business, or for indirect, special, incidental,

or consequential damages of any kind, even if Spectra Logic has been advised of the possibility of

such damages arising from any defect or error.

Information furnished in this manual is believed to be accurate and reliable. However, no responsibility

is assumed by Spectra Logic for its use. Due to continuing research and development, Spectra Logic may

revise this publication from time to time without notice, and reserves the right to change any product

specification at any time without notice.

Spectra, SpectraGuard, and the Spectra Logic logo are registered trademarks of Spectra Logic

Corporation. All other trademarks and registered trademarks are the property of their respective owners.

Spectra nTier500 Archive and Backup Server Front Bezel Replacement Guide

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Estimated Time Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Materials and Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Replacing the Front Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remove the Existing Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Install the New Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Packaging a Component for Return to Spectra Logic . . . . . . . . . . . . . . . . . . . . . 6

Domestic RMA Returns. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

International Returns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

If You Need Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Spectra nTier500 Archive and Backup Server Bezel Replacement Guide

Introduction

This guide describes the procedure for replacing the bezel on the Spectra®nTier500™.

Estimated Time Required

Replacing a front bezel takes approximately five minutes.

Materials and Tools Required

• A replacement front bezel

• Keys for bezel locks

Replacing the Front Bezel

Remove the Existing Bezel

1. Insert a key into the lock on each side of the bezel. Turn both keys until they are in the

vertical position to unlock the bezel, as shown in Figure 1.

2. Carefully pull the bezel straight out from the chassis to remove it.

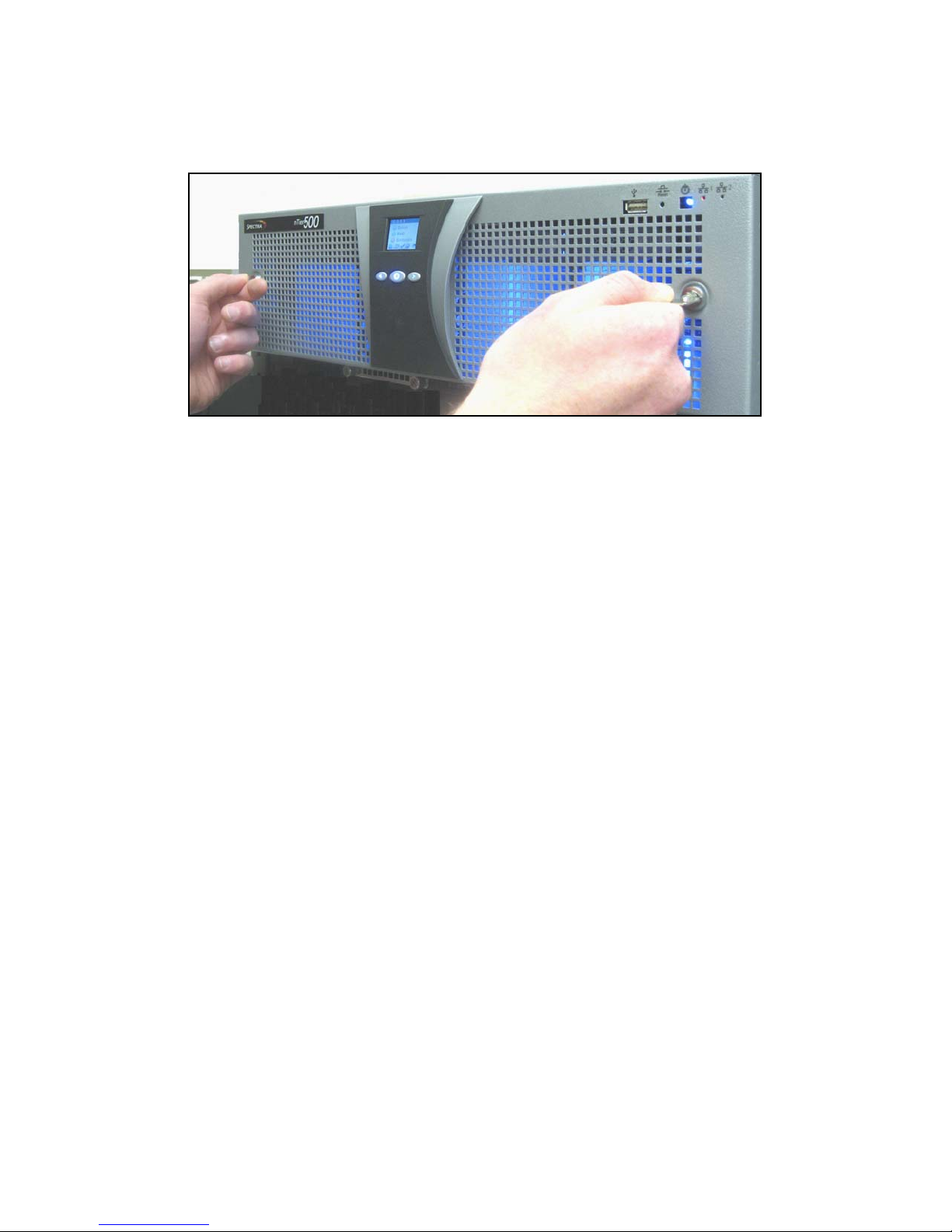

Figure 1 Unlock the bezel.

Spectra nTier500 Archive and Backup Server Bezel Replacement Guide

Install the New Bezel

1. Remove the new bezel from its anti-static bag.

2. Insert the two keys into the locks on the front of the bezel.

3. Examine the back of the bezel. Note the position of the locking tabs on each end of the bezel.

If necessary turn the keys until the locking tabs are in the unlocked position, as shown in

Figure 2.

4. Hold the edges of the bezel and orient it so that the alignment tab fits straight into the top slot

in the front of the chassis, as shown in Figure 3. Gently press the bezel onto the chassis so

that it fits over the PC card extending from the front of the chassis and the chassis handles fit

into the cavities on each side of the bezel. Make sure that the PC card on the back of the bezel

engages the connector on the front of the chassis.

Caution: Be careful not to bump or bend the PC card extending from the front of the

chassis.

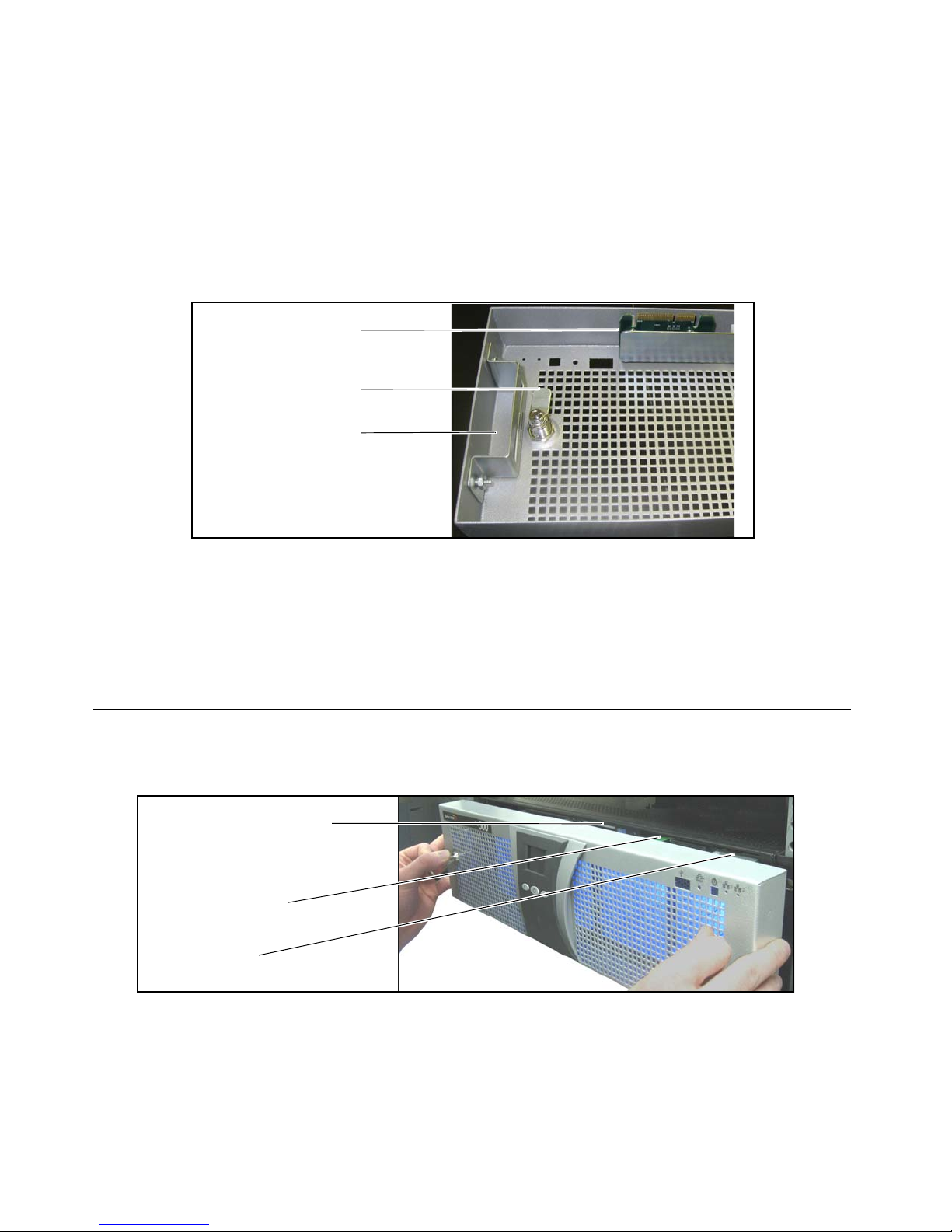

Figure 2 Set the bezel locking tab to the unlock position.

Figure 3 Attach the front bezel.

Locking tab in

unlocked position

Cavity for the handle

Bezel PC card

Alignment tab

PC card

Connector for bezel

PC card

Spectra nTier500 Archive and Backup Server Bezel Replacement Guide

5. Turn the both bezel lock keys to the horizontal (locked) position to secure the bezel to the

chassis, as shown in Figure 4.

6. Package the faulty bezel using the packaging from the replacement bezel as described in the

next section.

Packaging a Component for Return to Spectra Logic

Package the old component using the same packaging and methods used for the component that

you just installed. These steps may include the following:

1. Place the component inside the anti-static bag.

2. Fold any loose parts of the bag around the component and tape them down.

3. Place the wrapped component into the box.

4. Place foam over the top of the component to secure it in place.

5. Tape the box securely shut.

6. Proceed to one of the following for shipping instructions:

•Domestic RMA Returns on page 7

•International Returns on page 7

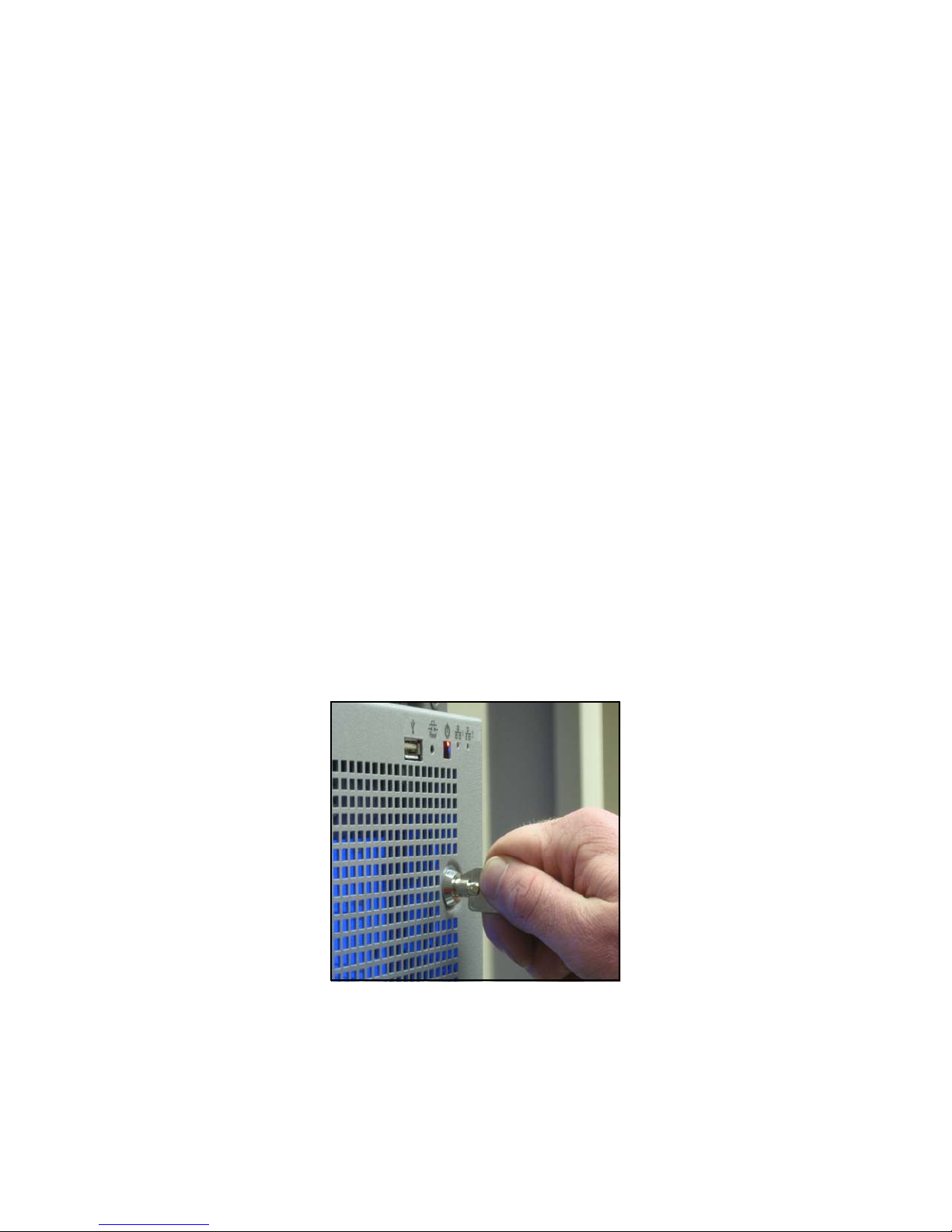

Figure 4 Lock the front bezel.

Spectra nTier500 Archive and Backup Server Bezel Replacement Guide

Domestic RMA Returns

Caution: You must package the component in the box provided by Spectra Logic,

making sure to use all of the packing materials provided to prevent damage

during shipment.

Failure to properly package the component may result in damage to the

component. If a component is damaged in shipping due to improper packing,

the warranty on the component is void.

Once the component has been properly packaged, ship the package to:

Spectra Logic Corporation

ATTN: {RMA Number}

Suite B

5571 Arapahoe Avenue

Boulder CO 80303

Note: You must write the RMA number on the shipping label, or the package will be

returned to you after five days. If you do not know your RMA number, contact

Spectra Logic Technical Support.

International Returns

Caution: You must package the component in the box provided by Spectra Logic,

making sure to use all of the packing materials provided to prevent damage

during shipment.

Failure to properly package the component may result in damage to the

component. If a component is damaged in shipping due to improper packing,

the warranty on the component is void.

Spectra nTier500 Archive and Backup Server Bezel Replacement Guide

Spectra Logic arranges for return shipment when a request is made to International Shipping (see

the contact information below).

1. Fill out your portion of the International Shipping Instructions form, available on the Spectra

Logic Web site.

2. Return the form to Spectra Logic in one of the following ways:

E-mail: intlreturns@spectralogic.com

Fax: 303.939.8844

Post:SpectraLogic

International Returns

1700 N 55th Street

Boulder CO 80301

USA

3. When you receive confirmation from Spectra Logic, follow the instructions given to prepare

the component for pickup by the shipper.

If You Need Assistance

If you need assistance with any part of this procedure, contact SpectraGuard® Technical Support by

calling 800.227.4637 or 303.449.0160, or by sending an e-mail to su[email protected].
