Spectrum 1762sc-OF8 Manuale utente

ii MicroLogix™ 1200 8 Ch Output Module

User’s Manual Pub. 0300246-01 Rev. C

Important Notes

1. Please read all the information in this owner’s guide before installing the

product.

2. The information in this owner's guide applies to hardware Series A and

firmware version 1.00 or later.

3. This guide assumes that the reader has a full working knowledge of the

relevant processor.

Notice

The products and services described in this owner's guide are useful in a wide

variety of applications. Therefore, the user and others responsible for applying

the products and services described herein are responsible for determining their

acceptability for each application. While efforts have been made to provide

accurate information within this owner's guide, Spectrum Controls, Inc. assumes

no responsibility for the accuracy, completeness, or usefulness of the information

herein.

Under no circumstances will Spectrum Controls, Inc. be responsible or liable for

any damages or losses, including indirect or consequential damages or losses,

arising out of either the use of any information within this owner's guide or the

use of any product or service referenced herein.

No patent liability is assumed by Spectrum Controls, Inc. with respect to the use

of any of the information, products, circuits, programming, or services referenced

herein.

The information in this owner's guide is subject to change without notice.

Limited Warranty

Spectrum Controls warrants that its products are free from defects in material and

workmanship under normal use and service, as described in Spectrum Controls,

Inc. literature covering this product, for a period of 1 year. The obligations of

Spectrum Controls, Inc. under this warranty are limited to replacing or repairing,

at its option, at its factory or facility, any product which shall, in the applicable

period after shipment, be returned to the Spectrum Controls, Inc. facility,

transportation charges prepaid, and which after examination is determined, to the

satisfaction of Spectrum Controls, Inc., to be thus defective.

This warranty shall not apply to any such equipment which shall have been

repaired or altered except by Spectrum Controls, Inc. or which shall have been

subject to misuse, neglect, or accident. In no case shall the liability of Spectrum

Controls, Inc. exceed the purchase price. The aforementioned provisions do not

extend the original warranty period of any product which has either been repaired

or replaced by Spectrum Controls, Inc.

iii

User’s Manual Pub. 0300246-01 Rev. C

Table of Contents

IMPORTANT NOTES ................................................................................................................. II

CHAPTER 1 MODULE OVERVIEW........................................................................................... 1-1

SECTION 1.1 GENERAL DESCRIPTION ......................................................................................................1-1

SECTION 1.2 INPUT TYPES AND RANGES..................................................................................................1-1

SECTION 1.3 DATA FORMATS ...............................................................................................................1-2

SECTION 1.4 HARDWARE FEATURES ......................................................................................................1-2

1.4.1 LED Indicator.........................................................................................................................1-3

SECTION 1.5 SYSTEM OVERVIEW ...........................................................................................................1-3

1.5.1 Module Power-up .................................................................................................................1-3

1.5.2 Module Operation.................................................................................................................1-4

CHAPTER 2 INSTALLATION AND WIRING ............................................................................... 2-1

SECTION 2.1 COMPLIANCE TO EUROPEAN UNION DIRECTIVES .....................................................................2-1

2.1.1 EMC Directive........................................................................................................................2-1

SECTION 2.2 POWER REQUIREMENTS ....................................................................................................2-1

SECTION 2.3 GENERAL CONSIDERATIONS ................................................................................................2-2

2.3.1 Hazardous Location Considerations......................................................................................2-2

2.3.2 Prevent Electrostatic Discharge ............................................................................................2-3

2.3.3 Remove Power ......................................................................................................................2-3

2.3.4 Selecting a Location ..............................................................................................................2-3

2.3.5 Reducing Noise......................................................................................................................2-3

SECTION 2.4 MOUNTING .....................................................................................................................2-4

2.4.1 Minimum Spacing .................................................................................................................2-4

2.4.1 DIN Rail Mounting.................................................................................................................2-4

2.4.2 Panel Mounting ....................................................................................................................2-5

SECTION 2.5 SYSTEM ASSEMBLY............................................................................................................2-6

SECTION 2.6 FIELD WIRING CONNECTIONS..............................................................................................2-6

2.6.1 Wiring Diagram ....................................................................................................................2-8

2.6.2 Wiring the Finger-Safe Terminal Block .................................................................................2-8

2.6.3 Terminal Door Label..............................................................................................................2-9

SECTION 2.7 MODULE INDICATORS ......................................................................................................2-10

CHAPTER 3 CONFIGURING THE 1762SC-OF8 USING RSLOGIX 500........................................... 3-1

SECTION 3.1 THINGS YOU SHOULD KNOW ..............................................................................................3-1

SECTION 3.2 MODULE MEMORY MAP ...................................................................................................3-1

SECTION 3.3 ADD MODULE TO LOGIX 500..............................................................................................3-2

SECTION 3.4 MODULE CONFIGURATION.................................................................................................3-3

3.4.1 Output Data File (Command Mode)......................................................................................3-4

3.4.2 Output Data File (Normal Run Mode)...................................................................................3-8

SECTION 3.5MODULE STATUS..............................................................................................................3-8

3.5.1 Input Data File (Command Mode) ........................................................................................3-8

3.5.2 Input Data File (Normal Run Mode)....................................................................................3-10

SECTION 3.6 CONFIGURATION LADDER SAMPLE .....................................................................................3-11

APPENDIX A MODULE SPECIFICATIONS ................................................................................. A-1

iv MicroLogix™ 1200 8 Ch Output Module

User’s Manual Pub. 0300246-01 Rev. C

Preface

Read this preface to familiarize yourself with the rest of the manual. This preface

covers the following topics:

Who should use this manual

How to use this manual

Related publications

Conventions used in this manual

Rockwell Automation support

Who Should

Use This Manual

Use this manual if you are responsible for designing, installing, programming, or

troubleshooting control systems that use Allen-Bradley I/O and/or compatible

controllers, such as MicroLogix 1100 or 1200.

How to Use

This Manual

As much as possible, we organized this manual to explain, in a task-by-task

manner, how to install, configure, program, operate, and troubleshoot a control

system using the 1762sc-OF8.

Documentation

The table below provides a listing of publications that contain important

information about Allen-Bradley PLC systems.

Document Title

Document Number

MicroLogix™ 1200 User Manual

1762-UM001

MicroLogix™ 1200 Technical Data

1762-TD001

MicroLogix 1200 and MicroLogix 1500

Programmable Controllers Instruction

Set Reference Manual

1762-RM001

Allen-Bradley Programmable Controller

Grounding and Wiring Guidelines

1770-4.1

Technical

Support

For technical support, please contact your local Rockwell Automation

TechConnect Office for all Spectrum products. Contact numbers are as follows:

USA 440-646-6900

United Kingdom 01908 635230

Australia 1800-809-929

Mexico 001-888-365-8677

Brazil (55) 11 3618 8800

Europe +49 211 41553 63

or sendanemailto

support@spectrumcontrols.com

User’s Manual Pub. 0300246-01 Rev. C

Documentation

If you would like a manual, you can download a free electronic version from

the Internet at www.spectrumcontrols.com

Conventions

Used in This

Manual

The following conventions are used throughout this manual:

Bulleted lists (like this one) provide information, not procedural steps.

Numbered lists provide sequential steps or hierarchical information.

Italic type is used for emphasis.

Bold type identifies headings and sub-headings:

WARNING

Identifies information about practices or circumstances that can lead to

personal injury or death, property damage, or economic loss. These

messages help you to identify a hazard, avoid a hazard, and recognize the

consequences.



ATTENTION

Actions ou situations risquant d’entraîner des blessures pouvant être

mortelles, des dégâts matériels ou des pertes financières. Les messages «

Attention » vous aident à identifier un danger, à éviter ce danger et en

discerner les conséquences.



NOTE

Identifies information that is critical for successful application and

understanding of the product.

vi MicroLogix™ 1200 8 Ch Output Module

User’s Manual Pub. 0300246-01 Rev. C

Chapter 1

Module Overview

This chapter describes the 1762sc-OF8 output module. The module provides 8

analog output channels that can be configured for current or voltage. Included is

information about:

General description

Input types and ranges

Data formats and filter frequencies

Hardware features

System overview and module operation

Section 1.1

General

Description The output module supports current and voltage type outputs. The module

converts the digital value stored in each channel’s output command word to an

analog current or voltage signal. Each output channel is individually configured

via software for a specific output type, data format, and provides open-circuit or

short-circuit detection and indication.

Section 1.2

Input Types

and Ranges The tables below list the output types and their associated ranges.

Voltage Selection

Range (VDC)

-10 V to +10 V

-11.0 to +11.0

0 to +5 V

0.0 to +5.5

0 to +10 V

0.0 to +11.0

1 to +5 V

0.0 to +5.5

Current Selection

Range (mA)

0 to 20 mA

0 to 20.4

4 to 20 mA

3.92 to 20.4

1-2 Chapter 1: Module Overview

User’s Manual Pub. 0300246-01 Rev. C

Section 1.3

Data Formats For each module, the data can be configured for:

Engineering units

Scaled-for-PID

Raw/proportional data

Percent of full range

Section 1.4

Hardware

Features

Module configuration is done via the controller’s programming software. The

module configuration is stored in the memory of the controller. Refer to your

controller’s user manual for more information. The illustration below shows the

module’s hardware features.

Item

Description

Upper panel mounting tab

Lower panel mounting tab

Power diagnostic LED

Module door with terminal identification label

Bus connector (male)

Bus connector cover

Flat ribbon cable with bus connector (female)

Terminal block

DIN rail latch

Pull loop

Figure 1-1

Chapter 1: Module Overview 1-3

User’s Manual Pub. 0300246-01 Rev. C

1.4.1 LED Indicator

The 1762 output module uses a single green LED to show operational status of

the module. The LED will illuminate solid when the PLC is in run mode and the

module properly configured. If the module is not properly configured, or if the

PLC is not in run mode, the LED will blink rapidly. The following blink codes

are the only exception:

Table 1-1 (LED Blink Codes)

Blink Code

Description

Rapid Blink1

PLC not in run mode, or no valid module configuration present

Solid

Module is in run mode (Normal Operation)

Factory calibration in progress

Factory calibration invalid

Module is in command mode

Section 1.5

System

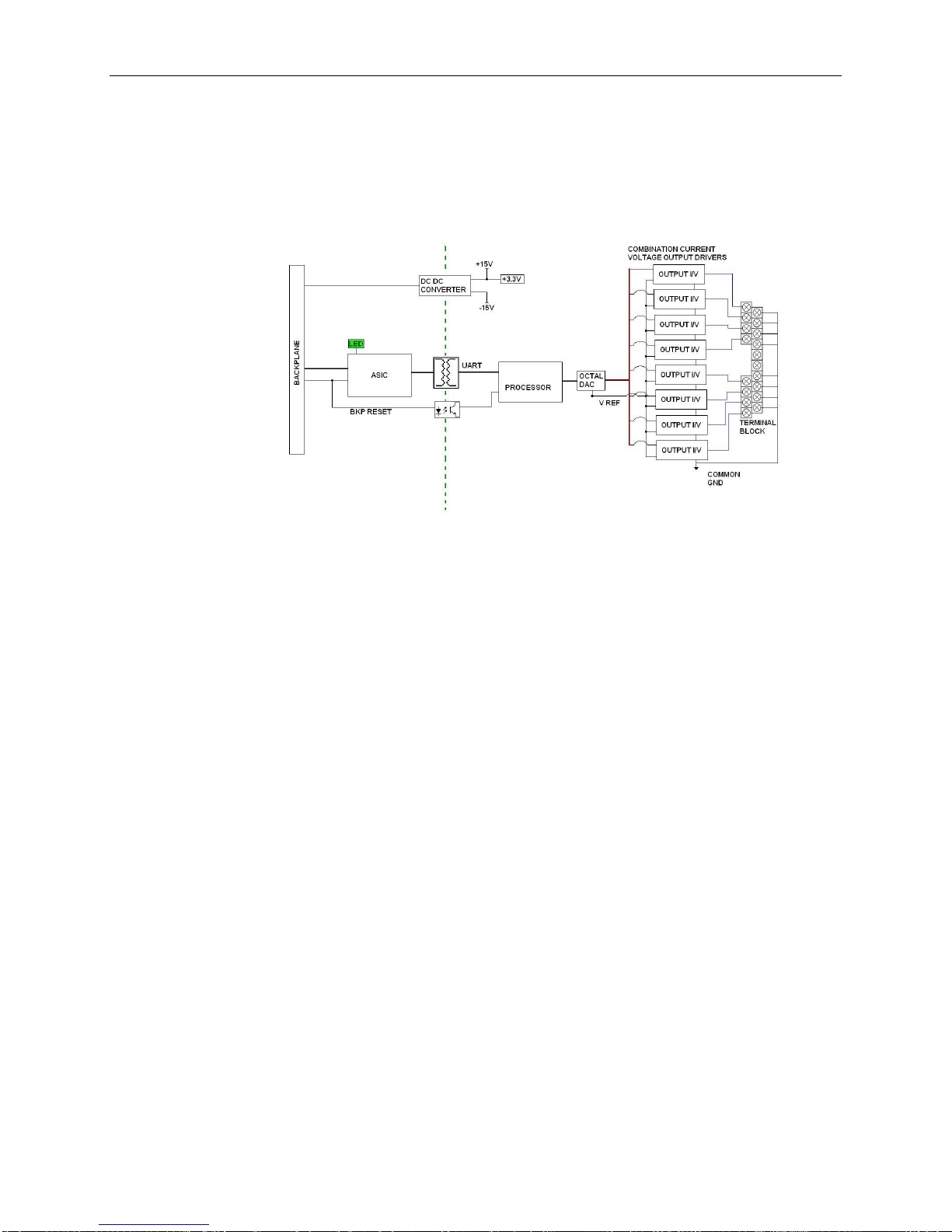

Overview The module communicates to the controller through the bus interface. The

module also receives 5 VDC and 24 VDC power through the bus interface.

1.5.1 Module Power-up

At power-up, the module performs a check of its internal circuits, memory, and

basic functions. During this time, the module status LED remains off. If no

faults are found during power-up diagnostics, the module status LED blinks

rapidly waiting for command mode.

After power-up checks are complete, the module waits for command mode and

then valid channel configuration data. If an invalid configuration is detected, the

module generates a configuration error and remains in command mode. Once the

module is properly configured and enabled, it continuously converts the output

command value to a proportional analog output signal.

Each time a channel command value is read by the output module, that data value

is tested by the module for an over-range or under-range condition. If such a

condition is detected, a unique bit is set in the channel status word. The channel

status word is described in section 0 Input Data File.

Using the module image table, the controller reads the two’s complement binary

converted input data from the module. This typically occurs at the end of the

program scan or when commanded by the control program. If the controller and

the module determine that the data transfer has been made without error, the data

is used in the control program.

All outputs are disabled until the PLC goes into run mode, and the module receives a valid configuration.

1-4 Chapter 1: Module Overview

User’s Manual Pub. 0300246-01 Rev. C

1.5.2 Module Operation

When the module receives a new command value from the output image, the

module’s circuitry converts the digital value to an analog current/voltage signal

using a DAC (Digital to Analog Converter). See the block diagram below.

Indice

Altri manuali Spectrum Unità di controllo

Spectrum

Spectrum MC-24 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
