USER’S MANUAL

LC-500

DOT MATRIX PRINTER

CFA10EC 80826160

Manufacturer’s Declaration of Conformity

EC Council Directive 89/336/EEC of 3 May 1989

This product, has been designed and manufactured in accordance with the International

Standards EN 50081-1/01.92 and EN 50082-1/01.92, following the provisions of the Electro

Magnetic Compatibility Directive of the European Communities as of May 1989.

EC Council Directive 73/23/EEC and 93/68/EEC of 22 July 1993

This product, has been designed and manufactured in accordance with the International

Standards EN 60950, following the provisions of the Low Voltage Directive of the European

Communities as of July 1993.

The above statement applies only to printers marketed in EU.

Trademark acknowledgments

LC-500: Star Micronics Co., Ltd.

ESC/POS: Seiko Epson Corporation

Notice

STAR’s express permission is forbidden.

•The contents of this manual are subject to change without notice.

•All efforts have been made to ensure the accuracy of the contents of this manual at the time

of going to press. However, should any errors be detected, STAR would greatly appreciate

being informed of them.

•Theabovenotwithstanding,STARcanassumenoresponsibilityforanyerrorsinthismanual.

ENGLISH

Contents

1. Printer Setup .............................................. 1

Choosing a place for the printer ....................................................... 1

Unpacking the printer ....................................................................... 2

Printer Components .......................................................................... 3

Installing the paper guide ................................................................. 4

Opening the printer cover ................................................................. 4

Removing the printer cover .............................................................. 5

Connecting the Power Cord and turning the power ON and OFF.... 6

Installing the ribbon cassette ............................................................ 7

Removing the ribbon cassette ......................................................... 10

Connecting to your computer using the parallel cable ................... 10

Ferrite Core Installation ...................................................................11

2. Paper Handling ........................................ 13

Selecting paper types ...................................................................... 13

Cut-sheet paper ............................................................................... 13

Fanfold paper .................................................................................. 13

Loading cut-sheet paper.................................................................. 14

Printing on cut-sheet paper ............................................................. 17

Loading fanfold paper .................................................................... 18

Printing on fanfold paper ................................................................ 22

Parking fanfold paper ..................................................................... 23

Unparking fanfold paper................................................................. 23

3. Control Panel Operations ....................... 24

Switching between on-line and off-line.......................................... 25

Control panel functions in on-line mode ........................................ 25

Control panel functions in off-line mode ....................................... 27

4. Using the EDS Mode................................ 30

About EDS Mode settings .............................................................. 30

Entering the EDS Mode.................................................................. 30

Selecting a EDS number ................................................................. 31

Selecting a bank .............................................................................. 31

Selecting a switch ........................................................................... 31

Changing a switch setting ............................................................... 31

Printing the current EDS settings ................................................... 31

Exiting the EDS Modes .................................................................. 31

5. Control Codes List................................... 42

< ESC/P-K mode> .......................................................................... 42

6. Troubleshooting ....................................... 45

Short test ......................................................................................... 45

Long test ......................................................................................... 46

Hexadecimal dump ......................................................................... 46

Adjusting the dot alignment ........................................................... 47

Troubleshooting guide .................................................................... 48

AppendixA. Specifications ............................... 53

AppendixB. Character Sets ............................. 56

Appendix C. Control Panel Operation Guide.... 67

–1 –

1. Printer Setup

This chapter contains important information on setting up your printer. Be sure

to read this chapter carefully before using the printer for the first time.

Choosing a place for the printer

Before unpacking the printer from the box, plan the installation location

of your printer. Consider the following points.

✓Choose a firm, level surface where the printer will not be exposed to

vibr ation.

✓The power outlet you plan to connect to for power should be nearby

and unobstructed.

✓Make sure that the printer is close enough to your computer for you

to connect the two with your printer cable.

✓Allow six inches (15 centimeters) of free space on either side and in

the back of the printer.

✓Make sure that the printer is not exposed to direct sunlight.

✓Make sure that the printer is well away from heaters.

✓Make sure that the surrounding area is clean, dry, and free of dust.

✓Make sure that the printer is connected to a reliable power outlet. It

should not be on the same electric circuit as copiers, refrigerators, or

other appliances that cause power spikes.

✓Use a power outlet that matches the power rating noted on the label

affixed to the bottom of your printer.

✓Make sure that the room where you are using the printer is not too

humid.

–2 –

ENGLISH

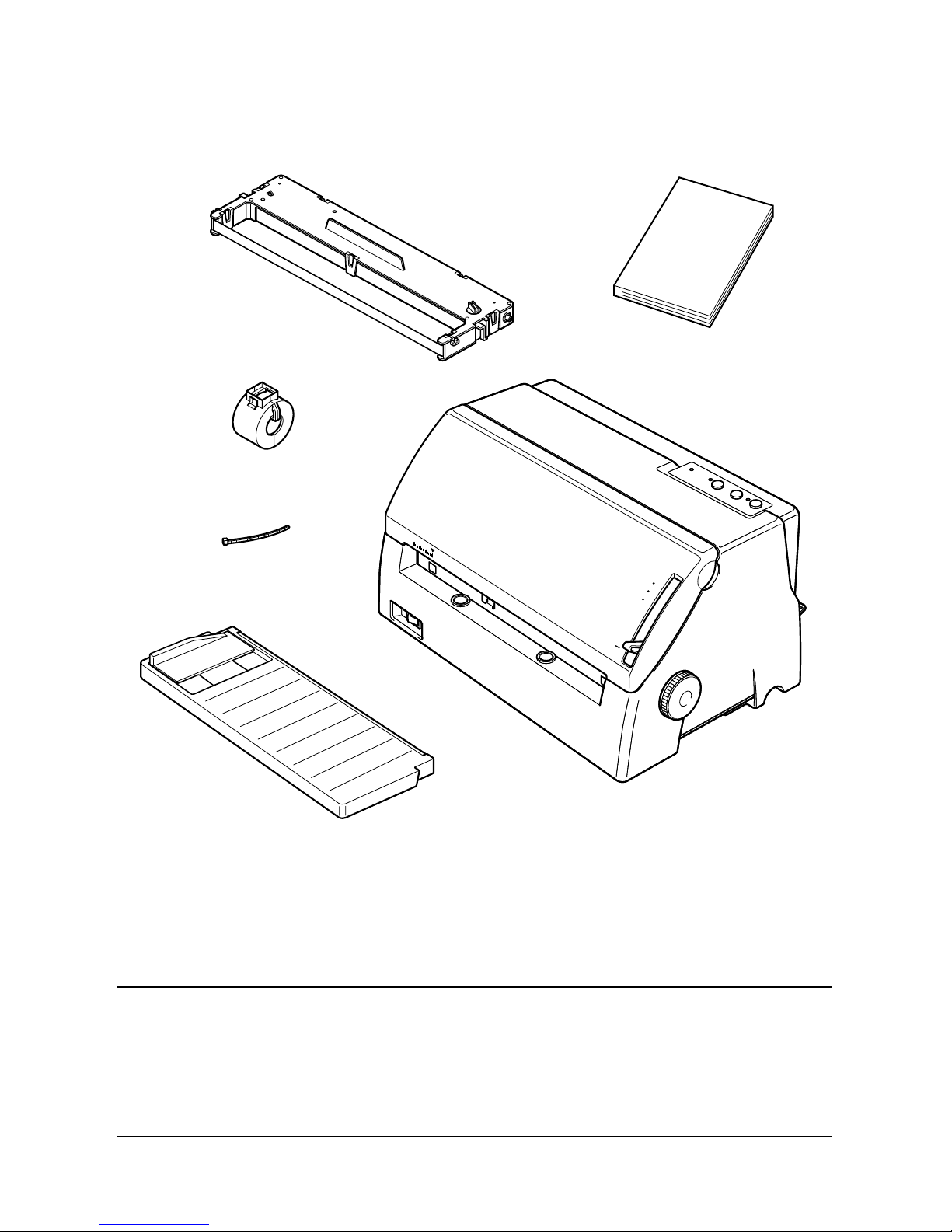

Unpacking the printer

Check that the package contains the following items.

User,s manual

Ribbon cassette

Printer

Paper guide

Ferrite Core

Fastener

If any item is missing, contact the store where you bought the printer and

ask them to supply the missing part. Note that it is a good idea to keep the

original box and all packing materials in case you need to transport the

printer at a later date.

Important!

There are several versions of this printer designed for different

voltages. It is not possible to change the voltage of a printer. If the

voltage shown on the label on the back of your printer does not match

the voltage for your area, contact your dealer immediately.

–3 –

Printer Components

The following illustrations show the major components of your printer.

Printer cover

Control panel

Adjustment lever

Platen knob

Paper guide

Power switch

Power cord

Parallel interface

connector

–4 –

ENGLISH

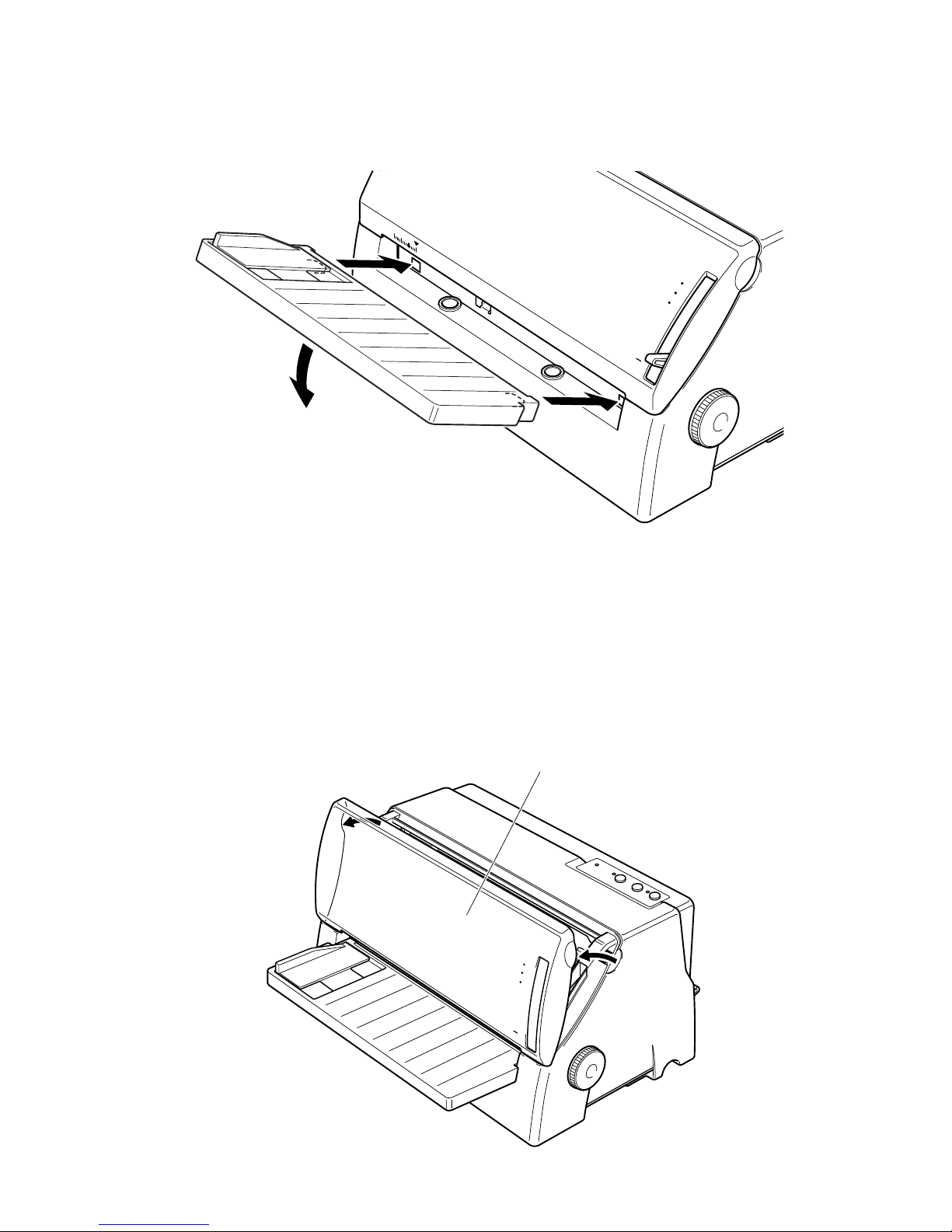

Installing the paper guide

1. Hold the paper guide at a slight angle and slide the two slots on either

side of the paper guide into the tabs provided on the printer case.

2. Press the paper guide firmly against the tabs until it clicks, and then

lower the table to a horizontal position.

Opening the printer cover

Pull on the left and right corners of the printer cover to and swing it down

until it is fully open.

Printer cover

–5 –

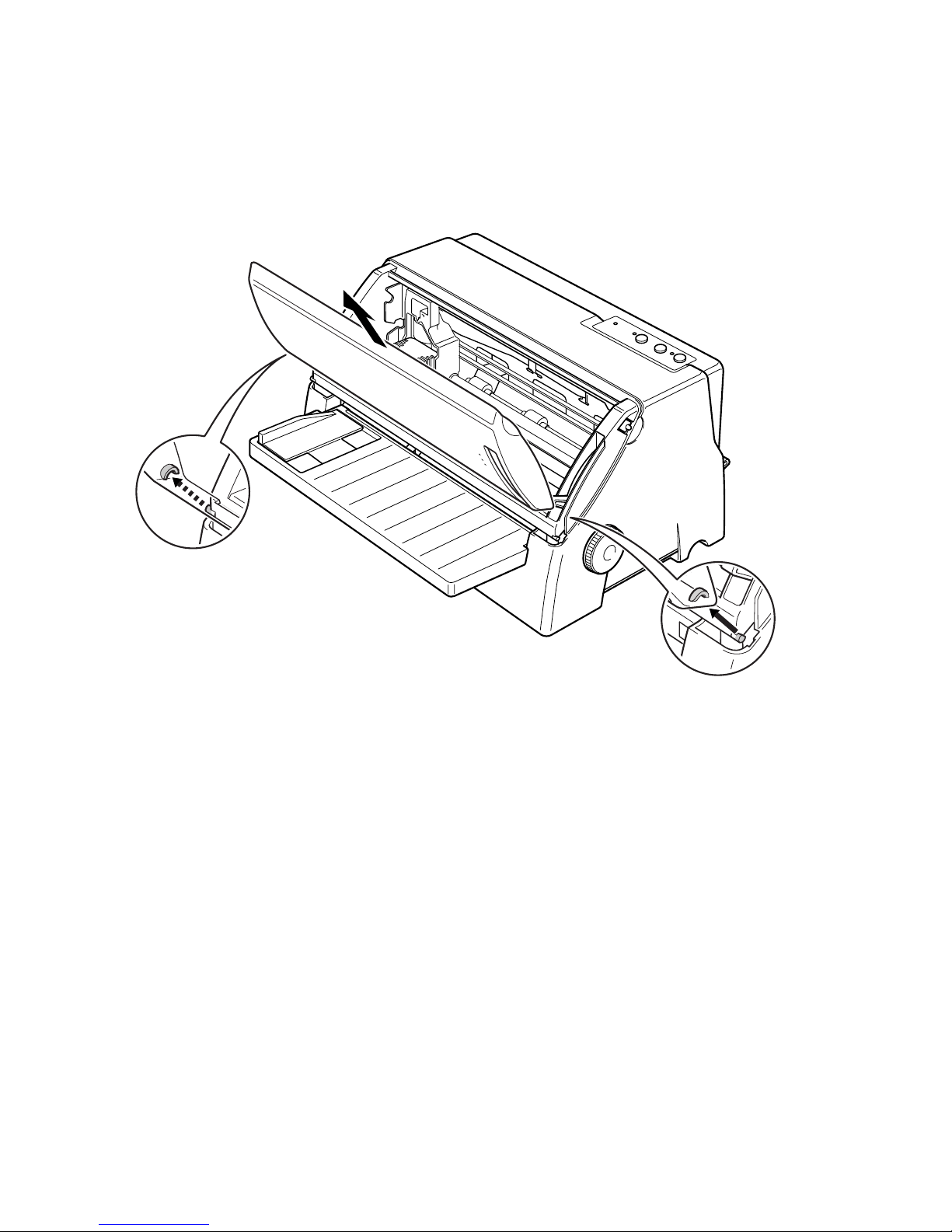

Removing the printer cover

Swing the printer cover so that it is at an angle as shown in the figure

below and lift the cover to remove it. To replace the printer cover, lower

the two slots on either side of the cover onto the tabs provided on the

printer case.

–6 –

ENGLISH

Connecting the Power Cord and turning the power ON and OFF

1. Check that the power switch on the front panel of the printer is in the

OFF position (O).

OFF

2. Plug the power cord to a power outlet whose voltage matches the

power rating noted on the label affixed to the bottom of your printer.

Caution!

1. If the voltage marked on the rear of your printer does not match

the voltage from the outlet you are using, do not plug in the power

cord. Contact your dealer for assistance.

2. We recommend that you unplug the printer from the power outlet

whenever you do not plan to use it for long periods. Because of

this, you should locate the printer so that the power outlet it is

plugged into is nearby and easy to access.

3. To turn the power on, press the power switch to the ON position (|);

to turn the power off, press the power switch to the OFF position (O).
