Charging the EL73 (3.7V rechargeable battery built-in)
1- Connect EL73 with PC/Laptop/Mac or any 5V USB adaptor (not included) with the USB cable
included.
2- Red LED turns ON during charging, turns OFF after fully charged.
3- Unplug USB cable after fully charged.
Start the EL73

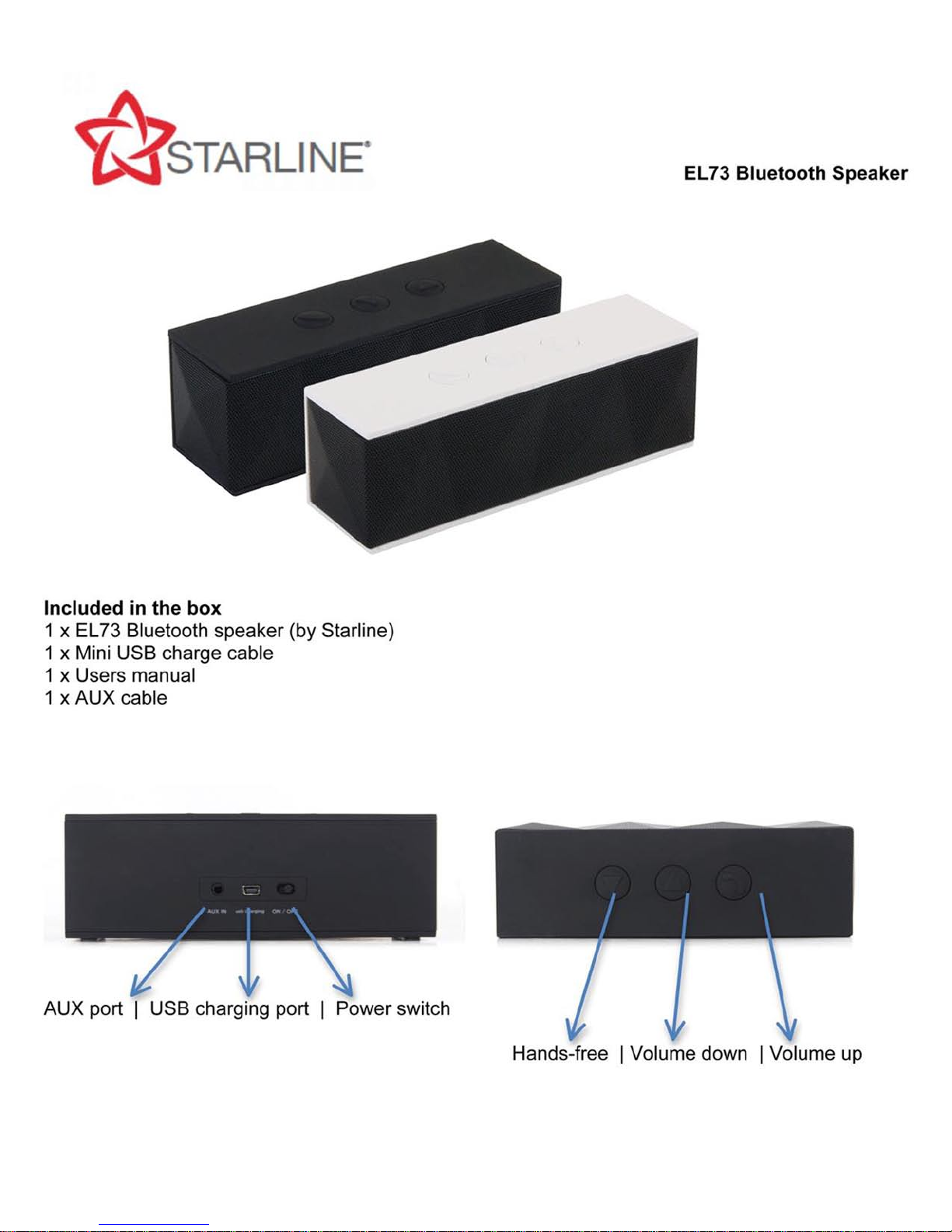

1- After fully charged, switch the power button, located on back side of the unit, to “ON”
2- EL73 is in standby mode after power-on and white & red LED blink quickly.
AUTO power-off and re-start
1- EL73 goes to standby status for power-saving purpose if not used for 3 minutes
2- Press any button located on top to wake up EL73 from standby.
3- To manually turn off the speaker, use the on/off power switch
Pairing EL73 with mobiles (Bluetooth enabled) and tablets.
1- Keep the speaker and mobile device within 1 meter (3ft) of each other.
2- Turn on EL73, (white & red LED should blink quickly). The speaker is now ready for pairing.
3- Start the Bluetooth function on mobile device and search the Bluetooth devices. Select
“EL73” in the Bluetooth device list. You may need to enter a passkey (0000) depending on
Bluetooth version of your device.
4- After successful pairing, select “EL73” in the Bluetooth device list, and press “connect”
5- After successful connecting, LED changes to solid white.
Note:
1: If the pairing is not successful, turn off speaker and then re-pair again.
2: After successful pairing, paired devices will remember each other. Unless pairing information is
deleted, no need to pair when you use it next time.
3: If you want to pair the speaker with other devices, please disconnect with existing device first,
and then pair with the new device using steps 1-5 above.
Pairing EL73 with iPhone, iPad
1- Keep EL73 and iPhone (iPad) within 1 meter (3ft) of each other when pairing.
2- Turn on EL73, (white & red LED should blink quickly). The speaker is now ready for pairing.
3- In iPhone (iPad) General > Bluetooth, tap on Bluetooth function, and search the Bluetooth
devices, tap EL73 to connect it.
Pairing EL73 with PC or notebook
1- Keep EL73 and PC within 1 meter (3ft) of each other when pairing.
2- Turn on EL73, (white & red LED should blink quickly). The speaker is now ready for pairing.
3- Run Bluetooth program on your system.
4- Please use “Search new device” function in the program.
5- Your system should find EL73 on your dialog. Double click the icon to confirm the program
and it should now show the connection has been made. You may need to enter a passkey
(0000) depending on Bluetooth version of your PC.
