StarTech.com USB2VGADVI Manuale utente

USB Video Adapter

USB to VGA and DVI Dual Port

External Video Adapter

USB2VGADVI

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction ..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Driver Installation.........................................................................3

Multiple USB Video Adapter Installation......................................4

Verifying Installation.....................................................................5

Conﬁguring the USB Video Adapter .............................. 6

Display ID ....................................................................................6

Display Resolution.......................................................................6

Display Rotation ..........................................................................7

Display Modes .............................................................................7

Identify Monitors ..........................................................................8

Multi-Display Control Panel .........................................................9

Display Settings...........................................................................9

Supported Video Resolutions ........................................ 10

Speciﬁcations.................................................................. 11

Technical Support........................................................... 12

Warranty Information...................................................... 12

Introduction

This USB to VGA and DVI-I adapter offers a VGA, and DVI-I port on the

same unit and can be used simultaneously to extend your desktop or

clone an image on two displays. The DVI port is a DVI-I port which is

capable of outputting digital (DVI) or analog (VGA) signals.

Packaging Contents

1 x USB2VGADVI video adapter•

1 x USB cable•

1 x Power Adapter•

1 x Installation CD•

1 x Instruction Manual•

System Requirements

USB 2.0 enabled computer system with available port•

VGA or DVI enabled display(s)•

Microsoft Windows• ®2000/XP/Vista/7 (32/64-bit)

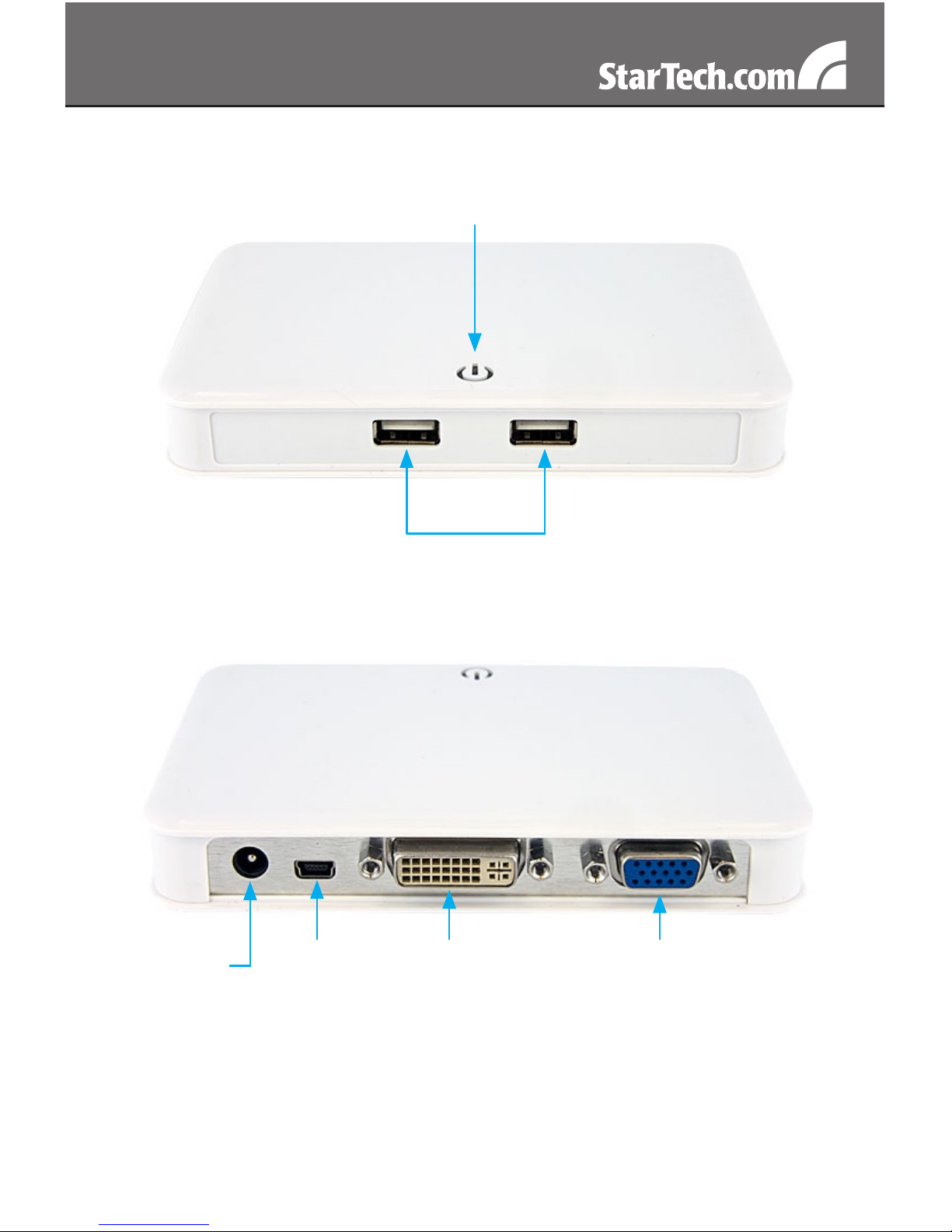

USB Hub ports

Power LED

DVI

connector

VGA

connector

USB

connector

(Host)

Power

connector

Front View

Rear View

Installation

Please ensure that the driver installation is complete prior to*

the physical installation of the USB 2.0 Video Adapter

Driver Installation

Insert the Driver CD into your CD/DVD-ROM drive.1.

If the installation program does not begin automatically, locate the2.

Setup.exe application. This ﬁle will be located in the root directory of

the Driver CD.

Executing the Setup.exe3.

application will launch the

following screen. Please click

on Next:

*Ensure that the USB Video

Adapter is not connected to

the host computer.

Once the Windows has4.

ﬁnished the driver installation,

it will prompt you to restart the

computer. Select “Yes, I want

to restart my computer now”,

and click the “Finish” button.

While the computer is restarting, connect the DVI cord running from5.

the secondary monitor/display to the adapter. Turn the monitor/

display on.

Once Windows has fully loaded, connect the USB cable from the6.

USB Video Adapter’s Host USB connector to an available USB 2.0

port of your PC or Notebook.

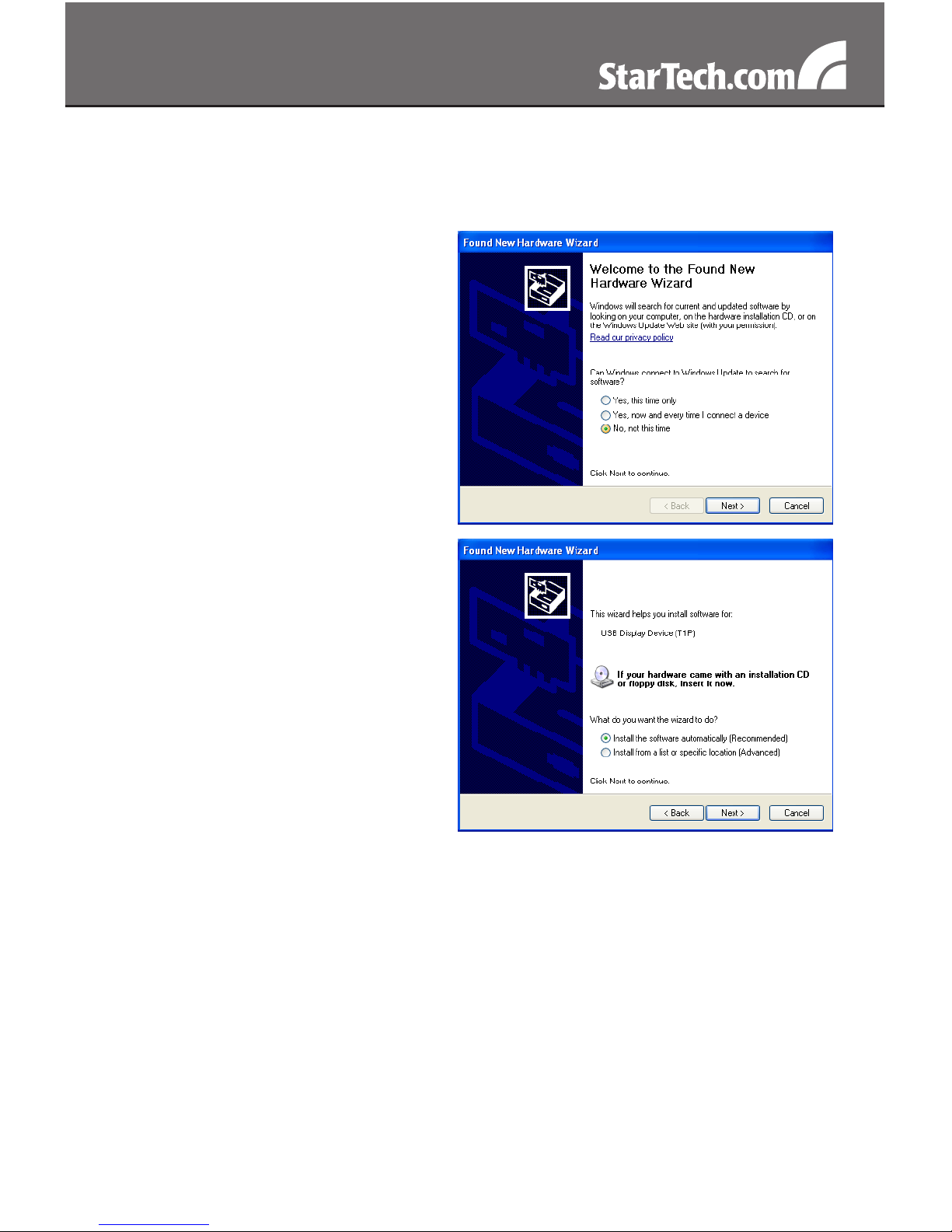

A Hardware Installation Wizard7.

dialog will show up, please

select “No, not this time” and

click “Next” to continue.

Please select “Install the8.

software automatically

(Recommended)”. And click

”Next” to continue.

Click “Finish” to complete the Hardware Wizard.9.

Multiple USB Video Adapter Installation

Ensure you have the latest version of the drivers installed, otherwise,

please download them from the StarTech.com website

(www.startech.com).

Complete the installation steps, up to when you plug in the ﬁrst USB1.

Video Adapter.

Connect another monitor/display to the DVI connector of the second2.

USB Video Adapter, then turn on the display.

Connect the USB type A connector on the second USB Video3.

Adapter to an available USB 2.0 port on the host computer. The

driver installation will begin automatically.

Repeat these steps for each additional USB Video Adapter you wish to

install. Once all USB Video Adapters are installed, reboot the computer.

After rebooting, you may be prompted to reboot one ﬁnal time; please

do so.

Verifying Installation

From the main desktop, right-click on “My Computer” (“Computer” in

Vista), then select Manage. In the new Computer Management window,

select Device Manager from the left window panel.

Double-click the Display Adapters and Universal Serial Bus Controllers

category.

* actual device names may vary

Conguring the USB Video Adapter

Look for the USB Video Adapter icon ( ) on your Windows Start bar.

Right-click this icon to access the variety of functions associated to the

adapter.

NOTE: The Aero desktop theme is not supported by this adapter, so

should be disabled prior to use of the USB Video Adapter.

Display ID

The USB Video Adapter supports the

VESA deﬁned DDC/EDID standard.

The utility will show the display device

ID whenever it is attached to the USB

Video Adapter.

If there is no display device attached to the USB Video Adapter, an

“Unknown Monitor” ID will be shown. In some cases, if the attached

display device does not support EDID, the ID will also be deﬁned as

“Unknown Monitor”.

Display Resolution

Select the desired video display

resolution for the connected monitor.

The default setting resolution is:

1024 x 768 * 32bit.

Display Rotation

4 options available: “0°, 90°, 180°,

270° when used with the Extended or

Primary display modes. It is a useful

function for some rotatable display

devices.

Display Modes

“EXTENDED” DISPLAY MODE (DEFAULT)

A default display mode; this feature

allows the attached USB Video

Adapter enabled display to work as

an “Extended” display to the on-board

display. The extended working space

improves work efﬁciency.

You may change the relative position

of this extended display through the

Display Settings.

“MIRROR” DISPLAY MODE

This feature allows the same content

from the on-board display to be

duplicated (mirroring) to the USB Video

Adapter enabled display.

The screen resolution setting on the USB Video Adapter enabled

device will match the on-board displays’s resolution. For example, if

the on-board displays’s resolution is 1024x768x32bit, and the USB

Video Adapter will use the same resolution.
