Introduction

Thank you for purchasing a StarTech.com 4-in-1 USB Docking Station

with VGA. This innovative device converts a single USB 2.0 port into

multiple connection ports, including a VGA Port, 10/100 RJ45 network

port, dual (3.5mm phono) audio ports and four additional USB 2.0 ports.

Perfect for desktop or notebook operating environments, USBVGADOCK

also makes a stylish addition to any desktop or notebook computer.

Features

Supports monitor resolutions up to WUXGA 1920 x 1200•

Plug-and-Play USB connectivity•

Stereo audio output (Speaker/Headphone) and monaural audio input•

(Microphone)

Package contents

This package should contain:

1 x USB Docking Station with VGA•

1 x USB 2.0 A to mini B type cable•

1 x AC Power Adapter (DC 3A/5V)•

1 x Driver CD•

1 x Instruction Manual•

System Requirements

1.0GHz or higher processor (i.e.Intel Pentium 4 / Celeron Family AMD•

K6 / Athlon / Duron Family)

256 MB memory or higher (512B memory or higher recommended for•

optimal performance)

Available USB 2.0 port, USB 2.0 host controller•

Windows 2000 SP4 / Windows XP SP2 / Windows Vista•

Instruction Manual

Installation

Installing the device driver enables your computer’s operating system to

recognize the docking station ports once it is connected.

To properly connect USBVGADOCK to a host computer, please ensure

that the necessary driver installation (detailed below) has been completed

prior to connecting USBVGADOCK to the host computer.

Driver Installation

Windows 2000/XP

With the computer in a powered state, insert the Driver CD (included)1.

into the CD/DVD-ROM drive. When the setup program launches, click

OK to launch the InstallShield Wizard.

If the setup program does not begin automatically, please browse to

and execute the Setup.exe ﬁle on the Driver CD (D:\Disk 1\Setup.exe ,

where D: denotes the path of your CD/DVD-ROM drive).

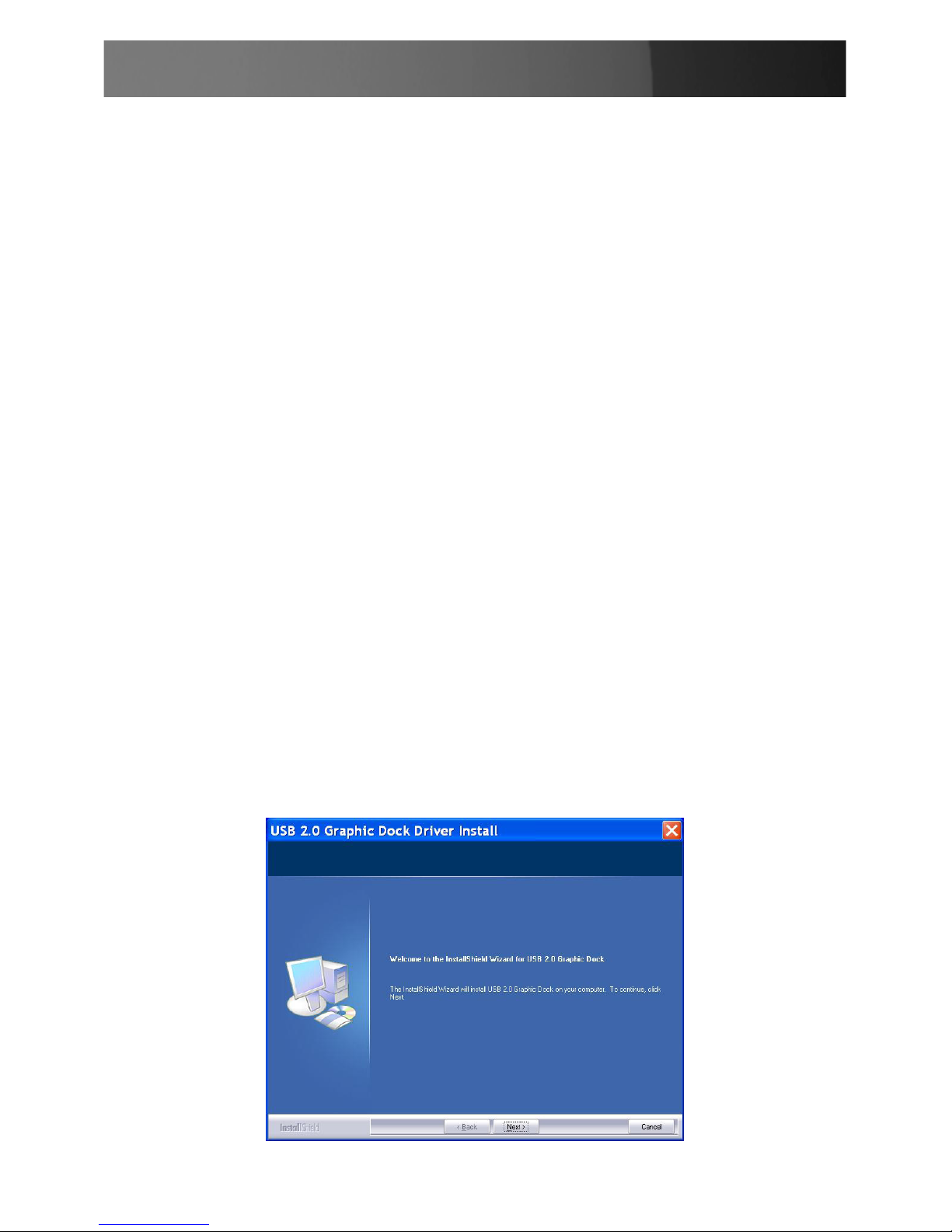

Click2. Next on the InstallShield Wizard Welcome screen:

When the License Agreement screen appears, please review it and3.

check I accept the terms of the license agreement. Click Next to

proceed.

Instruction Manual

When the Microsoft Hardware Installation warning dialogue appears,4.

please select Continue Anyway to continue with the device driver

installation. It will not affect the device driver installation or device

usage.

Once the installation has completed, you will be asked if you wish to re5.

start your computer. Please select Yes, I want to restart my

computer now and click Finish to reboot.

After rebooting, the Found New Hardware6. Wizard will appear. Please

ensure that Install the software automatically (recommended) is

selected, and click on Next to continue.

A Microsoft Hardware Installation warning dialogue will be displayed;7.

please select Continue Anyway.

Upon completion, the Found New Hardware Wizard will indicate that it8.

has ...ﬁnished installing the software... Please click on Finish.

Windows Vista™

With the computer in a powered state, insert the Driver CD (included)1.

into the CD/DVD-ROM drive. When the setup program launches, click

OK to launch the InstallShield Wizard.

If the setup program does not begin automatically, please browse to

and execute the Setup.exe ﬁle on the Driver CD (D:\Disk 1\Setup.exe ,

where D: denotes the path of your CD/DVD-ROM drive). Click OK to

launch the InstallShield Wizard.

Instruction Manual

Click2. Next on the InstallShield Wizard Welcome screen (shown

previous page).

When the License Agreement screen appears, please review it and3.

check I accept the terms of the license agreement. Click Next to

proceed.

A Windows Security warning dialogue box will appear. Please select4.

Install this driver software anyway to continue:

Upon completion, the Found New Hardware Wizard will indicate that it5.

has ...ﬁnished installing the software... Please select Yes, I want to

restart my computer now and click Finish to reboot

Instruction Manual

Verifying Driver Installation

Windows 2000/XP

To ensure that driver installation was successful:

Right-click on1. My Computer.

Select2. Manage to launch the Computer Management window.

In the left pane of the Computer Management window, select3. Device

Manager.

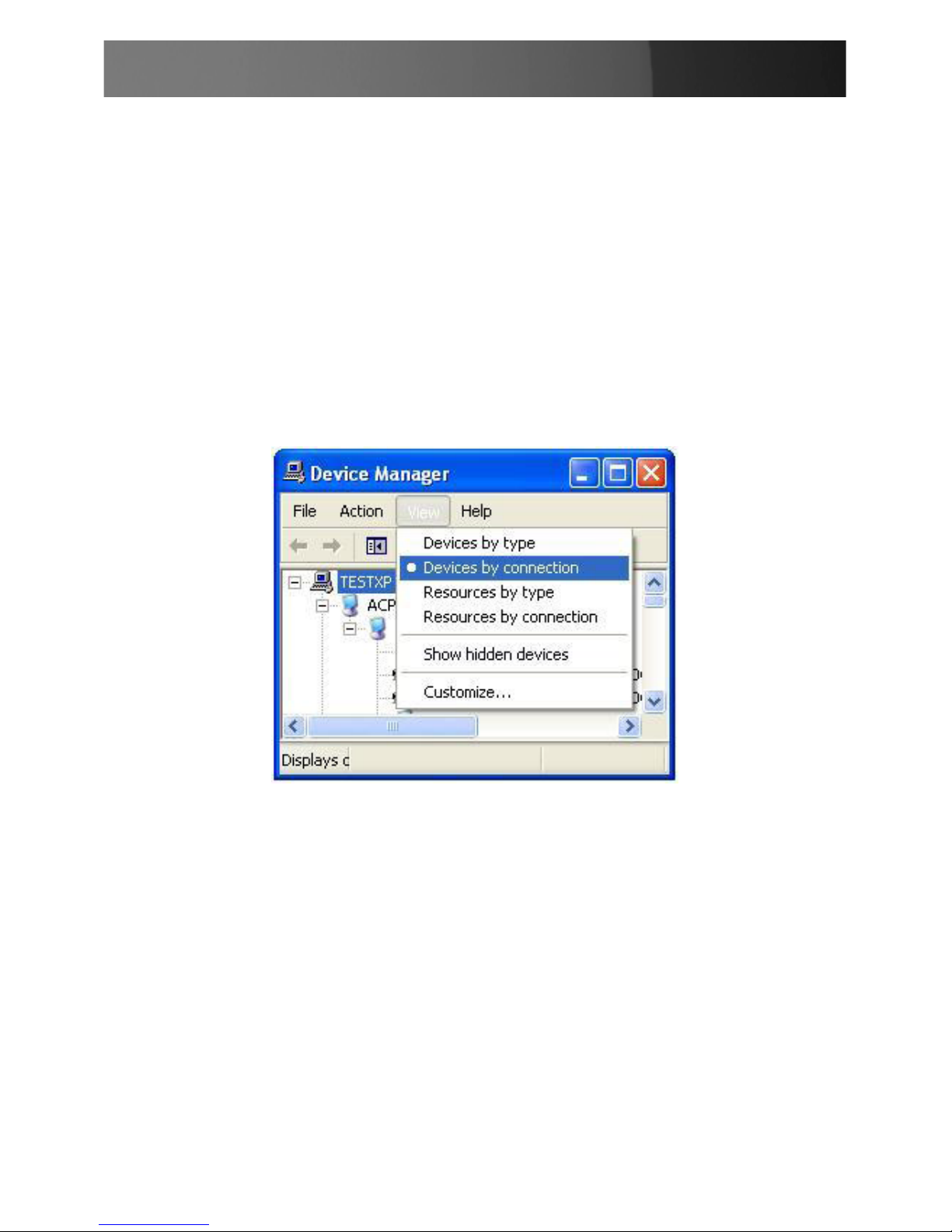

At the top of the Computer Management window, click on View, then

select By Connection Type:

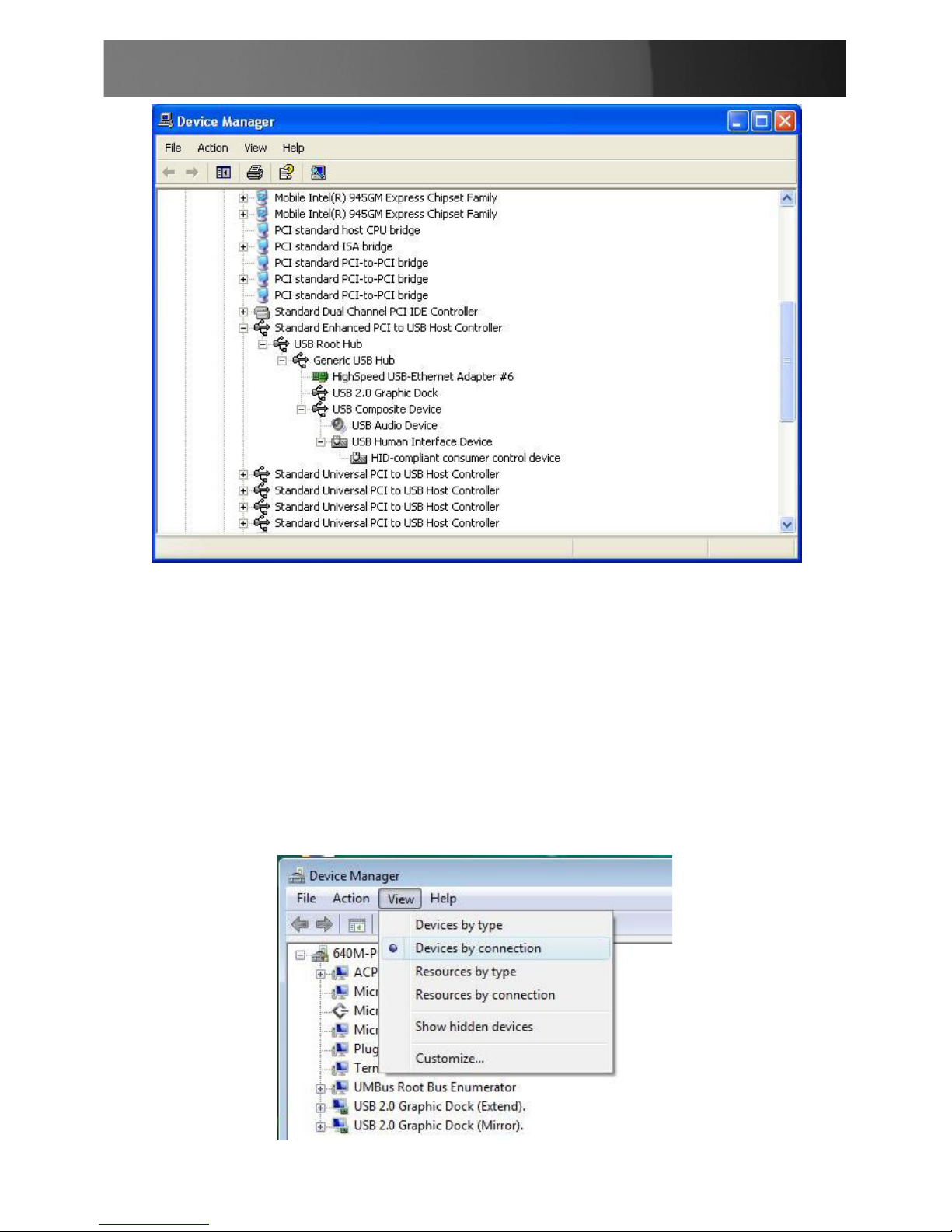

In the right pane of the Computer Management window, select4.

Standard Enhanced PCI to USB Host Controller, then click on USB

Root Hub, to diplay the newly installed devices (depicted on the

following page):

High Speed USB Ethernet Adapter, USB2.0 GRAPHIC DOCK Device

USB Composite Device, USB Audio Device, USB Human Interface

Device, HID-compliant consumer control device.

Instruction Manual

Windows Vista™

Right-click on1. Computer.

Select2. Manage to launch the Computer Management window.

In the left pane of the Computer Management window, select3. Device

Manager.

At the top of the Computer Management window, click on View, then

select By Connection Type:

Instruction Manual

In the right pane of the Computer Management window, select4. Intel(R)

82801GB USB2 Enhanced Host Controller-27CC, then USB Root

Hub to display the list of newly installed devices:

High Speed USB- Ethernet Adapter, USB 2.0 GRAPHIC DOCK, USB

Composite Device, USB Human Interface Device, HID-compliant

consumer control device, USB Multimedia Audio Device.
