StarTech.com InfoSafe S252U2ERR Manuale utente

SATA Hard Drive Enclosure

2.5” Black eSATA and USB to

Dual Removable SATA Hard

Drive Enclosure with RAID

S252U2ERR

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................4

How to Conﬁgure ............................................................ 4

Operating Modes.........................................................................4

Using the Storage Device............................................... 5

Speciﬁcations.................................................................. 7

Technical Support........................................................... 8

Warranty Information...................................................... 8

Introduction

The StarTech.com S252U2ERR Dual Removable 2.5” SATA External

Hard Drive Enclosure provides a complete, hardware-based

external RAID storage solution for laptop or desktop computers.

Accommodating two 2.5” SATA 1.5/3.0Gbps hard drives, this compact

HDD enclosure supports RAID conﬁgurations including JBOD (Single),

Spanning (BIG/Concatenated), RAID 0 (Fast) and RAID 1 (Safe).

Packaging Contents

1 x S252U2ERR enclosure•

1 x eSATA cable•

1 x USB cable•

1 x Universal Power Adapter with NA/UK/EU plugs•

1 x Set of keys•

1 x Stand•

1 x Instruction Manual•

System Requirements

eSATA and/or USB enabled computer system•

NOTE: eSATA host controller must support Port Multiplier technology

Microsoft• ®Windows®2000/XP/Vista/7 (32/64-bit),

or Apple®Mac OS®10.2 or later, or Linux®

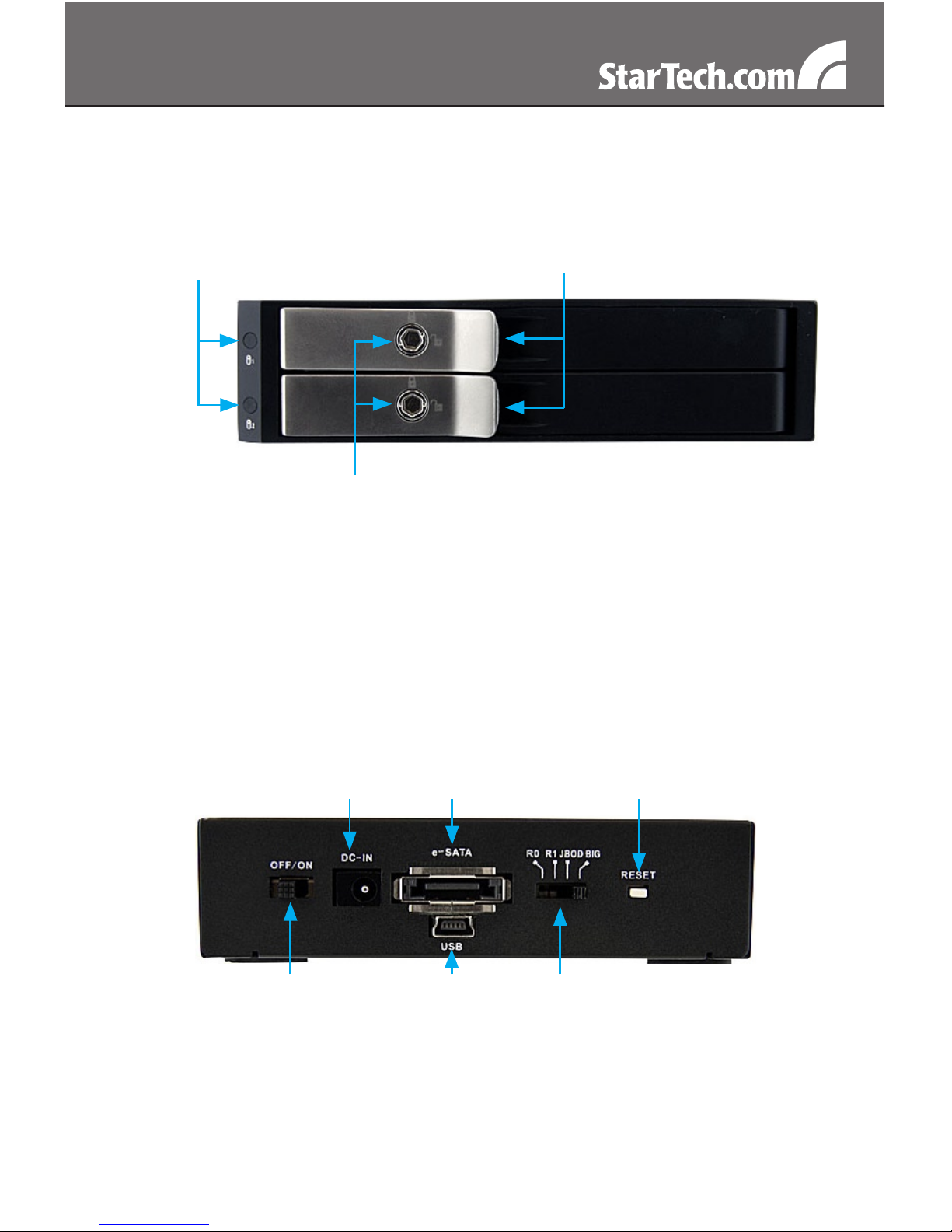

Front View

Rear View

Door Twist Lock

Door Latch

Power/Activity

LED

Reset switch

RAID Mode

switch

eSATA

connector

USB

connector

Power

connector

ON/OFF

switch

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

Hardware Installation

Make sure the power switch on the enclosure is set to OFF and the1.

power adapter is unplugged from the enclosure.

Unlock the drive bay doors by turning the twist lock clockwise with2.

the provided keys.

Open the drive bay doors by pulling on the metal door latch forward.3.

Slide a bare 2.5” SATA hard drive into the drive bay and close the4.

door behind it, making sure it latches properly.

Lock the drive bay doors by turning the twist lock counter-clockwise5.

with the provided keys.

Set the enclosure to the proper RAID mode via the selection switch6.

on the rear.

Connect the power adapter from an electrical outlet to the enclosure.7.

Power on the enclosure by setting the power switch to ON.8.

Press the “Reset” button on the rear of the enclosure to ensure the9.

proper RAID mode becomes set.

Connect the enclosure to the computer via eSATA or USB, not10.

both.

To remove drives from the enclosure, ﬁrst make sure that the11.

disk volume is umounted within the operating system (see

documentation for your operating system or host controller) or the

computer is off.

Turn the enclosure off by switch the power switch to OFF.12.

Unlock the drive bay door with the provided keys and open by13.

pulling the metal latch forward.

Driver Installation

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

How to Congure

Operating Modes

Mode Description

RAID 0

(Striping)

Striping combines multiple disk into a single large

disk array. The data is split evenly across each disk

simultaneously. Read/write performance is increased as

a result, but failure of any one disk will make the entire

array unusable.

RAID 1

(Mirror)

Mirroring writes the same data across multiple disk,

creating exact mirror copies. This provides redundancy

in case one drive fails.

JBOD

(Single)

JBOD enables each hard drive to be seen separately.

This should be used if only a single hard drive is

installed.

NOTE: When using eSATA, JBOD should only be used

if the eSATA host controller provides Port Multiplier (PM)

support. If a host is not PM-aware, only a single drive

will be visible. No such limitation exists if using the USB

connection.

BIG

(Concat)

BIG concatenates multiple hard drives into a single large

disk. Provides no performance or redundancy beneﬁts.

Using the Storage Device

Windows 2000/XP/Vista/7

If you are using a brand new hard drive that does not contain any data,

then you will ﬁrst need to prepare the hard drive for use. From the

main desktop, right-click on “My Computer” (“Computer” in Vista/7),

then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Locate the Disk that says it is “Unallocated” (check hard drive capacity

to conﬁrm it’s the correct hard drive) and then right-click in the section

that says “Unallocated” and select “New Partition”.

The New Partition Wizard will appear. Follow the instructions in the

wizard to complete setting up the drive. Once complete, the Disk

should show up as “Healthy” with a drive letter assigned (i.e. E:). This

drive letter should now appear within My Computer.

If you are installing a hard drive that already has data on it, then after

plugging it in, the drive should automatically show up with a drive letter

assigned within My Computer.

Specications

Bus Interface USB 2.0

SATA 3.0Gb/s

Chipset ID Silicon Image SiI5744

Connectors

1 x eSATA*

1 x USB mini-B

1 x DC Power

LEDs 2 x Power/Activity

Compatible Hard Drives 2.5” SATA 1.5/3.0Gbps, height up

to 9.5mm, up to 500GB capacity

Maximum Data Transfer Rate eSATA: 3.0Gbps

USB2.0: 480Mbps

RAID Modes 0, 1, JBOD (single), BIG (concat)

Power Adapter 5VDC, 2A, center positive

Operating Temperature 5°C ~ 70°C (41°F ~ 158°F)

Storage Temperature -40°C ~ 80°C (-40°F ~ 176°F)

Humidity 8 ~ 90% RH

Dimensions 150.0mm x 101.0mm x 25.0mm

Weight 224g

Compatible Operating

Systems

Windows 2000/XP/Vista/7

(32/64-bit), Mac OS 10.2 or later,

Linux

* eSATA host controller must support Port Multiplier technology
