StarTech.com UNI3510U2 Manuale utente

IDE/SATA HDD Enclosure

UNI3510U2

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turn-

ing the equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com.

Where they occur these references are for illustrative purposes only and do not represent an

endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct

acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowl-

edges that all trademarks, registered trademarks, service marks, and other protected names

and/or symbols contained in this manual and related documents are the property of their

respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Hardware Guide ............................................................................. 2

Installation and Usage .................................................................. 2

Hard Drive Installation .................................................................2

Connecting the Drive Enclosure to a Computer ..........................5

Disconnecting the Enclosure from the Computer...................... 6

Windows XP/2000/2003 Server/Vista™......................................6

Windows 98SE ............................................................................7

Mac OS........................................................................................7

Troubleshooting............................................................................. 8

Speciﬁcations ................................................................................ 9

Technical Support ......................................................................... 10

Warranty Information .................................................................... 10

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com 3.5” USB 2.0 to IDE/SATA Hard

Drive Enclosure. Now, you can turn almost any 3.5” hard drive into a por-

table storage device! This hybrid, 3.5” USB 2.0 to IDE/SATA Hard Drive

Enclosure provides broad compatibility with IDE (66/100/133) or SATA I/II

(SATA 150/SATA 300) hard drives, making it the wise choice for a variety

of uses including data backups, digital image storage, multimedia storage,

or simply putting an “outdated” drive to good use.

Features

Compact, lightweight design•

Solid metal construction•

Supports data transfer rates of up to 480Mbps (USB 2.0, SATA II)•

No driver installation required•

Supported by Windows 98SE, ME, 2000, 2003 Server, XP and Vista™,•

Linux, Mac OS 9.0 and higher

System requirements:

A USB enabled computer with an available USB port (USB 2.0 for peak•

performance)

Operating System: Windows® 98SE, ME, 2000, 2003 Server, XP and•

Vista™, Linux, Mac OS 9.0 and higher

Package Contents

1 x SATA/IDE to USB 2.0 External HDD Enclosure•

1 x USB 2.0 Cable•

1 x AC Power Adapter•

1 x PCI Express Adapter Card•

1 X Power Cable•

Instruction Manual

Hardware Guide

Installation and Usage

Hard Drive Installation

Remove the screw holding the Base Stand to the enclosure, and1.

separate it from the Enclosure, then slide the Disk Mounting Tray out of

2 3

1 Disk Mounting Tray

2 SATA Power Cable

3 SATA Data Cable

4 IDE Data Cable

5 IDE Power Cable

WARNING: Hard drives require careful handling, especially when being

transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution.

Instruction Manual

the Enclosure:

Gently place the hard drive, label side up into the enclosure. Connect2.

the IDE or SATA Power and Data cables to the hard drive and to the

controller board as appropriate. Please note that if you are installing a

SATA drive in the enclosure, the IDE Data cable will need to be re

moved.

IDE Data Cable

IDE Power

Cable

SATA Data

Cable

S ATA

Power

Cable

Instruction Manual

Fasten the hard drive to the Disk Mounting Tray, using the provided3.

screws.

Slide the Disk Mounting Tray (with drive attached) back into the4.

Enclosure, so that the Enclosure is sealed.

Instruction Manual

Re-fasten the Base Stand to the base of the Enclosure and replace the5.

screw removed in Step #1. Drive installation is now complete.

Connecting the Drive Enclosure to a Computer

1 USB Type ‘B’ Port

2 Power Port

3 Power Switch

Instruction Manual

Connect the AC Adapter cord to the DC Power Port on the rear panel1.

of the drive enclosure. Connect the remaining end of the adapter to an

available electrical outlet.

Insert the Type ‘B’ connector provided by the USB cable into the USB2.

Type ‘B’ port on

the rear panel of the enclosure. Connect the remaining end to an3.

available USB port on the host computer.

Press the Power Switch to the ON position.4.

Disconnecting the Enclosure from the Computer

Windows XP/2000/2003 Server/Vista™

Double-click on the Safely Remove Hardware icon, located in the1.

System Tray (typically located on the bottom right corner of the

desktop).

Select USB Mass Storage Device from the list, and click on2. Stop.

Select the drive to be disconnected, and click3. OK.

Click on4. Close and turn the Power Switch on the enclosure to the OFF

position.

It is now safe to disconnect the Enclosure from the computer, by5.

removing the USB cable.

WARNING: Do not disconnect any cables or power sources while the

hard drive is active. This can result in data loss and possible damage to

the hard drive.

WARNING: To prevent data loss, please ensure that all active applica-

tions areclosed, prior to shutting down power to the drive.

Instruction Manual

Windows 98SE

Close all applications.1.

Ensure the drive is not running, and move the Power Switch to the OFF2.

position.

Disconnect the USB cable from the computer.3.

Mac OS

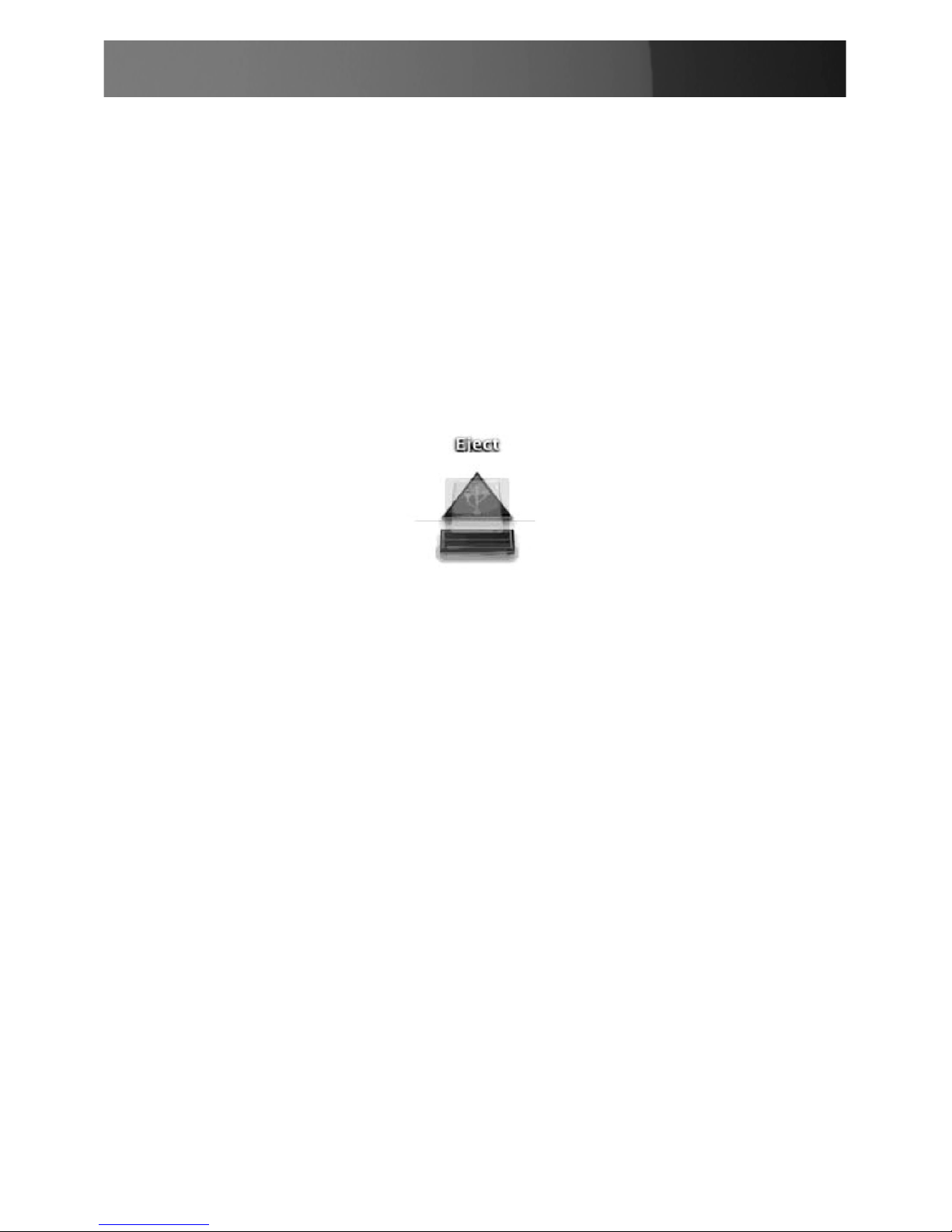

Locate the Removable Disk icon associated with the drive you wish to1.

disconnect, and drag it to the Trash icon on your desktop.

When the disk icon disappears from the desktop, move the Power2.

Switch to the OFF position. You can now safely disconnect the USB or

FireWire cable from your computer and the power cord from the electrical

outlet.
