StarTech.com S3510BMU33ET Manuale utente

Manual Revision: 07/26/2013

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

S3510BMU33ET

USB 3.0/eSATA Trayless 3.5” HDD

Enclosure with UASP

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Product Diagram ....................................................................................1

Front View .................................................................................................................................................... 1

Rear View...................................................................................................................................................... 1

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

Recommended System Requirements.............................................................................................. 2

Hardware Installation............................................................................3

How to Use ..............................................................................................4

Disconnecting the Hard Drive.............................................................................................................. 5

Technical Support ..................................................................................7

Warranty Information............................................................................7

Instruction Manual

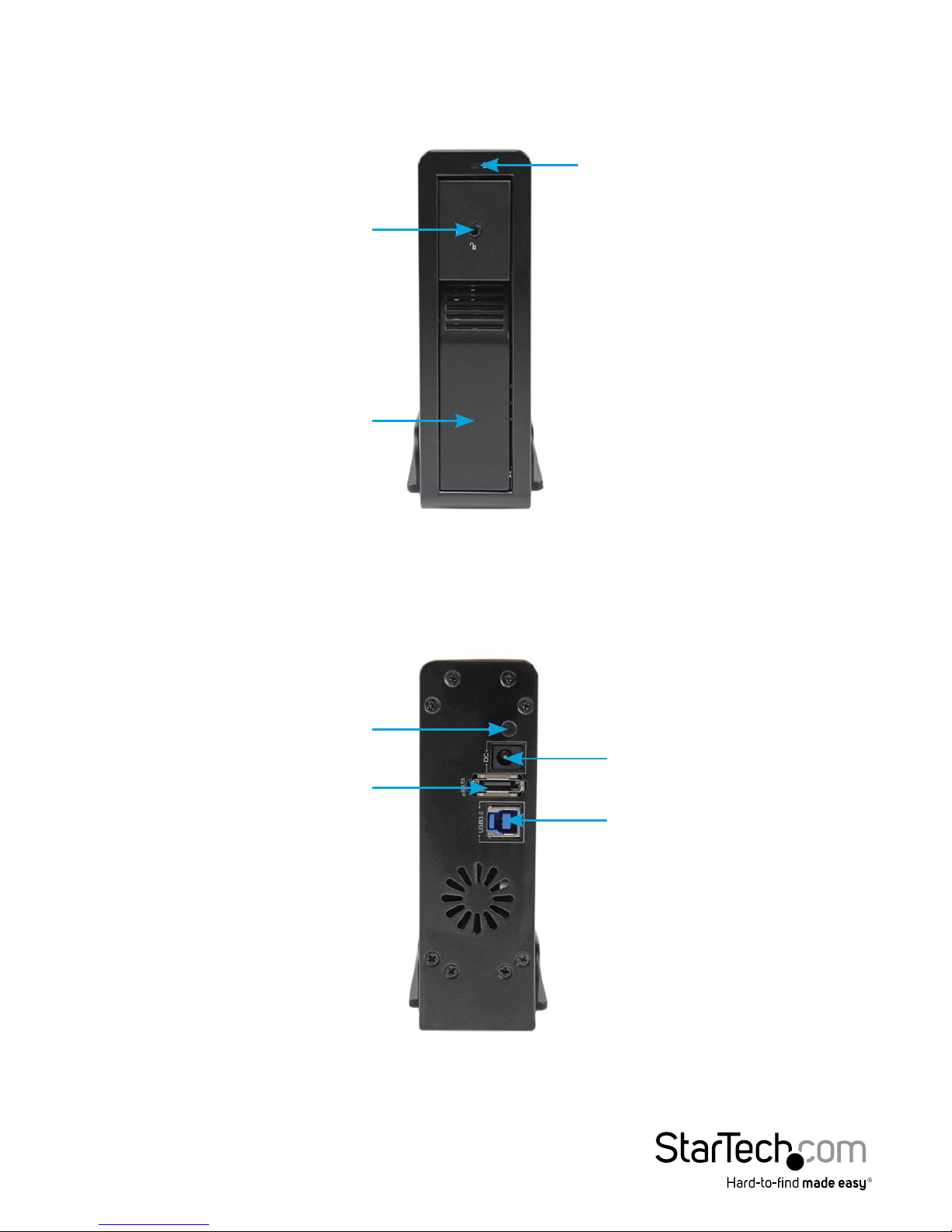

Product Diagram

Front View

Rear View

Hard Drive

Installation

Door

Power Switch

eSATA Port

Power

Adapter

Port

USB 3.0 Port

Activity LED

HDD Lock

Instruction Manual

Introduction

Packaging Contents

• 1x USB 3.0/eSATA HDD Enclosure

• 1x USB 3.0 Cable

• 1x eSATA

• 1x Universal Power Adapter and Clips(NA/UK/EU)

• 1x Instruction Manual

Recommended System Requirements

• Computer system with available USB 3.0 (5 Gbit/s) port/USB 2.0 port (480Mbps) or

eSATA port

• 3.5” SATA hard drive

• Microsoft® Windows® 2000/XP/Server 2003/Vista/Server 2008 R2/7/8 (32/64-bit), or

Apple® Mac® OS 9.x/10, or Linux®

Instruction Manual

Hardware Installation

WARNING! Hard drives and storage enclosures require careful handling, especially

when being transported. If you are not careful with your hard disk, lost data may

result. Always handle your hard drive and storage device with caution. Be sure that

you are properly grounded by wearing an anti-static strap when handling computer

components or discharge yourself of any static electricity build-up by touching a large

grounded metal surface (such as the computer case) for several seconds.

1. Open the enclosure by inserting the key and turning to the HDD Lock to the

“unlock”, then pull the door leaver located at the lock panel, and swing the hard

drive installation door outward.

2. Slide the 3.5” Hard Drive into the open door, then swing the Hard Drive Installtion

door inward and lock it into place by inserting the key and turning the HDD Lock to

the “lock” position.

Instruction Manual

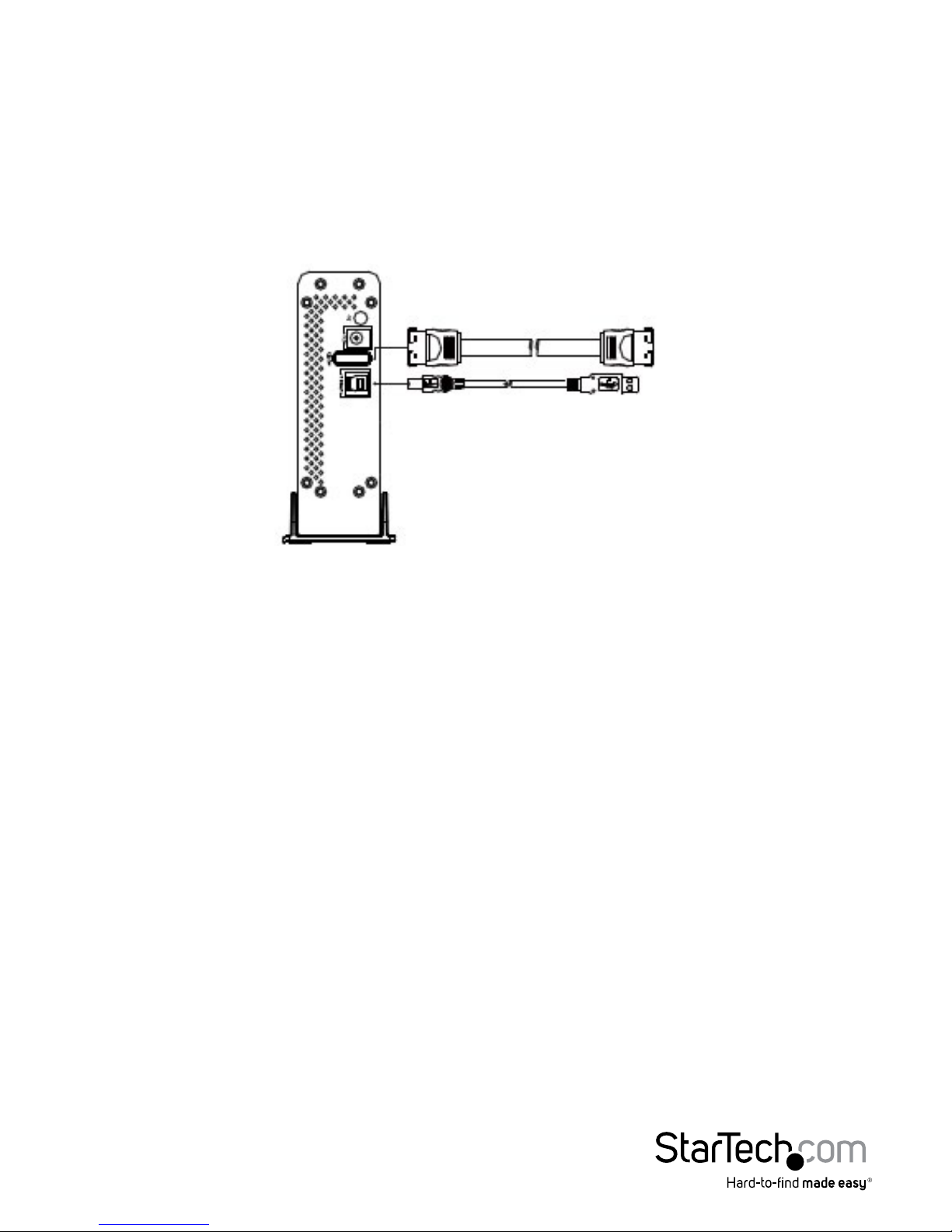

3. If connecting the enclosure via USB 3.0, connect the USB 3.0 cable from the

enclosure to a USB port on the host computer system.

If connecting the enclosure via eSATA, connect the eSATA cable from the enclosure

to an available eSATA port on the host computer system.

NOTE: Some legacy computer systems may not automatically detect an eSATA

connection. To manually detect the hard drive, scan for hardware changes within

Device Manager, or reboot the system upon .

4. Connect the power adapter from an available AC outlet to then enclosure. Turn on

the unit by Pushing the Power button at the back of the unit.

How to Use

Connecting the Hard Drive

Once the enclosure has been attached to a computer, the drivers will install

automatically, and the inserted drive will be accessible as though it were installed

within the system.

Prior to using the drive, it will need to be formatted according to your operating

system requirements. Refer to Initializing the Hard Drive

LED Indicator

The hard drive enclosure oers an LED indicator, to enable you to monitor drive

activity. The LED will ash while the hard drive is being accessed. Do not remove the

enclosure from the host computer while the LED is ashing, as it could damage the

drive or the enclosure, resulting in data loss.

Instruction Manual

Disconnecting the Hard Drive

Windows

1. Select the “Safely remove Hardware and Eject Media” icon, located in the task bar.

2. Select the Mass Storage Device from the list that appears.

3. Wait for the message indicating that it is now safe to remove the device.

NOTE: Removing the connected drive prior to receiving notication that it is safe

to do so, could result in losing or corrupting data stored on the drive. Once the Safe

to Remove Hardware message appears, please disconnect the enclosure from the

computer by removing the USB connection.

Mac OS X

To safely disconnect the attached drive from the host computer, close any windows

listing the contents of the removable drive. Once all windows are closed, click on the

USB storage icon on the desktop, and drag it to the Trash Can icon on the desktop.

Allow 5 seconds before physically removing the enclosure/drive from the computer.

Initializing the Hard Drive

1. If the SATA Hard Drive is blank it may need to be initialized and formatted before

use. From the main Windows desktop, right-click on “My Computer” (“Computer” in

Vista/ 7 / 8), then select Manage. In the new Computer Management window, select

Disk Management from the left window panel.

Instruction Manual

2. A dialog window should automatically appear, asking you to initialize the drive.

Depending on the version of Windows, it will give you the option of either creating

an “MBR” or“GPT” disk. GPT (GUID partition) is required for drives larger than 2TB but

is not compatible with some older operating systems, while MBR is supported by

newer and older operating systems.

3. Once initialized, locate the Disk that says it is “Unallocated” (check the listed hard

drive capacity to conrm it’s the correct hard drive) and then right-click in the

section that says “Unallocated” and select “New Partition”.

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to

provide industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials

and workmanship for the periods noted, following the initial date of purchase.

During this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor costs only.

StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

ocers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of prots, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation

of incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.
