StarTech.com SAT3510U2V Manuale utente

Manual Revision: 12/15/2011

For the most up-to-date information, please visit: www.startech.com

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

SAT3510U2V / SAT3510U2VGB / SAT3510U2VEU

SAT3510BU2V / SAT3510BUVGB / SAT3510BUVEU

3.5in Silver USB 2.0 to SATA External Hard

Drive Enclosure

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and

Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Hardware Guide .....................................................................................2

Front Panel View........................................................................................................................................ 2

Rear Panel View.......................................................................................................................................... 2

Installation ..............................................................................................3

Hardware Installation .............................................................................................................................. 3

Driver Installation...................................................................................................................................... 6

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com SAT3510U2V / SAT3510BU2V InfoSafe 3.5”

USB 2.0 SATA Aluminum Hard Drive Enclosure. This cost-eective storage solution

suits a wide variety of applications including le and application sharing between

desktop and notebook computers, data archiving, or simply backing up existing hard

drives to preserve data security.

Packaging Contents

• 1 x Aluminum HDD Enclosure

• 1 x USB (A-B) Cable

• 1 x Screw Kit

• 1 x Plastic Stand

• 1x Power Adapter

• 1 x Instruction Manual

System Requirements

• 3.5” SATA hard drive

• An available (nearby) power outlet

• A host PC or Mac computer system with an available USB port

• Mac OS 9.0 and up, and Linux

Instruction Manual

Hardware Guide

Front Panel View

Power/Activity LED

Rear Panel View

Power Adapter

Port

On/O Switch

USB type B

Port

Screw Kit

Power Adapter

USB A-B Cable

Plastic Stand

Instruction Manual

Installation

WARNING! Hard drives and storage enclosures require careful handling,

especially when being transported. If you are not careful with your hard disk,

lost data may result. Always handle your hard drive and storage device with

caution. Be sure that you are properly grounded by wearing an anti-static

strap when handling computer components or discharge yourself of any

static electricity build-up by touching a large grounded metal surface (such as

the computer case) for several seconds.

Hardware Installation

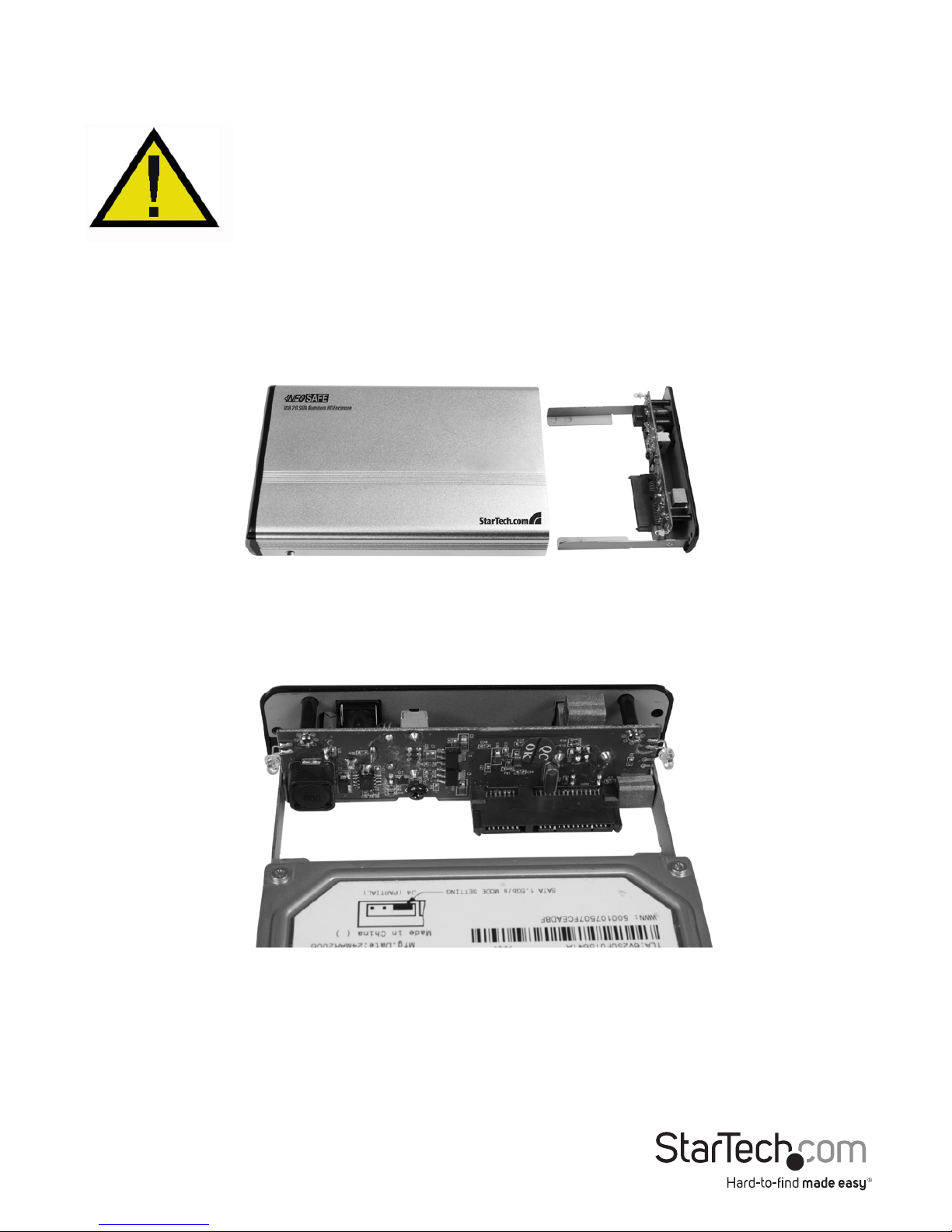

1. Remove the Rear Panel, to expose the internal SATA connections:

2. Position the hard drive you wish to install such that the SATA connection is facing

towards the SATA interface connector provided by the Enclosure’s front panel:

Instruction Manual

3. With the hard drive connected to the front panel, turn the drive over to expose it’s

base. Fasten the hard drive to the front panel rails on both sides, using the screws

provided (2):

4. Fasten the front panel (with drive attached) to the body of the Enclosure; be

cautious that the drive and front panel are properly aligned with the body of the

Enclosure, to prevent damage to the LEDs.

Instruction Manual

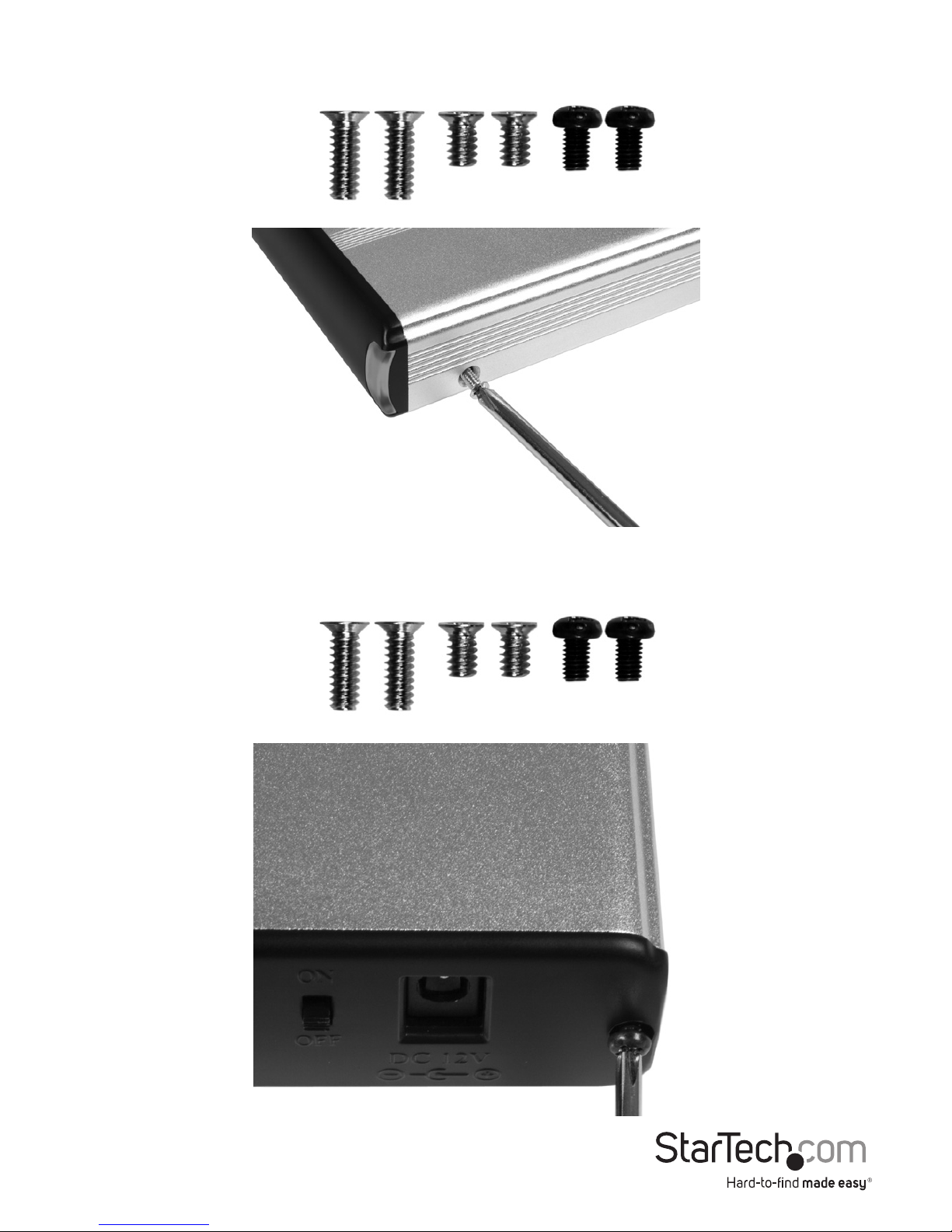

5. Fasten both sides of the case to lock the hard drive in place:

6. Fasten the rear panel to the Drive Enclosure on both sides using the screws (2)

provided.

Instruction Manual

7. Once the drive has been secured within the Enclosure, connect the DC 12V power

adapter to the power adapter port. Connect the remaining end of the power

adapter to an available power outlet.

8. Connect the USB A-B cable to the USB B port on the rear panel of the Enclosure,

then connect the remaining end of the cable to the host computer.

9. With the host computer powered on, power on the Drive Enclosure using the On/

O switch. The operating system will detect the presence of the added drive,

following which you will be able to properly format/partition the installed drive

from within the operating system.

Driver Installation

No driver installation is required for the supported operating systems, as this enclosure

is natively supported, so the drivers are already installed.

Instruction Manual

Specications

Bus Type USB 2.0

Chipset SunPlus SPIF301

Maximum Date Transfer Rate 480 Mbps

LED Indicators

Solid Green -Power status

Blinking Green - Read/Write Drive

Activity

Enclosure Casing Material Aluminum

Power Adapter 12V DC, 2000mA

Dimensions (L x W x H) 193 mm x 113 mm x 31 mm

(7.6” x 4.45” x 1.22”)

Weight 325 g (11.47 oz )

OS Compatibility

Mac OS 9.0 and up, and Linux, Windows

2000 / Windows 2003 / Windows 7 /

Windows 98SE / Windows ME / Windows
