StarTech.com PEX1000MMSC Manuale utente

PEX1000MMSC

1000Base-SX (SC) Multi-Mode

Fiber Gigabit PCI Express Card

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Package Contents .......................................................................1

Installation...................................................................................... 2

Hardware Installation...................................................................2

Connecting to a Network .............................................................3

Software Installation ....................................................................4

Speciﬁcations ................................................................................ 6

Technical Support ......................................................................... 7

Warranty Information .................................................................... 7

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Multi Mode Fiber Gigabit

Ethernet Card. A simple solution for connecting a host computer directly

to a ﬁber network, the PEX1000MMSC provides full gigabit performance,

ensuring the fastest network connections and reliable performance.

Features

1000Mbps-Full-duplex•

Advanced Conﬁguration Power Management Interface (ACPI) 2.0•

Cable diagnostic utility•

Compliant with RFC 1157 SNMP v1 which allows you to manage•

remotely

Complies with IEEE 802.1Q, 802.1p, 802.3ab standards•

Microsoft NDIS5 (IP, TCP, UDP) checksum ofﬂoad•

PCI Express 1.0a compliant•

Supports up to 9K Bytes jumbo frame•

Supports Wake-on-LAN remote wake-up•

Package Contents

1 x Driver CD•

1 x Instruction Manual•

1 x PCI Express Gigabit Ethernet Adapter•

Instruction Manual

Installation

Hardware Installation

Turn OFF the computer power before installation.1.

Remove the chassis cover from your computer.2.

Locate an unused PCI Express slot and remove the corresponding slot3.

cover from the rear panel of the computer chassis. Retain the screw (if

applicable) used to hold the slot cover in place.

Align the PCI Express card with the unused PCI Express expansion4.

slot. Applying pressure evenly across the top edge of the expansion

card, ﬁrmly but gently insert the card into the slot, ensuring that the

card is properly aligned with the rear panel slot.

Secure the card to the motherboard and rear chassis using the screw5.

removed in step 3 (if necessary). Secure the additional serial port

provided by the daughter board (smaller circuit board to an adjacent

rear bracket.

Replace the chassis cover (removed in step 2).6.

Power on the computer. Once the computer has been rebooted, the7.

operating system will detect that the PCI Express card has been

installed and request driver installation, detailed in the next section.

WARNING! PCI Express cards, like all computer

equipment, can be severely damaged by static elec-

tricity. Be sure that you are properly grounded before

opening your computer case or touching your card.

StarTech.com recommends that you wear an anti-

static strap when installing any computer component.

If an anti-static strap is unavailable, discharge yourself

of any static electricity build-up by touching a large

grounded metal surface (such as the computer case)

for several seconds. Also be careful to handle the card

by its edges and not the gold connectors.

Instruction Manual

Connecting to a Network

Please note: You must connect the PCI Express Fiber Gigabit Ethernet

Adapter to the network before installing the network driver.

For connector type, cabling requirements, and maximum segment dis-

tance when connecting the PCI Express Gigabit Ethernet Adapter to your

network, please refer to the following tables.

Remove the protective covers from the PCI Express Fiber Gigabit1.

Ethernet Adapter’s connector.

Prepare a network cable with corresponding connectors for the two end2.

devices, one end to the PCI Express Fiber Gigabit Ethernet Adapter

and the other to a 1000Mbps ﬁber port on the network switch.

Connect the network cable to the connector on the PCI Express Fiber3.

Gigabit Ethernet Adapter. This network cable consists of two individual

cables: one for ‘transmission (TX)’, and the other for ‘reception (RX)’.

Connect the other end of the network cable to a 1000BASE-SX/LX4.

switch.

i. Insert the cable that is connected to the transmit (TX) connector on5.

the PCI Express Fiber Gigabit Ethernet Adapter into the receive

(RX) connector on the network switch.

Connector Type

on Fiber Adapter

Wavelength of 850nm

Fiber Optic required

Maximum Distance

(* full-duplex)

SC Multi-mode, 62/125 µm 550 m

Connector Type

on Fiber Adapter

Wavelength of

1310nm Fiber Optic

required

Maximum Distance

(* full-duplex)

SC Single-mode, 10/125 µm 10 km

SC Single-mode, 10/125 µm 50 km

Instruction Manual

ii. Insert the cable that is connected to the receive (RX) connector on

the PCI Express Fiber Gigabit Ethernet Adapter into the transmit

(TX) connector on the network switch.

When the cable is properly connected to two end devices, turn on the6.

power to the PC.

Check the LNK (Link) LED. The LED will come on when the PCI Ex7.

press Fiber Gigabit Ethernet Adapter is receiving a good link signal

from the connected device, a switch.

Software Installation

Once PEX1000MMSC has been installed in the computer, turn on the1.

power to the computer.

When the2. Found New

Hardware Wizard window pops

up, select Install from a list or

speciﬁc location (Advanced)

and click Next to continue.

Select3. Search for the best

driver in these locations. and

then select Include this location

in the search. Click Browse to

specify the driver location and

click Next to continue.

Instruction Manual

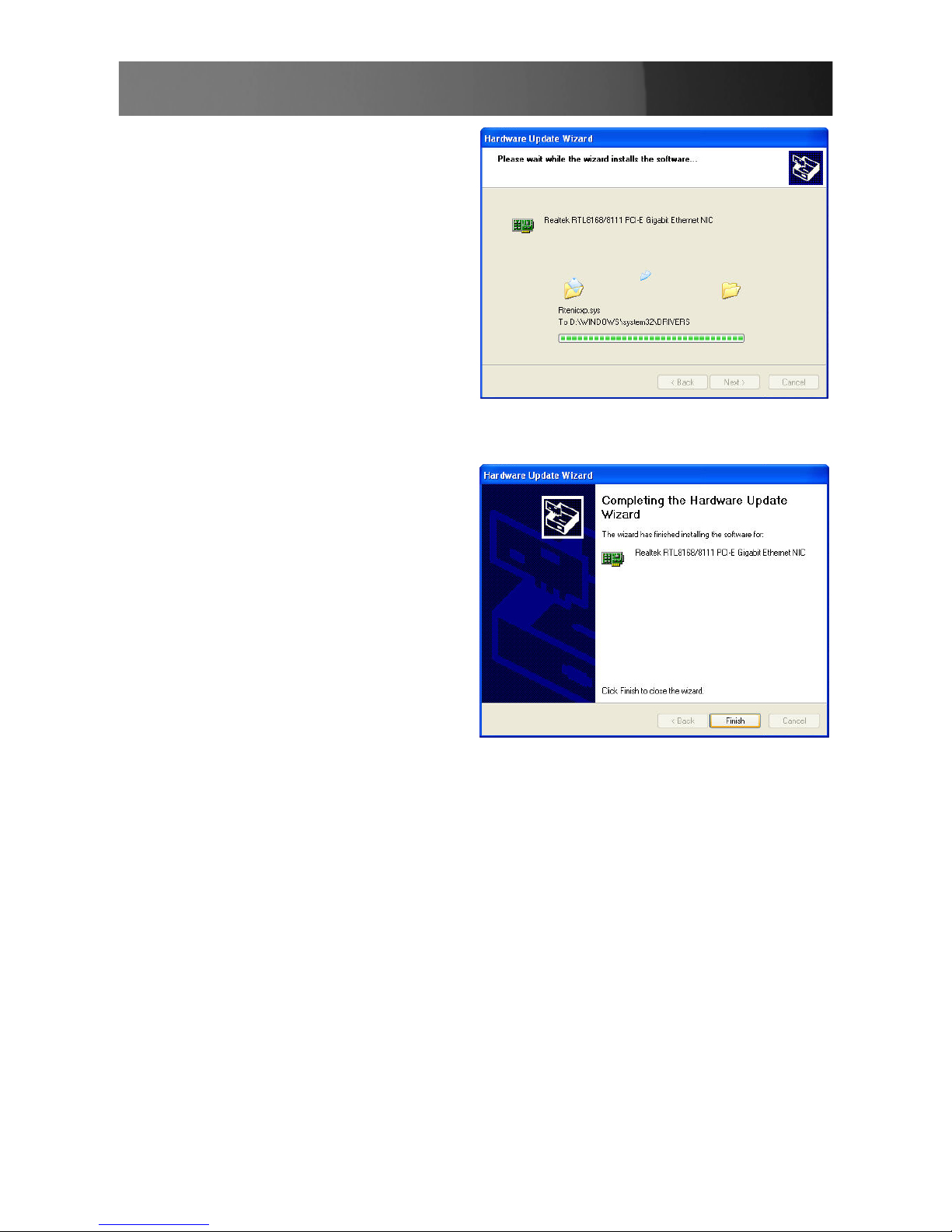

Installation will begin...4.

Click5. Finish to complete the

driver installation.

Instruction Manual

Specications

Applicable Standards

IEEE802.3 10Base-T,

IEEE802.3u 100Base-TX/100Base-FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/1000Base-LX

IEEE802.3x

IEEE802.1Q

IEEE802.1p

IEEE802.3ad

LED Indicators Link, Activity

Operating Temperature 0°C to 45° C (32°F to 113°F)

Storage Temperature -10°C to 70°C (14°F to 158°F)

Humidity 5%-95% non-condensing

Chipset Realtek RTL8168B & Marvell 88E1111

Maximum Connection

Distance

Up to 550m (1804’)

OS Support Windows XP, Vista™, Mac, Linux

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a lifetime warranty. In addition, StarTech.

com warrants its products against defects in materials and workman-

ship for the periods noted, following the initial date of purchase. During

this period, the products may be returned for repair, or replacement with

equivalent products at our discretion. The warranty covers parts and labor

costs only. StarTech.com does not warrant its products from defects or

damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.
