StarTech.com PEXUSB4DP Manuale utente

PCI Express USB Card

4 Port PCI Express Low Proﬁle

High Speed USB 2.0

Adapter Card

PEXUSB4DP

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................2

Driver Installation.........................................................................3

Verifying Installation.....................................................................3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

Introduction

This 4 Port Low Proﬁle PCI Express USB 2.0 Adapter Card lets you

connect up to four USB 2.0 peripherals (3 external and 1 internal) to

your computer at data transfer rates of up to 480 Mbps. Conﬁgured

with a low proﬁle bracket, it also includes a full standard bracket.

Packaging Contents

1 x PEXUSB4DP adapter card•

1 x Full Proﬁle Bracket•

1 x Driver CD•

1 x Installation Manual•

System Requirements

PCI Express (PCIe) enabled computer system•

Microsoft Windows• ®2000/XP/Vista/7 (32/64-bit), Mac OS®X, or

Linux®

Installation

WARNING! PCI Express cards, like all computer equipment, can be

severely damaged by static electricity. Be sure that you are prop-

erly grounded before opening your computer case or touching card.

StarTech.com recommends that you wear an anti-static strap when

installing any computer component. If an anti-static strap is unavail-

able, discharge yourself of any static electricity build-up by touching a

large grounded metal surface (such as the computer case) for several

seconds. Also be careful to handle the card by its edges and not the

gold connectors.

Hardware Installation

Turn your computer off and any peripherals connected to the1.

computer (ie. Printers, external hard drives, etc.). Unplug the power

cable from the rear of the power supply on the back of the computer.

Remove the cover from the computer case.2.

Locate an open PCI Express slot and remove the metal cover plate3.

on the rear of the computer case. Note that this card will work in PCI

Express slots of additional lanes (ie. x4, x8 or x16 slots)

Insert the card into the open PCI Express slot and screw the bracket4.

to the rear of the case.

NOTE: If the computer case only accepts full proﬁle cards, then

remove the low proﬁle bracket on the card, by removing the screws

holding it to the card and replace with the supplied full sized bracket.

OPTIONAL:5. Plug in the SP4 ﬂoppy power connector from the

computer power supply to the card.

Place the cover back onto the computer.6.

Insert the power cable into the socket on the power supply.7.

Driver Installation

Windows 2000/XP/Vista, Mac OS X, Linux

No driver installation is required for these operating systems, as this

adapter card is natively supported, so the drivers are already installed.

Verifying Installation

Windows 2000/XP/Vista/7

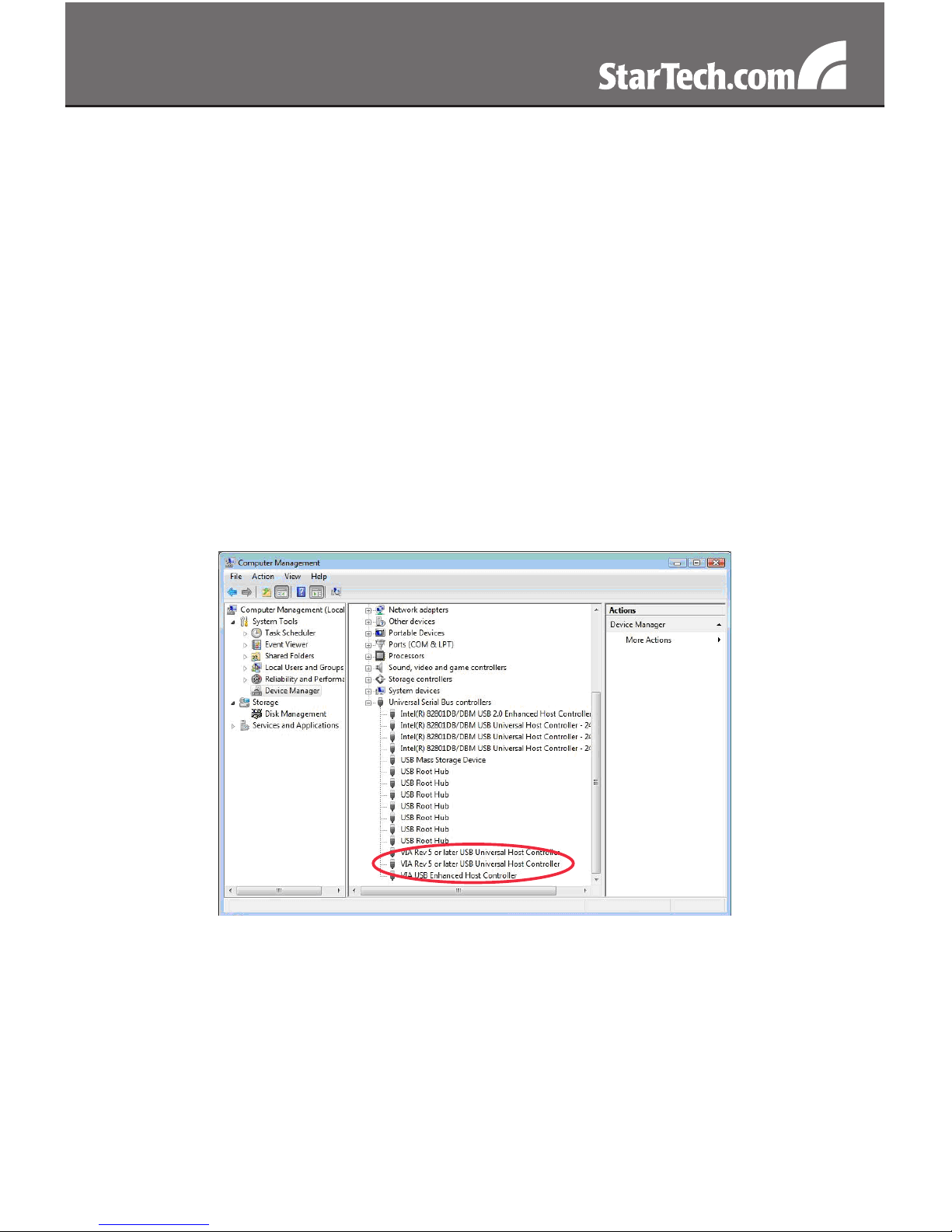

From the main desktop, right-click on “My Computer” (“Computer”

in Vista/7), then select Manage. In the new Computer Management

window, select Device Manager from the left window panel.

There should be new “VIA” devices listed under the “Universal Serial

Bus Controllers” category.

Specications

Bus Interface PCI Express rev 1.1,

x1 connector

USB Speciﬁcation EHCI rev. 0.95

UHCI rev. 1.1

Connectors

3 x USB type A (external)

1 x USB type A (internal)

1 x SP4 power (internal)

Chipset VIA VT6212L

Pericom PI7C9X110BNBE

Maximum Data Transfer Rate 480 Mbps

Compatible Operating

Systems

Windows 2000/XP/Vista/7

(32/64-bit), Mac OS X, Linux

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
