POEINJ2GI

Industrial 2 Port Gigabit PoE+ Injector

48V / 30W - Wall-Mountable

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation.This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

Changes or modications not expressly approved by StarTech.com could void the user’s authority

to operate the equipment.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................2

Packaging Contents ................................................................................................................................. 2

System Requirements.............................................................................................................................. 2

Product Overview ..................................................................................2

Terminal Block Power Connector ........................................................................................................ 3

LED Indicators............................................................................................................................................. 3

Pinout ............................................................................................................................................................ 4

Din Rail / Wall Bracket Installation....................................................................................................... 6

Hardware Installation .............................................................................................................................. 6

Installing the Ground Wire..................................................................................................................... 7

Specications..........................................................................................8

Technical Support ..................................................................................9

Warranty Information............................................................................9

Instruction Manual

Introduction

Packaging Contents

• 1 x 2 Port PoE Injector

• 1 x DIN Rail Bracket w/ Screws

• 2 x Wall Mount Brackets w/ Screws

• 1 x 4-Pin Terminal Block

• 2 x Dust Covers (RJ-45)

• 1 x Power Cable w/ Female DC Jack

• 1 x Instruction Manual

System Requirements

• RJ45 terminated Cat5 or higher Ethernet cabling

• 10/100/1000 Mbps compatible Ethernet network

• 50-57 V DC Power Supply

• (Optional) Grounding Wire

• (Optional) Phillips Head Screwdriver

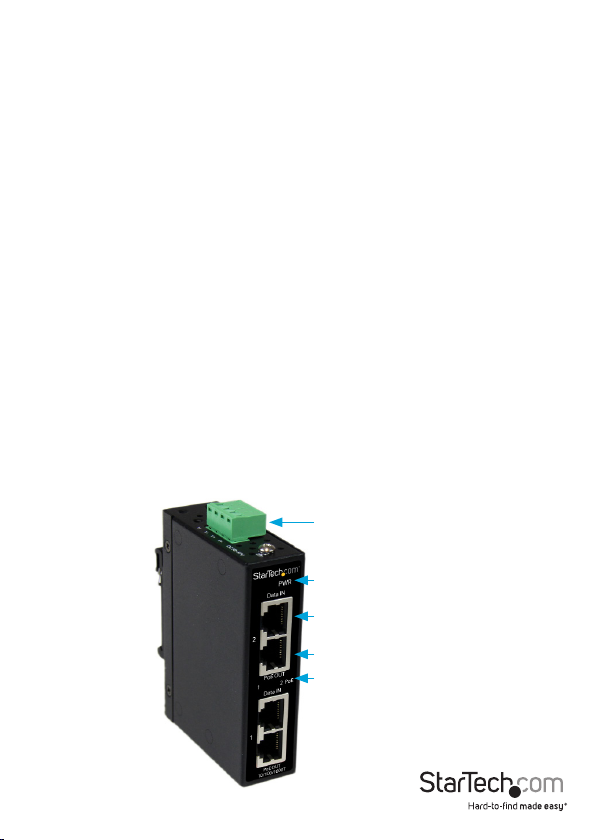

Gigabit Data Port

PoE LEDs

Power LED

Terminal Block

Gigabit PoE Port

Product Overview

Instruction Manual

Terminal Block Power Connector

PWR (Green) Solid: Power is connected and functioning

PoE LED x 2 (Blue)

Solid: PoE device detected

Flashing: Detecting PoE device

O: No PoE device detected

LED Indicators

Instruction Manual

Pinout

1000Base-T

RJ-45 Input (Data Only) RJ-45 Output (Data and Power)

Symbol Description Symbol Description

1BI_DA+ Data BI_DA+ BI_DA+ (Vdc+) Data BI_DA+ and

Feeding power (+)

2BI_DA- Data BI_DA- BI_DA- (Vdc+) Data BI_DA- and

Feeding power (+)

3BI_DB+ Data BI_DB+ BI_DB+ (Vdc-) Data BI_DB+ and

Feeding power (-)

4BI_DC+ Data BI_DC+ BI_DC+ Data BI_DC+

5BI_DC- Data BI_DC- BI_DC- Data BI_DC-

6BI_DB- Data BI_DB- BI_DB- (Vdc-) Data BI_DB- and

Feeding power (-)

7BI_DD+ Data BI_DD+ BI_DD+ Data BI_DD+

8BI_DD- Data BI_DD- BI_DD- Data BI_DD-

Instruction Manual

10/100Base-TX

RJ-45 Input (Data Only) RJ-45 Output (Data and Power)

Symbol Description Symbol Description

1Rx+ Data Receive Rx+ (Vdc+) Data Receive and

Feeding power (+)

2Rx- Data Receive Rx- (Vdc+) Data Receive and

Feeding power (+)

3Tx+ Data Transmit Tx+ (Vdc-) Data Transmit and

Feeding power (-)

4NC Not connected NC Not connected

5NC Not connected NC Not connected

6Tx- Data Transmit Tx- (Vdc-) Data Transmit and

Feeding power (-)

7NC Not connected NC Not connected

8NC Not connected NC Not connected

Note: pins 3 and 6 (-Vdc) should not be shorted to ground

Instruction Manual

Din Rail / Wall Bracket Installation

If you are mounting the POEINJ2GI product onto either a DIN Rail or to a wall, you will

rst need to attach the appropriate bracket(s) to the device as shown below.

Hardware Installation

1. Connect an Ethernet cable from the desired source network device (i.e. computer,

router, switch, etc.) to the “Data In”RJ45 connectors of the POEINJ2GI unit. These

can be connected to the same router/switch, or a dierent one depending on your

application.

2. Connect the terminal block power source to the POEINJ2GI unit.

3. Connect an RJ45 terminated Ethernet cable to the“PoE Out” connectors on the

POEINJ2GI unit. The other end of the cable will either connect directly to a PoE+ /

PoE-compliant device, or to a POE Splitter device to separate data and power.

Power Supply

POEINJ2GI

PoE Wireless

Access Point

Non-PoE

Ethernet Switch

PoE

DATA + POWER

DATA

POWER

Instruction Manual

Installing the Ground Wire

Note: Grounding is recommended in environments with high levels of

electromagnetic interference (EMI), or frequent electrical surges.

1. Using a Phillips Head Screwdriver (sold separately) remove the Grounding Bolt.

2. Attach the Grounding Wire to the shaft of the Grounding Bolt.

3. Insert the Grounding Bolt back into the Ground.

4. Tighten the Grounding Bolt, making sure not to over-tighten.

5. Attach the other end of the Grounding Wire (not connected to the PoE Injector) to a

proper earth ground connection.

Instruction Manual

Specications

Number of Ports 2

Industry Standards IEEE 802.3at PoE, IEEE 802.3af PoE

Regulatory Approvals

EMS: EN61000-4-2 (ESD), EN61000-4-3

(RS), EN61000-4-4 (EFT), EN61000-4-5

(Surge), EN61000-4-6 (CS), EN61000-4-8,

EN61000-4-11

Shock: IEC60068-2-27

Free Fall: IEC60068-2-32

Vibration: IEC60068-2-6 Safety: EN60950-1

Connector(s) 4 - RJ-45 Female

1 - Terminal Block (4 Wire) Female

Maximum Data Transfer Rate 1Gbps

Power Output 50V / 600mA, 30 Watts max. per port

Enclosure Type Steel

Power Adapter Terminal Block

Input Voltage 50 ~ 57 DC

Operating Temperature -40°C to 70°C (-40°F to 158°F)

Storage Temperature -40°C to 80°C (-40°F to 176°F)

Humidity 5~95% RH (Non-Condensing)

Dimensions 95 x 70 x 26 mm

Weight 212g
