2 Port DVI USB KVM Switch with Audio and

USB 2.0 Hub

*actual product may vary from photos

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by

turning the equipment o and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not

represent an endorsement of a product or service by StarTech.com, or an endorsement of the

product(s) to which this manual applies by the third-party company in question. Regardless

of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby

acknowledges that all trademarks, registered trademarks, service marks, and other protected

names and/or symbols contained in this manual and related documents are the property of

their respective holders.

Instruction Manual

Table of Contents

Introduction............................................................................................1

Packaging Contents ................................................................................................................................. 1

System Requirements.............................................................................................................................. 1

Installation ..............................................................................................2

Installing the KVM Switch ...................................................................................................................... 2

Connecting Computers to the KVM Switch..................................................................................... 3

Using the KVM Switch ............................................................................................................................. 4

Specications..........................................................................................7

Technical Support ..................................................................................8

Warranty Information............................................................................8

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com USB and DVI KVM switch. This product allows

you to switch between 2 or 4 computers (depending on the model purchased)

including the audio signal. Designed for today’s cutting edge systems, it features

native support for USB input devices and DVI video. You can save space and improve

productivity by sharing one console among multiple computers without sacricing the

quality of your digital video signal by using converters and adapters.

Packaging Contents

• USB + DVI KVM Switch (1)

• Power Adapter (1)

• Instruction Manual (1)

System Requirements

• Console: USB keyboard (1), USB mouse (1), monitor with DVI-I or DVI-D connectors

(1), speakers (optional), microphone (optional)

• Controlled systems: USB support, DVI-I or DVI-D video out, speaker out (optional),

microphone out (optional)

Additional cables required (not included): Each controlled computer will require a USB

Type A to Type B cable (1), DVI-I or DVI-D male-to-male switchbox cable (1), optional

3.5 mm phono male-to-male sound cable for speakers and microphone (2). See page 5

for StarTech.com part numbers for all required cables.

Instruction Manual

Installation

This section details how to connect your computers to the KVM switch. For best results,

ensure that all the computers to be controlled are located as close as possible to the

KVM switch and console peripherals (monitor, keyboard, mouse). This will reduce the

length of cabling required and reduces the chance of interference.

Installing the KVM Switch

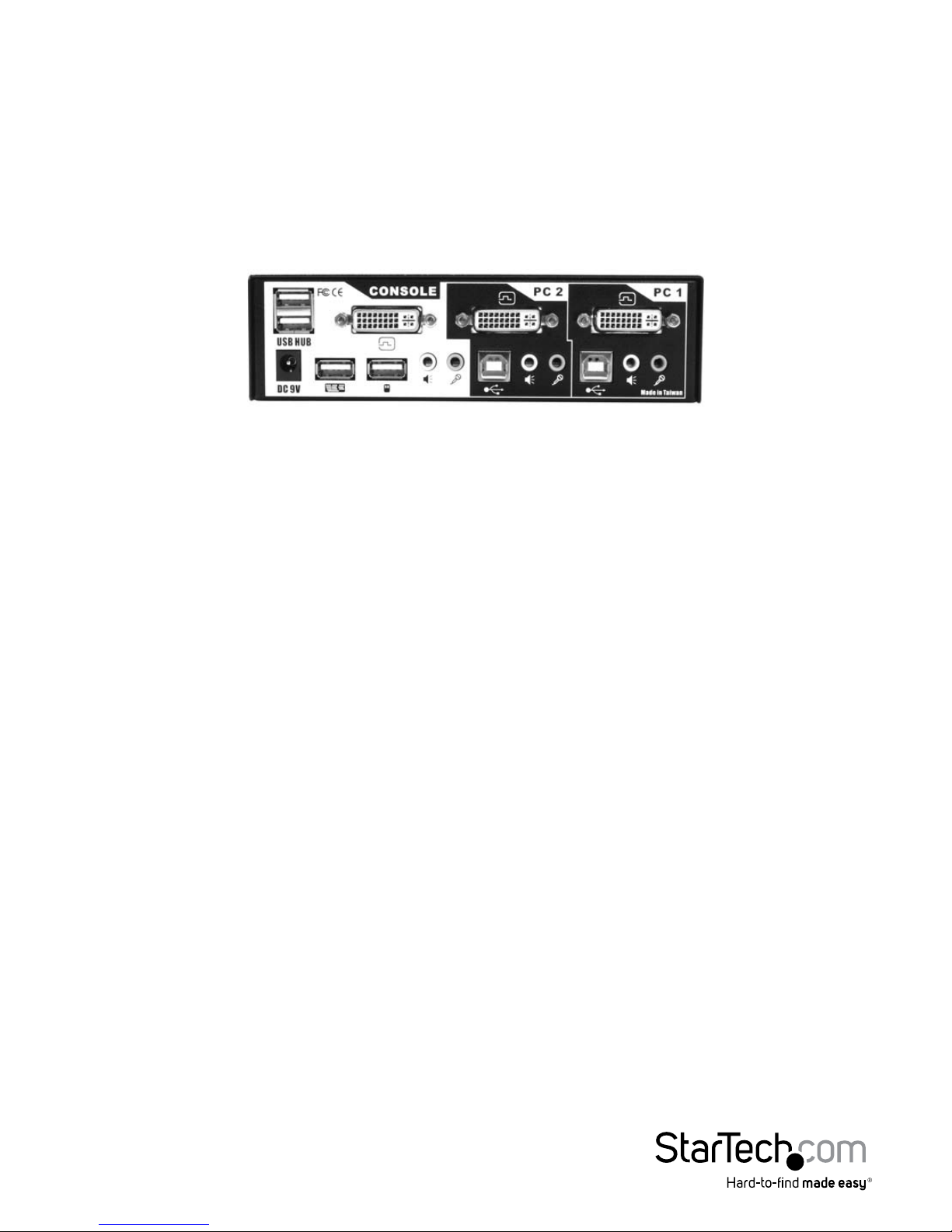

1. Place the KVM switch in close proximity to the keyboard, mouse, and monitor you

wish to use as the console controls.

2. Connect the monitor to the DVI port under CONSOLE.

3. Connect a USB keyboard to the Type A connector under CONSOLE, marked with a

keyboard icon.

4. Connect a USB mouse to the Type A connector under CONSOLE, marked with a

mouse icon.

5. Connect speakers to the green 3.5mm phono connector under CONSOLE (optional).

6. Connect a microphone to the pink 3.5mm phono connector under CONSOLE (optional).

7. Connect up to 2 other USB devices to the ports marked USB HUB (optional).

8. Plug the power adapter into a wall outlet or other suitable power source. Connect

the opposite end to the port marked DC 9V on the KVM switch. (This step is

optional, and is required only if you will be using the KVM switch as a USB hub for

otherdevices as described in step 7. If you are not connecting devices to the USB

HUB ports, the KVM switch will function as a self-powered device and does not

require the power adapter.)

Instruction Manual

Connecting Computers to the KVM Switch

This section describes how to connect a computer you wish to control to the KVM switch.

Repeat these steps for each computer you wish to connect.

1. Remove any existing keyboards, mice, monitors, speakers, and microphones from

the computer.

2. Using a DVI-I or DVI-D male-to-male switchbox cable, connect one end to the video

out connector on the computer. (This will be the same connector from which you

disconnected the monitor in step 1, if applicable.) Connect the opposite end to the

DVI connector on the KVM switch that corresponds to the computer number you

wish to use for that system (marked PC 1 ~ PC 2 or PC 1 ~ PC 4 as applicable).

3. Using a USB Type A to Type B cable, connect the “A” (at) end to an available

USB port on the computer. Connect the opposite end to the “B” (D-shaped) USB

connector on the KVM switch that corresponds to the computer number you wishto

use for that system (directly under the monitor connection in step 2). This will

provide both keyboard and mouse access to that system.

4. Optional:You can use 3.5mm male-to-male phono speaker cable to connect the

speaker and/or microphone outputs on the computer to the corresponding

connectors on the KVM switch, located under the monitor connector that

corresponds to that computer on the KVM. Most computers have sound and

microphone connectors that are color-coded to the standard used on the KVM

switch: green for speakers, pink for microphone. See the documentation for the

computer for assistance, if needed.

Instruction Manual

Using the KVM Switch

Green LED (solid) = Active Computer

Green LED (ashing) = No Powered Computer on that Port

Red LED (solid) = Active Control of USB Hub

Button = Switch control to that port

The KVM switch oers two convenient ways to switch console control of the attached

computers. The rst is by using the buttons on the front panel to select which

computer is active. The second is using keyboard hotkey combinations, which also

allow you to adjust several conguration options on the KVM. The reference chart on

the next page describes the hotkey commands and their options in detail.

Note: If your computer is congured to use power-saving features (i.e. auto-standby

after inactivity), you may experience intermittent diculty using the KVM switch.

For optimal performance we recommend conguring your computer’s BIOS setup

software to enable or disable (as applicable) the following options:

• Enable “USB Legacy Support”

• Enable “USB Keyboard and Mouse to bring computer out of standby”

• Disable “Power Saving Mode” for the USB hub

The names and location of these and similar options may vary from computer to

computer. Consult your manufacturer’s documentation for information on accessing

and modifying the BIOS setup if necessary.

Instruction Manual

Keyboard Hotkey Command Reference Chart

Command

Name Hotkey Sequence Description

Select active

computer [ScrLk]+[ScrLk]+[x]

Switches access to the computer connected to the

corresponding port number on the KVM. ([x]= a

number on the keyboard)

Bind computer

and Audio/Mic

control (default)

[ScrLk]+[ScrLk]+[Q]

When either the select active computer or select

audio/mic output control commands are executed,

both functions are switched to the selected port.

Unbind

computer and

Audio/Mic

output control

[ScrLk]+[ScrLk]+[W]

The computer control and USB hub control can be

executed separately; KVM control and Audio/Mic

output control control can be assigned to dierent

ports at one time.

Select next/

previous port [ScrLk]+[ScrLk]+[arrow] Selects the next (up arrow key) or previous (down

arrow key) numbered port for control.

Select previous

port [ScrLk]+[ScrLk]+[BkSp] Selects the most recent previously active port.

Beep sound

on/o [ScrLk]+[ScrLk]+[B] Enables/disables audible responses from the KVM.

Dene new

hotkey sequence [ScrLk]+[ScrLk]+[H]+[y] Change the standard [ScrLk] hotkey to a new value

(see below).

Autoscan [ScrLk]+[ScrLk]+[S] Automatically switch active ports in sequence

every 10 seconds. (Press any key to cancel.)

Autoscan with

programmable

delay

[ScrLk]+[ScrLk]+[S]+[z] Autoscan with a delay other than 10 seconds (see

below). Press any key to cancel.

Instruction Manual

Binding/Unbinding control: By default the switch will automatically switch audio

control to the KVM port you select to control (bound). If you choose to“unbind”

control, you can assign control of the audio to a port other than the active computer

using the commands above.

Valid hotkey sequences: If you enter the“Dene new hotkey sequence” command

([ScrLk]+[ScrLk]+[H]+[y] the value of [y] replaces the [ScrLk]+[ScrLk] command with

one of the following:

[CapsLk] = [CapsLk]+[CapsLk]

[Esc] = [Esc]+[Esc] [F12] = [F12]+[F12]

[NumLk] = [NumLk]+[NumLk]

[ScrLk] = [ScrLk]+[ScrLk] (if another key sequence has been enabled)

Programmable Autoscan delay time: [z] can be any one of the following values:

1=10 sec., 2=20 sec. through 9=90 sec., 0=100 sec.

Note: Apple computers will need to be programmed using an IBM-compatible

keyboard that has a Scroll Lock key.

Instruction Manual

Specications

Number of Ports 2

Console Connectors

1 x DVI-I

2 x USB type A

1 x 3.5mm mic jack

1 x 3.5mm speaker jack

Computer Connectors

(all ports)

2 x DVI-I

2 x USB type B

Video Resolution 1920x1200 (digital)

2048x1536 (analog)

Power 5VDC, 2A

Dimensions 154.0mm (6.06”) x 65.5mm (2.58”) x

27.0mm (1.06”)

Certications ROHS, CE, WEEE, FCC

Altri manuali per SV231UADVI

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali StarTech.com Interruttore

StarTech.com

StarTech.com SV431DVIUAGB Manuale utente

StarTech.com

StarTech.com ST122VGA Manuale del sistema

StarTech.com

StarTech.com VS421CPNTA Manuale utente

StarTech.com

StarTech.com StarView SV231USB Manuale utente

StarTech.com

StarTech.com IES1G52UP12V Manuale utente

StarTech.com

StarTech.com SV231DPU34K Manuale utente

StarTech.com

StarTech.com 5G4AINDNP-USB-A-HUB Manuale utente

StarTech.com

StarTech.com SV231DPU34K Manuale utente

StarTech.com

StarTech.com ST222MX Manuale utente

StarTech.com

StarTech.com 8STMSTMDP122DP Manuale utente

StarTech.com

StarTech.com P2DD46A22-KVM-SWITCH Manuale utente

StarTech.com

StarTech.com BOX4HDECP Manuale utente

StarTech.com

StarTech.com ST4200MINI Manuale utente

StarTech.com

StarTech.com VS221HD2VGA Manuale utente

StarTech.com

StarTech.com SV1115IPEXT Manuale utente

StarTech.com

StarTech.com HBS304A24A Manuale utente

StarTech.com

StarTech.com STARVIEW SV1631DUSB Manuale utente

StarTech.com

StarTech.com SV831HD Manuale utente

StarTech.com

StarTech.com Starview SV231USBANGB Manuale utente

StarTech.com

StarTech.com DS254 Manuale del sistema

StarTech.com

StarTech.com SV215MICDVIA Manuale utente

StarTech.com

StarTech.com 5G7AIBS-USB-HUB-NA Manuale utente

StarTech.com

StarTech.com VS424HDPIP Manuale utente

StarTech.com

StarTech.com RACKCONS17HD Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
