STEINEL Professional MD-8 ECO COM1 Manuale utente

MD-8 ECO COM1

PD-8 ECO COM1

PD-24 ECO COM1

Multisensor Air BT IPD

STL-_BDAL_Multisensor TP IP_148x210mm 2.indd 1

Multisensor True Presence BT IPD

STL-_BDAL_Multisensor TP IP_148x210mm 2.indd 1

MD IR 4360-8 COM1

MD IR 4360-24 COM1

PD IR 4360-8 COM1

PD IR 4360-24 COM1

MD-24 ECO COM1

Contents

1. About this document 39

2. General safety precautions 39

3. System description 40

4. Electrical connection 51

5. Installation 55

6. Function 63

7. Maintenance and care 67

8. Disposal 67

9. Manufacturer's warranty 68

10. Technical speciﬁcations 71

11. Troubleshooting 72

– 39 – Contents

1. About this document

– Under copyright. Reproduction either in whole or in part

onlywith our consent.

– Subject to change in the interest of technical progress.

Hazard warning!

Warning of hazards from electricity!

Warning of hazards from water!

2. General safety precautions

Failure to observe these operating

instructions presents hazards!

These instructions contain important information on the

safe useof this product. Particular attention is drawn

topotential hazards. Failure to observe this information

may lead to death or serious injuries.

• Read instructions carefully.

• Follow safety advice.

• Keep instructions within easy reach.

– Workingwith electrical current may produce hazardous

situations. Touching live parts can result in electrical

shock, burns or death.

– Work on mains voltage must only be performed by

qualiﬁed, skilled personnel.

– National wiring regulations and electrical operating

conditions must be observed (e.g. D: VDE 0100, A:

ÖVE-ÖNORM E8001-1, CH:SEV 1000).

– 40 – Contents

– Only use genuine replacement parts.

– Repairs must only be carried out by companies qualiﬁed

to do so.

3. System description

Proper use

– Sensor.

– For ceiling mounting indoors.

– AP version for surface-mounted installation.

– UP version for concealed installation.

– DE version for recessed ceiling mounting.

Sensor variables

The sensor can detect the following sensor variables:

– Movement (MD & PD).

– Human presence (PD).

– Light level (MD & PD).

Cable length between sensor and button < 50 m.

Operating principle

The human presence detector and motion detector are

equipped with pyro sensors. The pyro sensors detect

the invisible heat emitted by moving objects (e.g. people,

animals etc.).

The human presence detector features an additional pre-

sence detection capability that provides greater sensitivity

for detecting smaller-type movements too. The heat detec-

ted in this way is converted electronically into a signal that

triggers the relay. Heat is not detected through obstacles

(such as walls or panes of glass).

Interface

COM1: relay 1

The COM1 relay switches loads. Signals are processed

and sent out.

– 41 – Contents

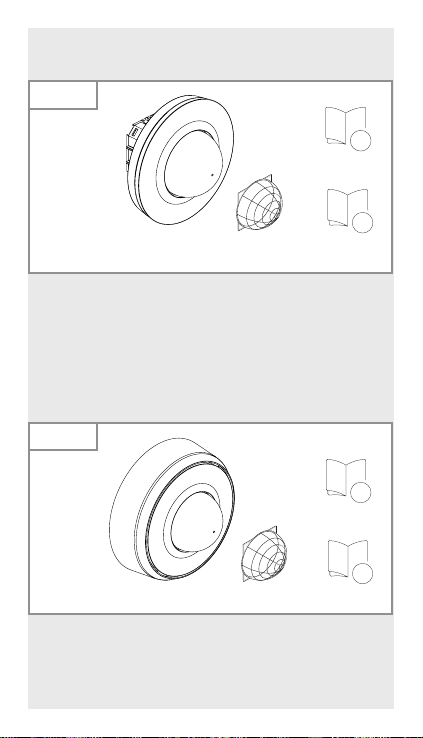

Package contents, MD / PD-8 ECO COM1,

concealedinstallation

3.1

1× 1×

1×

– 1 Sensor

– 1 shroud

– 1 safety data sheet (A)

– 1 Quick start guide (B)

Package contents, MD / PD-8 ECO COM1,

surface-mountedinstallation

3.2

1× 1×

1×

– 1 Sensor

– 1 shroud

– 1 safety data sheet (A)

– 1 Quick start guide (B)

– 42 – Contents

Product dimensions, MD / PD-8 ECO COM1,

concealed installation

3.3

109mm

70mm

Product dimensions, MD / PD-8 ECO COM1,

surface-mounted installation

3.4

109mm

65mm

– 43 – Contents

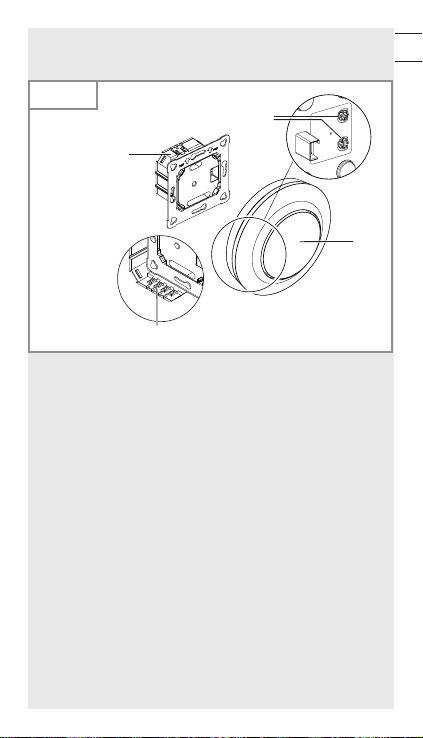

Product components, MD / PD-8 ECO COM1,

concealed installation

3.5

A Load module

B Potentiometer pin

C Connecting terminal

D Sensor module

– 44 – Contents

Product components, MD / PD-8 ECO COM1,

surface-mounted installation

3.6

A Surface-mounting adapter

B Sensor module

C Connecting terminal

D Cover ring

– 45 – Contents

Detection zone, MD-8 ECO COM1

3.7

2.5 m

8.5 m

Detection zone, PD-8 ECO COM1

3.8

2.5 m

8.5 m

6 m

– 46 – Contents

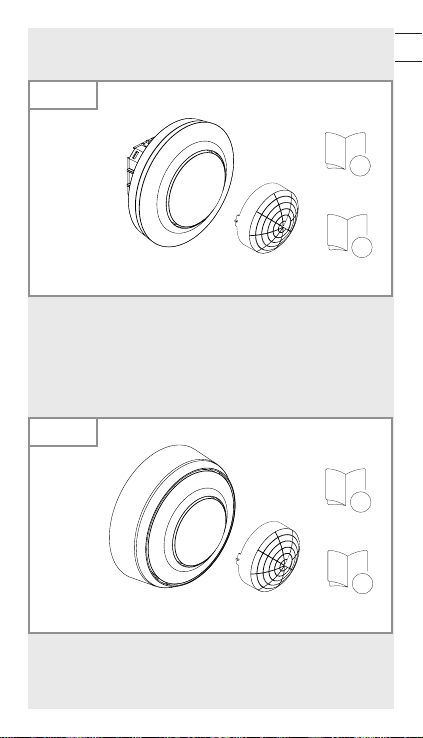

Package contents, MD / PD-24 ECO COM1,

concealed installation

3.9

1× 1×

1×

– 1 Sensor

– 1 shroud

– 1 safety data sheet (A)

– 1 Quick start guide (B)

Package contents, MD / PD-24 ECO COM1,

surface-mounted installation

3.10

1× 1×

1×

– 1 Sensor

– 1 shroud

– 1 safety data sheet (A)

– 1 Quick start guide (B)
