Strong epic LEAP-S1 Manuale utente
User Manual
4K Ultra HD Box
LEAP-S1
Picture similar
13 Apr 2021 17:02
Supplied by STRONG Austria
Represented by STRONG
Ges.m.b.H.
Teinfaltstraße 8/4.Stock
A-1010 Vienna, Austria
Email: [email protected]
13 Apr 2021 17:31
TABLE OF CONTENTS
1.0 INTRODUCTION 2
1.1 Safety Instructions 2
1.2 Equipment Set-up 3
1.3 Package content 4
1.4 Usage of external USB devices 4
2.0TV BOX PANELS 4
2.1 Front Panel 4
2.2 Side Panel 5
2.3 Rear Panel 5
2.4 Remote control 6
2.5 Installing the batteries 6
3.0 CONNECTION GUIDE 7
4.0 SETTING UP YOUR DEVICE 8
5.0 SETTINGS 10
6.0 DOWNLOADING APPS 12
7.0 GOOGLE CAST 13
8.0 GOOGLE ASSISTANT 13
9.0 SIMPLE TROUBLESHOOTING 15
10.0 TECHNICAL SPECIFICATIONS 16
SIMPLIFIED EU DECLARATION OF CONFORMITY
Hereby, STRONG declares that the device LEAP-S1 is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: https://www.strong.tv/en/doc
Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may
change. Google, Google Play, YouTube, Android TV and other marks are trademarks of Google LLC.. Wi-Fi is a registered trademark of Wi-Fi Alliance®.
Skype is a trade mark of Skype and STRONG is not affiliated, sponsored, authorised or otherwise associated by/with the Skype group of companies.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing
Administrator, Inc in the United States and other countries. Manufactured under licence from Dolby Laboratories. Dolby Audio and the double-D symbol
are registered trademarks of Dolby Laboratories. All other product names are trademarks or registered trademarks of their respective owners.
© STRONG 2021. All rights reserved.
1
1.0 INTRODUCTION
Thank you for choosing the 4K Ultra HD Android TV Box supplied by STRONG. It has been produced
with the latest new technology and offers extensive entertainment and great versatility. We wish you
many hours of new great experiences exploring the Android world!
1.1 Safety Instructions
Read all of the instructions before operating the device. Keep these instructions well for later use.
Only use attachments/accessories specified or provided by the manufacturer (such as the
exclusive supply adapter, battery etc.).
Please refer to the information on the product enclosure for electrical and safety information
before installing or operating the apparatus.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
The ventilation should not be impeded by covering the ventilation openings with items, such as
newspaper, table-cloths, curtains, etc.
The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
This mark indicates a risk of electric shock.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with
the installation instructions.
Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent
types.
The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as
sunshine, fire or the like.
Excessive sound pressure from earphones and headphones can cause hearing loss.
Listening to music at high volume levels and for extended durations can damage one’s hearing.
In order to reduce the risk of damage to hearing, one should lower the volume to a safe,
comfortable level, and reduce the amount of time listening at high levels.
The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable.
When not in use and during movement, please take care of the power cord set, e.g. tie up the
power cord set with cable tie or something like that. It shall be free from sharp edges or similar
which can cause abrasion of the power cord set. When put into use again, please make sure the
power cord is not damaged. The absence of a light indication on the apparatus does not mean
that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains
plug must be pulled out.
Attention should be drawn to environmental aspects of battery disposal.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
To prevent the spread of fire, keep candles or other open flames away from this product at
all times.
Equipment with this symbol is a Class II or double insulated electrical appliance. It has been
designed in such a way that it does not require a safety connection to electrical earth.
Precautions
Never try to open the device. It is dangerous to touch the inside of the device due to high voltages
and possible electrical hazards. Opening the device will void the warranty of the product. Refer all
maintenance or servicing to suitably qualified personnel.
2
When you are connecting cables, be sure that the device is disconnected from the mains
supply voltage. Wait a few seconds after switching off the device before you move the device or
disconnect any equipment.
It is a necessity that you only use an approved extension and compatible wiring that is suitable for the
electrical power consumption of the installed equipment. Please ensure that the electrical power supply
corresponds with the voltage on the electrical identification plate at the back of the device.
Risk of explosion if the battery is replaced by an incorrect type.
Disposing of a battery into the fire or a hot oven, or mechanically crushing or cutting a battery can result
in an explosion.
Leaving a battery in an extremely high temperature surrounding environment can result in an
explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of
flammable liquid or gas.
Operating Environment
Do not install this equipment in a confined space such as a bookcase or similar unit.
Do not use the set near damp, and cold areas, protect the set from overheating.
Keep away from direct sunlight.
Do not use the set near dust place.
Do not place candles near the opening area, to avoid flammable foreign material from entering
the device.
WEEE Directive
Correct Disposal of this product. This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To prevent possible harm to
the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
Storage
Your device has been carefully checked and packed before shipping. When unpacking it, make sure
that all the parts are included and keep the packaging away from children. We recommend that you
keep the carton during the warranty period, to keep your device perfectly protected in the event of
repair or warranty.
1.2 Equipment Set-up
Please follow the instructions below:
Use a high quality, well shielded HDMI cable to watch also in highest screen resolutions.
This user manual provides complete instructions for installing and using this product. The symbols
will serve as follows:
WARNING: Indicates warning information.
TIPS: Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the product.
(Bold characters)
Move to Represents a menu item within a window.
(Italic characters)
3
1.3 Package content
Android TV Box
Voice Enabled Remote
Power Adapter 12 V / 1 A
HDMI Cable
2x AAA Batteries
Installation instructions
WARNING: The batteries should not be recharged, disassembled, electrically short-
circuited, be mixed or used with other types of batteries. If rechargeable
accumulators instead of batteries are going to be used (e.g. NiMH), we
recommend using types with low self-discharge to ensure long time
operation of your remote control.
1.4 Usage of external USB devices
It is recommended to use USB 2.0 storage devices or higher. If your device is not compatible to USB
2.0 specifications, playback and other functions of the product might not work properly.
STRONG cannot guarantee compatibility with all types of USB devices such as web cams,
keyboards, mouse devices, storage devices.
STRONG cannot guarantee perfect operation when a HDD and a web cam are used at the same time.
If you are going to use external USB HDDs (Hard Disk Drives), please consider that power
specifications may exceed the supported output of your box (max. 5 V/500 mA). If so, please
connect your USB HDD to an external power adapter.
It is advised not to store important information on USB storage devices used with the box. Always
make backups of data on your USB storage device before using it with this box. STRONG will not
take responsibility for any loss of information or circumstances caused by loss of information.
2.0 TV BOX PANELS
2.1 Front Panel
Fig. 1
1. Remote Control Commands Indicator
If blinking when using the Remote Control: pair the Bluetooth Remote Control to have all Google
Assistant functionalities working. See 5.0 Settings/Bluetooth pairing
4
2. Internet Connection Indicator
Green : Connected
Red : Not Connected
3. On/O Indicator
Green : Box On
Red : Box on Standby

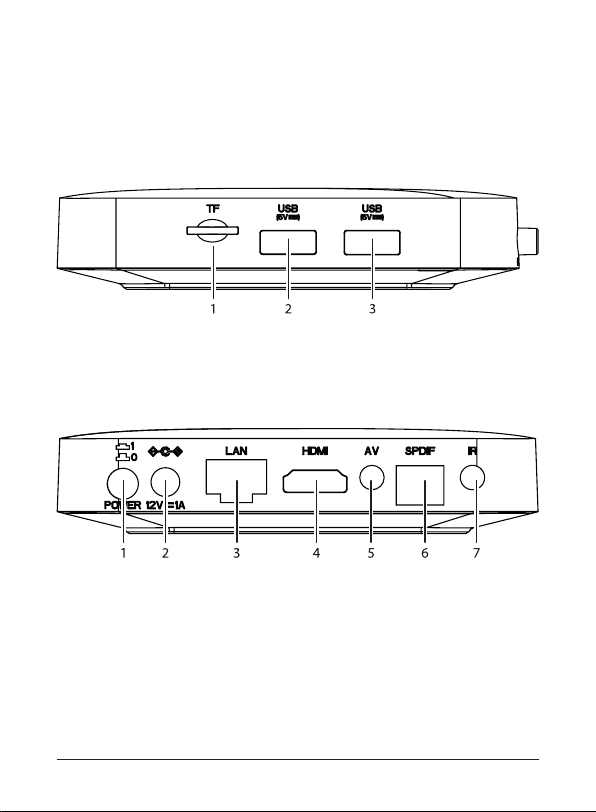

2.2 Side Panel
Fig. 2
1. TF card slot
2. USB 3.0 Port
3. USB 2.0 Port
2.3 Rear Panel
Fig. 3
1. Power On/Off Switch
2. 12 V Adapter
3. Ethernet
4. TV (HDMI)
5. Audio/Video Output
6. S/PDIF (optical)
7. Infra Red eye (optional)
5

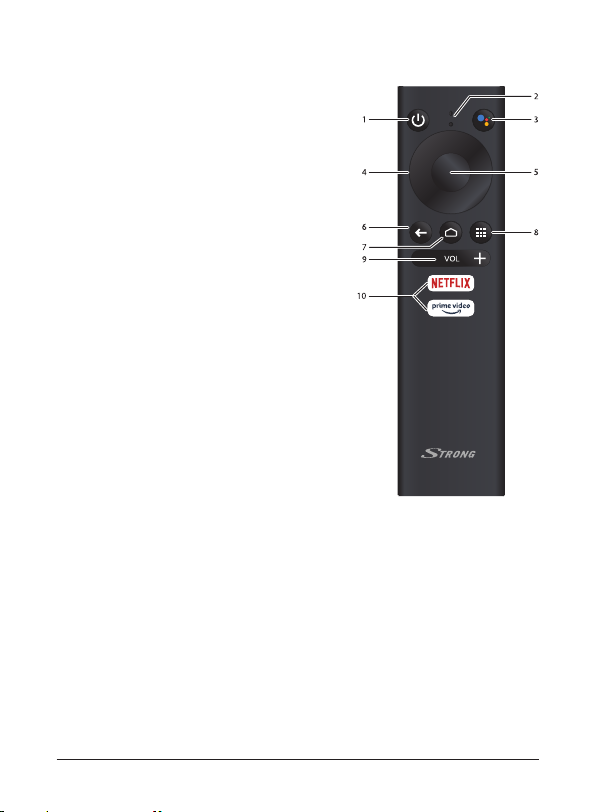

2.4 Remote control
Fig. 4
1. Power ON/OFF
2. Microphone
3. Google Assistant
4. p/q/t/u
5. ENTER
6. BACK
7. HOME
8. ALL APPS
9. Volume
10. Netflix, Prime Video
2.5 Installing the batteries
Fig. 5
Open the cover on the remote control and insert 2x AAA batteries into the compartment.
The correct position of batteries polar diagram is shown inside the batteries compartment.
1. Open the cover. 2. Insert the batteries. 3. Close the lid.
WARNING: The batteries should not be recharged, disassembled, electrically short-
circuited, be mixed or used with other types of batteries.
6

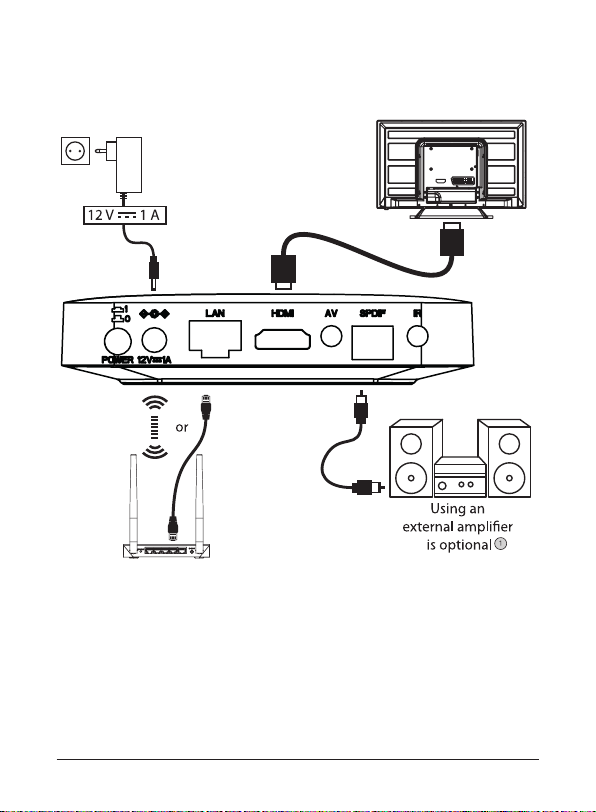

3.0 CONNECTION GUIDE
Refer to the diagram below for connecting your Android TV Box to power, network and other devices.
(Note: Before getting started, please turn off all devices to be connected.)
Fig. 6
NOTE: The LEAP-S1 box also supports Wi-Fi. To connect, go to Settings ->
Network.
1. Connect the LEAP-S1 box to your television via the HDMI Cable.
2. Using an Ethernet Cable, connect the LAN Port of the TV Box to the LAN Port of your router or
home broadband network.
3. Connect the TV Box to power using the power adapter provided. You can then power on your
device and begin.
NOTE: Before turning on your device, please switch the signal input of the TV to
the correct source
7
4.0 SETTING UP YOUR DEVICE
You may turn on your device after properly connecting all hardware.
To be able to use Google Assistant on your remote, you must first pair your Bluetooth Remote to your
TV Box. Follow the pairing instruction on the screen.
Step 1: Language
Select your preferred language on the Welcome Page.
Step 2: Set up with Android device
Choose whether to set up your TV box with another Android / computer device or skip this step. If
you choose Continue, please follow the guide to finish the Google Quick Setup.
Step 3: Wi-Fi
Connect to your Wi-Fi Network. Skip this step if already connected via Ethernet.
Step 4: Google Account
Sign in with your Google Account.
8
