Sunricher SR-SBP2801K4-CCT-E Manuale utente

RF+Bluetooth CCT Remote Controller

70200029

Function introduction

Important: Read All Instructions Prior to Installation

CW button, click to get 100%

cool white+0% warm white,

press and hold to increase

cool white and decrease warm

white.

WW button, click to get 100%

warm white+0% cool white,

press and hold to increase

warm white and decrease cool

white.

Click to turn on,

Press and hold down to

increase light intensity

Click to turn off,

Press and hold down to

decrease light intensity

Front side

10.10 mm

86mm

The remote control can be fixed on the wall with 3M glue or screw.

With Glass Frame

Product Data

Protocol

Power Supply

Transmission Frequency

Transmission Range (free field)

Protection Type

Dimming Range

Dimensions

RF+Bluetooth

3VDC(1xCR2430 battery)

2.4GHz

30m

IP20

0.1%-100%

80.5x80.5x14.7mm / 86x86x14mm

• CCT wall remote based on RF+Bluetooth Mesh

• Battery powered, ultra low power consumption

• Easy & quick pairing to the RF+Bluetooth receivers by simply pushing the buttons

• Enables to control 1 zone of receivers

• Mesh network for further control distance, receivers can transmit signal to each other

• 2.4 GHz global operation

• The controlled receiver status can be quickly synchronized to the smart APP

• Transmission range between every two neighbor devices up to 30m

• Each receiver can be paired to max. 8 remote controls

• Enables to control universal CCT RF+Bluetooth devices

• Standard size, compatible with existing EU size frame

Back side

With Plastic Frame

The remote control can be fixed on the wall with 3M glue or screw.

80.5 mm

14.7 mm

• DO NOT expose the device to moisture.

Safety & Warnings

Pair with RF+Bluetooth receiver

Step 3:Click any of the 4 buttons on the remote, e.g. button .

LED lights connected with the receiver flicker once means the receiver is paired

to the remote successfully.

Note: one receiver can be paired with max 8 remote controls.

Step 1:Do wiring the RF+Bluetooth receiver according to wiring diagram(please refer

to the instruction of RF receiver that you would like to pair with)

Prog.

RF+Bluetooth LED Receiver

The key part of this controller is a universal, extremely rotary standard switch element that can be integrated in

numerous frames by different manufactures as below list:

BEKER S1, B1, B3, B7 glass

GIRA Standard55, E2, Event, Esprit

JUNG A500, Aplus

MERTEN M-smart, M-Arc, M-Plan

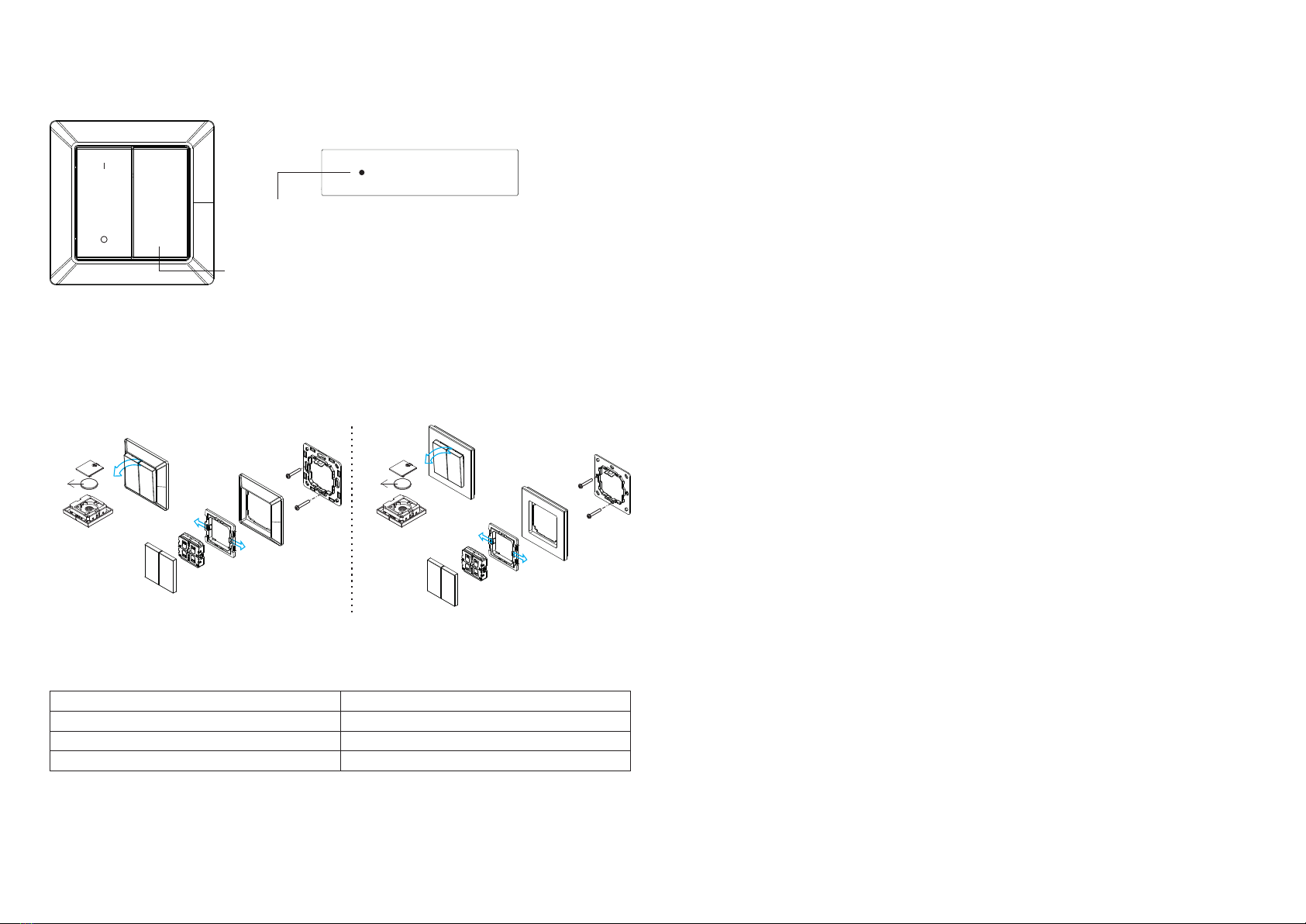

Installation

With Plastic Frame With Glass Frame

CR2430CR2430

Step 2:Click the “Prog. Key” or “Reset” button on RF+Bluetooth receiver (or reset

power of the receiver 3 times continuously if the button is not accessible) to set it into

pairing to RF remote status
