SCOPE
THIS DOCUMENT DESCRIBES HOW TO USE SIMCOM EVB AND TE BOARDS TO DO TEST; USER
CAN GET USEFUL INFOABOUT SIM7090G QUICKLY THROUGH THIS DOCUMENT.
THIS DOCUMENT IS SUBJECTTO CHANGE WITHOUT NOTICEATANY TIME.
SIM7090G EVB Kit User Guide V1.00
www.simcom.com
- 6 -
1. SIM7090G-EVB Overview
Figure 1: SIM7090G-EVB TOP view
Figure 2: SIM7090G-EVB BOTTOM view
SIM7090G EVB Kit User Guide V1.00
www.simcom.com
- 7 -
A: Micro USB Connector
B: UART Port jack
C: PWRKEY
D: Power switch
E: MODULE
F: Handset jack
G: GNSS ANT Interface
H: LTE ANT Interface
P: POWER LED indicator
T: STATUS LED indicator
N: NETLIGHT LED indicator
S：SIM Card holder
SIM7090G EVB Kit User Guide V1.00
www.simcom.com
- 8 -
2. EVB Accessory

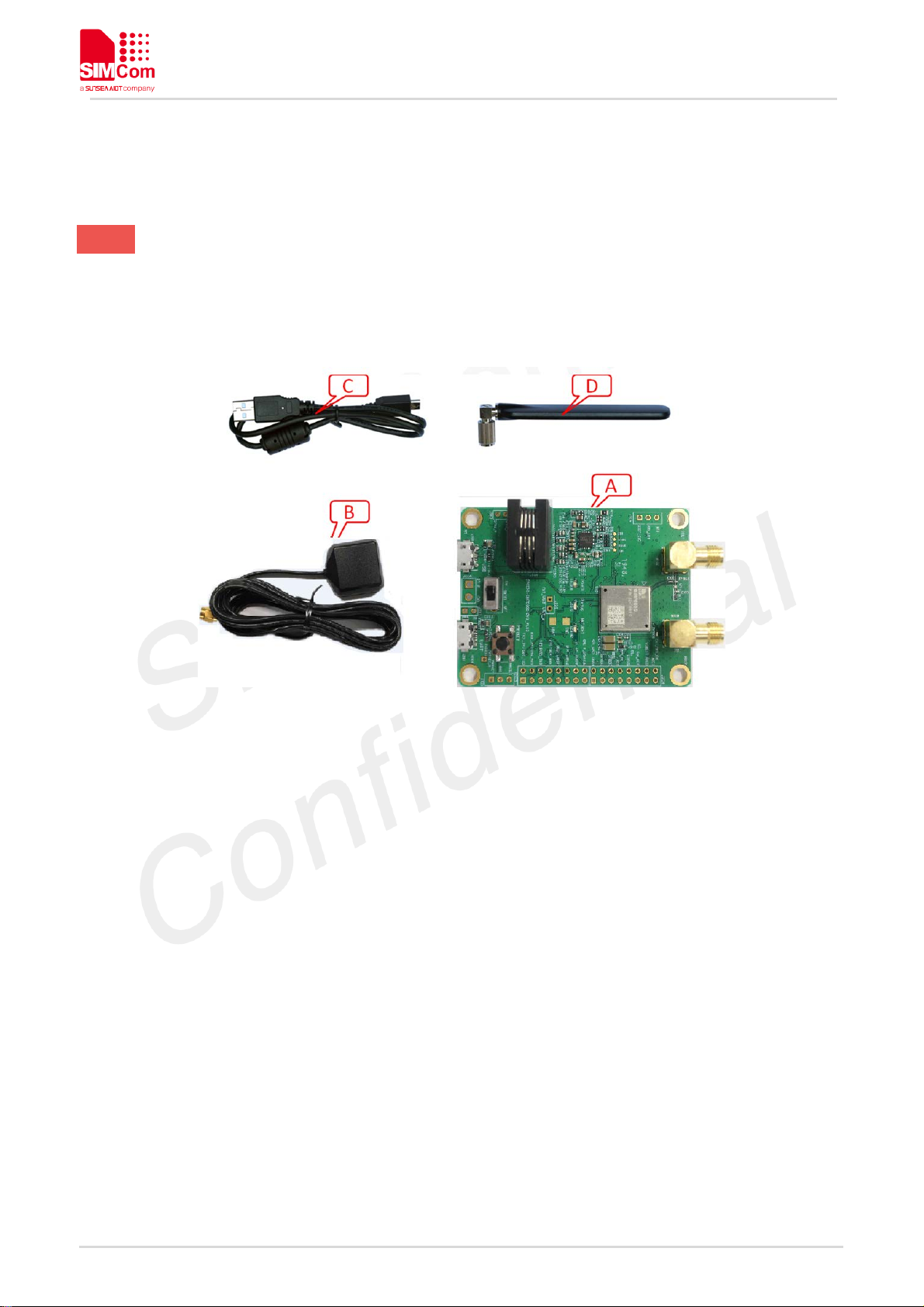

Figure 3: EVB Accessory
A: SIM7090G-EVB
B: GNSS antenna
C: USB Cable
D: LTE antenna
SIM7090G EVB Kit User Guide V1.00
www.simcom.com
- 9 -
3. Accessory Interface
3.1 Power Interface
Both USB interface (A) and UART Port interface (B) provide power supply for EVB.
Pin Signal I/O Description
A and B USB power Input I 5V/0.5A DC Source Input
3.2 Audio Interface
Figure 4:Audio Interface
