SAS 836TQ Backplane

USER'S GUIDE

SAS 836TQ

1-2

SAS836TQ Backplane User’s Guide

User's Guide Revision: Rev. 1.0

Release Date: 07/31/2006

Table of Contents

Safety Information and Technical Speciﬁcations ..........................1-3

1. Safety Guidelines ...................................................................................... 1-3

2. Introduction to the SAS836TQ Backplane ........................................... 1-4

3. Backplane Connectors and Jumpers ...................................................... 1-5

A. Front Connectors ................................................................................ 1-8

A-1. Front Connector Locations .............................................................. 1-5

A-2. Front Panel Connector Descriptions ............................................... 1-5

A-3. Front Panel Connector Pin Deﬁnitions ............................................ 1-6

B. Front Jumpers ..................................................................................... 1-8

B-1. Front Jumper Locations .................................................................. 1-8

B-2. Front Jumper Settings ..................................................................... 1-8

B-3. Front Panel LED Locations ............................................................. 1-9

B-4. Front Panel LED Descriptions: SES-2 LED Indicators ................... 1-9

C. Rear Connectors and LED Indicators .............................................. 1-10

C-1. Rear Connector/LED Indicator Locations ..................................... 1-10

C-2. Rear Connectors ........................................................................... 1-10

C-3. Rear LED Indicators-SAS Drive Failure LEDs .............................. 1-10

C-3. Rear LED Indicators-SAS Drive Acitivity LEDs ............................. 1-10

1-3

Safety Information and Technical Speciﬁcations

To avoid personal injury and property damage, please carefully

follow all the safety steps listed below when accessing your system

or handling the components:

ESD Safety Guidelines

Electric Static Discharge (ESD) can damage electronic components. To prevent dam-

age to your system, it is important to handle it very carefully. The following measures

are generally sufﬁcient to protect your equipment from ESD.

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing a component from the antistatic

bag.

• Handle the RAID card by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the card and peripherals back into their antistatic bags when not in use.

General Safety Guidelines

• Always disconnect power cables before installing or removing any components

from the computer, including the SAS836TQ Backplane.

• Disconnect the power cable before installing or removing any cable from the

SAS836TQ Backplane.

• Make sure that the SAS836TQ Backplane is securely and properly installed on

the motherboard to prevent damage to the system due to power shortage.

An Important Note to the User

• All images and layouts shown in this user's guide are based upon the latest

PCB Revision available at the time of publishing. The card you've received

may or may not look exactly the same as the graphics shown in this manual.

1. Safety Guidelines

1-4

SAS836TQ Backplane User’s Guide

2. Introduction to the SAS836TQ Backplane

A. Overview

The SAS836TQ Backplane is a highly efﬁcient, highly compatible and easy to use

SES-2 backplane that offers the most advanced functionality provided by the Serial

Attached/Serial Link Industry in a slim package. With the built-in AMI MG 9072 chip,

the SAS836TQ Backplane allows the user to conﬁgure RAID 0, RAID 1 and RAID 5,

maximizing data storage capability and data transferring reliability. Additionally, the

SAS836TQ supports SATA up to 3Gbps and SAS up to 3Gbps with *SES-2 (SCSI

Enclosure Services-2) capabilities, providing complete Serial Attached Services and

Serial Link Solutions to the market. (*Refer to the section below.)

B. Backplane Features

The SAS836TQ Backplane supports the following features when it is installed on a

motherboard that has an onboard SAS controller:

Compatible with SATA drives

Supporting SAS drives with a transfer rate of 3Gbps

Supporting I2C Interface to communicate with SAS/SATA Host Bus Adaptors

(HBA)

Minimizing the need for cables and connectors, uncluttering server space, and

providing a trouble-free installation environment for the user

Supporting SES-2 (SCSI Enclosure Services-2) protocol, providing the following

features:

Drive activity and drive failure indication for each drive slot

Overheat/drive failure alarm via a buzzer installed on the backplane

An overheat/drive failure LED Indicator built in

Temperature Monitoring via a 2 wire (I2C) temperature sensor in the

MG 9072 chip

•

1-5

Safety Information and Technical Speciﬁcations

3. Backplane Connectors and Jumpers

A. Front Connectors

A-1 Front Connector Locations

SAS 836TQ

A-2. Front Panel Connector Descriptions

1. JP10/JP13/JP46/JP48: Backplane Main PWR Connectors

2. JP54/JP56/JP58/JP60: 3-pin fans (JP54: Fan1, JP56: Fan2, JP58: Fan3,JP60:

Fan4)

3. JP37/JP95/JP52/JP96: I2C Connectors (JP37:I2C1, JP95:I2C2, JP52:I2C3,

JP96: I2C4)

4. JP66/JP68/JP75/JP77: Sideband Headers (JP66: Sideband#1, JP68: Sideband

#2, JP75: Sideband#3, JP77: Sideband#4)

5. J5-8, J10/J12/J14/J16, J22-J25, J26/J29/J30/J32: SAS 0-15 Connectors:

SAS#0 (J5), SAS#1 (J6), SAS#2 (J7), SAS#3 (J8),SAS#4 (J10), SAS#5( J12),

SAS#6 (J14), SAS#7 (J16),SAS#8 (J22), SAS#9 (J23), SAS#10 (J24), SAS#11

(J25),SAS#12 (J26), SAS#13 (J29), SAS#14 (J30), SAS#15 (J32).

6. JP26/JP47: Activity LED Headers (JP26: ACT_IN#1: SAS #0-SAS#7, JP47:

ACT_IN#2: SAS#8-#15)

7. JP69/JP78: Upgrade Headers (JP69: Upgrade#1, JP78: Upgrade#2)

8. JP73/JP82: Upgrade Headers (JTAG#1, JTAG#2)

9. JP105/JP106: CD-ROM/Floppy Disk Power Connectors

Front View

JP54

9072

JP48 JP46 JP13 JP10

JP56 J30

J32

J26

J29

J24

J25

J22

J23

J14

J16

JP58

JP47

J10

J12

JP60

JP66

JP37JP95

JP68

JP75

JP52

JP77

JP96

JP78

JP82

JP69

JP73

9072 JP105JP106

JP26

JP61 JP64

JP65

1-6

SAS836TQ Backplane User’s Guide

A-3. Front Panel Connector Pin Deﬁnitions

1. Backplane Main Power Connectors (JP10, JP13, JP46, JP48) Pin Deﬁni-

tions

2 3-pin Fan Headers (JP54/JP56/JP58/JP60) Pin Deﬁnitions

3. I2C Connectors: (JP37/JP95/JP52/JP96) Pin Deﬁnitions

4. Sideband Headers: (JP66/JP68/JP75/JP77) Pin Deﬁnitions

5. SAS Connectors:

J5:SAS#0, J6:SAS#1, J7:SAS#2, J8:SAS#3, J10: SAS#4, J12: SAS#5, J14:

SAS#6, J16:SAS#7, J22: SAS#8, J23: SAS#9, J24: SAS#10, J25: SAS#11, J26:

SAS#12, J29: SAS#13, J30: SAS#14, J32: SAS#15.

The Sideband Headers are located

at JP66/JP68/JP75/JP77 on the

front panel. For SAS-II to work

properly, please connect an 8-pin

Sideband cable to each Sideband

header as shown on the right. See

the table for pin deﬁnitions.

(*Default: Open)

Controller ID

Backplane ID

GND SB1

No Connection

Reset

12 SB6

SB5

Backplane

Addressing

SB0

SB2

GND

SB4

SDA

SB3

SCL

SB7

Sideband Pin Definitions (JP51)

No Connection

You must use the 4-pin power

connectors to provide adequate

power to the Backplane. See the

table on the right for pin deﬁni-

tions.

The 3-pin Fan Headers are located

at JP54/JP56/JP58/JP60 on the

front panel. To prevent overheat,

please connect a 3-pin fan cable to

each fan header. See the table on

the right for pin deﬁnitions. (*Notes:

1. The Fan Header uses DC power.

2. Default: Fan Enabled.)

There are four I2 C Connectors on

the Backplane. See the table on

the right for pin deﬁnitions.

I2C

Pin Deﬁnitions

Pin# Deﬁnition

1 Data

2 Ground

3 Clock

4 No Connection

12V 4-pin Power Con-

nector

Pin Deﬁnitions

Pins Deﬁnition

1 +12V

2 & 3 Ground

4 +5V

Fan Header

Pin Deﬁnitions

Pin# Deﬁnition

1 Ground

2 +12V

3 Tachometer

1-7

Safety Information and Technical Speciﬁcations

6.a. Activity LED Header (Act-In1: #0-#7): JP26 Pin Deﬁnitions

9. CD-ROM/Floppy 4-pin Power Connectors (JP105, JP106) Pin Deﬁni-

tions

The Activity LED Header, located at JP26 on

the front panel, transmits signals to indicate

the activity status of each SAS slot from Slot0

to Slot7. For the Activity LED Header to work

properly, please connect an 8-pin LED cable

to Pin 1 to Pin 4 and Pin 6 to Pin 9 of JP26 as

shown on the right. (*Default: Open)

Act In#3

Act In#2 NC

Empty

Act In#1

Act In#0

(*Note 1: "NC"=No Connection,

Note 2: Connect a 4-pin LED cable to

Pin1-Pin 4 of JP26 only.)

JP26

Pin# Pin#

SAS Activity LED

Act In#4

Act In#5

Act In#6

Act In#7

Act In#0

Act In#2

Act In#3

Act In#1

Ground

Act In#3

Act In#2 NC

Empty

Act In#1

Act In#0

(*Note 1: "NC"=No Connection,

Note 2: Connect a 4-pin LED cable to

Pin1-Pin 4 of JP26 only.)

JP26

Pin# Pin#

SAS Activity LED

Empty

Act In#3

Act In#2 NC

Empty

Act In#1

Act In#0

(*Note 1: "NC"=No Connection,

Note 2: Connect a 4-pin LED cable to

Pin1-Pin 4 of JP26 only.)

JP26

Pin# Pin#

SAS Activity LED

Act In#12

Act In#13

Act In#14

Act In#15

Act In#8

Act In#10

Act In#11

Act In#9

Ground

Act In#3

Act In#2 NC

Empty

Act In#1

Act In#0

(*Note 1: "NC"=No Connection,

Note 2: Connect a 4-pin LED cable to

Pin1-Pin 4 of JP26 only.)

JP26

Pin# Pin#

SAS Activity LED

Empty

6.b. Activity LED Header (Act-In2: #8-#15):

JP47 Pin Deﬁnitions

The Activity LED Header, located at JP47 on

the front panel, transmits signals to indicate

the activity status of each SAS slot from Slot8

to Slot15. For the Activity LED Header to work

properly, please connect an 8-pin LED cable

to Pin 1 to Pin 4 and Pin 6 to Pin 9 of JP47 as

shown on the right. (*Default: Open)

Act-In#1:JP26 (SAS#0-7)

Act-In#2:JP47 (SAS#8-15)

You must use the 4-pin power connec-

tors: JP105, JP106 to provide power to

the CD-ROM and Floppy Drives. See

the table on the right for pin deﬁnitions.

CD-ROM/FDD 4-pin

PWR Connector

Pin Deﬁnitions

Pins Deﬁnition

1 +5V

2 & 3 Ground

4 +12V

1-8

SAS836TQ Backplane User’s Guide

SAS 836TQ

JP61 JP62 JP63 JP64

JP65JP67

JP74

JP76

JP100

JP98

JP97

JP99

JP50

JP35

JP83

JP86

JP87

JP88

JP85

JP102

JP84

JP101

JP89

JP92

JP93

JP94

JP91

JP104

JP90

JP103

9072

B-2 Front Jumper Settings

#2 #1

9072

B-2.1 MG9072 Reset & Fan Jumper Settings

MG 9072 Reset & Fan Jumper Settings

Jumper Setting Note

JP35 MG 9072#1 Reset if short

(*Default: Open)

Short: Reset

JP50 MG 9072#2 Reset if short

(*Default: Open)

Short: Reset

JP61

JP62

JP63

JP64

(*Note)

JP61: Fan 1 Select

JP62: Fan 2 Select

JP63: Fan 3 Select

JP64: Fan 4 Select

(*Default: On)

On: Fan Enabled (w/Fan)

Off: Fan Disabled (w/o Fan)

JP97

JP98

JP99

JP100

(*Note)

JP97: Fan 1 Enabled

JP98: Fan 2 Enabled

JP99: Fan 3 Enabled

JP100: Fan 4 Enabled

(*Default: Enabled)

Pins 1-2: Fan Enabled (with Fan)

Pins 2-3: Fan Disabled (without Fan)

*Note: When a Fan Select is set to “On”, please set the corresponding Fan Jumper to Pins 1-2:

Enabled. (eg: For Fan1: JP61:On, JP97: 1-2; JP61: Off, JP97: 2-3.)

B-2.2 SES-2 Jumper Settings

SES-2 Jumper Settings

Jumper Setting Note SGPIO

Setting

I2C Setting

(*Default)

JP65

JP67

JP74

JP76

JP65: BP_IDSDIN#1 (9072#1)

JP67: BP_IDSDIN#2 (9072#1)

JP74: BP_IDSDIN#3 (9072#2)

JP76: BP_IDSDIN#4 (9072#2)

(*Default: 2-3)

1-2: SGPIO

2-3: I2C

1-2 2-3

JP85

JP102

JP85: I2C BP_ID#1(9072#1)

(Default: 1-2)

JP102: I2C BP_ID#2 (9072#1)

(*Default: 2-3)

1-2: ID#0

2-3: ID#1

JP91

JP104

JP91: I2C BP_ID#3 (9072#2)

(Default: 1-2)

JP104: I2C BP_ID#4 (9072#2)

(*Default: 2-3)

1-2: ID#0

2-3: ID#1

JP83

JP86

JP89

JP92

I2C Reset#1

I2C Reset#2

I2C Reset#3

I2C Reset#4

(*Default: On)

On: I2C

Off: SGPIO

Off On

JP87

JP88

JP93

JP94

I2C Reset_SDOUT#1(9072#1)

I2C Reset_SDOUT#2(9072#1)

I2C Reset_SDOUT#3(9072#2)

I2C Reset_SDOUT#4(9072#2)

(*Default: Off)

On: SGPIO

Off: I2C

On Off

JP84

JP101

I2C CTRL_ID#1(9072#1)

I2C CTRL_ID#2 (9072#1)

(*Default: 2-3)

1-2: SGPIO

2-3: I2C

1-2 2-3

JP90

JP103

I2C CTRL_ID#3(9072#2)

I2C CTRL_ID#4 (9072#2)

(*Default: 2-3)

1-2: SGPIO

2-3: I2C

1-2 2-3

B. Front Jumpers

B-1 Front Jumper Locations

1-9

Safety Information and Technical Speciﬁcations

B-3 Front Panel LED Locations

SAS 836TQ

D45 D47 D49 D51 D3 D36 D53 D54

Front LED State Specification

D45 On Fan#1 Failure

D47 On Fan#2 Failure

D49 On Fan#3 Failure

D51 On Fan#4 Failure

D3 On Alarm#1 (Buzzer#1)

D36 On Alarm#2 (Buzzer#2)

D53 On +5V Power On

D54 On +12V Power On

Failure LED Patterns with SMC’s Onboard SAS

AIC-9410 (I2C) Controller

Status Red LED Buzzer

Drive Failure Solid On On

Rebuilding Blinking @ 1Hz Off

Rebuilding

Completed

Off Off

Hot Spare Blink Twice and One

Stop @ 1Hz

Off

Identifying Blinking @ 4Hz Off

Testing

Buzzer

Off On

Overheat On On

Fan Failure On On

B-4 Front Panel LED Indicators: the AMI MG9072 SES-2 Controller (SCSI

Enclosure Services-2) LED Indicators

The AMI MG 9072 allows the system to use a set of pre-deﬁned SES commands

to monitor the status of disk drives and provide disk drive information to the user

through LED indicators and alarms/buzzers. (*Note: This function is available only

when a RAID controller with a RAID set is present and enabled. Please refer to

the table below for the information on SES-2 LED Indicators.)

9072

9072 #1

1-10

SAS836TQ Backplane User’s Guide

Rear View

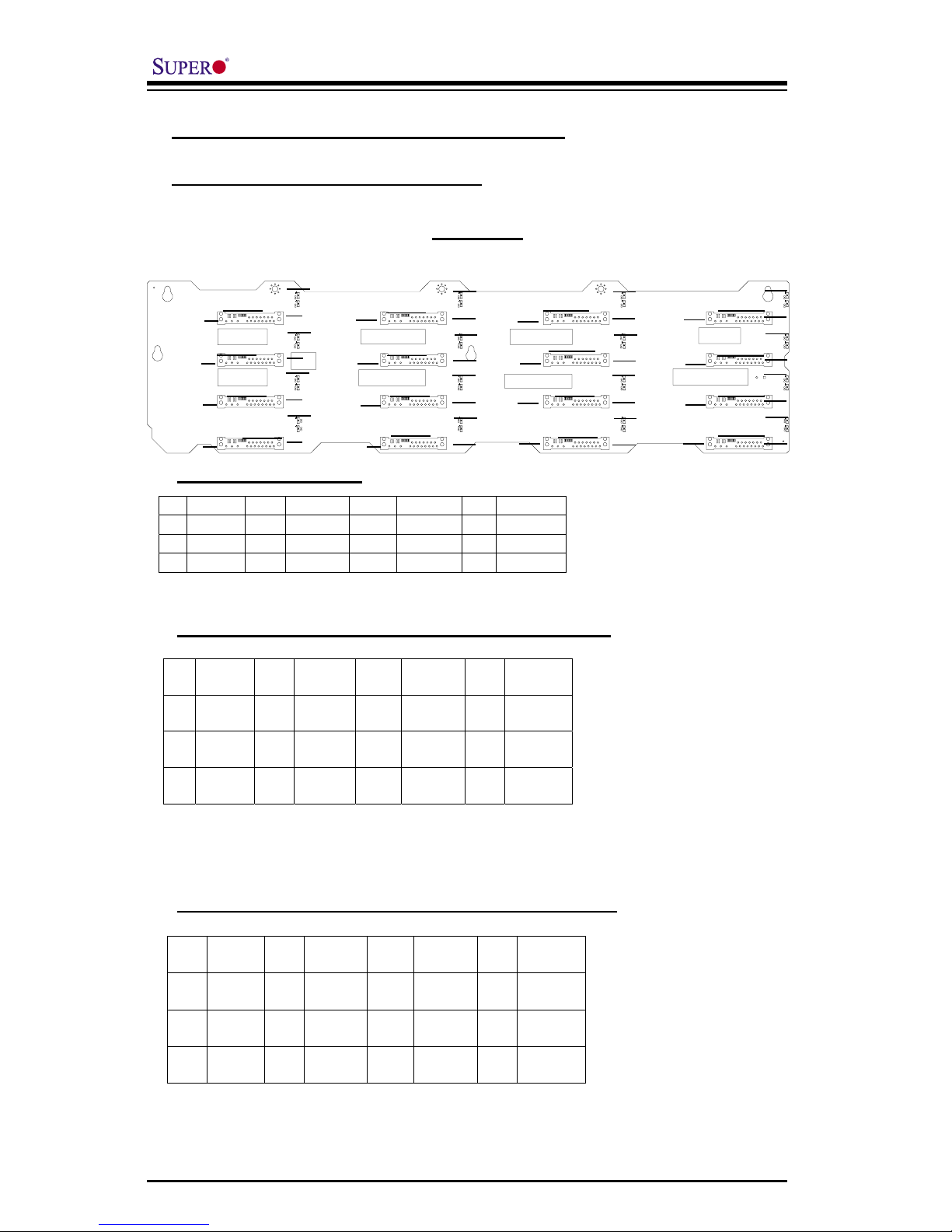

C. Rear Connectors and LED Indicators

C-1 Rear Connector/LED Locations

C-2 Rear Connectors

D87

D88

D42

D39

D41

D38

D40

D37

D28

D33

D27

D32

D26

D31

D25

D30

D24

D29

D22

D23

D21

D20

D18

D19

D15

D14

D13

D12

J11

J13

J15

J17

J18

J19

J20

J21

J27

J28

J31

SAS#0

SAS#1

SAS#2

SAS#3

SAS#4

SAS#5

SAS#6

SAS#7

SAS#8

SAS#9

SAS#10

SAS#11

SAS#12

SAS#13

SAS#14

SAS#15

J1 SAS#0 J9 SAS#4 J17 SAS#8 J21 SAS#12

J2 SAS#1 J11 SAS#5 J18 SAS#9 J27 SAS#13

J3 SAS#2 J13 SAS#6 J19 SAS#10 J28 SAS#14

J4 SAS#3 J15 SAS#7 J20 SAS#11 J31 SAS#15

C-3 Rear LED Indicators--SAS Drive Failure LEDs

D5 SAS#0

Failure

D19 SAS#4

Failure

D30 SAS#8

Failure

D37 SAS#12

Failure

D6 SAS#1

Failure

D20 SAS#5

Failure

D31 SAS#9

Failure

D38 SAS#13

Failure

D7 SAS#2

Failure

D23 SAS#6

Failure

D32 SAS#10

Failure

D39 SAS#14

Failure

D8 SAS#3

Failure

D29 SAS#7

Failure

D33 SAS#11

Failure

D88 SAS#15

Failure

C-4 Rear LED Indicators--SAS Drive Activity LEDs

D12 SAS#0

Active

D18 SAS#4

Active

D25 SAS#8

Active

D40 SAS#12

Active

D13 SAS#1

Active

D21 SAS#5

Active

D26 SAS#9

Active

D41 SAS#13

Active

D14 SAS#2

Active

D22 SAS#6

Active

D27 SAS#10

Active

D42 SAS#14

Active

D15 SAS#3

Active

D24 SAS#7

Active

D28 SAS#11

Active

D87 SAS#15

Active

Indice

Altri manuali Supermicro Unità di controllo

Supermicro

Supermicro AOC-MTG-i2T2S Manuale utente

Supermicro

Supermicro MicroBlade 6119M-T2N Manuale utente

Supermicro

Supermicro MicroBlade MBI-6119M-C2 Manuale utente

Supermicro

Supermicro AOC-AH25G-m2S2TM Manuale utente

Supermicro

Supermicro MicroBlade MBI-6218G-T41X Manuale utente

Supermicro

Supermicro SBA-7121M-T1 Manuale utente

Supermicro

Supermicro SBI-7228R-T2X Manuale utente

Supermicro

Supermicro MicroBlade MBI-6118G-T81X Manuale utente

Supermicro

Supermicro MBI-6128R-T2 Manuale utente

Supermicro

Supermicro SuperBlade SBI-6419P-C3N Manuale utente

Supermicro

Supermicro SBA-7141M-T Manuale utente

Supermicro

Supermicro AOC-ATG-i2T2SM Manuale utente

Supermicro

Supermicro MicroBlade MBI-6118D-T2 Manuale utente

Supermicro

Supermicro SBI-7126TG Manuale utente

Supermicro

Supermicro SBM-25G-P10 Manuale utente

Supermicro

Supermicro MicroBlade MBI-6119G-C4 Manuale utente

Supermicro

Supermicro SuperBlade SBI-4119MG-X Manuale utente

Supermicro

Supermicro MicroBlade MBI-6119M-T2N Manuale utente

Supermicro

Supermicro MBI-6219G-T Manuale utente

Supermicro

Supermicro TPM9670 Manuale utente

Supermicro

Supermicro SBI-7147R-S4X Manuale utente

Supermicro

Supermicro SuperBlade SBI-6119P-T3N Manuale utente

Supermicro

Supermicro AOM-TPM-9670V Manuale utente

Supermicro

Supermicro SuperBlade SBI-8149P-C4N Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
