Supermicro 370DER Plus Manuale utente

25 VGA header

26 LAN1

27 LAN2

28 Onbard VGA (Disable/Enable) JP60,61

29 Ultra160 LVD SCSI Ch B

30 PCI Riser Card

31 SW1

32 Floppy connector

33 JP1, JP3 header

34 CPU#2 Socket

35 CPU#1 Socket

1System Board

2 COM2 Header

3SCSI Termination

4 BIOS Chip

5 JP57

6 JP56 on Board Speaker Disable/Enable

7JBT1

8 Overheat Fan Header

9Ultra160 LVD SCSI Ch A

10 IDE #1 connector

11 IDE #2 connector

12 Chassis Fan

13 Chassis Fan

14 OH Fan

15 JF1 Control Panel Header

16 Power LED Header

17,18 * Bank 0 Memory Modules

19,20 * Bank 1 Memory Modules

21 Primary Power Connector

22 Mouse and Keyboard connectors

23 2 USB ports

24 COM1 header

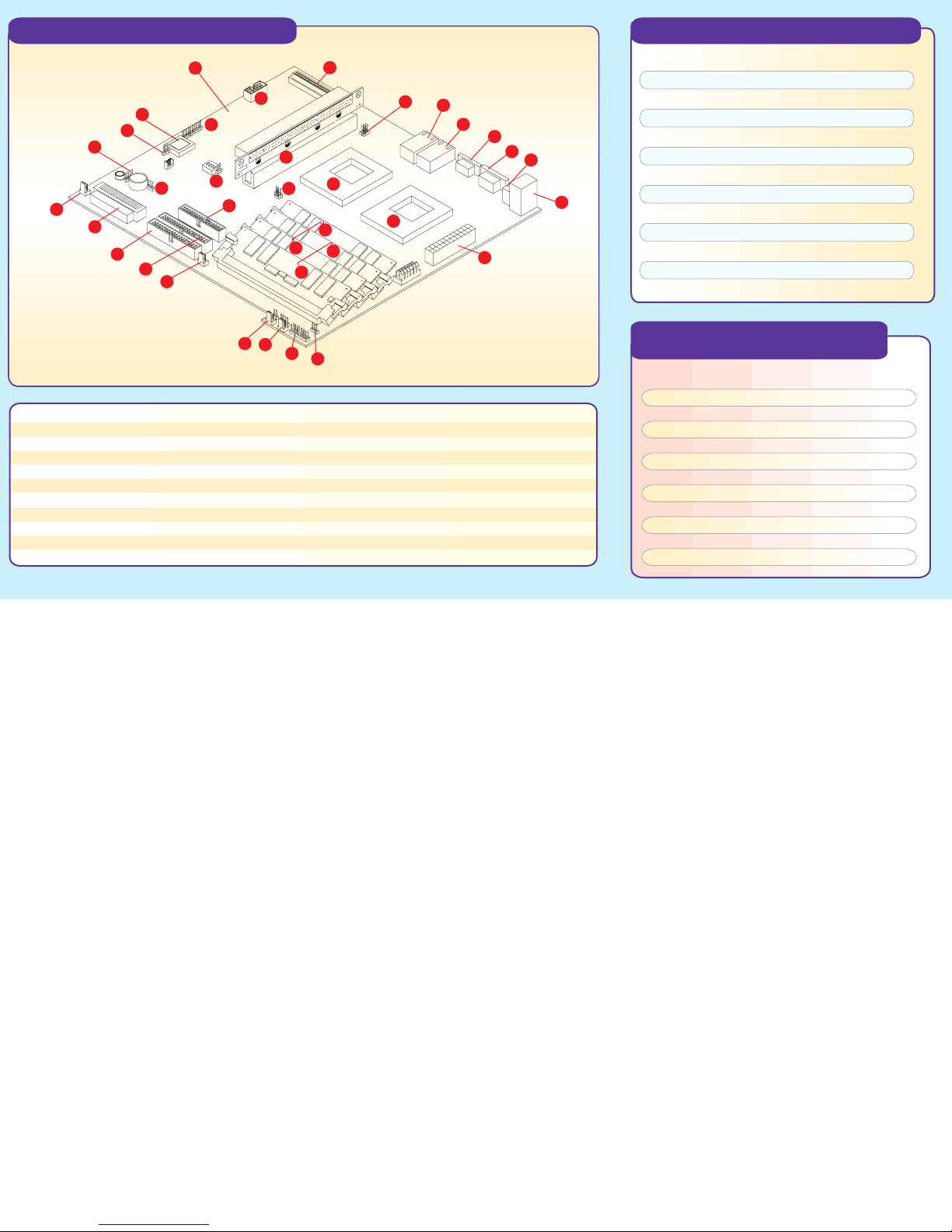

Motherboard Components

28 27

370DER+ Quick Reference

Jumpers Description  Default Setting

JA2  LVD SCSI Ch A Term. Open (Enabled)

JA4  LVD SCSI Ch B Term. Open (Enabled)

JBT1  CMOS Clear  Pin 1-2 (Normal)

JP1  FSB Speed Setting Open (133 MHz)

JP56 Speaker Enble/Disble On (Enabled)

JP57  BIOS Select Pin 1-2 (BIOS1)

JP58  LAN1 Enable/Disable Off (Enabled)

JP60  VGA Enable/Disable Pin 2-3 (Enabled)

JP61 VGA Interrupt Enable Pin 2-3 (Enabled)

JP62  LAN2 Enable/Disable Off (Enabled)

JP63  Chipset Speed Setting Off (133 MHz)

JP64  SCSI Enable/Disable Pin 1-2 (Enabled)

CPU Core/

Bus Ratio

4.0

4.5

5.0

5.5

6.0

6.5

7.0

7.5

8.0

8.5

9.0

SW1

OFF

SW1

OFF

SW1

OFF

SW1

OFF

Note: Interleaved ECC registered memory type must be installed in pairs: 17,18 and 19 , 20 especially.

CPU Core/Bus Ratio Selection

(DIP Switch 1)

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

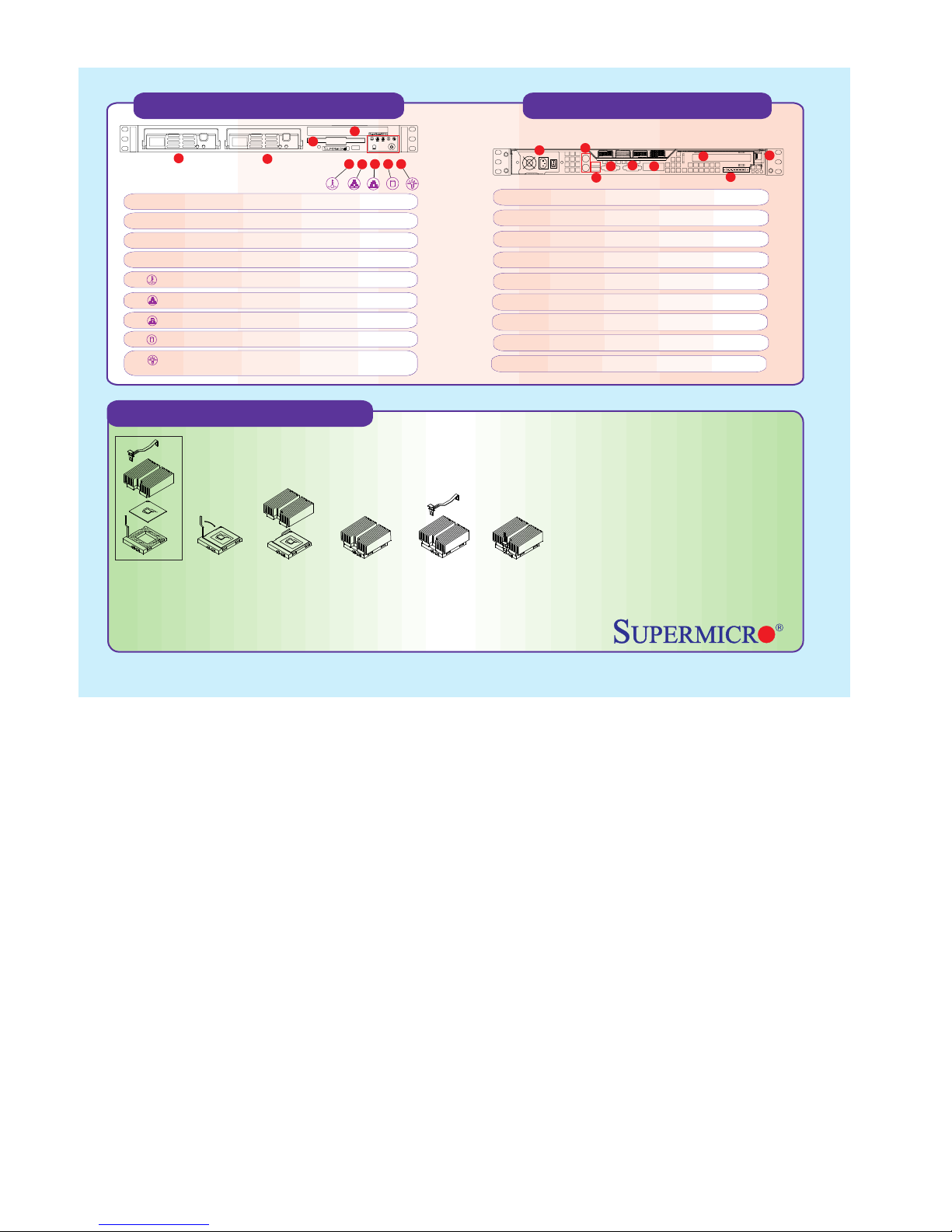

Front Panel Functions

1. Hot-plug SCSI hard drive, SCSI ID 0

2. Hot-plug SCSI hard drive, SCSI ID 1

3. CD-ROM/disketle drive assembly

4. Floopy Drive

5. Overheat: Indicates an overheat condition in the system

6. NIC2: Indicates network activity on LAN2 when flashing

7. NIC1: Indicates network activity on LAN1 when flashing

8. HDD: Indicates IDE channel activity.

9. Power: Indicates power is being supplied to the system's

power supply units

56789

Rear Panel Functions

1. AC Power connector

2. PS/2 mouse and Keyboard port

3. 2 USB ports

4. 2 COM ports ( 1 internal)

5. 1 VGA port

6. 2 x Intel 82559 LAN port

7. 64/32-bit Expansion slot

8. External Ultra160 SCSI Connector

9. PCI Card Release Latch

34567

Due to the fact that adequate air flow and

proper thermal control are very critical in

maintaining 1U system's stability and

performance, it is imperative that the proper

installation procedures listed below be

followed in order to maximize system

performance. This is especially critical for 1U

Dual Processor Servers with speeds of 1

GHz and above.

Warning !

CPU Heat Sink Installation Procedures

(For Supermicro SuperServer 1U Systems)

1) Only those CPU heat sinks that are provided by Supermicro should be used.

2) Apply proper amount of silicon compound on the CPU's die.

3) Place the CPU heat sink on top of the CPU.

4) Place the heat sink spring on top of the CPU heat sink and lock the backside of the spring into its notch.

5) Lock the front side of the heat sink spring into its notch.

= >

1 2 3 4 5

Cooling Fan Installation
