Supermicro 370DLR Plus Manuale utente

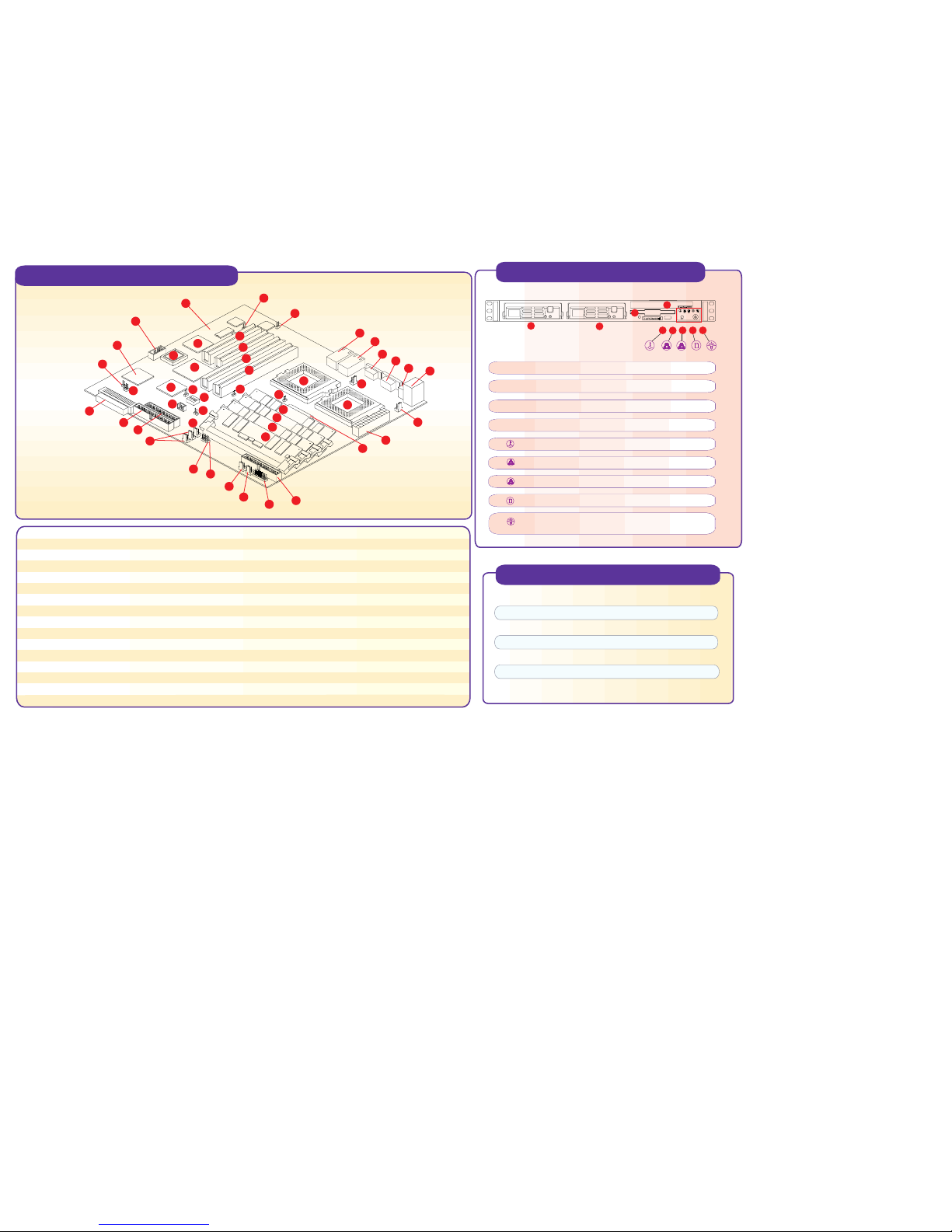

Motherboard Components

370DLR+ Quick Reference

Jumpers Description Default Setting

JBT1  CMOS Clear Pin 1-2 (Normal)

JP2  Front Side Bus Speed Pin 1-2 (CPU Select)

JP7  Overheat Alarm Closed (Enabled)

JP8  NIC1 Enable/Disable Open (Enabled)

JP13 Speed for 64-bit PCI Closed (33 MHz)

JP24  NIC2 Enable/Disable Open (Enabled)

Front Panel Functions

1. Hot-plug SCSI hard drive, SCSI ID 0

2. Hot-plug SCSI hard drive, SCSI ID 1

3. CD-ROM/disketle drive assembly

4. Floopy Drive

5. Overheat: Indicates an overheat condition in the system

6. NIC2: Indicates network activity on LAN2 when flashing

7. NIC1: Indicates network activity on LAN1 when flashing

8. HDD: Indicates IDE channel activity.

9. Power: Indicates power is being supplied to the system's

power supply units

56789

Note: E.C.C. registered memory type must be installed.

1 System Board

2 ATI Rage XL

3BIOS

4 South Bridge

5 COM2

6 Super I/O

7JBT1

8 WOM

9Ultra160 LVD SCSI

10 IDE #2 connector

11 Floppy Connector

12 CH Fan

13 THRM Fan

14 J105

15 J106

16 Chassis Fan

17 Blower Fan

18 JF1

19 IDE #1 Connector

20 ATX Power

21 CPU Fan

22 CPU Fan

23 Mouse and Keyboard Connectors

24 2 USB

25 COM1

26 VGA

27 NIC1

28 NIC2

29 JP8

30 JP24

31 PCI 2

32 PCI 1

33 PCI64#2

34 PCI64#1

35 JP13

36 AIC-7892

37 JP1

38 SW1

39 JP11

40 JP7

41 JP2

42 North Bridge

43 DIMM 0

44 DIMM 1

45 DIMM 2

46 DIMM 3

47 CPU 1

48 CPU 2

CPU Core/Bus Ratio Selection

(DIP Switch 1)

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

Due to the fact that adequate air flow and

proper thermal control are very critical in

maintaining 1U system's stability and

performance, it is imperative that the proper

installation procedures listed below be

followed in order to maximize system

performance.This is especially critical for 1U

Dual Processor Servers with speeds of 1

GHz and above.

Warning !

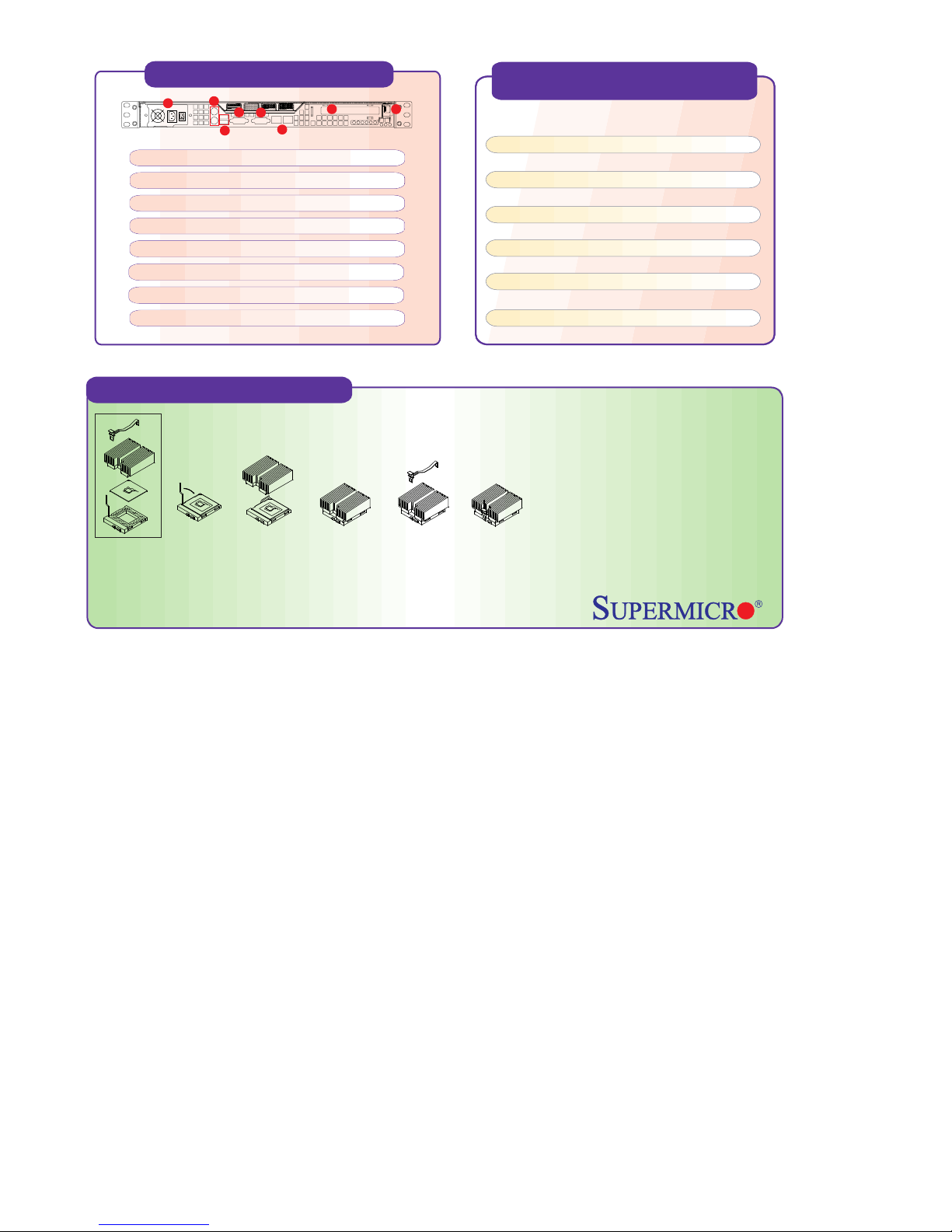

CPU Heat Sink Installation Procedures

(For Supermicro SuperServer 1U Systems)

1) Only those CPU heat sinks that are provided by Supermicro should be used.

2) Apply proper amount of silicon compound on the CPU's die.

3) Place the CPU heat sink on top of the CPU.

4) Place the heat sink spring on top of the CPU heat sink and lock the backside of the spring into its notch.

5) Lock the front side of the heat sink spring into its notch.

= >

CPU

400/533

450/600

500/666

550/733

600-800

650-866

700/933

750/1000

800/1064

850/1130

900/1200

SW1

OFF

SW1

OFF

SW1

OFF

SW1

OFF

1 2 3 4 5

Cooling Fan Installation

Rear Panel Functions

1. AC Power connector

2. PS/2 Mouse and Keyboard port

3. 2 USB ports

4. 2 COM ports ( 1 internal)

5. 1 VGA port

6. 2 x Intel 82559 LAN port

7. 64/32-bit Expansion slot

8. PCI Card Release Latch
