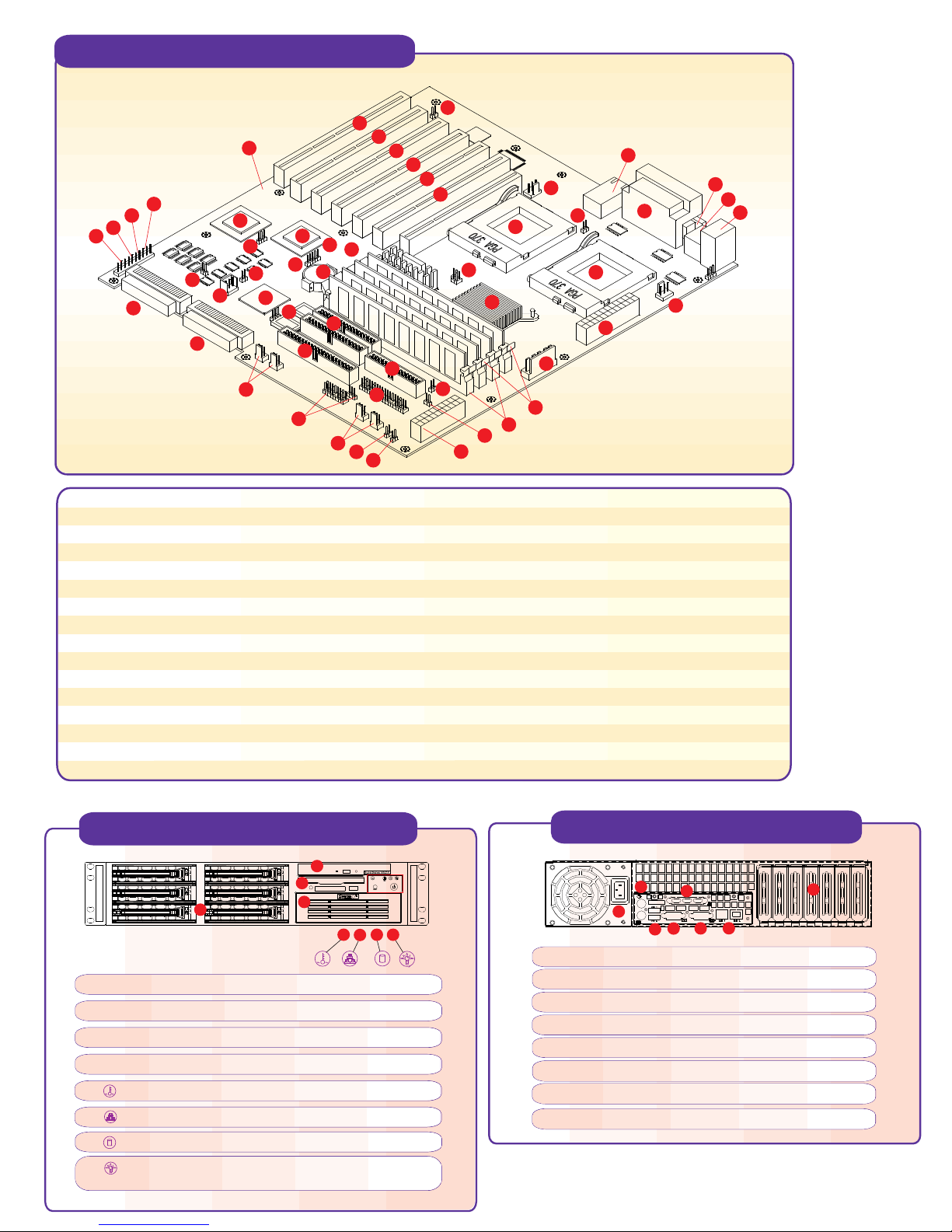

Motherboard Components

Front Panel Functions

1. 6 SCA Ultra160 Hot-swap drive bays

2. 1 Slim CD-ROM

3. Floopy Drive

4. 1 x 5.25" drive bay

5. Overheat: Indicates an overheat condition in the system

6. NIC1: Indicates network activity on LAN1 when flashing

7. HDD: Indicates IDE channel activity.

8. Power: Indicates power is being supplied to the system's

power supply units

Note: E.C.C. registered memory type must be installed in pair.

Rear Panel Functions

1 System Board

2 Adaptec AIC-7899

3JA6

4 JA2

5 JA4

6 SLED1

7Ultra160 LVD SCSI CHA

8 Ultra160 LVD SCSI CHB

9ServerWorks Chipset

10 JP60

11 JP63

12 WOR

13 WOL

14 JBT1

15 JP64: Watch Dog

16 Battery

17 Super I/O

18 JP57: BIOS1, BIOS2

19 Chassis Fan

20 IDE#1, IDE#2

21 Floppy Connector

22 Ultra SCSI (Channel B)

23 JF1

24 JF2

25 Chassis Fan

26 JP62

27 JP52: Chassis Intrusion

28 ATX Power #2

29 JP56

30 JP55

31 Bank 0

32 Bank 1

33 ATX Power#1

34 North Bridge

35 JP65

36 JP1, JP3

37,38 CPU#2, CPU#1

39 ATX PWR Conn.

40,41 CPU1 Fan, CPU2 Fan

42 Mouse and Keyboard Connectors

43 2 USB

44 COM 1, COM 2

45 Printer Port

46 LAN

47 AGP Pro

48,49 2 64-bit PCI (66MHz)

50,51,52,53 4 64-bit PCI (33MHz)

54 JP58

1. AC Power connector

2. PS/2 Mouse and Keyboard port

3. 2 USB ports

4. COM 1

5. COM 2

6. 1 Parallel port

7. 1 Intel 82559 LAN port

8. 7 Low-Profile 64/32-bit Expansion slot

13 40

20 39

48 44

11 16

345

5678

27 28

P3TDE6 Quick Reference

CPU Core/Bus Ratio Selection

(DIP Switch 1)

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

Due to the fact that adequate air flow and proper

thermal control are very critical in maintaining 2U

system's stability and performance, it is

imperative that the proper installation procedures

listed below be followed in order to maximize

system performance.This is especially critical for

2U Dual Processor Servers with speeds of 1 GHz

and above.

Warning !

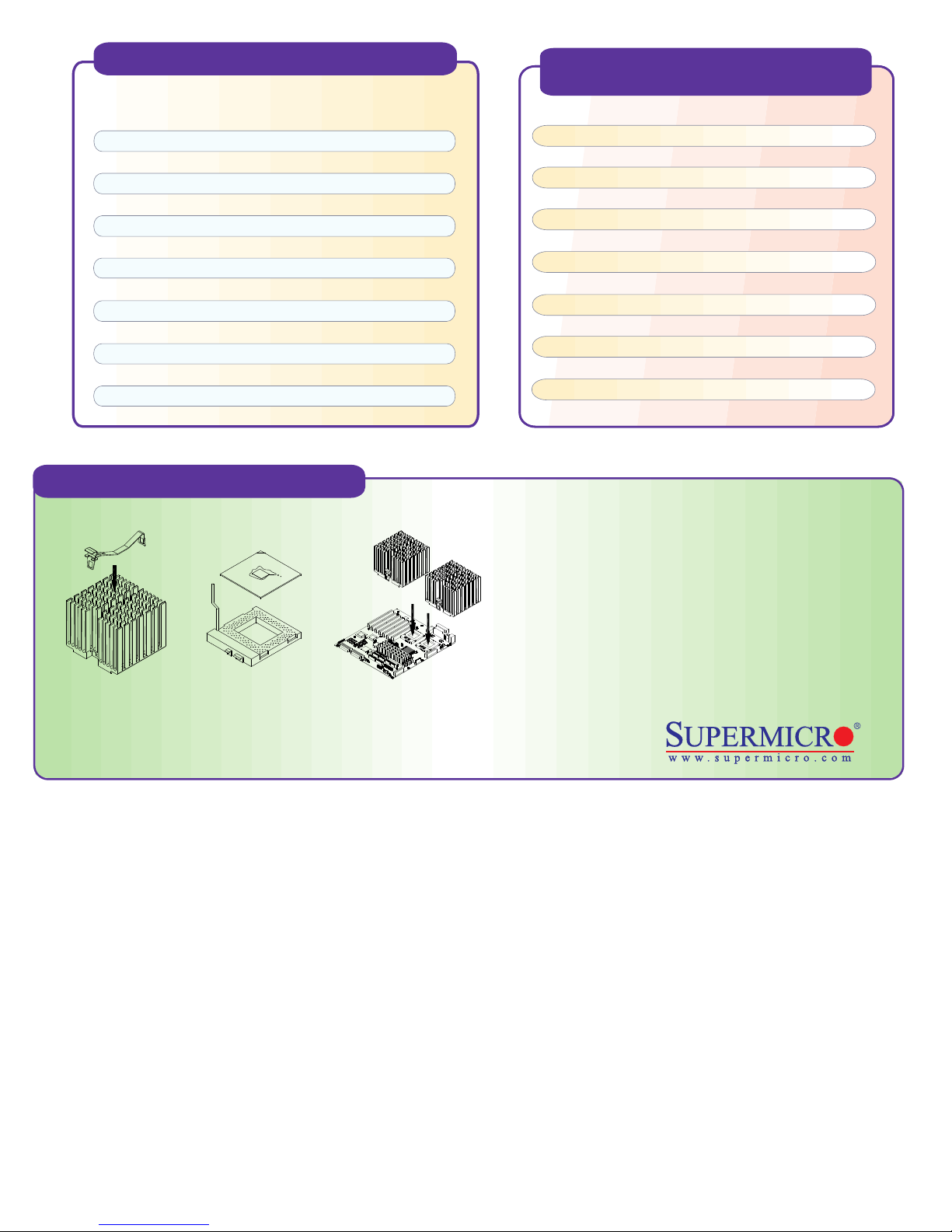

CPU Heat Sink Installation Procedures

(For Supermicro SuperServer 2U Systems)

Cooling Fan Installation

CPU

400/533

450/600

500/666

550/733

600/800

650/866

700/933

750/1000

800/1064

850/1130

950/1260

1000/1330

1050/1400

SW1 #1

OFF

SW1 #2

OFF

SW1 #3

OFF

SW1 #4

OFF

Jumper Description Default Setting

JA2  LVD SCSI Ch A Term Open (Enabled)

JA4 LVD SCSI Ch B Term Open (Enabled)

JA6  50-pin SCSI Ch B Term Open (Enabled)

JBT1  CMOS Clear Pin 1-2 (Normal)

JP1  FSB Speed Setting Pin 1-2 (Auto)

JP3 Spread Spectrum Enable Open (Disabled)

JP55 Third P/S Fail Enable/Disable Open (Disabled)

JP56  Speaker Enable/Disable On (Enabled)

JP57 BIOS Select Pin 1-2 (BIOS1)

JP58 LAN/NIC Enable/Disable Open (Enabled)

JP60 SCSI Enable/Disable Pin 1-2 (Enabled)

JP62  Chassis/Over Heat Fan Select Close

JP64 Watch Dog Open (Disabled)

JP65 CPU Fan Tachometer Open

1) Only those CPU heat sinks that are provided by Supermicro should be used.

2) Apply a small amount of silicon compound on the CPU's die.

3) Place the CPU heat sink on top of the CPU.

4) Place the heat sink spring on top of the CPU heat sink and secure the clip of the spring into its notch.

(Make sure the clip position is the same as the picture shown above.)
