Supermicro P3TDER Plus Manuale utente

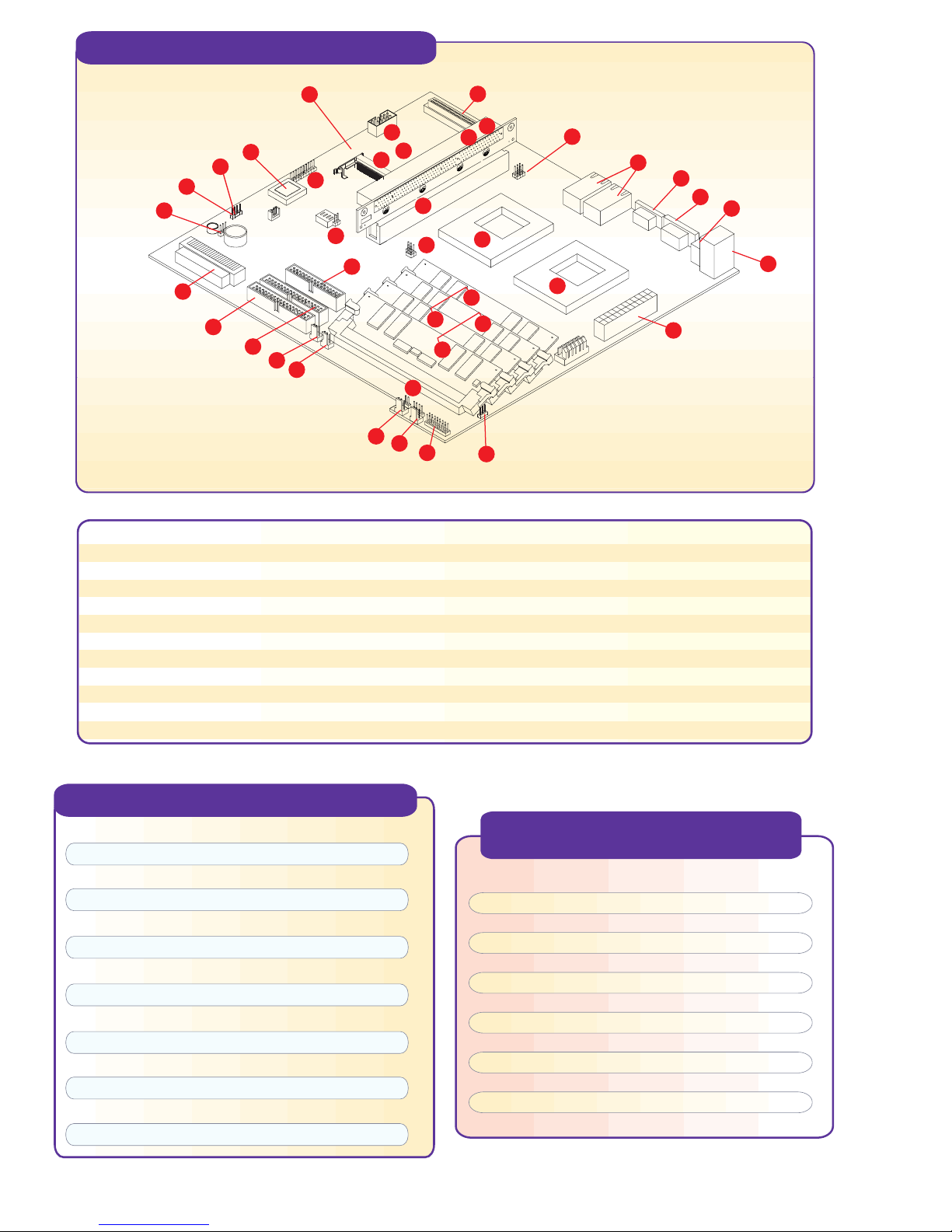

Motherboard Components

Note: Interleaved ECC registered memory type must be installed in pairs: slots 18 + 19 and 20 + 21.

11 12

28 JP68

29 Ultra160 LVD SCSI Ch B

30 PCI riser card

31 SW1

32 Floppy connector

33 JP1, JP3 header

34 CPU#2 socket

35 CPU#1 socket

36 JP58

37 JP62

38 JP64

39 RAID port

1System board

2 COM2 header

3JA2, JA4 SCSI termination

4 BIOS chip

5 JP73

6 JP56

7JBT1

8Ultra160 LVD SCSI Ch A

9, 10 IDE #1, IDE#2 connector

11 Chassis fan

12, CPU2 chassis fan

13 CPU1 chassis fan

14 Chassis fan

15 JP65 THRM fan

16 JF1 control panel header

17 JP72

18,19 * Bank 0 memory modules

20, 21 * Bank 1 memory modules

22 Primary power connector

23 Mouse and keyboard ports

24 2 USB ports

25 COM1 header

26 VGA header

27 LAN1, LAN2

P3TDER+ Quick Reference

CPU Core/

Bus Ratio**

500-666

555-733

600-800

650-866

700-933

750-1000

800-1064

850-1130

900-1200

950-1260

1000-1330

1050-1400

SW1

OFF

SW1

OFF

SW1

OFF

SW1

OFF

CPU Core/Bus Ratio Selection

(DIP Switch 1)

Jumpers Description   Default Setting

JA2  LVD SCSI Ch A term. Open (Enabled)

JA4  LVD SCSI Ch B term. Open (Enabled)

JBT1  CMOS clear  Pins 1-2 (Normal)

JP1 FSB speed setting Pins 1-2 (Auto)

JP3 Spread spectrum Open (Disabled)

JP56 Speaker enable/disable Closed (Enabled)

JP58  LAN1 enable/disable Pins 1-2 (Enabled)

JP62  LAN2 enable/disable Pins 1-2 (Enabled)

JP64 SCSI enable/disable Pins 1-2 (Enabled)

JP65 Thermal fan enable/disable Closed (Enabled)

JP68  VGA enable/disable Pins 1-2 (Enabled)

JP72 CPU/CPU chassis fan select Open (Chassis Fan)

JP73  Watchdog enable/disable Open (Disabled)

Number on left is for 100 MHz FSB speed and number on right

is for 133 MHz FSB speed

To protect the system and components, it is essential that you reinstall the top panel after you have finished working on the system.

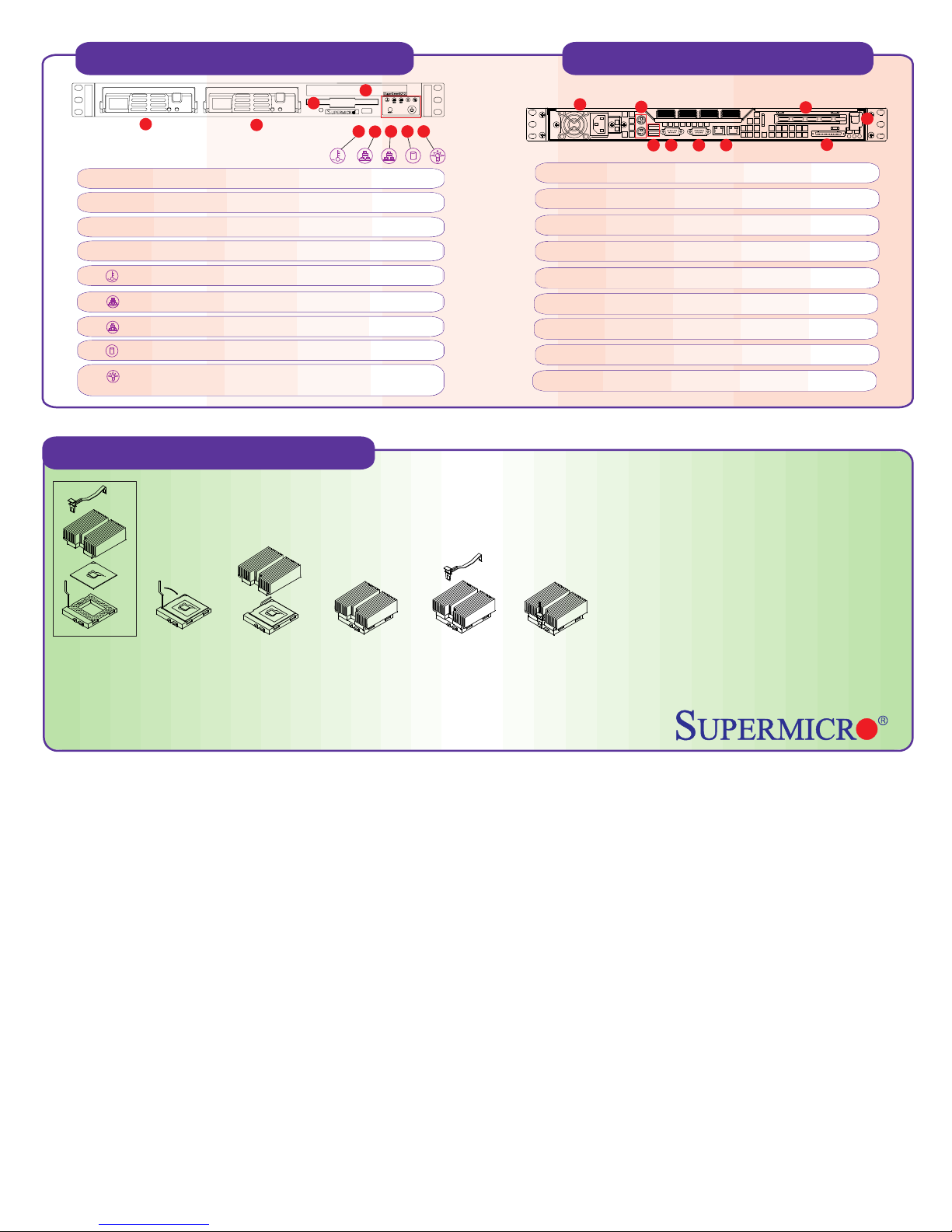

Front Panel Functions

1. Hot-plug SCSI hard drive, SCSI ID 0

2. Hot-plug SCSI hard drive, SCSI ID 1

3. 1 slim CD-ROM drive

4. Floppy drive

5. Overheat: Indicates an overheat condition in the system

6. NIC2: Indicates network activity on LAN2 when flashing

7. NIC1: Indicates network activity on LAN1 when flashing

8. HDD: Indicates IDE channel activity

9. Power: Indicates power is being supplied to the system's

power supply units

56789

Rear Panel Functions

1. AC power connector

2. PS/2 mouse and keyboard port

3. 2 USB ports

4. 2 COM ports ( 1 internal)

5. 1 VGA port

6. 2 x Intel 82550 LAN ports

7. 64/32-bit Expansion slot

8. External Ultra160 SCSI connector

9. PCI card release latch

Due to the fact that adequate air flow and

proper thermal control are very critical in

maintaining 1U system stability and

performance, it is imperative that the proper

installation procedures listed on the left be

followed in order to maximize system

performance.This is especially critical for 1U

Dual Processor Servers with CPU speeds of

1 GHz and above.

Warning !

CPU Heatsink Installation Procedures

(For Supermicro SuperServer 1U Systems)

1) Only those CPU heatsinks that are provided by Supermicro should be used.

2) Apply proper amount of silicon compound on the CPU die.

3) Place the CPU heatsink on top of the CPU.

4) Place the heatsink spring on top of the CPU heatsink and lock the backside of the spring into its notch.

5) Lock the front side of the heatsink spring into its notch.

= >

1 2 3 4 5

Cooling Fan Installation

3456
