Safety Information and Technical Specifications
Table of Contents
Introduction
Overview .............................................................................................................v
Product Features.................................................................................................v
Supported Operating Systems...........................................................................vi
Required Cables ................................................................................................vi
Contacting Supermicro...................................................................................... vii
Chapter 1 Safety Guidelines
1-1 ESD Safety Guidelines ................................................................................... 1-1
1-2 General Safety Guidelines .............................................................................. 1-1
1-3 An Important Note to Users ............................................................................ 1-2
Chapter 2 Add-on Card Components
2-1 Front Connectors and LEDs ........................................................................... 2-1
2-2 Front Connector and LED Definitions............................................................. 2-2
3-1 Before Installation ........................................................................................... 3-1
3-2 Hardware Installation ...................................................................................... 3-1
3-3 Windows 2003/XP/2000 Installation ............................................................... 3-2
3-4 Linux Installation ............................................................................................. 3-2
Build a Binary RPM Package ........................................................................ 3-2
Manually Build the Driver................................................................................ 3-2
iv
Add-on Card User's Guide
Notes
v
Safety Information and Technical Specifications
Introduction
Overview
This manual is written for system integrators, PC technicians and knowledgeable
PC users who intend to integrate Supermicro's AOC-STG-I2 Add-on Card.
Product Features
The AOC-STG-I2 offers the following features:
High-performing, PCI-E 10Gb Ethernet connection ideally suited for demanding
enterprise applications.
Dual-port Intel®82598EB with two CX4 connectors.
CX4-to-Optical module/cable (optional).
PCI-E x8 to maximize performance (PCI-E Gen 2 compatible).
Intel I/O Acceleration Technology (I/O AT) for improved CPU utilization.
x16 Virtual Machine Device queues (VMDq) for virtualized environment.
Direct Cache Access (DCA) to eliminate cache misses and reduce CPU load.
Tx/Rx, IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities to in-
crease throughput and lower processor utilization
Simple Network Management Protocol (SNMP) and Remote Network Monitoring
(RMON) statistic counters.
iSCSI boot.
Preboot eXecution Environment (PXE) support.
Energy-efficient design (maximum 6.5W).
RoHS Compliant 6/6.
•
•
•
•
•
•
•
•
•
•
•
•
•
vi
Add-on Card User's Guide
Supported Operating Systems
The AOC-STG-I2 supports the following Operating Systems (OS):
Windows 2000/Windows XP/Windows 2003
Linux
VMWare ESX Server
Required Cables
The AOC-STG-I2 requires the following cables:
CX4 copper-based cable. Maximum length 15 meters.
InfiniBand 4x DDR cable (converts CX4 to optical). Maximum length 100 me-
ters.
•
•
•
•
•
vii
Safety Information and Technical Specifications
Contacting Supermicro
Headquarters
Address: Super Micro Computer, Inc.
980 Rock Ave.
San Jose, CA 95131 U.S.A.
Tel: +1 (408) 503-8000
Fax: +1 (408) 503-8008
Web Site: www.supermicro.com
Europe
Address: Super Micro Computer B.V.
Het Sterrenbeeld 28, 5215 ML
's-Hertogenbosch, The Netherlands
Tel: +31 (0) 73-6400390
Fax: +31 (0) 73-6416525
Asia-Pacific
Address: Super Micro Computer, Taiwan
4F, No. 232-1, Liancheng Rd.
Chung-Ho 235, Taipei County
Taiwan, R.O.C.
Tel: +886-(2) 8226-3990
Fax: +886-(2) 8226-3991
Web Site: www.supermicro.com.tw
Technical Support:
Tel: 886-2-8228-1366, ext.132 or 139
1-1
Safety Information and Technical Specifications
Chapter 1
Safety Guidelines
To avoid personal injury and property damage, carefully follow all the safety steps
listed below when accessing your system or handling the components.
1-1 ESD Safety Guidelines
Electric Static Discharge (ESD) can damage electronic components. To prevent dam-
age to your system, it is important to handle it very carefully. The following measures
are generally sufficient to protect your equipment from ESD.
Use a grounded wrist strap designed to prevent static discharge.
Touch a grounded metal object before removing a component from the antistatic
bag.
Handle the add-on card by its edges only; do not touch its components, periph-
eral chips, memory modules or gold contacts.
When handling chips or modules, avoid touching their pins.
Put the card and peripherals back into their antistatic bags when not in use.
1-2 General Safety Guidelines
Always disconnect power cables before installing or removing any components
from the computer.
Disconnect the power cable before installing or removing any cables from the
system.
Make sure that the add-on card is securely and properly installed on the moth-
erboard to prevent damage to the system due to power shortage.
•
•
•
•
•
•
•
•
1-2
Add-on Card User's Guide
1-3 An Important Note to Users
All images and layouts shown in this user's guide are based upon the latest PCB
Revision available at the time of publishing. The card you have received may or
may not look exactly the same as the graphics shown in this manual.
•
2-1
Safety Information and Technical Specifications
Chapter 2
Add-on Card Components

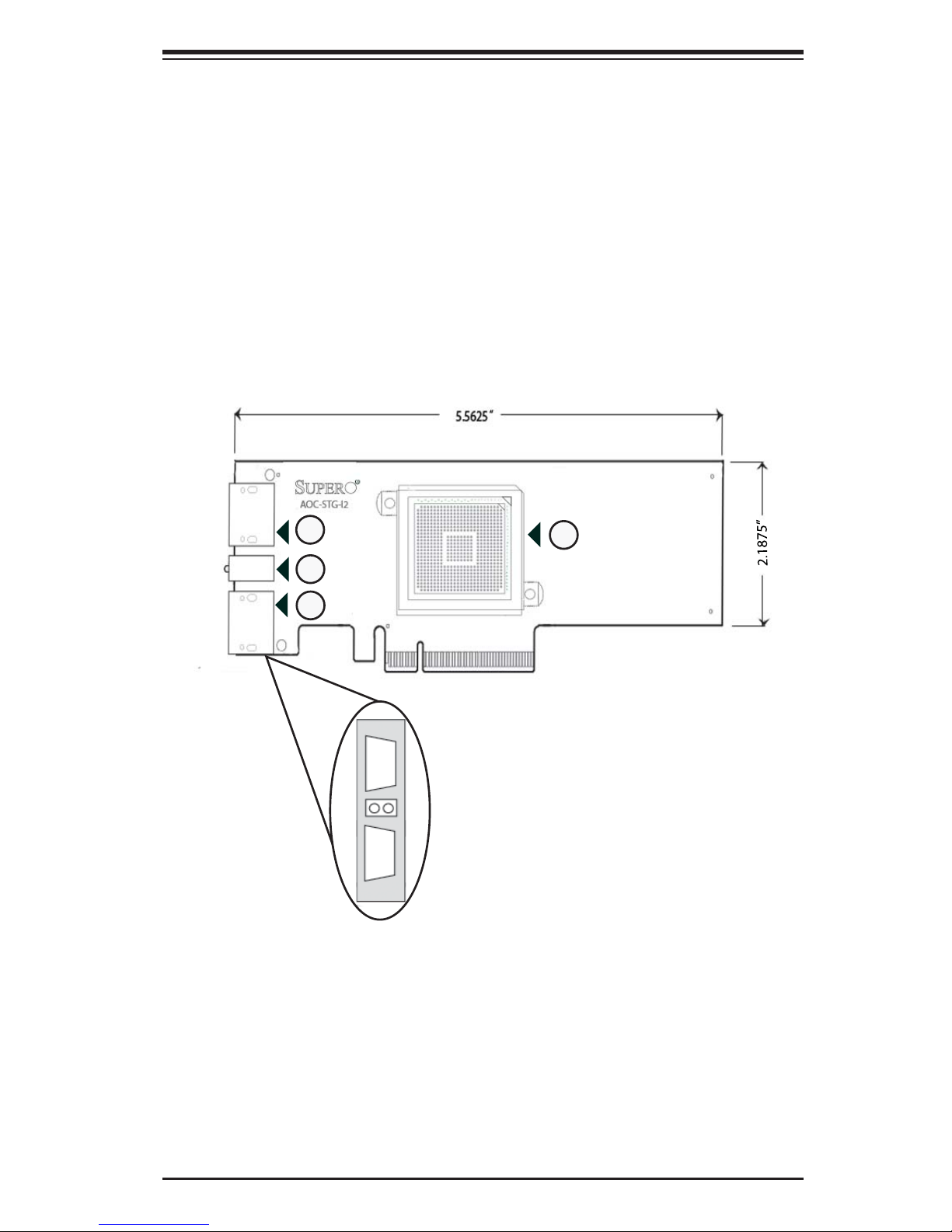

2-1 Front Connectors and LEDs
Components
1. LAN Connector Ports
2. LAN Port LEDs
3. Intel®82598EB
3
2
1
1
