SYMA GYRO REMOTE CONTROL SERIES Manuale utente
8+
USER MANUAL
MAIN FEATURES
● Utilizes the 4-axis structure, enabling the drone to be even
more flexible, speedy.It can fly indoor .
● Built-in 6-axis gyro stabilizer to ensure accurate positioning
in-flight.
● The structure uses a modular design which makes it easy to
install and repair.
● Headless function making it easy for directional control.
● Pressure-fixed-position hovering function for Auto Hover Mode.
● 360° stunt flip.
● Auto take-off and landing.
● HD wireless real-time transmission aerial for getting the fun of
different photography.
GYRO REMOTE CONTROL SERIES
4-CHANNEL REAL-TIME-TRANSMISSION POSITION HOVERING
REMOTE CONTROL DRONE
1
X
22W
-1-
Repair and Maintenance
Safety Guide
1. Use dry and soft cloth to clean this product.
2. Avoid exposing this product to heat.
3. Do not immerse this product in water, otherwise, the electronic parts will
be damaged.
1. Please store the smaller-sized drone accessories in places that are out of
reach of children.
2. This drone is very powerful. For all first-time flights, the left joystick must be
slowly pushed up in order to prevent the drone from ascending too fast to
avoid unnecessary collision and possible damage and injury.
3. When the flight is ended, first turn off the power of the remote control. Then
turn off the power of the drone.
4. Avoid placing the batteries in places with high temperatures and exposure
to heat.
5. It is strongly recommended to operate the drone at 2-3 meters away from a
pilot and other people or animals. Crashes may cause unintended injuries.
When landing the drone, avoid crashing it into other people.
6. This drone is for people ages 8+. It must be flown always within the line of
sight of the pilot (or instructor) and flown safely.
7. Non-rechargeable batteries are not to be recharged; Batteries are to be
inserted with the correct polarity; Different types of batteries or new and
used batteries are not be mixed.
8. When the drone is not in use, please remove the batteries in the remote
control.
9. The supply terminals are not be short-circuited.
10.Discharge the battery to 40%-50% (On a full charge, fly for half of the total
flight time) if it will not be used for 10 days or more, this can greatly extend
the battery life.
11.Please keep a safe distance from the spinning propellers to avoid injury.
12.To ensure the electromagnetic environment requirement of the aviation
radio (station), using remote controls in the zone, which is in a radius of
about 5000m zone from the circle center of the airport runway, is forbidden.
All users also should abide by the regulation of the radio set forth by
government and regulatory agencies including the duration and area.
13.Only uses the recommended transformer for the model, and the transformer
is not a model. Disconnect the transformer from the model which is available
cleaning with liquids before cleaning. Check the cord, plug, enclosure and
other parts of the transformer regularly. If any damages have been
discovered, please immediately stop using it, until it was completely repaired.
14.Never look steadily at the laser beam since the laser radiation.
15.Attention：Drone assembly under adult supervision.
16.The pilot is responsible for the safe operation and safe distance from
uninvolved persons and property on the ground and from other airspace
users and shall never fly the drone above crowds (> 12 persons).
17.The packing has to be kept since it contains important information.
-2-
The following items can be found in this product package:
4.Transformers used with the toy are to be regularly examined for damage to
the cord,plug,enclosure and other parts,and that,in the event of such
damage,the toys must be used with this transformer until the damage has
been repaired.

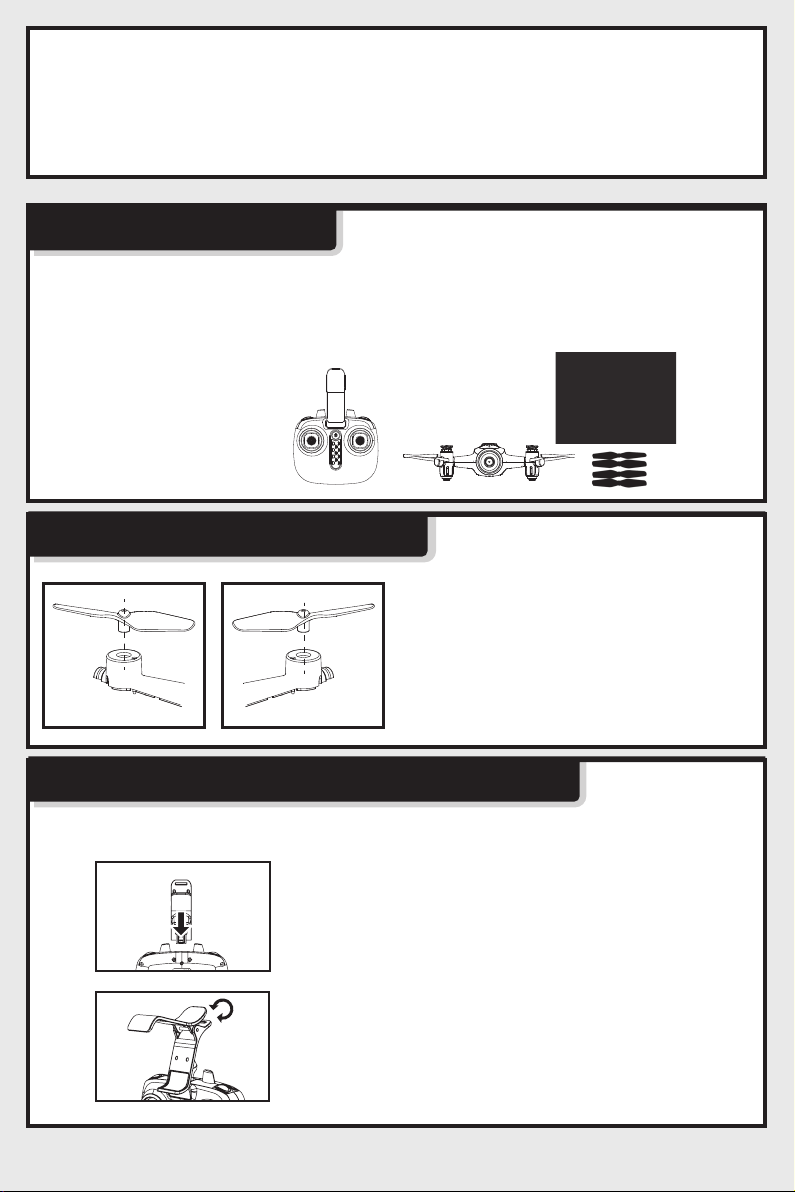

Package Description
• Drone
• Remote Control
• Instruction Manual
• Recharge stand
• Main Blades
• USB Cable
• Mobile Phone Retaining Clip
Phone Clip Attachment/Removal Method
Phone clip holder installation:
1.Insert the phone clip holder into the
connector at the top of the remote
control.
2.Press the spring clip to adjust for size.
Blade Replacement Method
1.Pull out the blades that need to be
replaced.
2.As shown on left, the blade A is
mounted to the arm "A" position,
and the blade B is mounted to the
arm "B" position.
A
A
B
B
-3-
Fuselage Battery
Charging Instruction:
Precautions as follows during charging of battery:
- Avoid placing the active batteries in places with direct exposure,
sunlight and high temperatures. For example, naked light or electrical
equipment installations; otherwise it may cause damages or explosions .
- Avoid immersing the batteries in the water. The batteries shall be
The charging time is about 90 minutes; Hover flight time
is approximately 5 minutes.

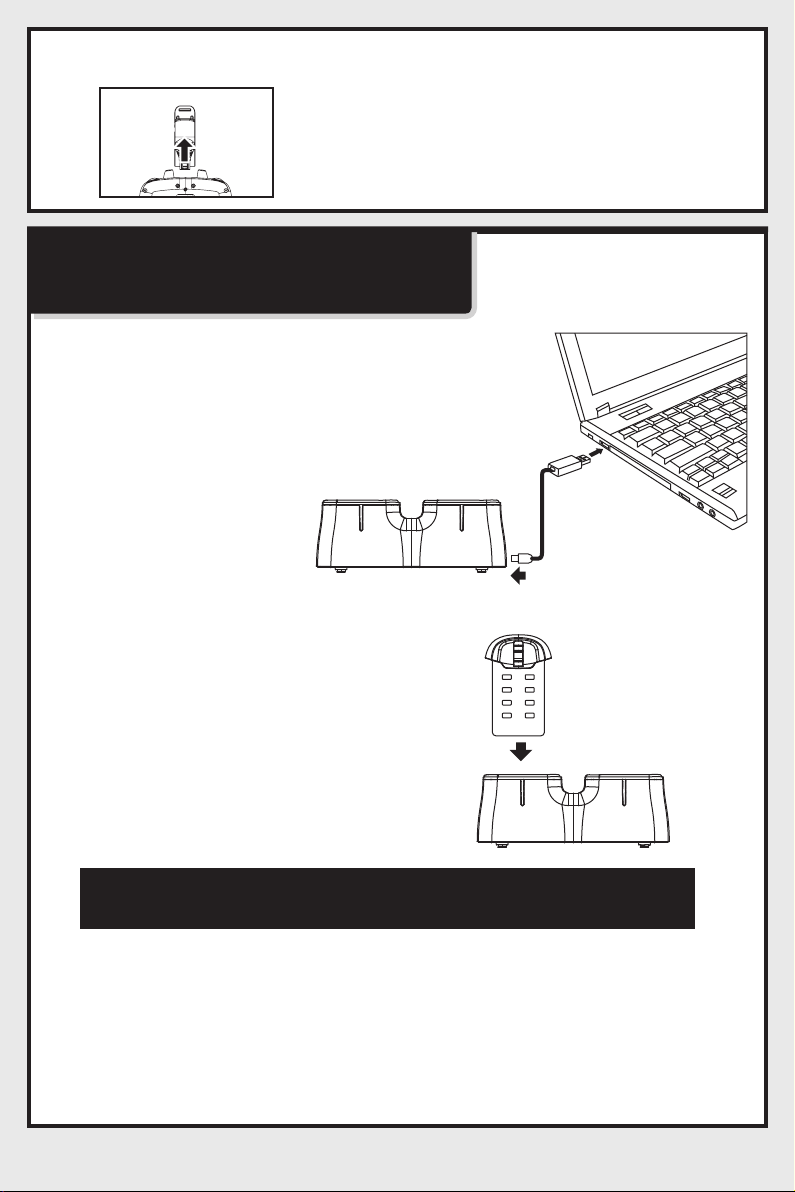

Phone clip holder dismantle:
1.Pull up the phone clip holder from
behind the remote control.
1.Connect recharge stand
and computer USB port
by USB charging cable.
2.When the recharge stand connect to
computer,the recharge stand indicator
light is off,then plug the battery into the
recharge stand,and the indicator light
will be on,the indicator light will be off
again when the battery is fully charged.
-4-

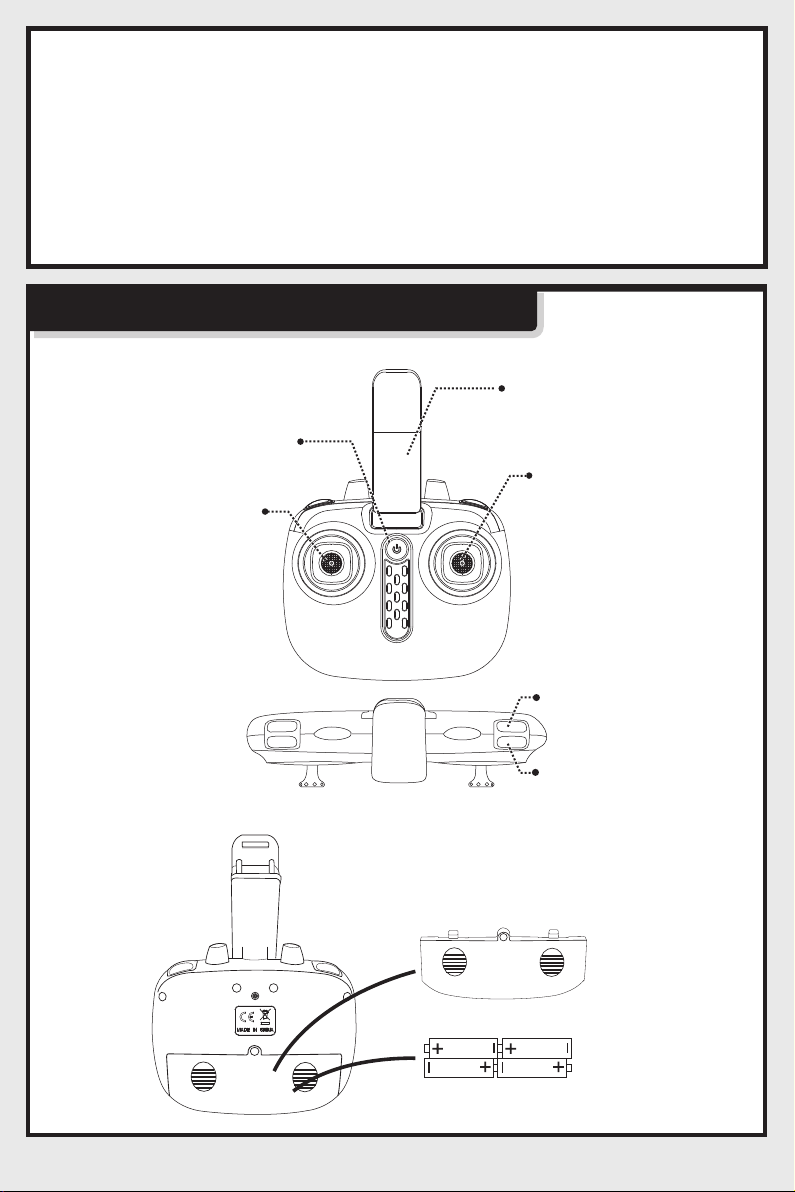

Understanding Your Remote Control
Remote control’s button function description:
Battery installation for remote control:
Power ON/OFF
Mobile Phone
Retanining Clip
Battery cover
4 x AA Alkaline Batteries
Left joystick - Keep
pushing in for
trimming. To clear
all the trimming
settings, keep
pushing in and
push the power
button at the same
time.
Right joystick - Push in
over 3 seconds to enter
headless mode then push
in again to exit. Quickly
push in and release to
change high / low speed,
(one beep means low
speed and two beeps
means high speed.)
360° Stunt flip button
Push for auto take-off
and landing.
- Avoid dismantling the batteries.
- During the charging of battery, avoid leaving the charging place.
- Rechargeable batteries are to be removed from the toy before being
charged；
- Rechargeable batteries are only to be charged under adult supervision；
- Exhausted batteries are to be removed from the toy；
- Caution：Risk of explosion if battery replaced by an incorrect type,dispose
of used batteries according to the instructions.
stored in a cool and dry place.
-5-
1. During the battery installation, it must be ensured
that the polarities of the batteries are matched with
that of the battery box. No battery shall be installed
with the opposite polarity.
2. Do not use new and old batteries together.
3. Different types of batteries are not be mixed.
4. Do not use rechargeable batteries.

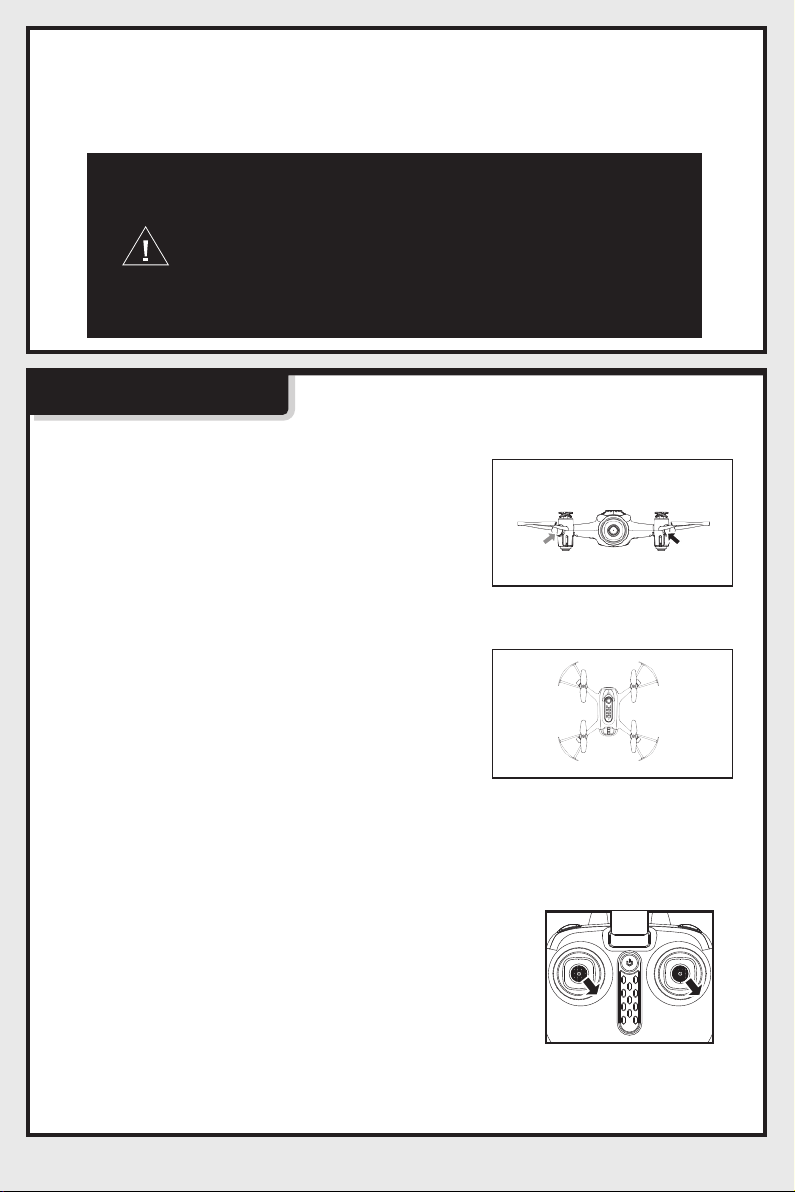

Product Features
1. Low-voltage Protection:
1. Battery Installation Method: Open up the battery cover at the back of the
remote control. Correctly place 4 x AA alkaline batteries in the battery
box in strict adherence to the polarity instructions (the AA alkaline
batteries are not included).
2. Over-current Protection:
If the drone encounters a direct impact
from a foreign object,or is obstructed,
or if the blades are not rotating, the
drone will go into over-current protection
mode.
When the two indicator lights at the rear of
the drone start flashing, it means that the
drone's battery power is low. At this time,
please control the drone return.The drone
will automatically slow down when it is
short of power.
3. Level Calibration Function:
Place the drone on a level surface and at
the same time, push both left and right
joysticks to the lower right corners for 2 to
3 seconds; the led light indicator on the
drone will blink rapidly, and it will return
back to the normal status after about 2
to 3 seconds. The level calibration is
successful.
-6-

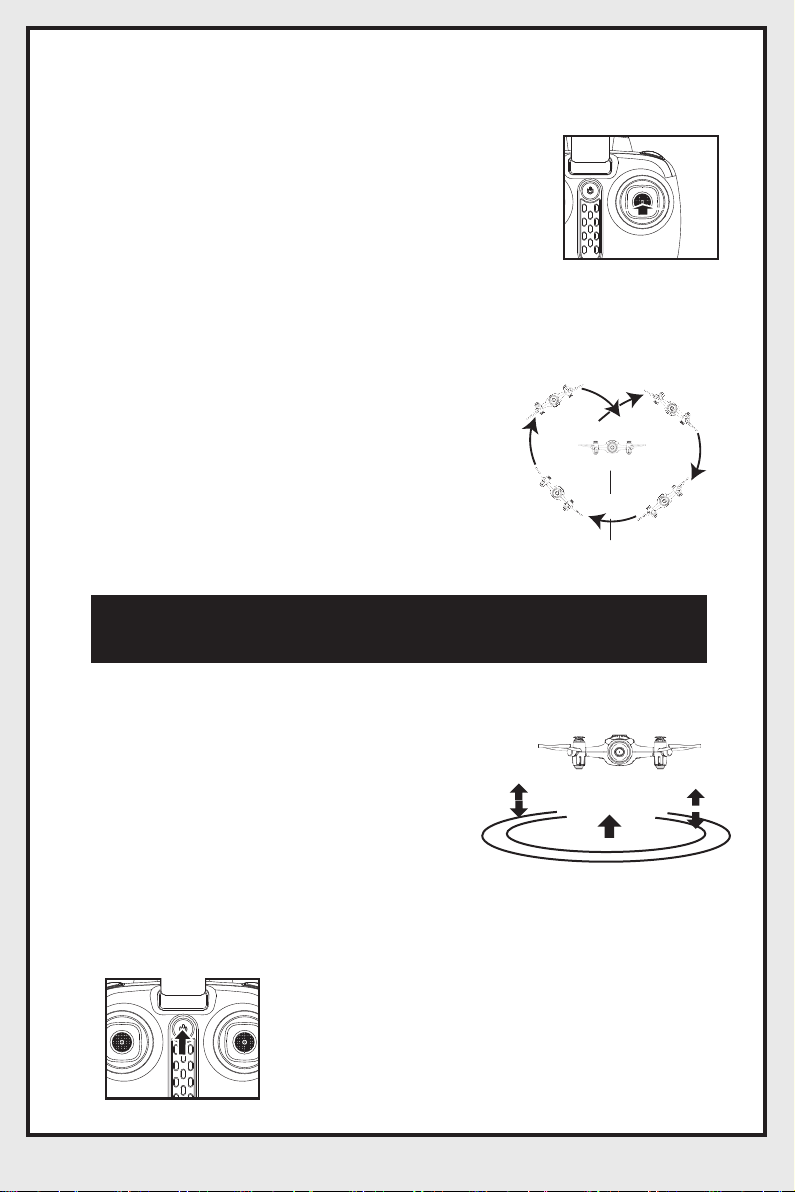

5. 360° Stunt Flip Function:
When you are familiar with the basic actions,
you can proceed to explore even more exciting
stunt actions. Fly the drone to a height of 3M
above the ground, push the upper right corner
button (Stunt Flip Button) on the remote control
and simultaneously push the right joystick to the
farthest position of Front/Back/Left/Right, the
drone will now execute the Front/Back/Left/Right
stunt flip action.
6. Auto Hover Function:
After using the left joystick (throttle)
to control the ascending / descending
flight of the drone,release the left
joystick (accelerator) and the drone
will hover at that height when the
joystick is released.
Note: Drone will have the best stunt flip action when the batteries
are fully charged.
4. Fast/Slow Speed Function:
Slow speed by default when first powered-on.
Possible to switch the function mode of fast/
slow speed by pressing in on the right joystick
for a short time. It is switched into fast speed
mode when two “beep” sounds come from the
remote control,pressing in on the right joystick for
a short time under fast speed mode and then one
“beep” sound would come from the remote control,
then it is then switched back into slow speed mode.

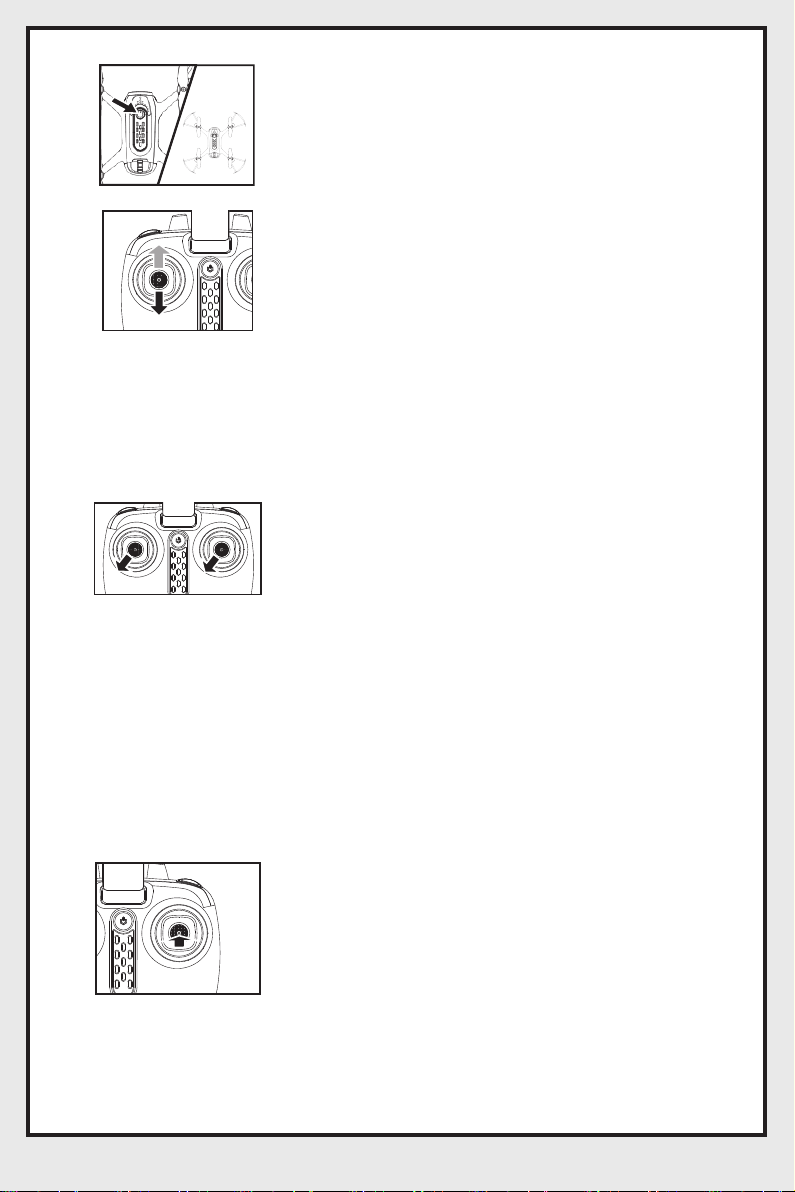

7. Headless Function:
1. Defining forward direction:
1. Push on the power button of the
remote control.
3M
-7-
3. Push the left joystick (throttle) on the remote
control up to the farthest position and then pull
down to the farthest position. When the remote
control issues a long beep sound, it means the
frequency and defining forward direction
functions are completed.
2. Calibration for the definition of the front:
1. When the drone encounters a direct impact
with foreign objects in the headless mode,
if there is an occurrence of deviation of the
defined direction, it is only required to push
both the left and right joysticks to the bottom
left corners simultaneously after placing the
flying direction of the drone in the correction
position. When the led light indicator of the
drone is in a long “ON” mode after slowly
flashing for 3 seconds, it indicates the
calibration is complete.
3. Toggling between headless function and normal function:
1. After the drone is matched with the
corresponding frequency, the drone would be
in normal pattern by default. At this time the
indicator light on the drone would be in a state
of on for a long time. After pressing in on the
right joystick of the remote control for 2
seconds, the remote control would make a
sound of “beep, beep, beep” to show that it
has entered into a state of headless mode.
Pressing in on right joystick for 2 seconds
then a long sound of “beep” would be heard to
show an exit status.(When under the state of
headless mode, four indicator lights on the
drone are led lights which flicker once every
four seconds)
2. Press the power button on the top of the drone
to 1-2s make sure the drone is turned“ON”, and
adjust the specified direction of the drone’s head
under the headless mode as the new forward
direc.
Front
Back
Left Right
-8-
2. Under the headless mode, the operator
does not need to differentiate the head
position of the drone, and only needs to
control the drone's direction front/back/left/
right by using the right joystick direction on
the remote control.
For Android phones,download and install the SYMA GO APP by visiting
the www.symatoys.com or by scanning the QR code.
For IOS Apple phones,download and install the SYMA GO APP by visiting
the App Store or by scanning the QR code.
8.Wireless Real-Time Transmission Funtion
1.Downloading the installation software
Reminder: QR codes are provided on the packaging box and at the
bottom of the user manual. Please visit website www.symatoys.com
or the App Store/Google Play to obtain the newest SYMA GO App.
2.How to connect
1.Turn on the drone,about 10 seconds later,the WiFi indicator under
the drone will flash slowly,and waitting to conect with phone.
2.At this time, enter the “Settings” option on your phone, and turn on WLAN.
In the WLAN search list, look for a network called “FPV-WIFI- ****” and
connect to it. Once connection has been established, exit the “Settings”
option.
3.Open the SYMA GO App, click the “START” icon to enter the control
interface. A full bar in the signal strength icon indicates the strongest
possible signal.
1. Open up SYMA GO
APP.
3. The phone’s screen
will display real-time
images.
2. Click the "START" icon,
the system will enter the
APP operation interface
automatically.
Front
Back
Left Right
Front
Left
Back
Right
Front
Left
Back
Right
-9-
3. Interface icon instructions
Mobile APP control interface
Take Photos
Signal strength
Record
Time
Right Joystick
Trimming A
Trimming C
Return
Flight-track
Headless mode
Gravity induction mode
Check the memory card memory (need to connect camera,
and read the memory card data need to wait a few seconds)
Check the phone memory
Click for display/hide
the toolbar
One key
start/stop
Left Joystick
One Key take-off/
Landing
Trimming B
Display/hide Joystick
High-Low Speed
switch
Level Calibration/defining
headless forward direction
Adjust the scale can change
the flight distance
Flight-track operation interface
Press the flight-track button to enter into
the flight-track interface, and the drone will
flight in accordance with recorded route.
4. Real-time aerial photography uploading:
Photo/Record: When the camera is operating normally,press the photo/record icon in the
real-time upload interface to take photos/videos.(Photos/recordings that were taken can
be viewed in the “View Photo and Video” folder)
Note: When using the real-time upload operation in the app, the
range for the operating distance of the aircraft will reduce by
half. The wireless real-time upload function is optimal in
spacious environments.
Altri manuali per GYRO REMOTE CONTROL SERIES
4
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali SYMA Drone
SYMA
SYMA X25W Manuale utente
SYMA
SYMA X12S Explorers Manuale utente
SYMA
SYMA X300 Manuale utente
SYMA
SYMA GC88752-28 Manuale utente
SYMA
SYMA X1 Manuale
SYMA
SYMA X200 Manuale utente
SYMA
SYMA X20W Manuale utente
SYMA
SYMA X2 Gyro Manuale utente
SYMA
SYMA GYRO REMOTE CONTROL SERIES Manuale utente
SYMA
SYMA X110W Manuale utente
