Thank you for purchasing this Synology product! Before setting up your new FlashStation, please check the
package contents to verify that you have received the items below. Also, make sure to read the safety instructions
carefully to avoid harming yourself or damaging your FlashStation.
Note: All images below are for illustrative purposes only, and may differ from the actual product.

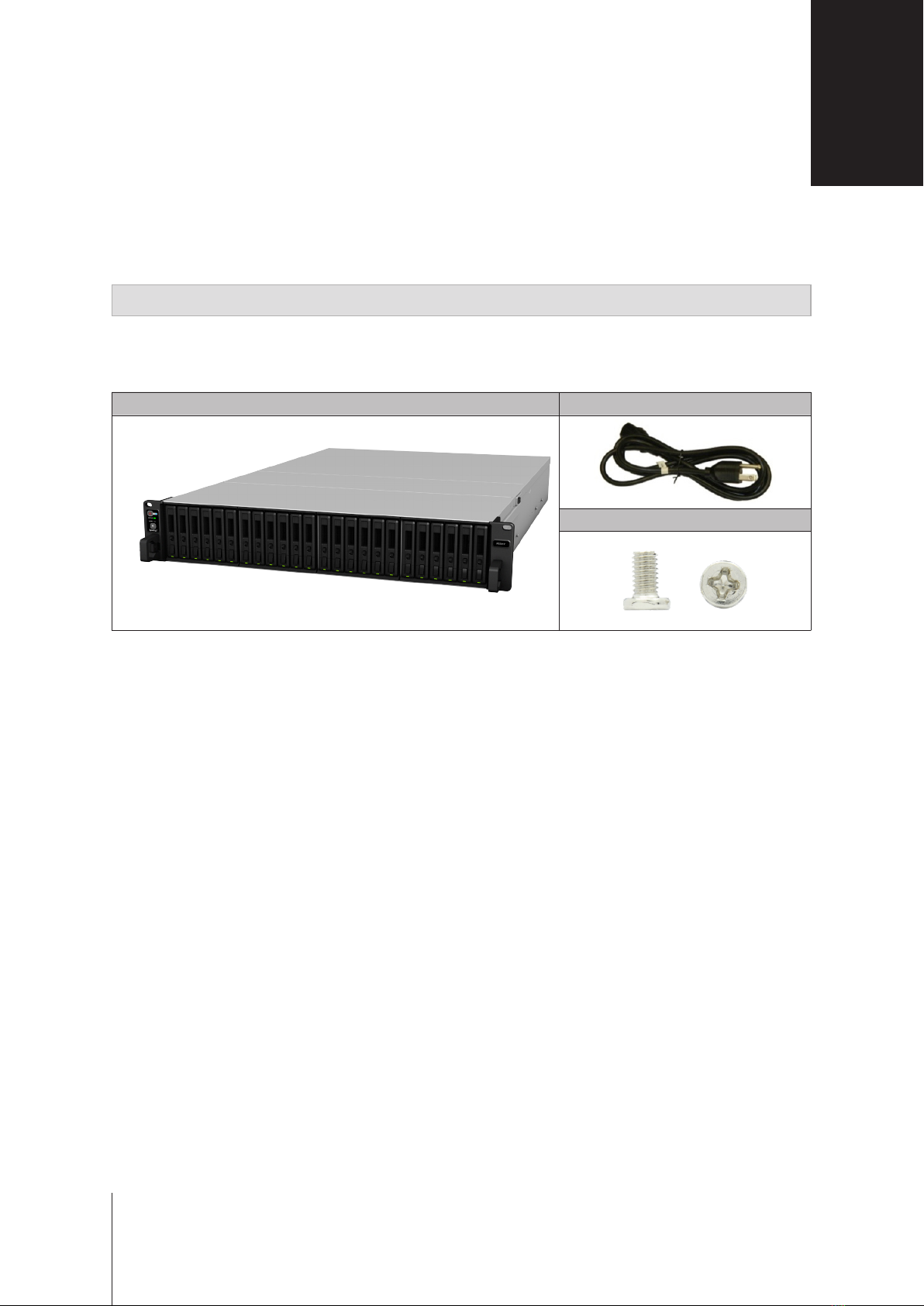

Package Contents
Main unit x 1 AC power cord x 2
Screws for 2.5” drives x 100
Before You Start 1
Chapter
3
3
4Chapter 1: Before You Start

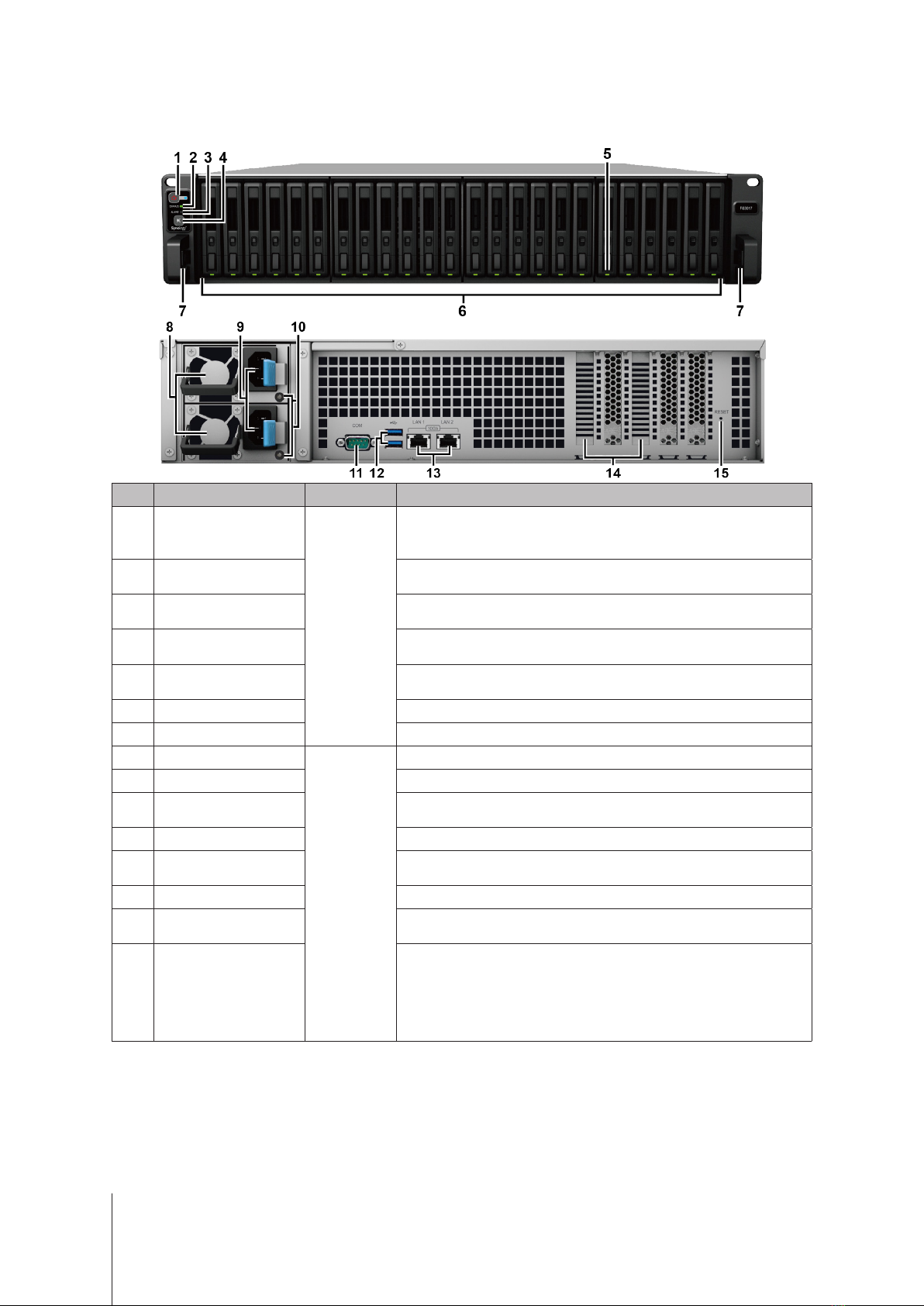

Synology FlashStation at a Glance
No. Article Name Location Description
1 Power Button and
Indicator
Front
1. Press to power on the FlashStation.
2. To power off the FlashStation, press and hold until you hear a beep
sound and the Power LED starts blinking.
2 Status Indicator Displays the status of the system. For more information, see "Appendix B:
LED Indicator Table".
3 Alert Indicator Displays warnings regarding fan or temperature. For more information,
see "Appendix B: LED Indicator Table".
4 Beep Off Button Press to deactivate the beeping sound that is emitted when a malfunction
occurs.
5 Drive Status Indicator Displays the status of drives. For more information, see "Appendix B:
LED Indicator Table".
6 Drive Tray Install drives (hard disk drives or solid state drives) here.
7 Rail Kit Release Tab Push in and hold to release the FlashStation from the rail kit lock.1
8 PSU Fan
Back
Disposes of excess heat and cools the PSU.
9 Power Port Connect power cords here.
10 PSU Indicator Displays the status of the power supply unit (PSU). For more information,
see "Appendix B: LED Indicator Table".
11 Console Port This port is used for manufacturing use only.
12 USB 3.0 Port Connect external drives, USB printers, or other USB devices to the
FlashStation here.
13 LAN Port Connect RJ-45 network cables here.
14 PCI Express Expansion
Slot Supports two PCIe add-on cards.
15 RESET Button
1. Press and hold until you hear a beep sound to restore the default IP
address, DNS server, and password for the admin account.
2. Press and hold until you hear a beep sound, then press and hold
again until you hear three beep sounds to return the FlashStation
to “Not Installed” status so that DiskStation Manager (DSM) can be
reinstalled.
1For more information about the rail kit installation, please refer to the Quick Installation Guide that comes with the rail kit.
5Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Place the product right side up at all times.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is
correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected from
the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.
Tools and Parts for Drive Installation
• A screwdriver
• At least one 2.5” SSD (SAS/SATA) or HDD (SAS only) (please visit www.synology.com for compatible drive
models.)
Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please
back up any important data before installation.
Install Drives
1 Open the drive tray.
a Find the small button located on the bottom side of the drive tray handle. Press the button down, and the
drive tray handle will pop out.
b Pull the drive tray handle out as illustrated above.
2 Place the drive in the drive tray. Tighten screws into the four spots indicated below to secure the drive.
3 Insert the loaded drive tray into the empty drive bay.
Note: Make sure the tray is pushed in all the way. Otherwise, the drive might not be able to function properly.
Hardware Setup
6
2
Chapter
7Chapter 2: Hardware Setup
4 Push the handle inward to secure the drive tray.
5 Push the switch on the drive tray handle to the bottom to lock the drive tray.
6 Repeat the steps above to assemble the other drives you have prepared.

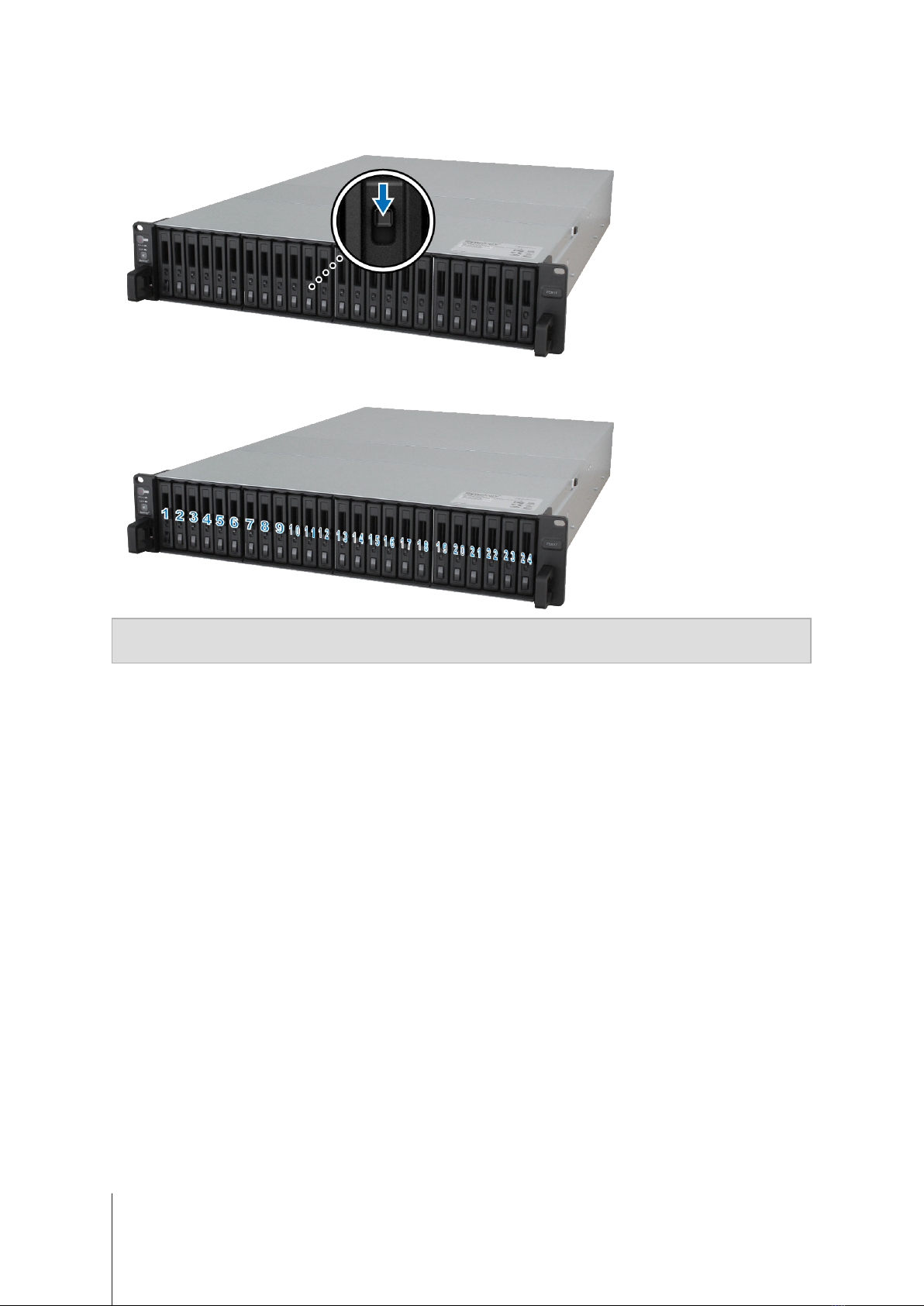

7 Drives are numbered as shown below.
Note: If you want to create a RAID volume, we recommend all installed drives be the same size in order to optimize
drive capacity usage.
8Chapter 2: Hardware Setup
Add a RAM Module on FlashStation
The optional Synology RAM module is designed for FlashStation memory expansion. Follow the steps below to
install, check, or remove a RAM module on your FlashStation.
To install the RAM module:
1 Shut down your FlashStation. Disconnect all cables connected to your FlashStation to prevent any possible
damage.
2 Remove the rear top cover:
a Remove the screw on the back of FlashStation.
b Pull the rear top cover, and put it aside.
Note: When you remove the rear top cover, you expose sensitive internal components. Avoid touching anything other
than the memory assembly when you remove or add memory.
3 Remove the beam:
a remove the 4 screws at both sides of the chassis.
b Pull up the beam, and put it aside.
9Chapter 2: Hardware Setup
4 Unplug the cables numbered 5 and 6 to facilitate the removal of the ventilation duct cover.
5 Remove the 3 screws that secure the ventilation duct cover, pull up the ventilation duct cover, and put it aside.
10 Chapter 2: Hardware Setup

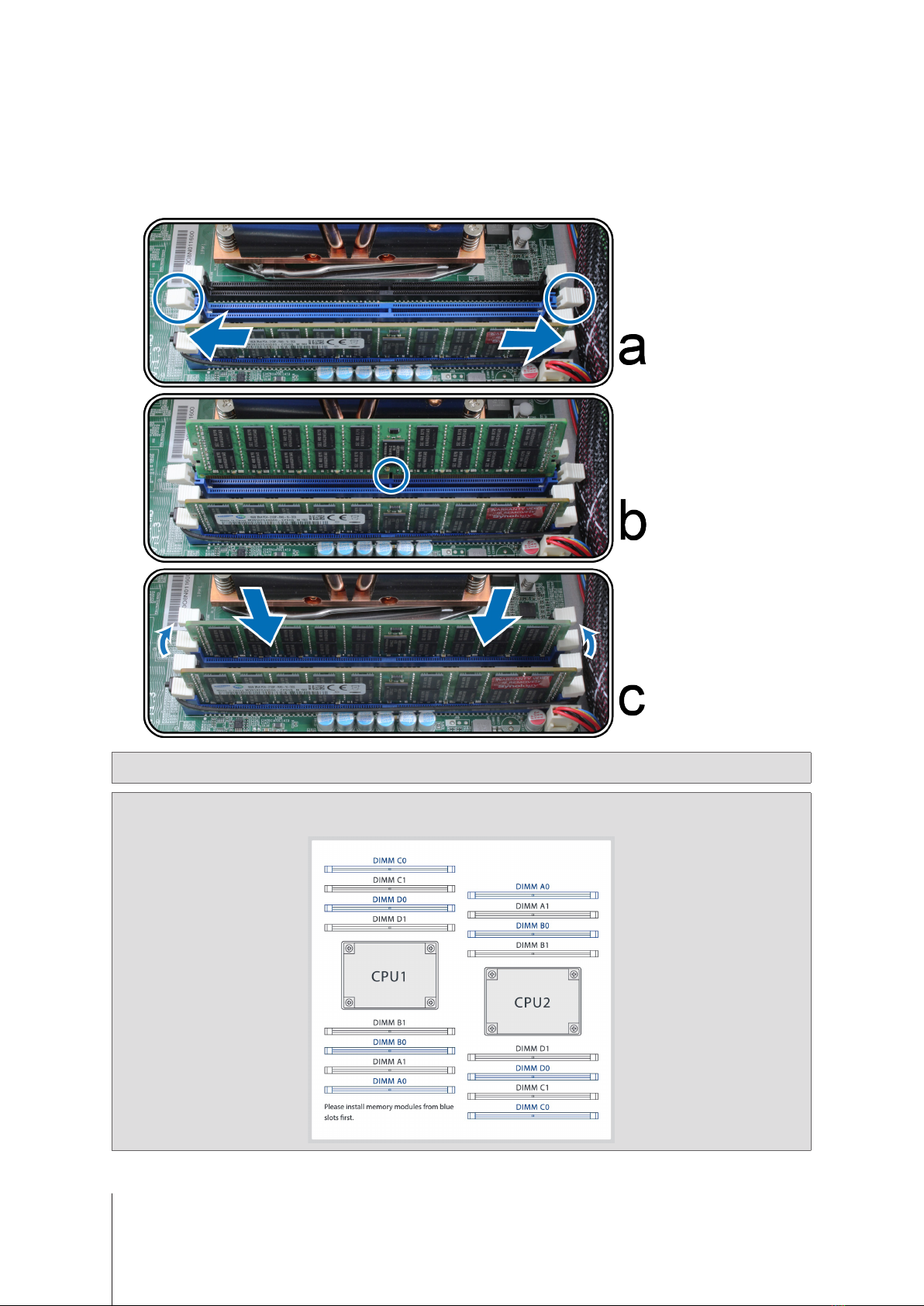

6 Insert the new memory module in the slot:
a Push the retaining clips on the slot out to the sides.
b Align the notch on the gold edge of the module with the notch in the memory slot.
c Push down on the memory module with rm and even pressure. The retaining clips will snap into position as
the module is correctly inserted.
Note: Hold the memory module by its edges, and do not touch the gold connectors.
Important: You must install the memory module onto the blue slots rst. Please refer to the sticker (as below) on the
ventilation duct cover.
