Introduction

1.1 SEE702

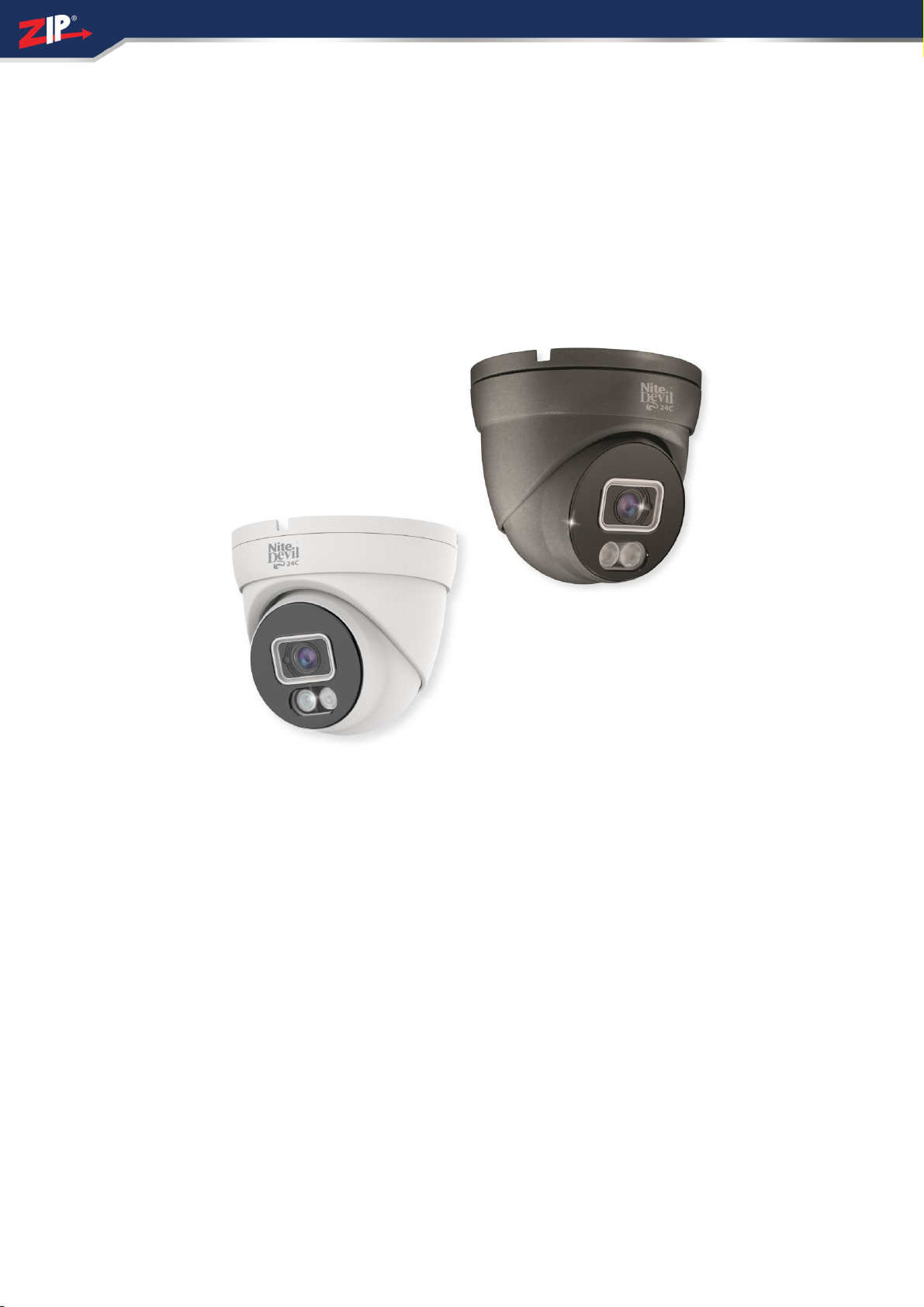

The all new NiteDevil® 24C can stay in full colour around the clock using the minimal

amount of natural light to produce superb full colour images. It really is a game

changer in performance and should be used as a part of any CCTV system requiring

full colour images in key areas around entrances etc.

With built in dual IR and white light you can choose how the camera best works in

your install. Using white light to give visual warning or using IR illumination to get a

more discreet set up.

A built in microphone means you can see and hear what's happening, recording the

audio & video on your ZIP SUPA-S DVR for the best possible CCTV evidence.

Tools & Handy Extras

Screwdriver

Drill

12V DC PSU

Drill bits

BNC Crimp Tool & BNCs

RG59 Coax Cable

Digital Multi-Meter

LCD400K - CCTV Test monitor

19/04/2023

SEE702

ZipDVR.com

Connections

The camera has a 2.1mm socket which requires 12V DC, use a regulated power

supply rated above the current draw of the camera.

The camera is polarity sensitive so connections must be correctly made.

The camera has a standard BNC connector for video output, the output can be

changed to AHD, CVI or CVBS if required in the menu

OSD 4-In-1 Technology

Selectable HD-TVI, HD-CVI, AHD and CVBS (Analogue) Output. As default the

camera is set to HD-TVI, however the output can be changed to AHD, CVI or CVBS

if required.

This output can be changed with in the menu camera. Please note the "Mode” in the

menu of the DVR won’t change the format, as the menu overrides the output.

See OSD Menu for accessing and changing the video format.

Index

ZipDVR.com

Mounting

5.1 NiteDevil Eyeball

A template is provided in the box for marking the hole positions for the fixing screws.

19/04/2023

SEE702

ZipDVR.com

OSD Menu

Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set

as default.

To access the Cameras Menu via coaxitron:-

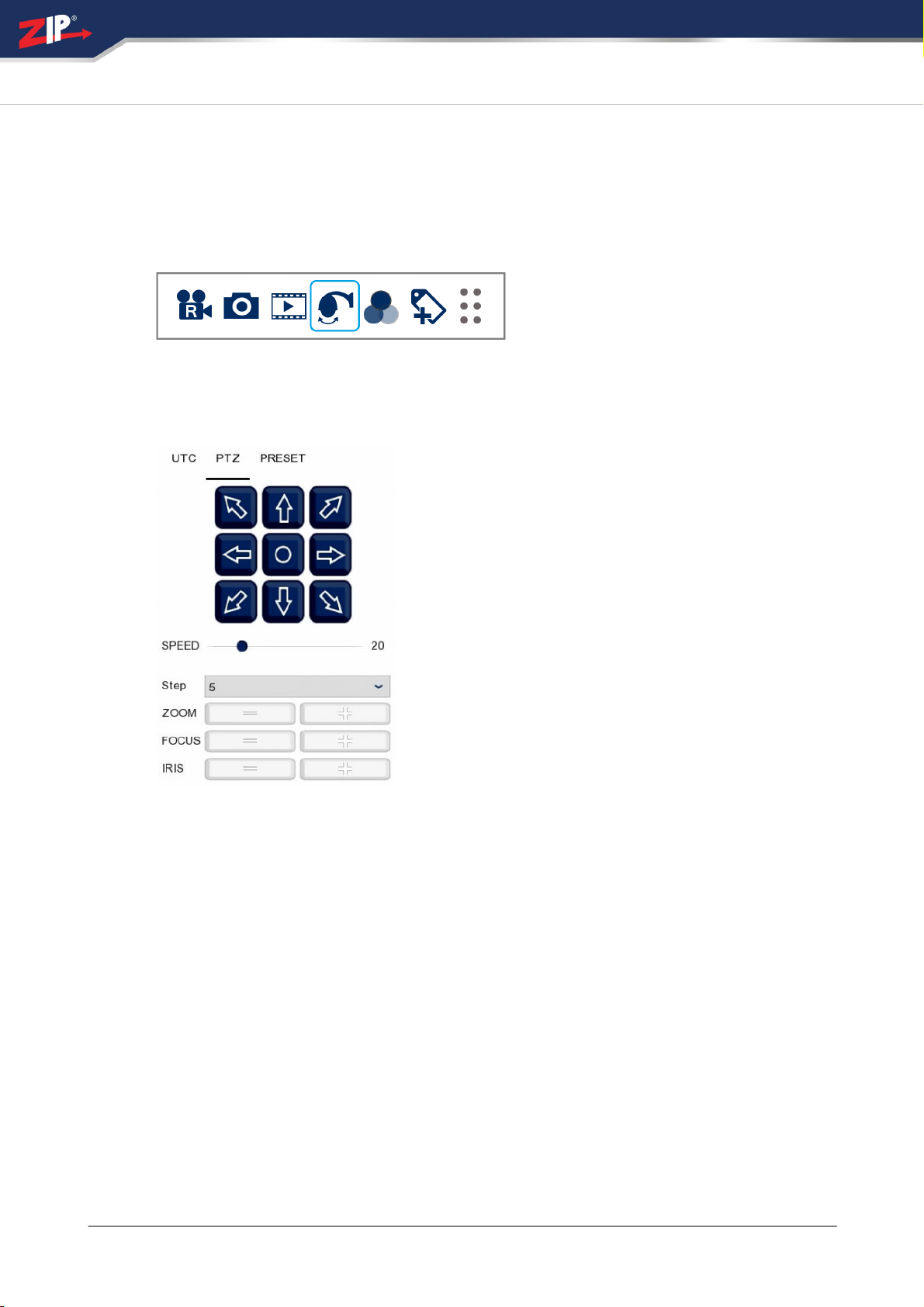

1. Click on the image in Live view

2. Click on the PTZ button at the bottom of the screen

3. Click on the IRIS + / centre button to display the menu

Use the directional arrows to move up

and down through the menu.

Use the directional arrows left and right to

change the option.

Use IRIS + to select & enter that menu

option.

Index

ZipDVR.com

6.1 2MP OSD Menu

Format

2M25 / 2M30 / PAL

Video Mode

TVI / AHD / CVI / CVBS

Language

English / Spanish / French / Chinese

Exposure

Exposure Mode

Global / BLC / HLC /

DWDR

AGC

High / Middle / Low

Back

Exit

Save – Exit

Volume

0 – 9 (9 Default - NOT USED)

Day & Night

Mode

Ext / Color / B/W

Dim

0 – 3 (3 Default)

Back

Exit

Save – Exit

Video Settings

AWB

Auto

Brightness

1 -9 (5 Default)

Contrast

1 -9 (5 Default)

Sharpness

1 -9 (5 Default)

Saturation

1 -9 (5 Default)

Mirror

Default / Mirror / Flip /

Rotate

Back

Exit

Save – Exit

Reset

Exit

Save – Exit

19/04/2023

SEE702

ZipDVR.com

6.2 Key Menu Settings

Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for

the current light level. The shutter speed will automatically detect the required length

of time to keep the digital sensor exposed to light. FLK option sets the shutter speed

to stop synchronisation with lighting so that pulsing effect is minimised.

White Balance - Colour adjustment of the camera to be set up so objects appear a

natural colour. ATW / PRO (Automatic tracking white balance) continually tracks and

adjusts the white balance, making it suitable for use in cameras in which the image

content and lighting are subject to changes.

Day & Night - The camera can be set to colour or B&W mode or have it

automatically switch External is set as default, the switch between colour and black &

white is controlled by an external trigger In this a light dependent resistor.

DNR (Noice Reduction) - Noise Reduction is the process of removing noise from

the video signal by applying a digital filter. 2D noise reduction reduces noise in the

foreground of the image where as 3D noise reduction reduces noise in both the

foreground and the background of the image.

D-WDR - Digitally adjusts the exposure in areas of the frame to maintain optimum

levels in both the dark and bright areas of an image.

NOTE - Some models may not have D-WDR function.

Reset - Defaults the camera to factory settings. This setting helps when fault finding

issues with the camera to ensure all settings are defaulted.

Index

ZipDVR.com

Audio Over COAX

The Audio over COAX (Coaxial Audio) is compatible with the ZIP SUPA-S &

XTRA204-216 range of recorders.

Setting the Input type determines which audio inputs are used.

Base-band Audio - Sets the audio type to the physical RCA Phono type connection

on the back of the recorder. This type of audio input requires a audio input

connection or microphone to be wired into the back of the recorder.

Coaxial Audio - In order to use compatible Zip audio of coax cameras, coaxial

audio needs to be set. The audio is captured at the camera and then set along side

the video and then decoded in the recorder.

Ensure Audio (Volume) is enabled for each channel in the record menu to record the

audio with footage to then playback. If not the audio will only be heard when looking

at the live view / preview on the DVR or via the Zip Vision Pro App.

Set this in Record - Encode - Mainstream and Record - Encode - Substream

*Note the V1 SUPA & XTRA recorders are not compatible with Audio over COAX.

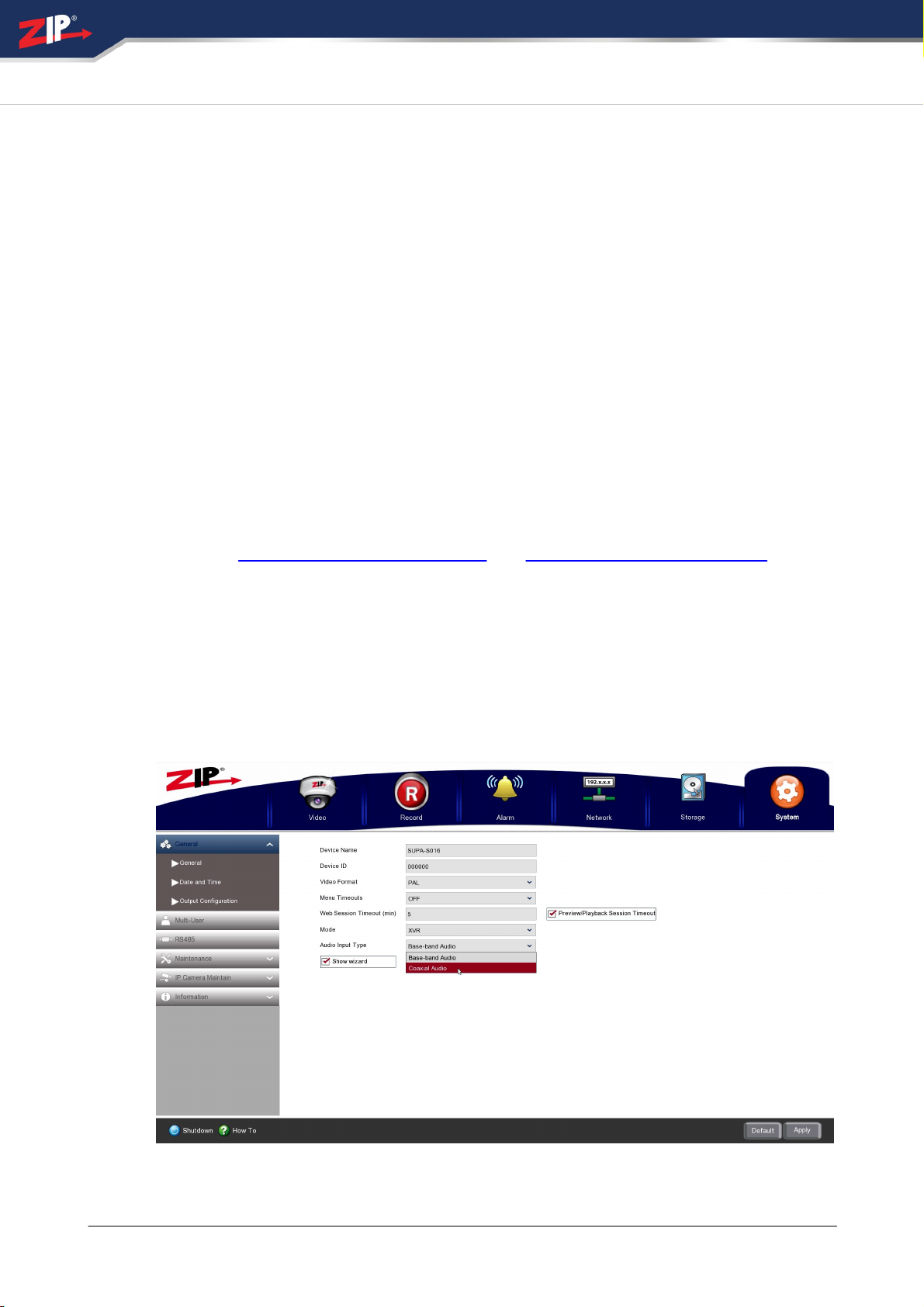

To enable, in the menu on the SUPA-S go to System > General > Audio Input

Type

Select Coaxial Audio

Select Apply

19/04/2023

SEE702

ZipDVR.com

Troubleshooting

8.1 Camera Rebooting / Turning Off

A. Check the voltage to the camera (under load) using a digital multi-meter, if below

10.8V then move the power supplycloser to the camera.

B. For 12V DC cameras, only use regulated power supply rated above the current

consumption, so that the camera is always receiving the correct supply which is rated

above the current consumption.

C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using

thicker cable will reduce the resistance between the camera and the power supply

and therefore reduce the voltage dropped along the cable.

8.2 Poor Quality Images

A. Check the video format the DVR (digital video recorder), then set the camera to

the relevant video format – see the 4-In-1 Technology

B. If set to CVBS, then this is a low quality video output for legacy systems (analogue

- CVBS), when using a 2 MegaPixel DVR or above then use another video format,

like HD-TVI.

C. Reset the camera menu via Zip Coaxitron – OSD Menu

D. Check if the DVR (digital video recorder) supports the resolution of the camera.

8.3 Image is Black & White

A. Check the video format your DVR supports, then set the camera to the relevant

video format – see the 4-In-1 Technology

B. Reset the camera menu via Zip Coaxitron OSD Menu

D. Check if the DVR (digital video recorder) supports the resolution of the camera.

8.4 NCD / No Image Displayed on Recorder

A. Check the voltage to the camera (under load) using a digital multi-meter, if below

10.8V then move the power supplycloser to the camera.

B. For 12V DC cameras, only use regulated power supply rated above the current

consumption, so that the camera is always receiving the correct supply which is rated

above the current consumption.

C. Use thicker gauge copper cabling to reduce the voltage drop to the camera, using

thicker cable will reduce the resistance between the camera and the power supply

and therefore reduce the voltage dropped along the cable.
