Systembuild Evolution 7808884COM Manuale utente

B347808884COM03GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7808884COM

Entry Storage Bench

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Tube

You

systembuild.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

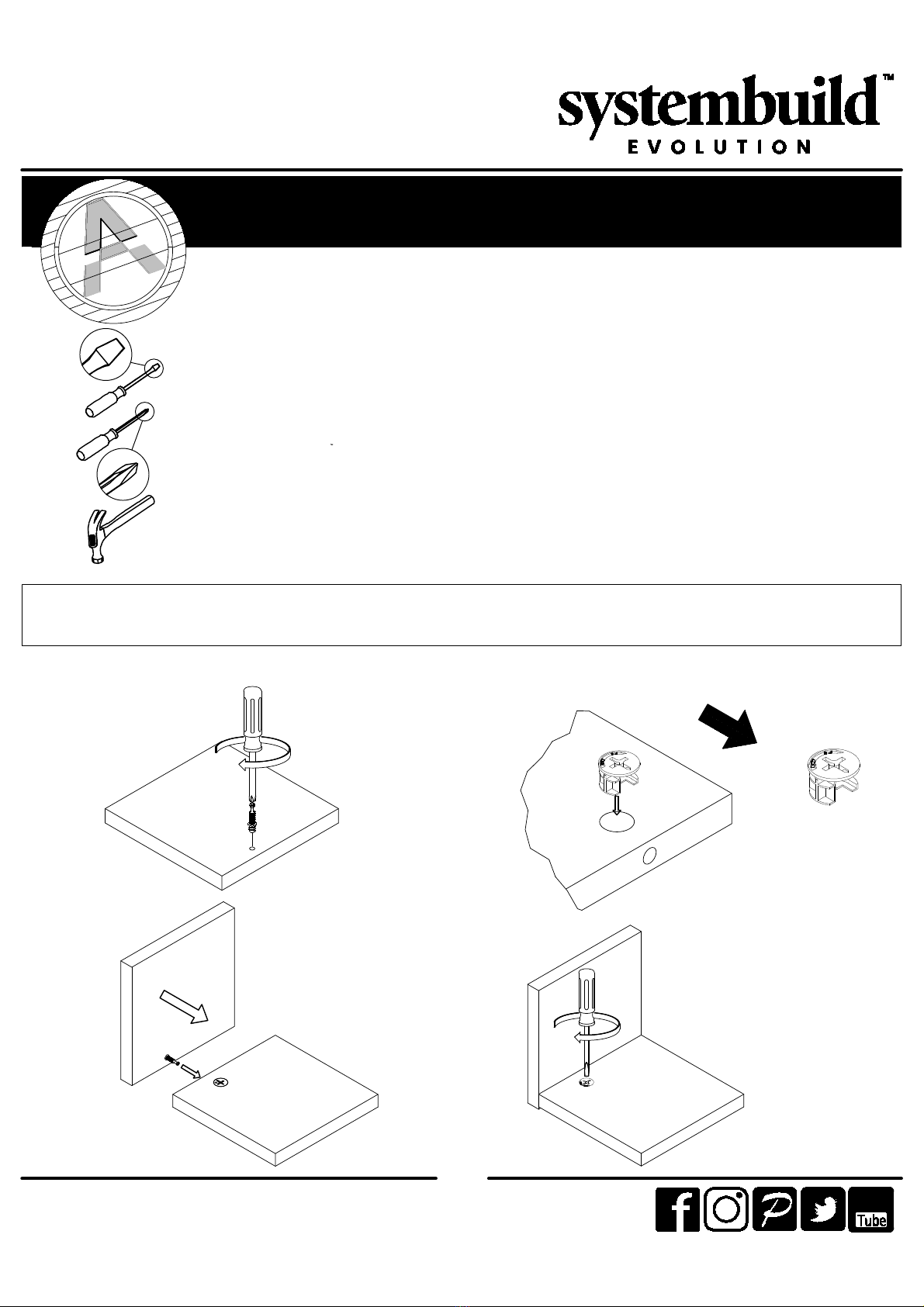

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

systembuild.com

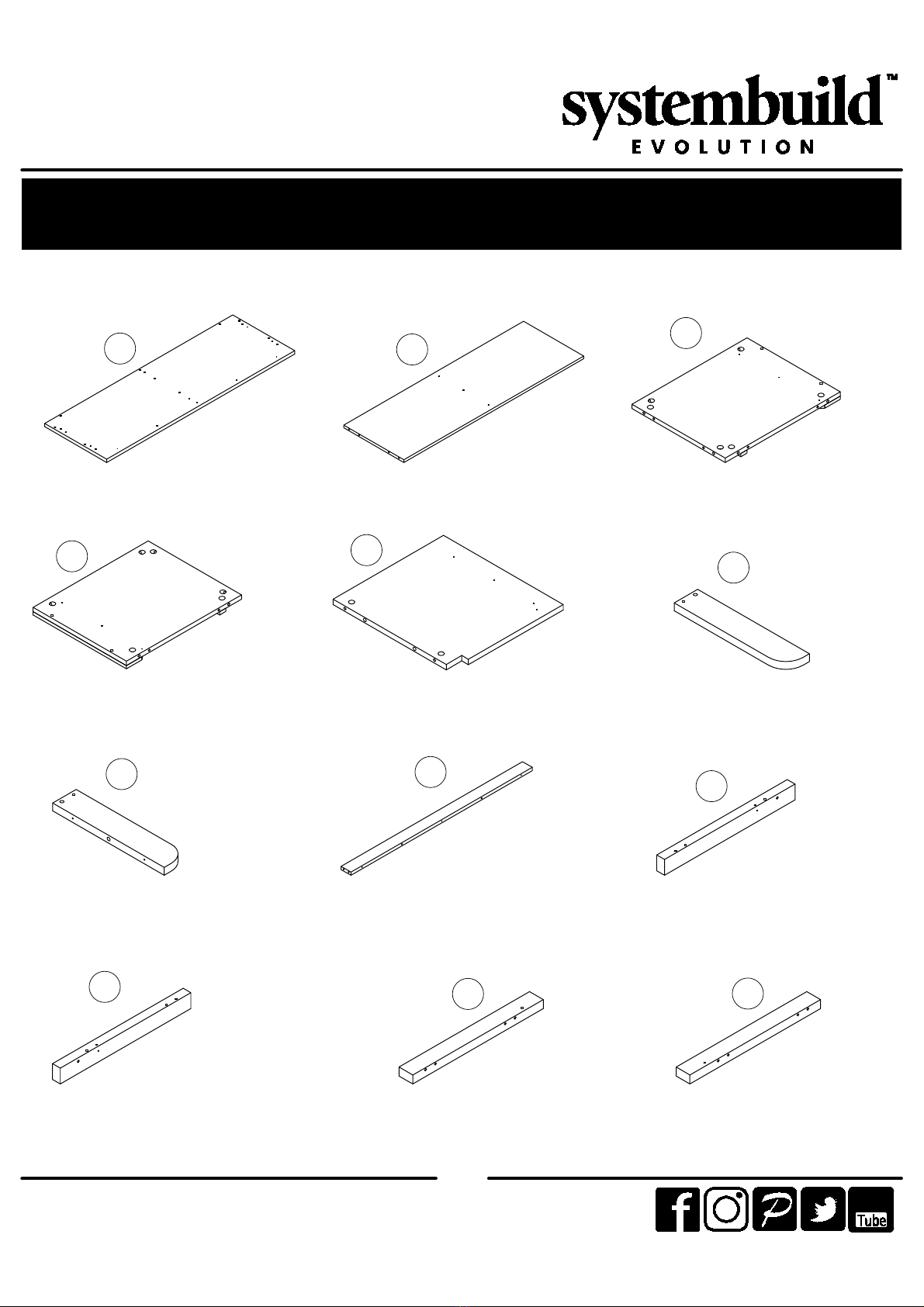

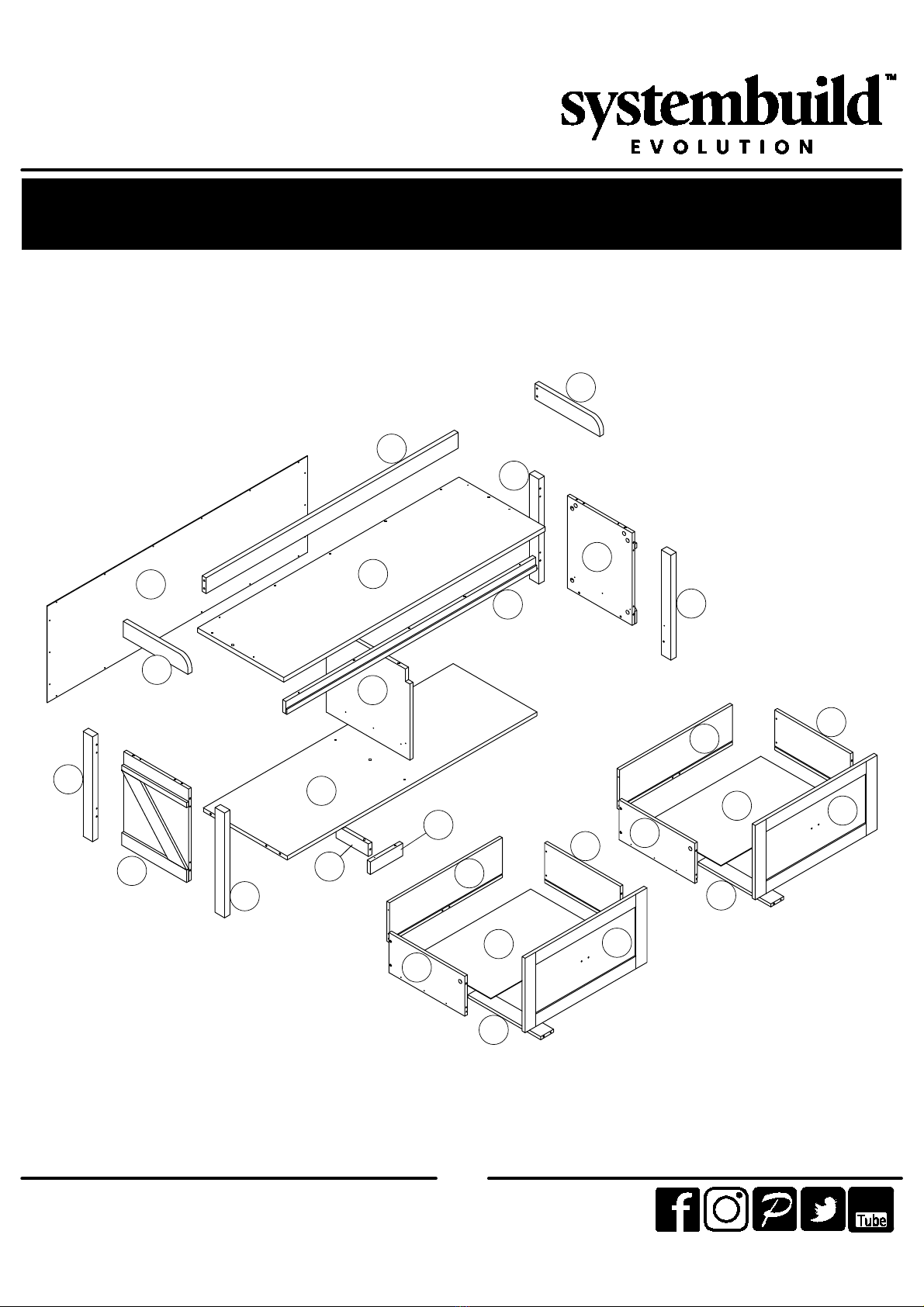

Board Identification

Not actual size

TOP

T7808884010GO

QTY: 1 PC

Tube

You

systembuild.com

BOTTOM

T7808884020GO

QTY: 1 PC

LEFT SIDE PANEL

T7808884031GO

QTY: 1 PC

RIGHT SIDE PANEL

T7808884041GO

QTY: 1 PC

PARTITION

T7808884051GO

QTY: 1 PC

LEFT RAIL

T7808884060GO

QTY: 1 PC

RIGHT RAIL

T7808884070GO

QTY: 1 PC

BACK RAIL

T7808884080GO

QTY: 1 PC

FRONT LEFT LEG

T7808884091GO

QTY: 1 PC

FRONT RIGHT LEG

T7808884101GO

QTY: 1 PC

REAR LEFT LEG

T7808884110GO

QTY: 1 PC

REAR RIGHT LEG

T7808884120GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

TOP APRON

T7808884130GO

QTY: 1 PC

BOTTOM SUPPORT

T7808884140GO

QTY: 1 PC

BOTTOM SUPPORT

T7808884150GO

QTY: 1 PC

DRAWER FRONT

T7808884161GO

QTY: 2 PCS

LEFT DRAWER SIDE

T7808884171GO

QTY: 2 PCS

RIGHT DRAWER SIDE

T7808884181GO

QTY: 2 PCS

DRAWER BACK

T7808884190GO

QTY: 2 PCS

DRAWER BOTTOM

T7808884200GO

QTY: 2 PCS

DRAWER SUPPORT

T7808884210GO

QTY: 2 PCS

BACK PANEL

T7808884220GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

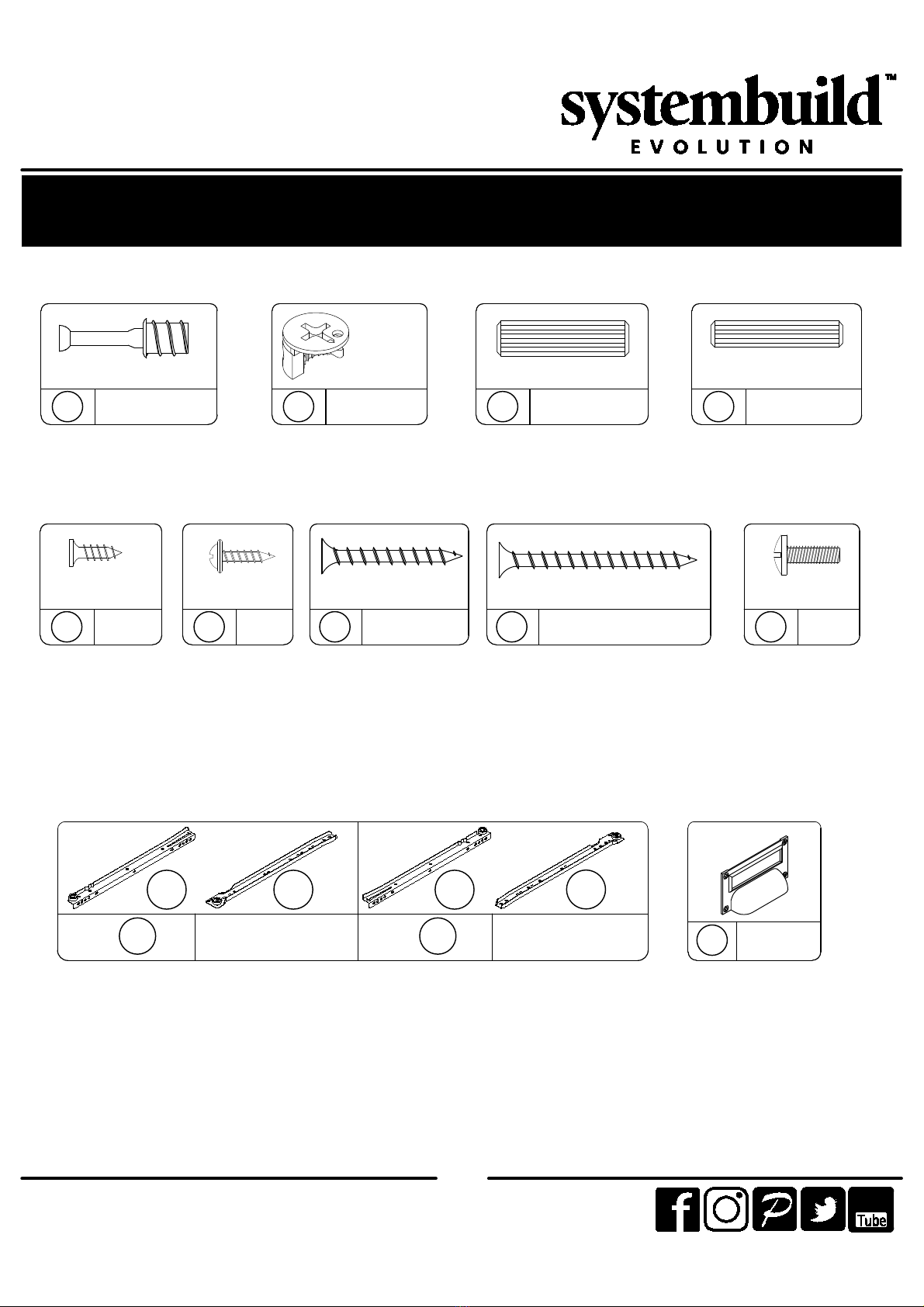

Part List

Hardware Bag Reference number:

27808884COM2GO

Actual Size

×26

Ø15 x 10mm

CAM LOCK

TGO2100

×26

CAM BOLT

TGO2000

Ø8 x 20mm

Tube

You

systembuild.com

×18

SCREW

TGO1301W

Ø3 x 12mm

6 ×4

M4 x 12mm

×15

Ø4.2 x 45mm

SCREW

TGO1008

BOLT

TGO1620

×18

WOOD DOWEL

TGO2903

Ø6 x 30mm

×17

WOOD DOWEL

TGO2900

Ø8 x 30mm

×28

SCREW

TGO1007W

Ø3.5 x 12mm

5 ×12

Ø4.2 x 32mm

SCREW

TGO1022W

No Actual Size

×2 set

14"

left cabinet

member

left drawer

member

×2 set

right cabinet

member

right drawer

member

10-1 10-2 11-1 11-2 14"

×2

HANDLE

TGO5513

METAL SLIDE

TGO4513W

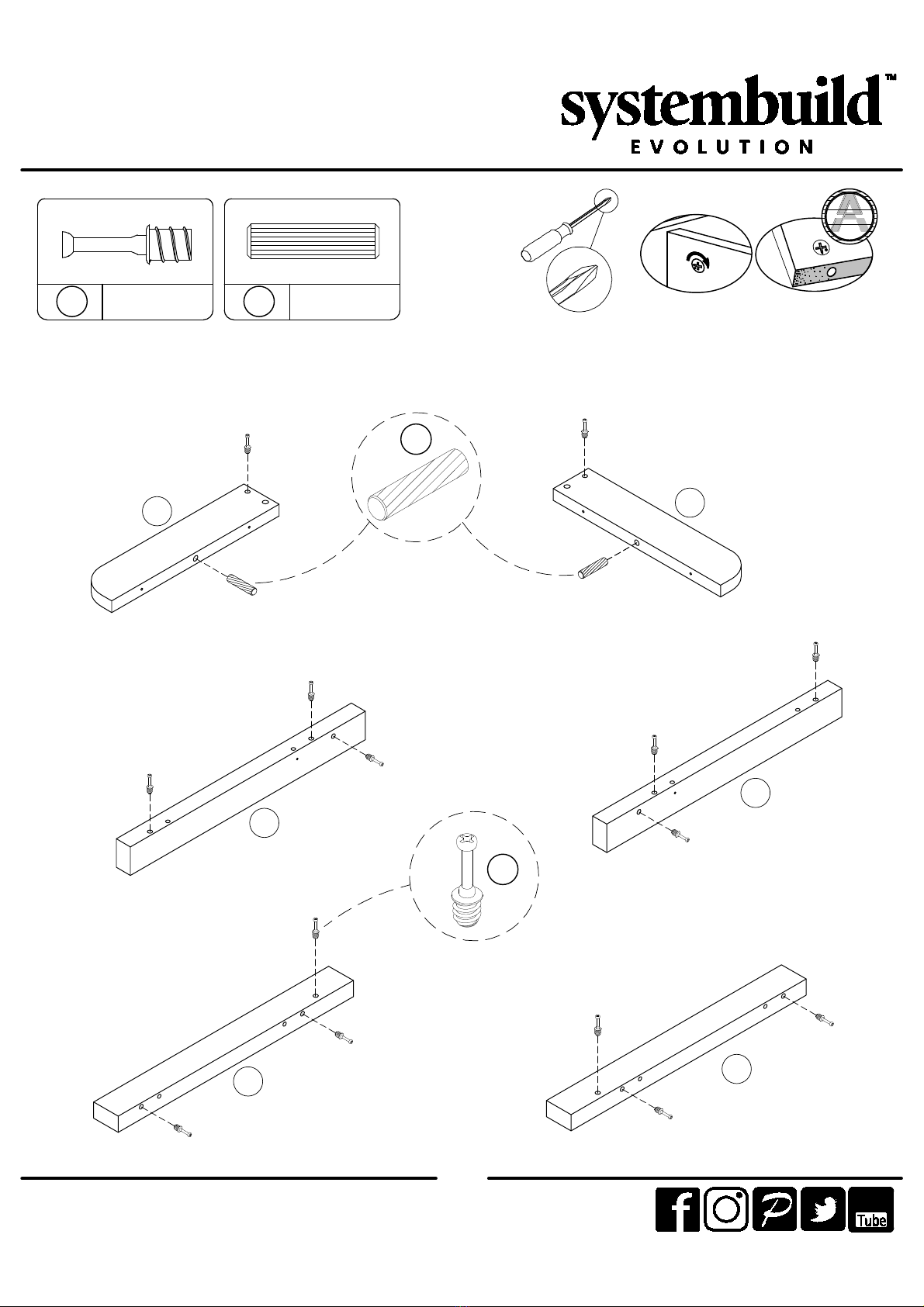

STEP 1

1.1 Screw (1) into (A) as illustrated.

1.2 Insert (3) into (B), (H) & (M) as illustrated.

×6

Tube

You

systembuild.com

×10

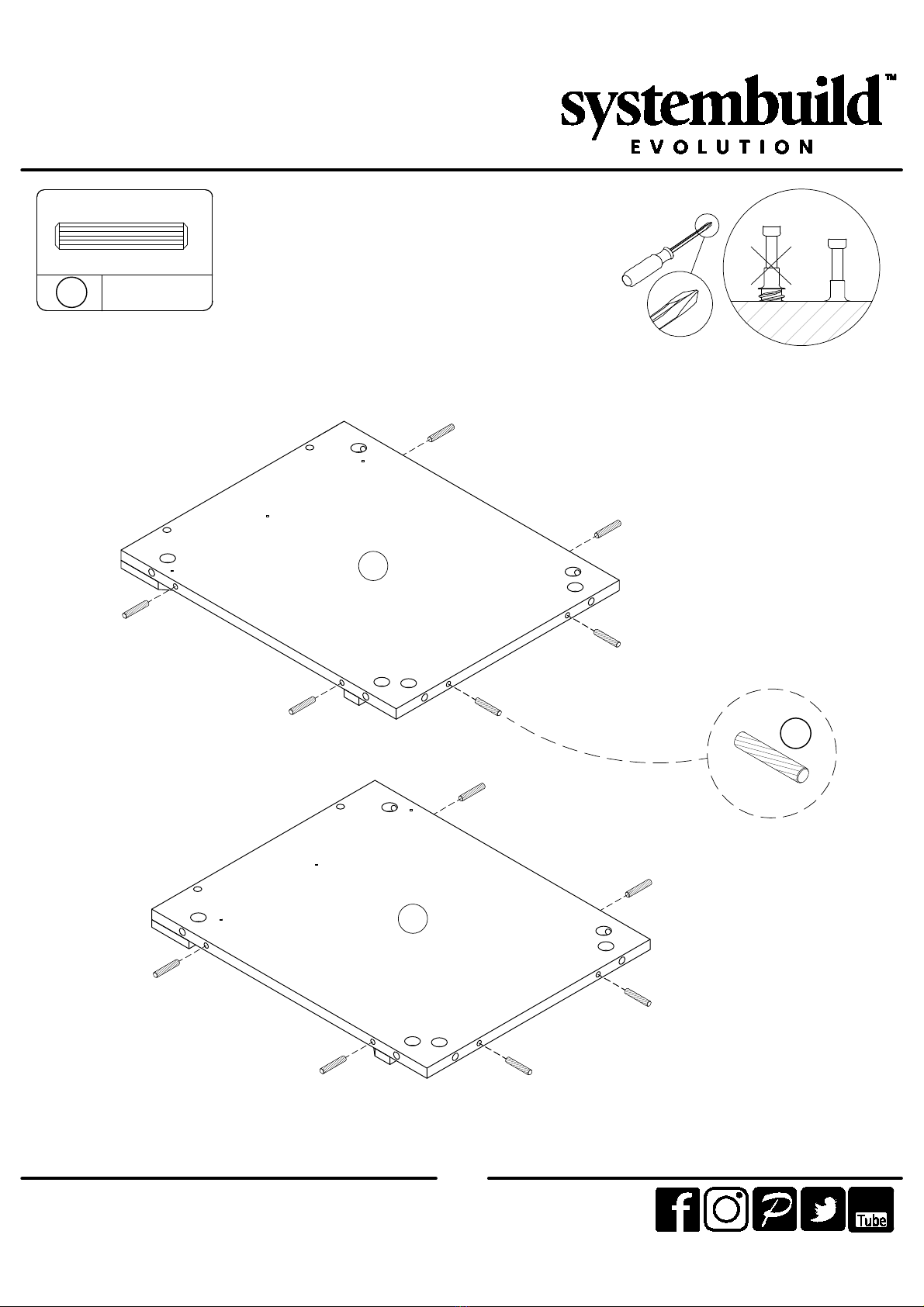

STEP 2

Tube

You

2.1 Insert (4) into (C) & (D) as illustrated.

systembuild.com

×12

STEP 3

Tube

You

×14

3.1 Screw (1) into (F), (G), (I), (J), (K) & (L) as illustrated.

3.2 Insert (3) into (F) & (G) as illustrated.

systembuild.com

3 ×2 Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK
